GB60 MODEL HIGHLIGHTS
LENGTH
20.37 M / 66' 10"
BEAM
5.84 M / 19' 2"
CRUISE SPEED
26 KNOTS
TOP SPEED
31 KNOTS
CRUSING RANGE
761 NM @ 21 KNOTS
FUEL CONSUMPTION
42 G/H @ 21 KNOTS
GB60 MODEL RANGE
The Grand Banks 60 is available in Flybridge and Skylounge models. Both models offer a 19’1” beam, providing a wide range of customizable layout configurations, including your choice of three or four staterooms and options for separate up and down galleys.

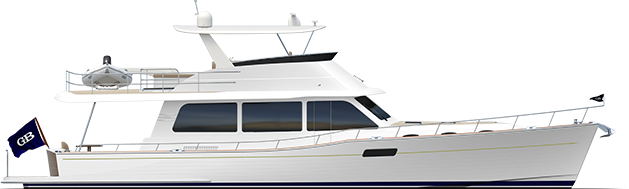

GB60 FLYBRIDGE MODEL
The Grand Bank 60 Flybridge model the 19’ 1" beam creates a sense of spaciousness that is ideal for long-distance cruising.and provides a wide range of customizable layout configurations,GB60 SKYLOUNGE MODEL
The Grand Banks 60 Skylounge increases internal space by enclosing the upper deck to provide a spacious, luxurious, climate-control led room with a view.GB60 SPECIFICATIONS
TECHNICAL
- Length Overall 66’ 10” 20.37 M
- Length On Deck 60’ 18.3 M
- Beam 19’ 2” 5.84 M
- Displacement (Half Load) 69,500 LBS 31,500 KG
CAPACITY
- Fuel Capacity 1,532 GAL 5,800 L
- Water Capacity 291 GAL 1,100 L
- Holding Tank 79 GAL 300 L
ENGINES - STANDARD
- 2 X Volvo D13 Shafts @ 900hp
- Top Speed 31 KNOTS
- Cruising Speed 26 KNOTS
- Range 761 NM / 42 GPH / 21 KN
- Draft 4’ 3” 1.3 M
ENGINES - OPTIONAL
- 2 X Volvo IPS 1200S @ 900hp
- Top Speed 33 KNOTS
- Cruising Speed 30 KNOTS
- Range 834 NM / 39 GPH / 21 KN
- Draft 4’ 2” 1.28 M
- 2 X Volvo D13 Shafts @ 1,000hp
- Top Speed 33 KNOTS
- Cruising Speed 28 KNOTS
- Range 858 NM / 38 GPH / 21 KN
- Draft 4’ 3” 1.3 M
DESIGN
GB60 EXTERIOR
The classic silhouette of the Grand Banks, complemented by a gracefully curved sheer line and an innovative hull design and construction process, provides a sophisticated profile that enhances aesthetics while also ensuring optimal performance and fuel efficiency. Expansive decks offer ample space for relaxation and entertaining, featuring wide side decks with high bulwarks and handholds, as well as an extended boat deck that shelters the aft deck from the elements. Careful attention to detail in the craftsmanship showcases the yacht's luxurious appeal, exemplifying the perfect blend of timeless elegance and functionality.
GB60 INTERIOR
Our interiors are a reminder that timeless elegance, indulgent luxury, and practical seamanship can all co-exist equally. The handcrafted wood finishes created by artisans, fine fabrics and leathers sewn by our own in-house upholstery team, and custom fit and finish to each owner's desires all combine to create a yacht that cannot be achieved by any other builder. Designed and engineered for enhanced rigidity by fusing the bulkheads and fixed furniture with the hull, our yachts feature meticulously planned internal layouts during the early design stages. This allows for flexibility in galley placement and stateroom configurations to optimize space utilization and storage. Our craftsmen take great care to ensure that every inch of the yacht is thoughtfully designed to enhance your enjoyment onboard.
