GB54 MODEL HIGHLIGHTS
LENGTH
18.41 M / 60' 5"
BEAM
5.4 M / 17' 7"
CRUISE SPEED
26 KNOTS
TOP SPEED
29 KNOTS
CRUSING RANGE
490 NM @ 21 KNOTS
FUEL CONSUMPTION
40 G/H @ 21 KNOTS
GB54 MODEL RANGE
The Grand Banks 54 is available in Sedan and Flybridge models, offering customizable layout options for two or three staterooms. Depending on your preference, the galley can be positioned on the main deck for easy access and social interaction, or you may opt for a down galley, which provides a more dedicated and separate cooking area. Each configuration includes a spacious, beautifully appointed master suite and a double VIP cabin.

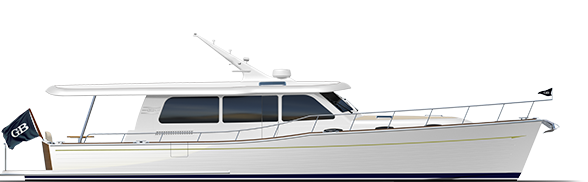

GB54 SEDAN MODEL

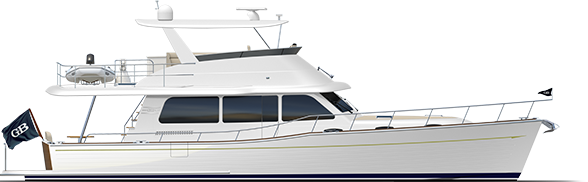

GB54 FLYBRIDGE MODEL
GB54 SPECIFICATIONS
TECHNICAL
- Length Overall 60’ 5” 18.41 M
- Length On Deck 53’ 10” 16.4 M
- Beam 17’ 7” 5.4 M
- Displacement 56,229 LBS 25,500 KGS
CAPACITY
- Fuel Capacity 925 GAL 3,500 L
- Water Capacity 264 GAL 1,000 L
- Holding Tank 66 GAL 250 L
ENGINES - STANDARD
- 2 X Volvo D11 Shafts @ 725hp
- Top Speed 29 KNOTS
- Cruising Speed 26 KNOTS
- Range 490 NM / 40 GPH / 21 KN
- Draft 4’ 1.21 M
ENGINES - OPTIONAL
- 2 X Volvo D13 Shafts @ 900hp
- Top Speed 32 KNOTS
- Cruising Speed 27 KNOTS
- Range 462 NM / 42 GPH / 21 KN
- Draft 4’ 3” 1.3 M
- 2 X Volvo IPS 800S @ 600hp
- Top Speed 25 KNOTS
- Cruising Speed 18 KNOTS
- Range 459 NM / 42 GPH / 21 KN
- Draft 3’ 7” 1.09 M
DESIGN
GB54 EXTERIOR
The classic silhouette of the Grand Banks, complemented by a gracefully curved sheer line and an innovative hull design and construction process, provides a sophisticated profile that enhances aesthetics while also ensuring optimal performance and fuel efficiency. Expansive decks offer ample space for relaxation and entertaining, featuring wide side decks with high bulwarks and handholds, as well as an extended boat deck that shelters the aft deck from the elements. Careful attention to detail in the craftsmanship showcases the yacht's luxurious appeal, exemplifying the perfect blend of timeless elegance and functionality.
GB54 INTERIOR
Our interiors are a reminder that timeless elegance, indulgent luxury, and practical seamanship can all co-exist equally. The handcrafted wood finishes created by artisans, fine fabrics and leathers sewn by our own in-house upholstery team, and custom fit and finish to each owner's desires all combine to create a yacht that cannot be achieved by any other builder. Designed and engineered for enhanced rigidity by fusing the bulkheads and fixed furniture with the hull, our yachts feature meticulously planned internal layouts during the early design stages. This allows for flexibility in galley placement and stateroom configurations to optimize space utilization and storage. Our craftsmen take great care to ensure that every inch of the yacht is thoughtfully designed to enhance your enjoyment onboard.
