DEFIANCE Specifications

Walkthrough

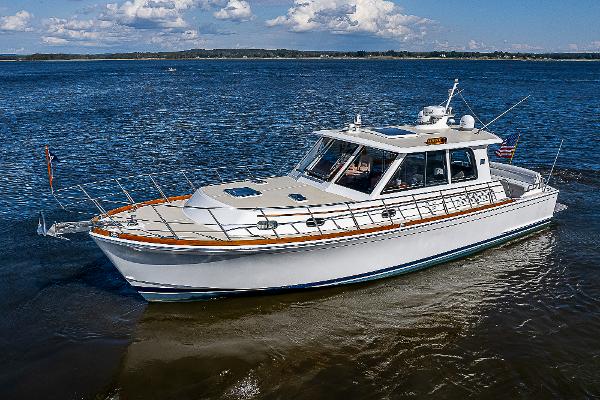

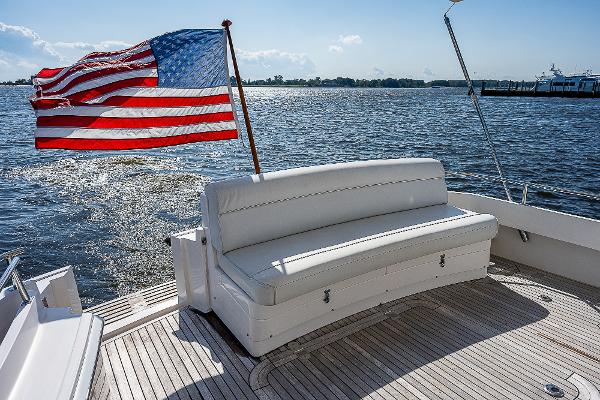

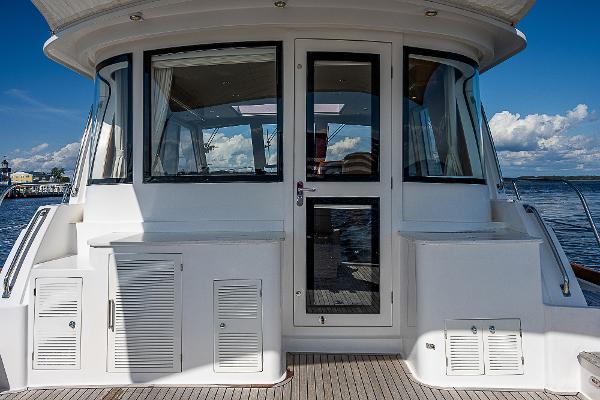

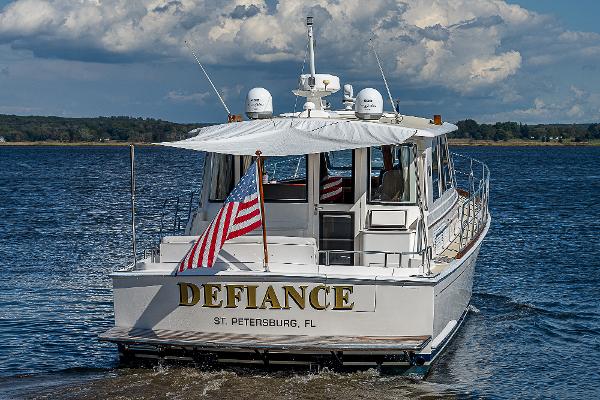

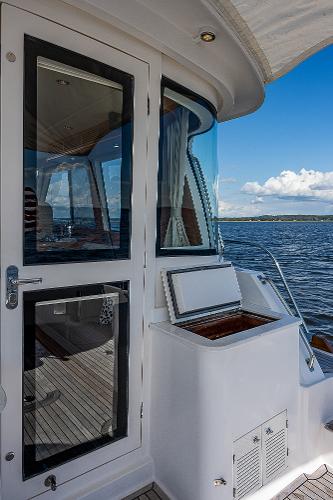

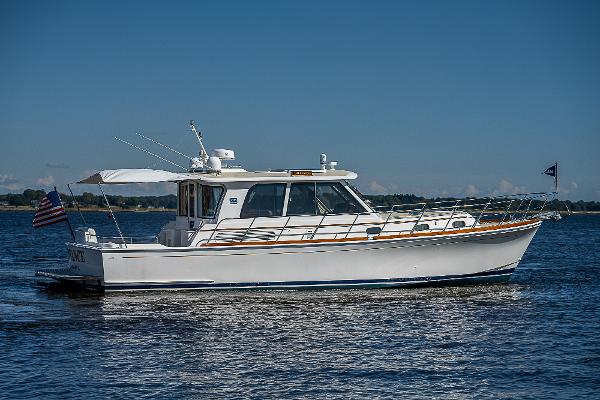

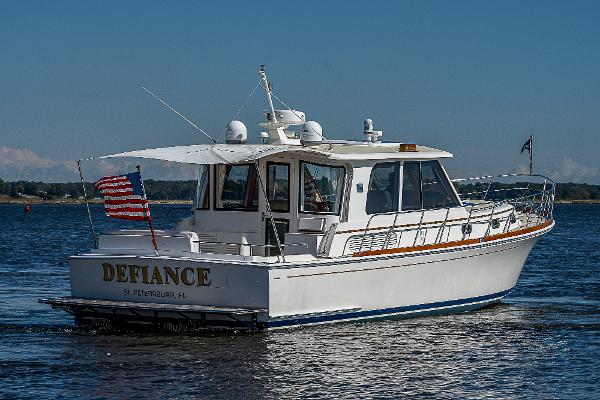

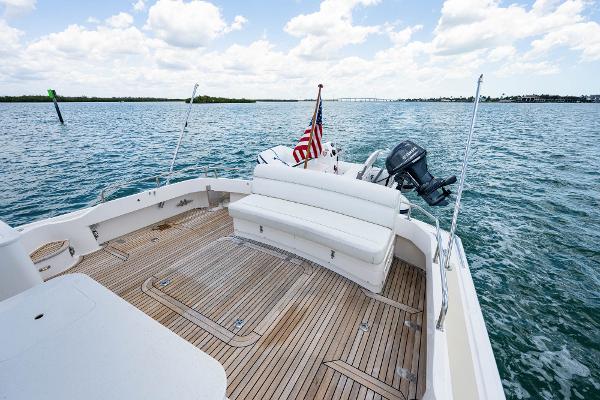

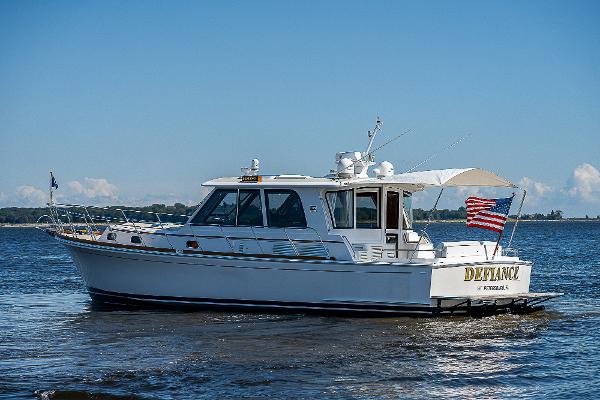

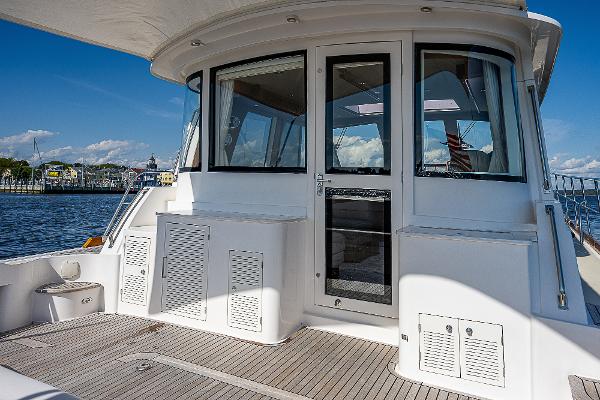

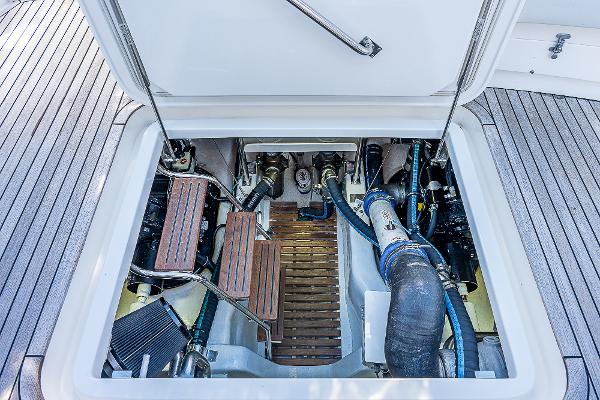

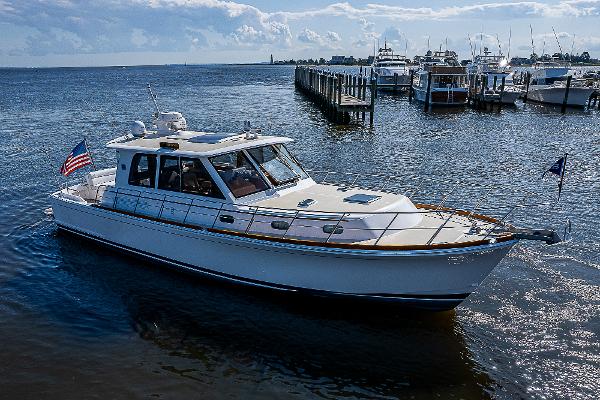

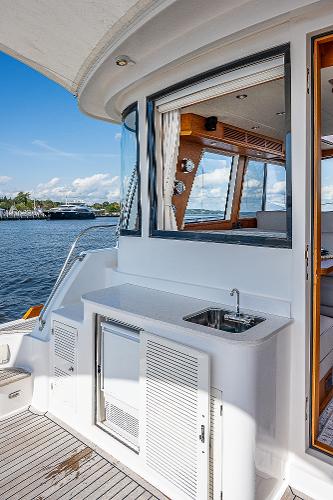

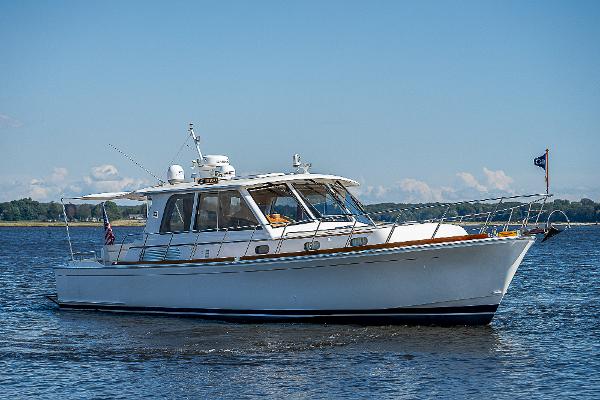

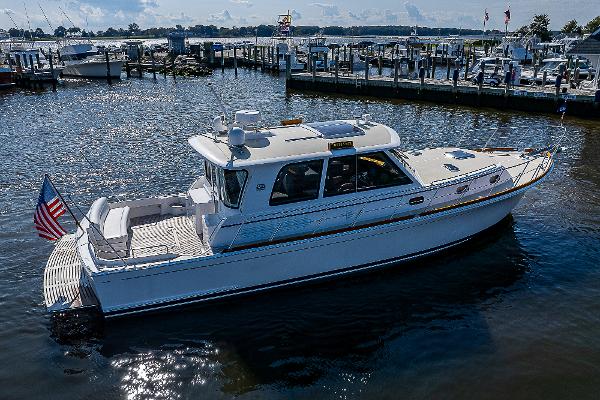

Walk onboard this fantastic 2012 model Eastbay 46 SX, DEFIANCE, onto the spacious cockpit. She features built-in seating aft and a wet bar forward equipped with an icemaker, sink, ice box and storage. The engine room is located through a large hatch in the cockpit.

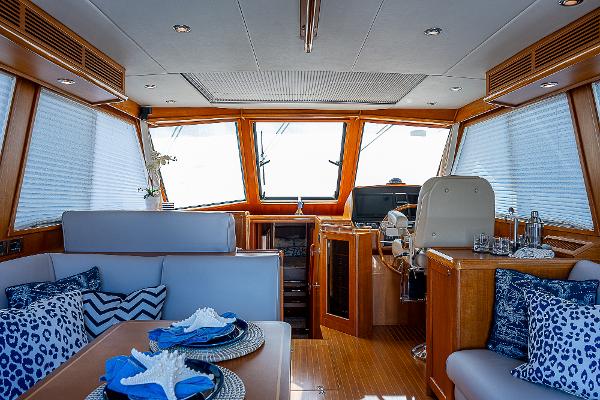

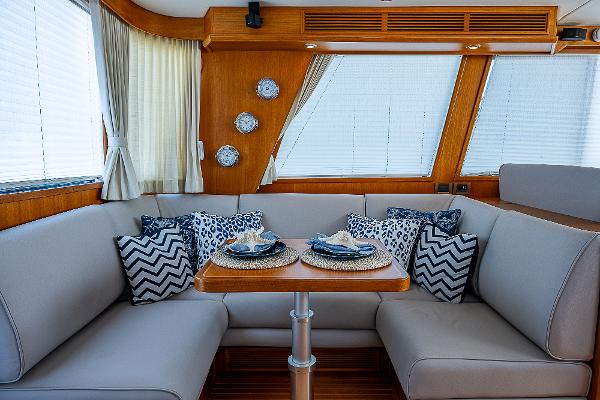

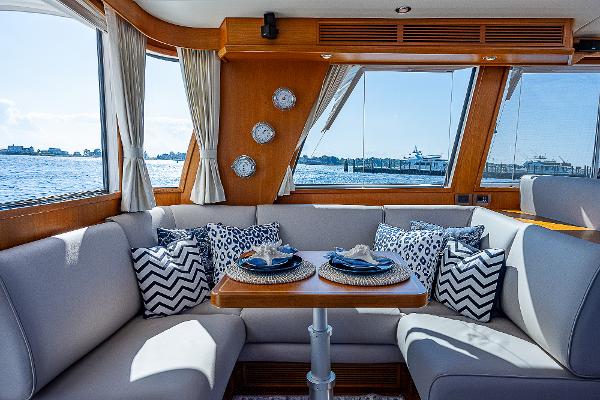

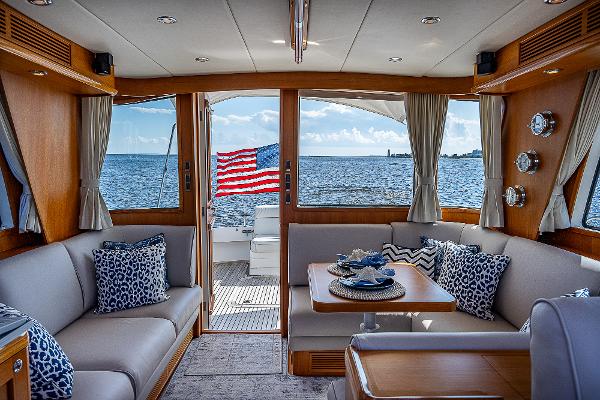

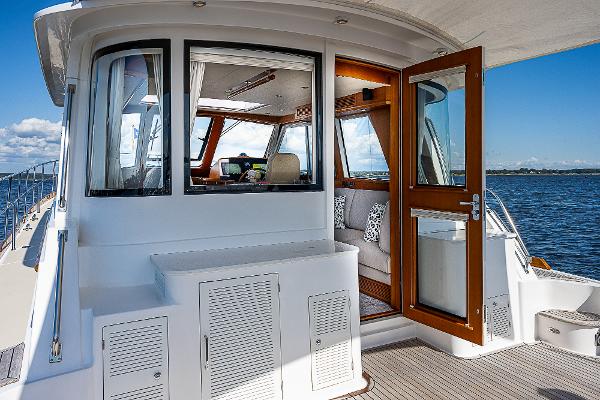

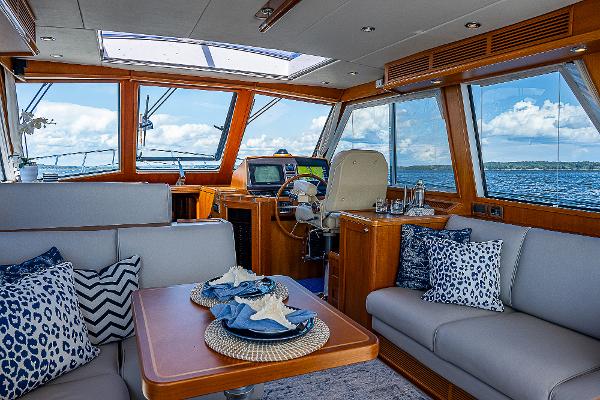

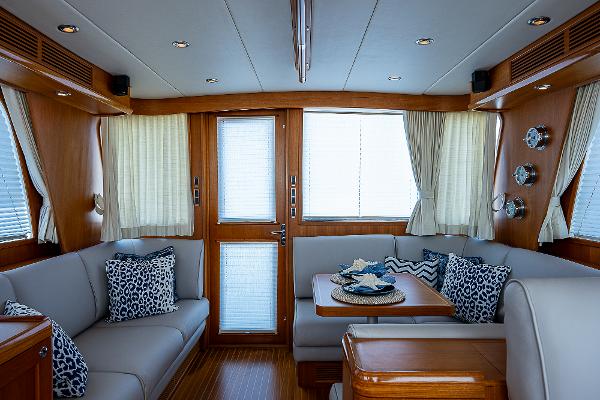

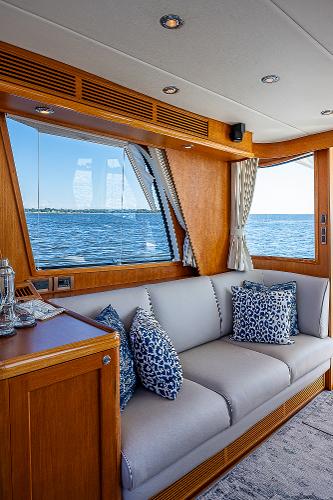

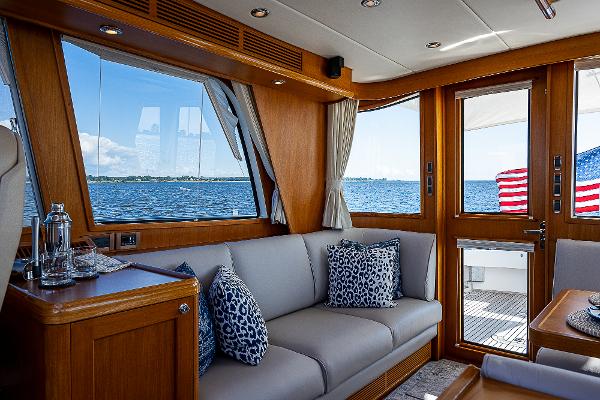

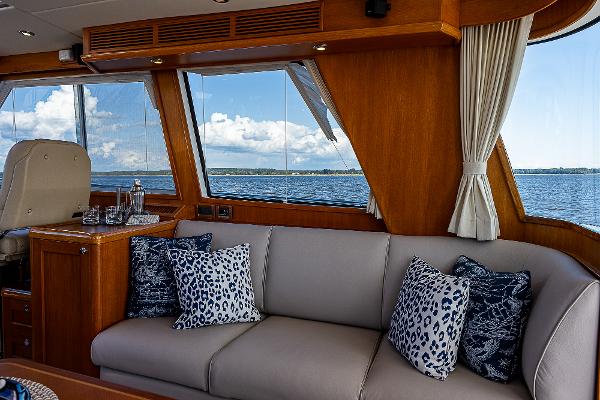

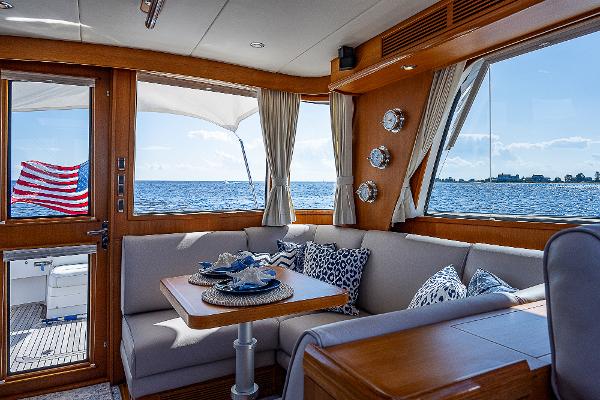

Enter the salon through the single hinge two-panel glass door into the open and bright main deck of this 46 SX featuring a gorgeous satin teak interior with teak and holly sole throughout. There is a straight settee to starboard and a U-shaped settee to port with Hi-Lo electric teak table. This converts into a berth by lowering the table and inserting a separate cushion. What a great feature when more space is needed for guests!

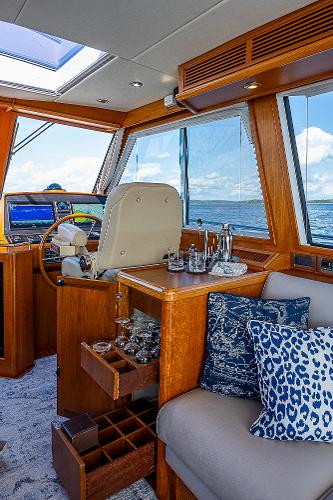

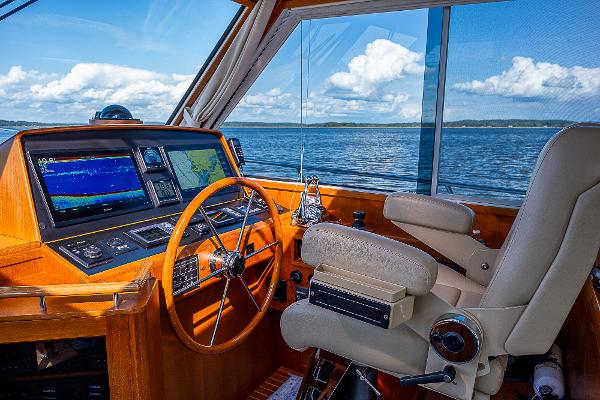

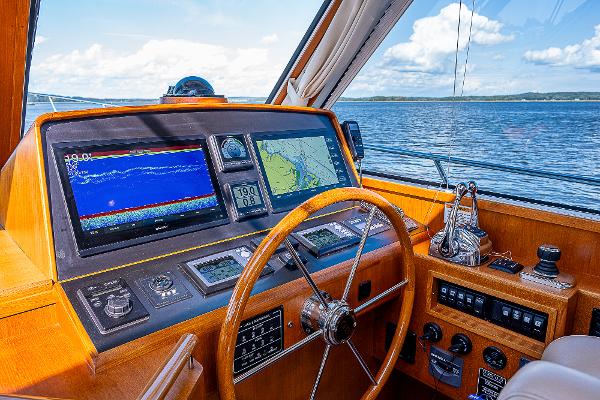

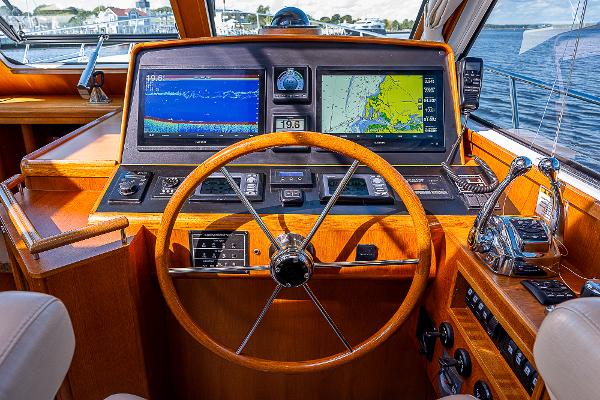

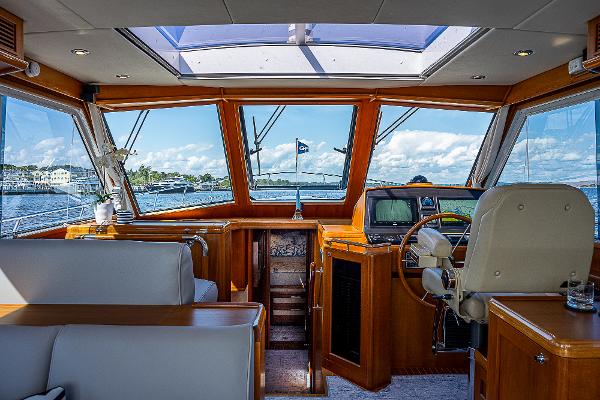

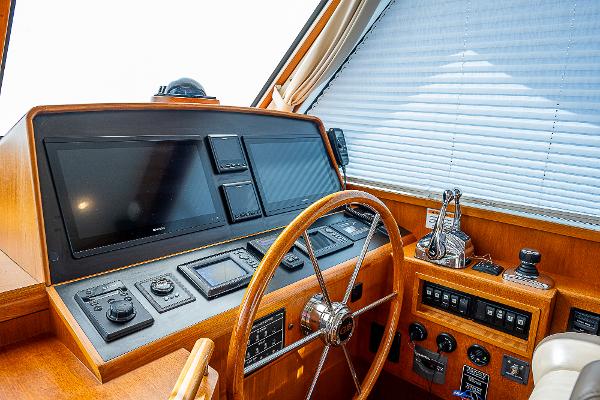

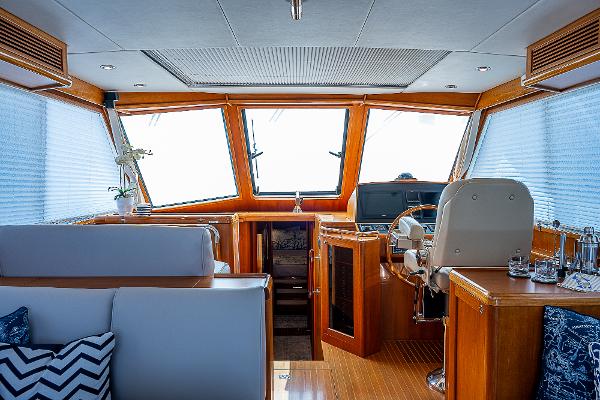

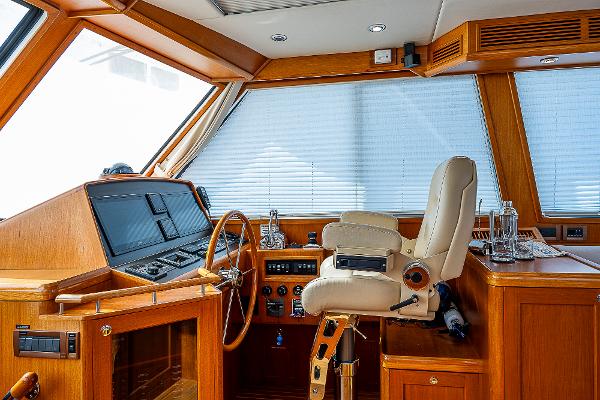

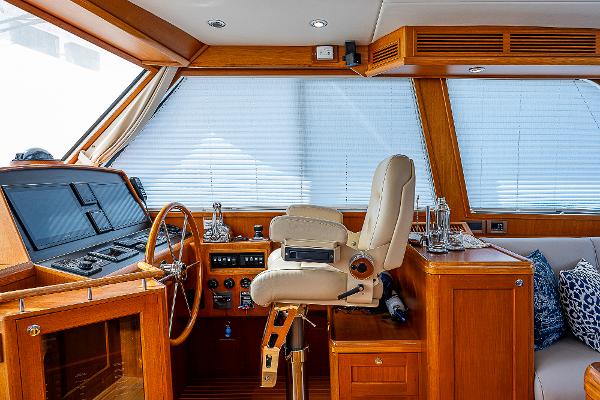

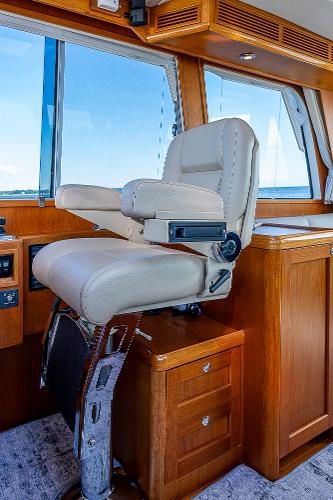

The helm station is to starboard forward and features a STIDD helmseat with footrest, large traditional teak and stainless steering wheel, all new Garmin Electronics Package (see Electronics & Entertainment section below for a full overview), engine and joystick control & much more.

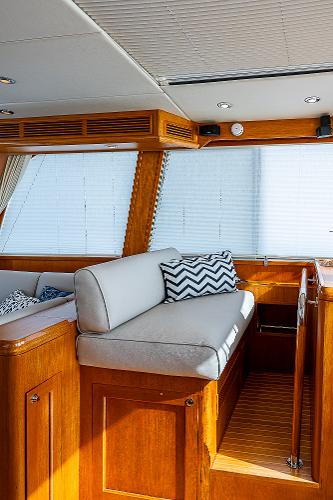

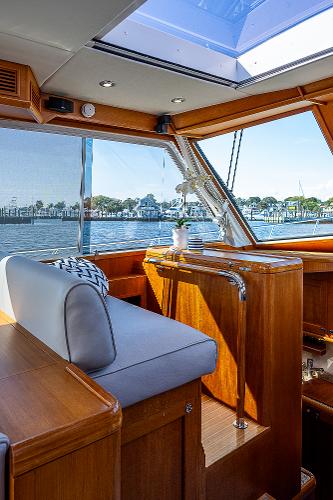

Across from the lower helm station to the port side is the companion helmseat with grab rail, cup holders and chart locker with fold-out table.

There are two manual opening windows in the salon; forward port & starboard. The forward left windshield opens electrically as well as the aft port window. There is a sunroof that also opens by the push of a button for maximum airflow on this main deck! Salon windows and sunroof are equipped with accordion shades for privacy and to protect the interior wood from the sun.

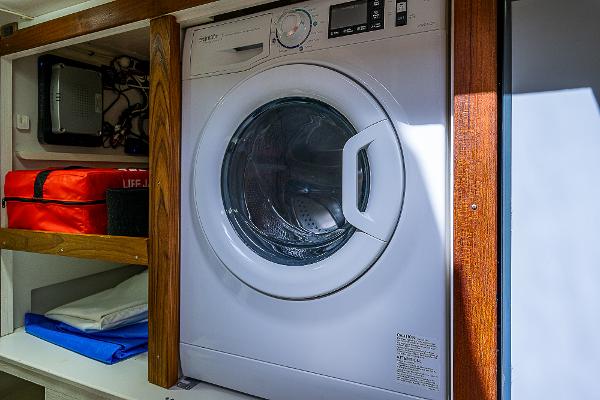

Just before you take the steps down below there is a hatch in the salon sole which opens up into a large storage area. There is a freezer unit and plentiful space for extra storage or washer dryer.

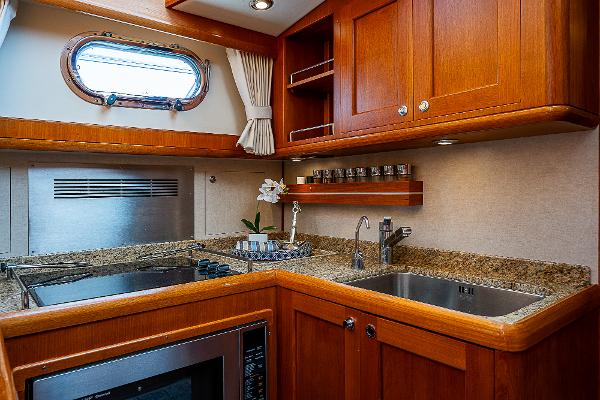

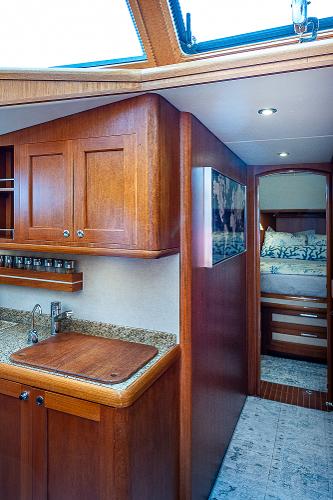

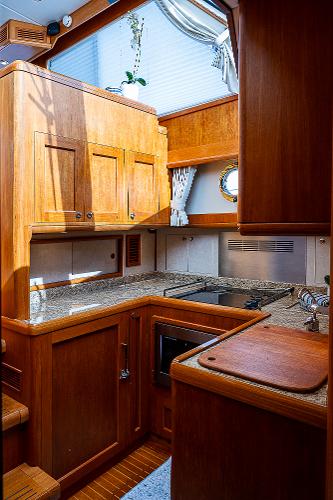

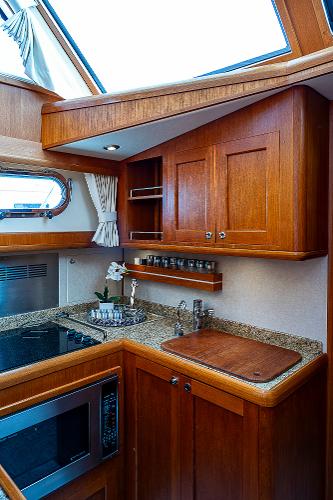

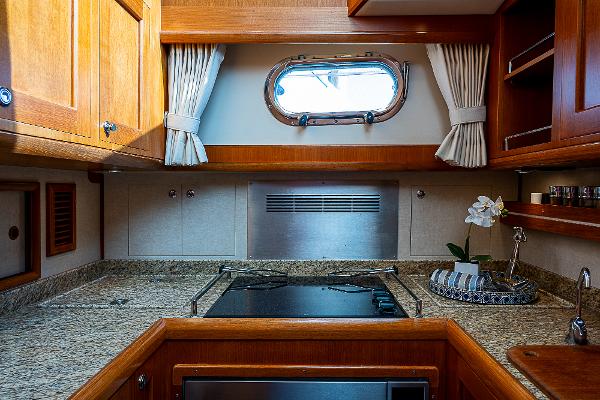

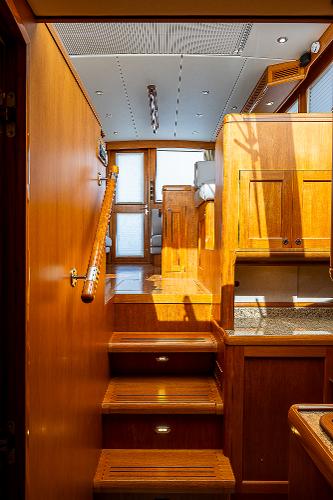

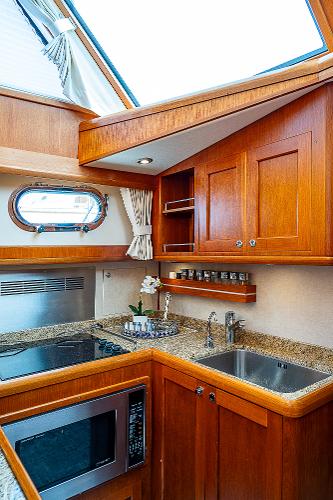

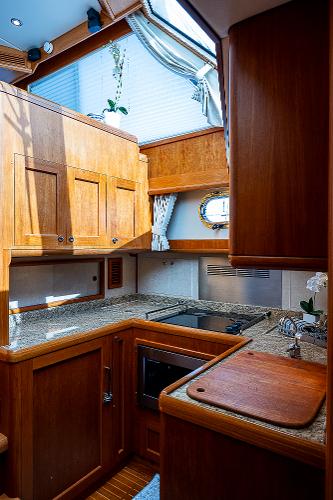

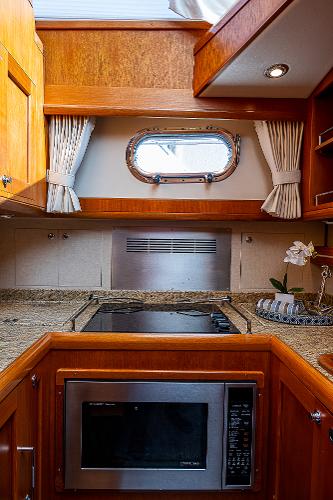

Go below to the galley and accommodations via 4 steps down. To port is a wonderful U-shaped galley with plentiful storage cabinets and drawers, 3-burner cooktop, microwave/convection oven, two-sided stainless steel sink, large refrigerator and deep chest freezer.

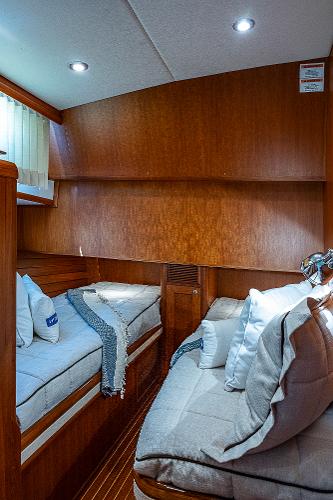

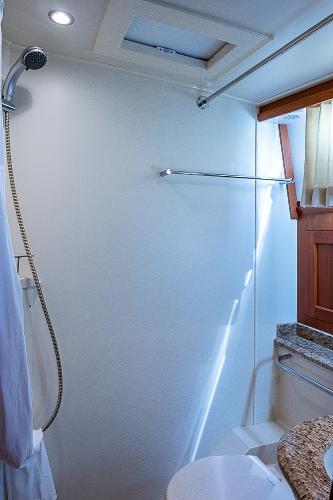

To starboard across the companionway from the galley is the guest stateroom featuring side-by-side twin berths. The en suite head is forward and features a wet head style shower with a wraparound curtain. There is also access from the companionway to be used as a day head.

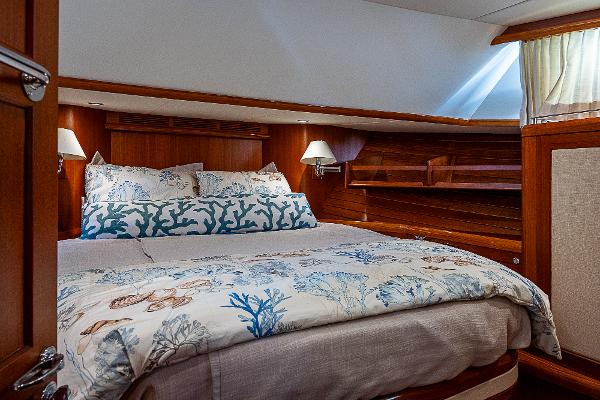

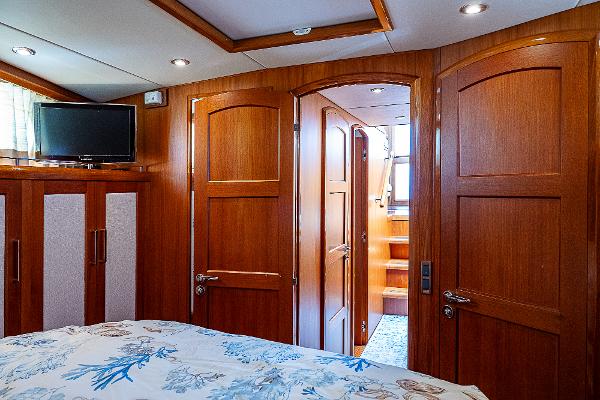

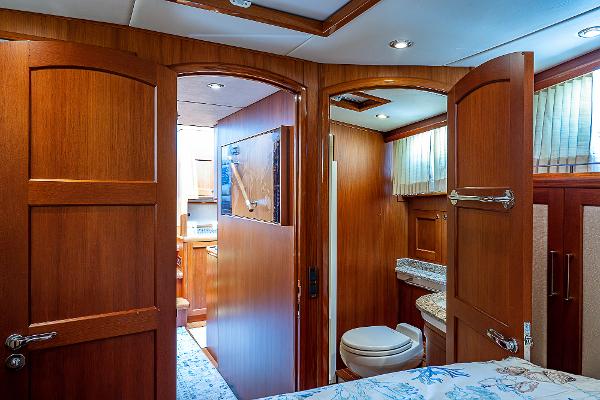

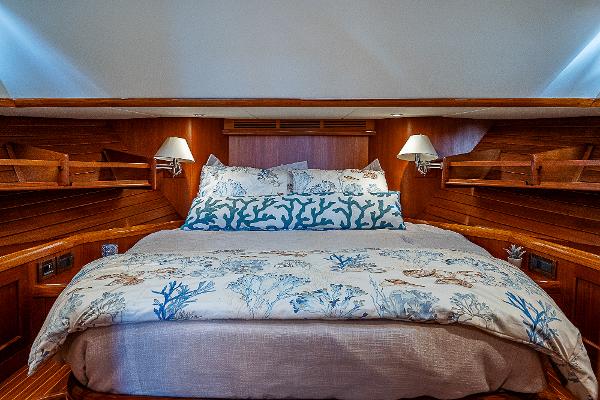

The master stateroom sits comfortably forward with an easily accessible queen berth, private en suite head and separate stall shower, storage drawers under berth, cabinets and hanging lockers, full length mirror, overhead hatch and port holes for natural light and more! This stateroom is very comfortable for extended cruises!

Construction

Fiberglass outer skin: gel-coated, Cook Composites & Polymers Fiberglass: hand-laid Hull barrier: epoxy undercoat, International Hull gelcoat color: painted Awl-Grip, "GB White", Optional Upgrade Hull boot stripe: painted "Flag Blue" with "Pale Gold" cove stripe; Re-painted Feb 2021 Hull lamination: Hydrex resin skin coat, Reichold  Hull structural grid: fiberglass and foam Hull: composite, fully cored, w/cross-linked high density PVC foam core Quarter guard: FRP molded, with stainless steel rubrail Structural bulkheads: composite, partially watertight (2)

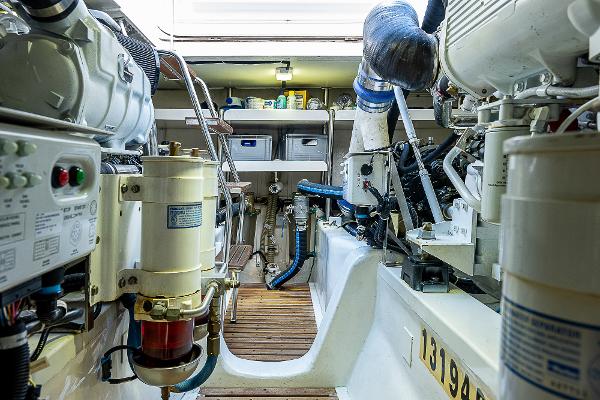

Engine & Mechanical Equipment

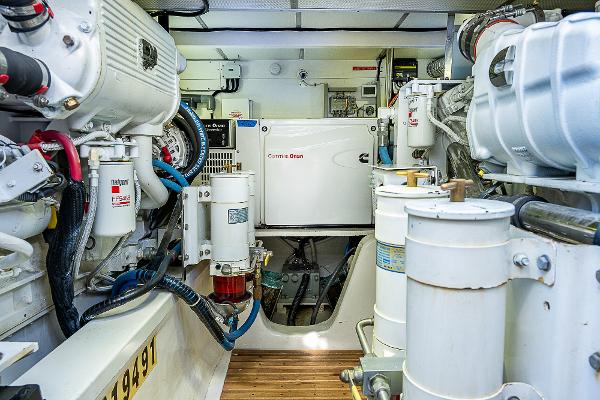

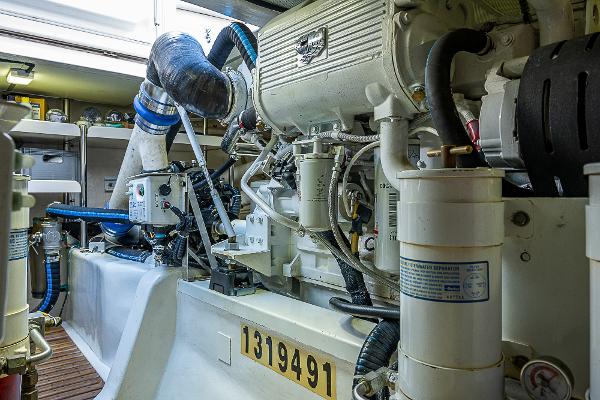

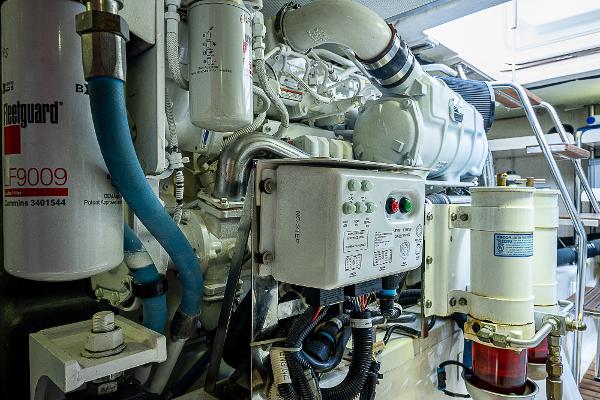

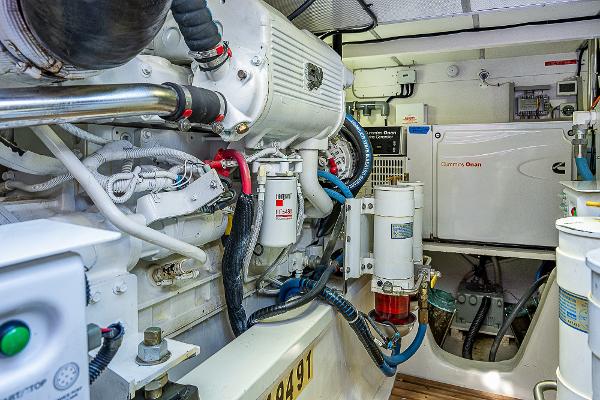

Twin Cummins QSC 8.3 600hp with Zeus Drive, Optional Upgrade; with 783 hours as of 23 October 2023 Ball valves and thru hull fittings above waterline: bronze housings, chrome valves, Groco Engine controls: Cummins, electric control system and joystick docking system Engine raw water intake strainers: Groco seawater filter kits SD-2500-S Engine room faucet: freshwater, cold only Engine room: teak slats Engine room sound insulation: fiberglass wool, composite panels Exhaust system: underwater through propeller hub, and idle bypass muffler Fire extinguisher: in engine room, with engine-generator-blower shut down and override control, Fireboy Freshwater regulator: complete with hose fittings at cockpit, Optional Upgrade Fuel filters: Racor water separators on each engine (duplex) and generator (single) Fuel tanks: two crosslink polyethylene (XLPE) tanks, baffled, total 500 US gallons capacity Generator exhaust system: with gas/water separator, Centek Oil change system: Groco pump, DC, Model G-3, with quick disconnect fittings Propellers: counter rotating, stainless steel (included in Zeus) Steering: electric/hydraulic (integral with Zeus) Water purification system: Seagull IV X-1F microbiological purifier with faucet, in galley Water tank: aluminum tank, baffled, 145 US gallons capacity Watermaker: preparation only (3) New Monoxide detectors, Upgrade (3) New Fire Alarms, linked, Upgrade New Groco Main Seawater Intake Filters, Upgrade Pods serviced and seals replaced, both port & starboard, Upgrade Engine & Pod Zincs replaced, Upgrade Oil changed after 100 hours, Upgrade New Spare Water Pump, inc. filters & liquids, Upgrade

Electrical Equipment

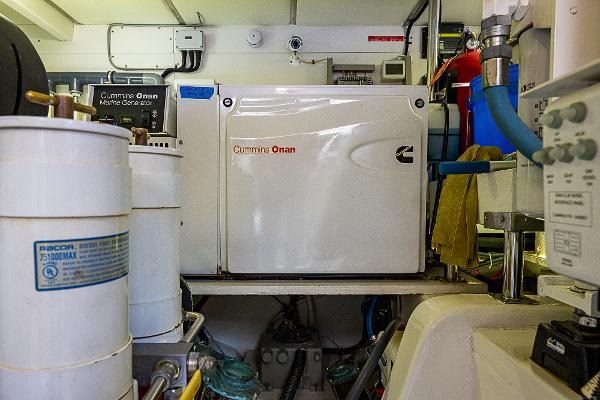

Air Conditioning System: Dometic, NEW 2021, Upgrade Generator: Onan with sound shield, 11.5kW, 60Hz #MDKBM e-QD Series, Optional Upgrade Dynamic Positioning System: Activate Zeus System with GPS Interface (known as Skyhook), Optional Upgrade Air horn: DC, dual "trumpets", AFI Marine (4) New Batteries; two (2) 8DL and two (2) 4DL, Upgrade Batteries: Engines: (1) 12V bank, made of (2) units AGM Lifeline, 12V, 210Ah, with fiberglass boxes, lids and straps Batteries: Service: (1) 12V bank, made of (2) units AGM Lifeline, 12V, 255Ah, with fiberglass boxes, lids and straps Battery: Generator: (1) unit AGM Lifeline, 12V, 105Ah, with fiberglass box, lid and strap Battery charger: Mastervolt ChargeMaster 12/100-3, 12V, 100A, automatic Battery condition indicator: BEP, at electrical panel Battery disconnect switches: BEP, remote motorized Battery paralleling: BEP, dual sensing Voltage Sensitive Relay (VSR), 300A Bonding system: zinc anodes, on raw water cooling systems and heat exchangers Carbon monoxide detectors: in sleeping areas and salon, Seafire Marine DC outlet: 12V, one unit at helm Distribution panels: AC/DC, BEP Engine gauges and instrumentation: Cummins, one Vessel View display at helm Engine room lights: DC, LED, Hella Marine Engine room ventilation: two blowers, DC, Delta "T" Engine start/stop: at helm Freshwater system: pressurized, DC, Shurflo Galvanic isolator: Prosafe Holding tank - black water: polyethylene, 60 US gallons capacity, deck fitting for dockside pumpout, equipped with direct discharge pump, DC, SeaLand Sani Pump T12 Holding tank - level indicator: Dometic Sealand, model DTM, at helm station Navigation lights: DC, LED, Hella Marine Outlets: AC, with GFCI protection, Vimar Shorepower inlet aft: Glendinning Cablemaster, 1 x 50A, 75-ft. white cord, Optional Upgrade Tank monitoring: gauges for fuel and water tanks, display at helm, Smart Switch TD4000 Water heater: AC, 20 US gallons capacity, Seaward H-2050W Windshield wipers: washers, intermittent-low-medium-high speeds, electronic touch control panel, Exalto Wiring: marine-grade tin-plated copper

Exterior Equipment

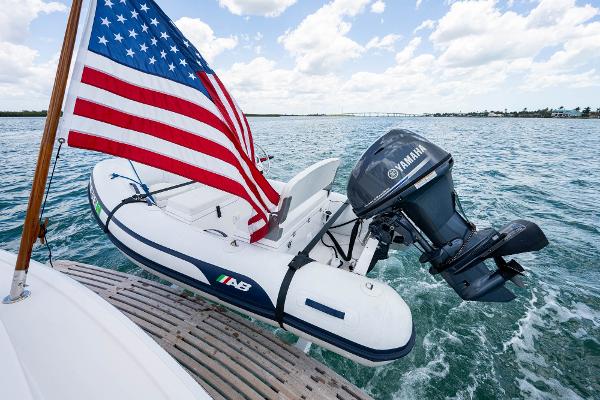

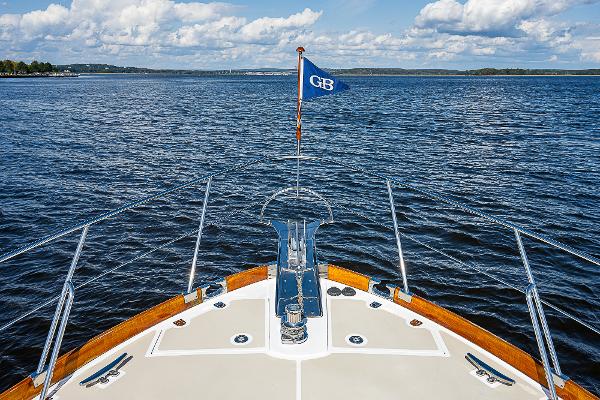

New AB 10VSX left console tender with Bimini top & Yamaha 30hp outboard, Upgrade New hydraulic Freedom Lift for tender, Upgrade Custom Canvas Cover for tender, Upgrade New 65-lb. Mantus Anchor, Upgrade Anchor & chain: (1) Ultra Marine stainless steel Anchor (77lb) mirror polished finishing with 80-meter hot-dipped galvanized chain and stainless steel swivel shackle, Optional Upgrade Anchor chain locker: with partition for rope and chain, self-draining Anchor platform: stainless steel, single stainless steel roller Anodes: aluminum, hull and Zeus pods Cabin top: painted non-skid, Awlgrip, "Moondust" color Cleats: for fenders, stainless steel, pop-up, (2) units, at cockpit coaming Cleats: for mooring, stainless steel, fixed Courtesy & overhead lights: LED, Hella Marine Deck fills: fuel, water and waste pumpout; at side decks Decking: side and forward decks, painted non-skid, Awlgrip, "Moondust" color Exterior lockers & settees matting: 3M 9100T Entrap, Z-web vinyl ridges, "grey" color Flag poles: varnished teak, with stainless steel holders at bow and stern Foredeck lockers: port and starboard Freshwater washdown: with quick disconnect outlet, at bow, including one hose and spray nozzle Grab rails: stainless steel Hardtop: painted non-skid, Awlgrip, "GB White" color Mast: aluminum, painted, fixed, low profile on fiberglass base, with radar bracket (for radome antenna), spreaders Navigation light boards: varnished teak, port and starboard Rubrail: heavy-duty vinyl, stainless steel insert profile Safety rails: at main deck, 1 1/8" diameter round profile stainless steel, with intermediate rail Saltwater washdown: with outlet at bow complete with fittings, hose and spray nozzle, Optional Upgrade Skylight hatches: Manship, stainless steel Swim ladder: stainless steel, collapsible/sectional, mounted under swim platform Swim platform: teak, 15 slats (35") Teak trims: varnished teak trims around housetop eyebrow, Optional Upgrade Toe rail: varnished teak, Z Spar 1015 Captain's Varnish Windlass: DC, vertical gypsy and capstan, chain/rode, low profile, Maxwell VWC1500 Windows - Salon: opening, with screens, port and starboard Windows: grey tempered glass at salon sides, clear tempered glass at salon front, fritted, bonded in place Windshield: left opening, tempered glass, with electric actuator

Cockpit / Aft Deck

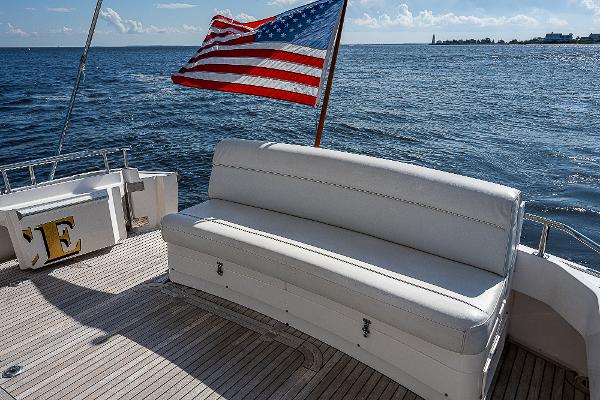

New folding Teak Dining/Cocktail Table with two (2) folding Teak chairs, Upgrade New Icemaker for Cockpit, at cockpit wetbar, Upgrade Cleats: pop-up dinghy cleats, (1) unit at each corner of swim platform, Optional Upgrade Cockpit seat: L-settee with cushions Soft Dura "Extra Off White" with self-piping; underseat storage; canvas covers in Sunbrella "Toast", Optional Upgrade Decking: solid teak, epoxy bonded, TDS System Engine room access: pneumatic deck hatch, stainless steel ladder Self-draining cockpit: stainless steel drains, one each port and starboard Shower: hand-held, in cockpit, with retractable hose, hot & cold Table: custom designed cockpit table with foldable teak table top and special mounted fixed stainless steel pedestal; removable, Optional Upgrade Transom door: hinged, opening inwards, solid fiberglass, with latch

Helm Area

Chart locker: teak, on port side of helm station Companion seat: built-in, straight, to port Compass: flush mounted on top of electronics console, Ritchie Electronics console: teak body and instrument panel Electronics overhead console: teak, with removable panels Helmseat: STIDD Admiral Low Back, with deluxe chrome package and cupholder, on sliders Steering wheel: stainless steel, teak rimmed

Electronics & Entertainment

Complete New Garmin Electronics package in Custom Helm Panel including:

Two Garmin 8616 16’’ MFD Touch Displays w/Bluechart G3 Two Garmin GMI 20 4" Color Multi-data Displays Garmin AIS 800 class B/SO AIS Transceiver Garmin GPS 38 AIS GPS Antenna Garmin GXM 54 SAT XM Weather w/Audio Tuner connected to Bose stereo Garmin GPS 19X Antenna Garmin Fantom 24 24" Dome 40W Motionscope Doppler dual range color Radar  Garmin VHF 315 BB marine full feature VHF w/DSC Garmin GC 10 micro analog eyeball Camera Garmin USB compact card reader Newmar PA 30 Hailer Horn (2) Digital 529-VW 8" 6db premium marine VHF Antennas Algean LD700 Dual Band mimo wireless bridge router w/POE Linksys Nighthawk AC 2200 tri-band mimo wireless high power router Integration with existing steering autopilot system Integration with existing FLIR system Integration with existing Camera system Entertainment: KVH TV3 14.5" Marine Satellite TV System KVH TV3 dummy dome DTV H24 Satellite Receiver w/RF remote Entertainment system: Fusion #Ms-AV700i Marine DVD Stereo system with (4) units speakers at salon, (2) units speakers at cockpit, (1) unit Fusion uni-dock for iPod/iPhone devices, (1) unit Marine Bluetooth module, (1) unit Fusion wired remote control, and (1) unit Fusion Subwoofer at salon, Optional Upgrade

Salon

Sunroof: Webasto sunroof with electric DC motor complete with retractable blinds, Optional Upgrade Door - aft deckhouse: Custom designed 2-panel single hinge door, interior teak inlay, Optional Upgrade Retractable screen: (2) units left joint retractable privacy screen for aft door, Optional Upgrade Settee to port: U-shaped, under-seat storage drawers Settee to starboard: straight, under-seat storage drawers Skylight hatches: two, at hardtop, with Oceanair screens and shades Table: teak, flat top with pattern and maple inlay, flip-up leaves, fixed stainless steel pedestal TV cabinet: powered Manship pop-up TV lift Windows: opening, with screens, port and starboard Yacht Table: Custom new GB design yacht table with electric hi-lo pedestal and filler piece for berth conversion, Optional Upgrade

Galley

Cooktop: AC, three electric burners, Princess Gourmet Countertops: Granite "Giallo Topazio", Optional Upgrade Countertops with backsplash guard, varnished teak fiddles Exhaust blower: DC, 3" diameter, Jabsco 35115-0020 Faucet: Grohe, single lever, pull-out head with hose Freezer: top load access, 12V, Waeco CB36 Lockers: teak, storage Oven: microwave/convection oven, 110/120V, 60Hz, Sharp R930CS Refrigeration: Vitrifrigo 180 RFX, (2) refrigerator drawers, Optional Upgrade Sink: single bowl, stainless steel, Franke

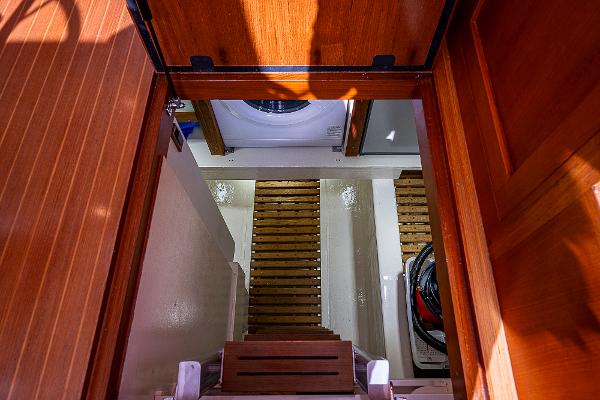

Utility Room

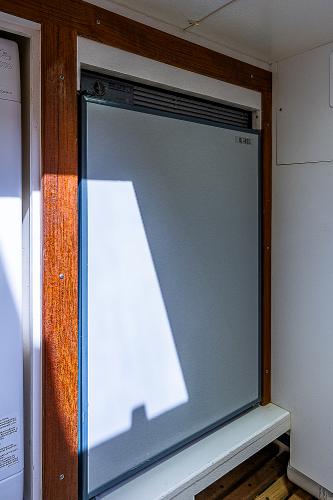

Access: from galley hatch with gas lift; aluminum ladder with teak treads Exhaust blower: DC, 3" diameter, Jabsco 35115-0020 Freezer: Vitrifrigo C110 BT front-loading Freezer at utility room port locker, Optional Upgrade Locker: storage Sole: teak slats, natural

Master Stateroom

Berth: island, with underberth storage drawers Cabinets: storage throughout Handing locker: cedar-lined, interior light Head and shower access: private en-suite Mattress: inner spring, 9 1/2" thickness, including pillow top with 2" memory foam Portholes: stainless steel, opening, smoked glass, with screens Reading lights: two units, DC Skylight hatch: Manship, smoked, with Oceanair screen and shade

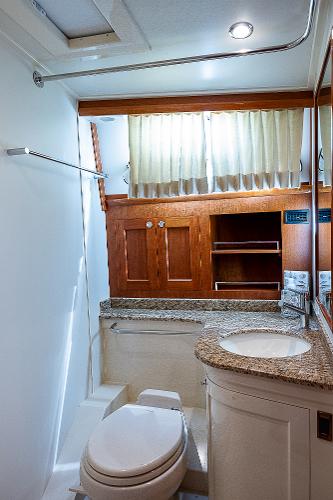

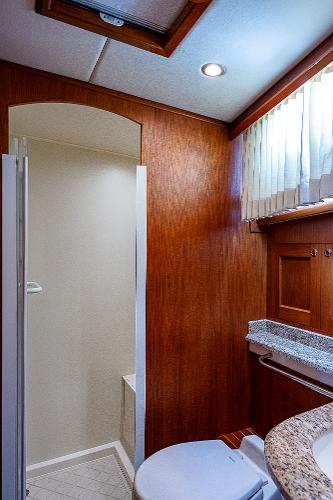

Master Head / Shower

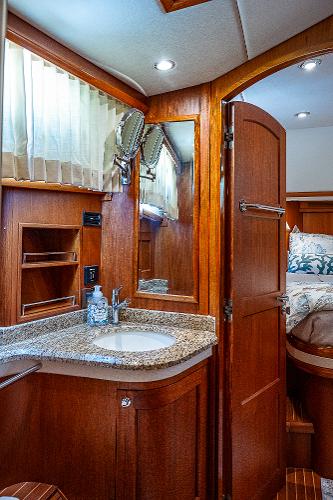

Cabinets: under-counter storage Countertops: Granite "Giallo Topazio", Optional Upgrade Exhaust blower: DC, Pelonis Mirror: above sink Porthole: stainless steel, opening, smoked glass, with screen Shower drain: Whale Gulper with 320 Gulper pump, DC Shower faucet: Grohe, mixer, hand-held Shower stall: separate cell, plexi doors, with teak slats shower pan Sink faucet: Grohe, single lever Sink: under-mount, porcelain Skylight hatch: Manship, smoked, with Oceanair screen and shade Toilet: SeaLand Vacuflush, freshwater flush through vacuum generator and pump Vanity: above-counter storage

Guest Stateroom

Berth: twin singles, storage below Hanging locker: teak, cedar-lined, interior light Head access: en-suite Mattresses: inner spring, pillow top with memory foam Night table: teak, with drawer, between berths Porthole: stainless steel, opening, smoked glass, with screen Reading lights, two units, DC, LED

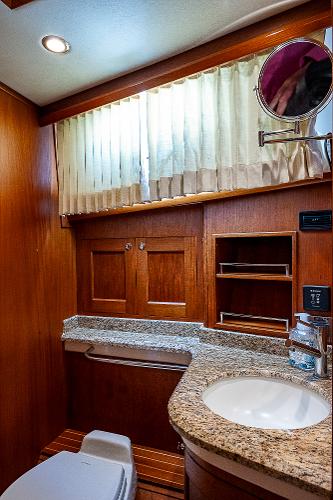

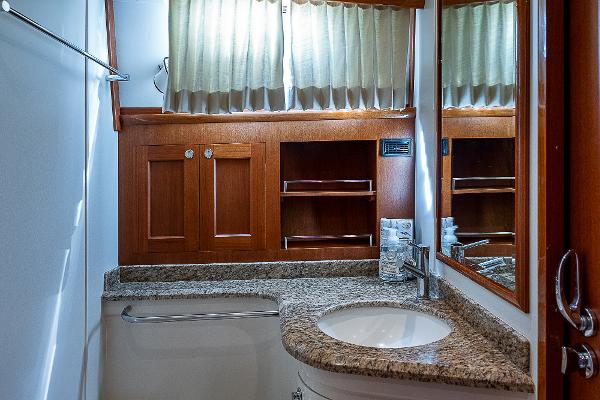

Guest Head / Shower

Cabinets: under-counter storage Countertops: Granite "Giallo Topazio", Optional Upgrade Exhaust blower: DC, Pelonis Mirror: above sink Portlight: stainless steel, opening, smoked glass, with screen Shower drain: Whale Gulper with 320 Gulper pump, DC Shower faucet: Grohe, mixer, hand-held Shower stall: combined with head, teak slats shower pan Sink faucet: Grohe, single lever Sink: under-mount, porcelain Skylight hatch: Manship, smoked, with Oceanair screen and shade Toilet: SeaLand Vacuflush, freshwater flush through vacuum generator and pump

Interior

46SX Standard Layout: (i) salon with U-settee to port, straight settee to starboard; (ii) helmseat and companion seat; (iii) down galley; (iv) two staterooms, forward Master with en-suite head & shower, guest stateroom, day head; (v) utility room Bulkheads: (i) teak veneer; (ii) Formica Cabin doors: teak, with raised panels, polished chrome lock sets Cabinet furniture: teak, raised panels Countertops - Galley & Heads: Granite "Giallo Topazio", Optional Upgrade Drawers: Blum, positive locks Drawers: teak faced with positive locks Grab rails: teak bars, stainless steel fittings Hardware: stainless steel and chrome Headlining: vinyl panels, foamed back, removable with Fast Mount System Hull ceiling sides: teak Interior varnish: satin marine finish, International Goldspar Satin Varnish Lighting: DC, LED, Cantalupi Lights: reading lights at berths Portlights: lower deck, opening, with screens, Manship Skylight hatch screen: Oceanair, with teak trim Sole - lower deck: teak & holly in staterooms, heads and companionway Sole - upper deck: teak & holly Steps: teak Steps anti-slip: custom rubber traction strips Switches & outlets: Vimar modular system, bronze covers Window treatments: Ocean-air accordion blinds and fabric curtains

Optional/Upgraded Equipment

Twin Cummins QSC 8.3 600hp with Zeus Drive Cummins ESC electronic readout Dynamic Positioning System: Activate Zeus System with GPS Interface (known as Skyhook) Hull gelcoat color: painted Awl-Grip, "GB White" Hull bootstripe: painted "Flag Blue" with "Pale Gold" cove stripe; Re-painted 2-2021 Freshwater regulator: complete with hose fittings at cockpit Shorepower inlet aft: Glendinning Cablemaster, 1 x 50A, 75-ft. white cord Dometic air conditioning, ALL NEW 2021 Icemaker: NEW 2021, at cockpit wetbar Generator: Onan with sound shield 11.5kW, 60Hz Entertainment system: Fusion #Ms-AV700i Marine DVD Stereo system with (4) units speakers at salon, (2) units speakers at cockpit, (1) unit Fusion uni-dock for iPod/iPhone devices, (1) unit Marine Bluetooth module, (1) unit Fusion wired remote control, and (1) unit Fusion Subwoofer at salon Window Covers Ocean Air Blinds Teak eyebrow trim Cockpit settee: molded fiberglass with cushions and storage beneath Sunroof: Webasto sunroof with electric DC motor complete with retractable blinds Door - aft deckhouse: Custom designed 2-panel single hinge door, interior teak inlay Retractable screen: (2) units left joint retractable privacy screen for aft door Yacht Table: Custom new GB design yacht table with electric hi-lo pedestal and filler piece for berth conversion Refrigeration: Vitrifrigo 180 RFX, (2) refrigerator drawers in Galley Freezer: Vitrifrigo C110 BT front-loading Freezer at port locker in Utility Room Countertops: Granite "Giallo Topazio" in Galley & Head

Upgrades & Updates

New custom carpeting in salon 7-2023 New interior décor with Leather on salon settees 7-2023 New bedding 7-2023 New searchlight 5-2023 Fresh bottom paint, prop speed and Freedom lift underwater paint 5-2023 Fresh hull & topside detailing and waxing 5-2023 New aftercoolers 1-2023 New 2022 AB 10VSX left console tender with Bimini top & Yamaha 30hp outboard New cockpit awning 10-2022 New combination washer/dryer at utility room 10-2022 New utility room shelves 10-2022 Fresh bottom paint & Prop speed 8-2022 New hydraulic Freedom dinghy Lift for tender 2021 Custom Canvas Cover for tender 2021 Complete New Garmin Electronics Package (see Electronics & Entertainment section for details) 2021 New folding Teak Dining/Cocktail Table with two (2) folding Teak chairs 2021 New Icemaker for Cockpit 2021 New 65-lb. Mantus Anchor 2021 (3) New Monoxide detectors 2021  (3) New Fire Alarms, linked 2021 (4) New Batteries; two (2) 8DL and two (2) 4DL 2021 New Groco Main Seawater Intake Filters 2021 Pods serviced and steering sector seals replaced, both port & starboard 2021 Engine & Pod Zincs replaced 2021 New Spare Water Pump, inc. filters & liquids 2021 Fresh bootstripe paint 2021 All new Dometic air conditioning throughout 2021 Fresh non-skid awl grip "Moondust" applied to her topsides 2021 Teak decks lightly sanded 2021

Exclusions

Owner's personal belongings. A complete list will be provided upon request.

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

Mechanical Disclaimer

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing.
