OSTINATO Specifications

WALKTHROUGH

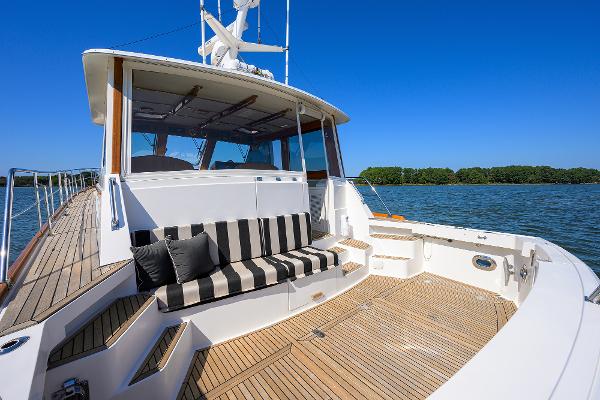

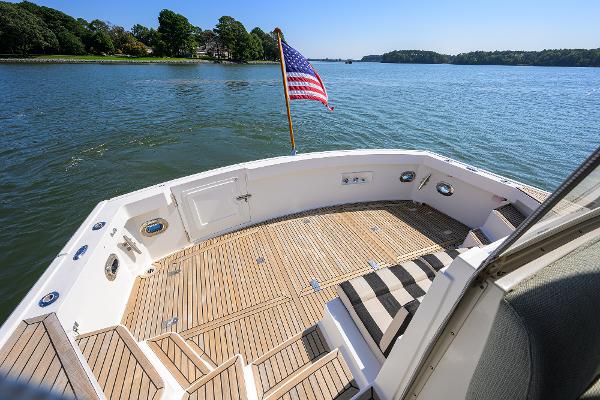

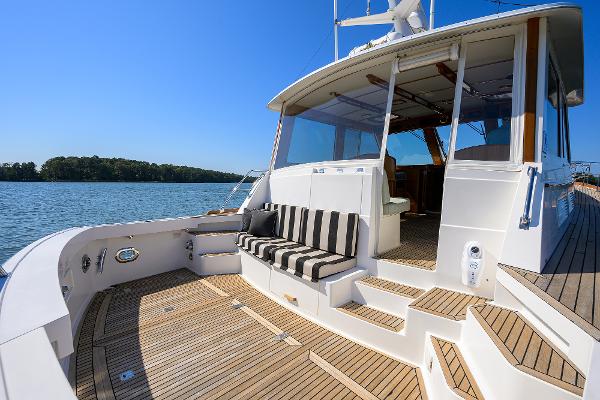

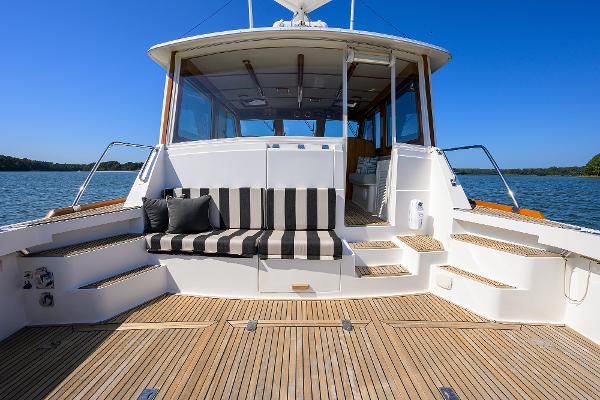

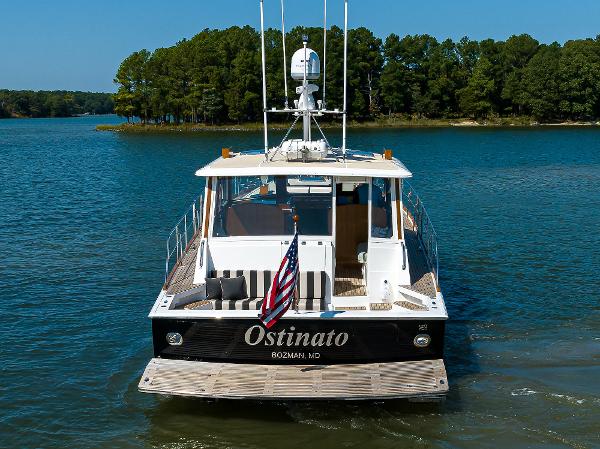

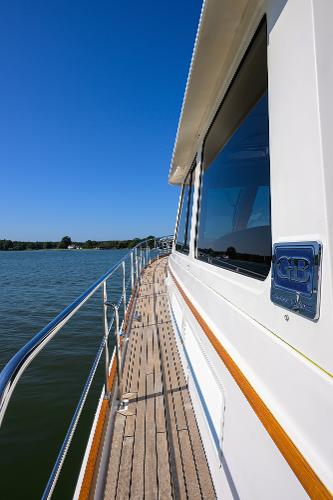

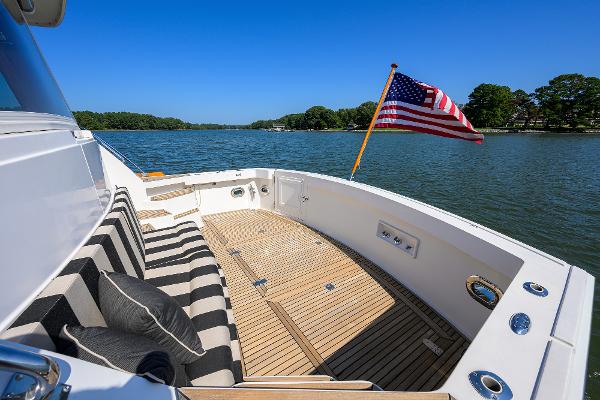

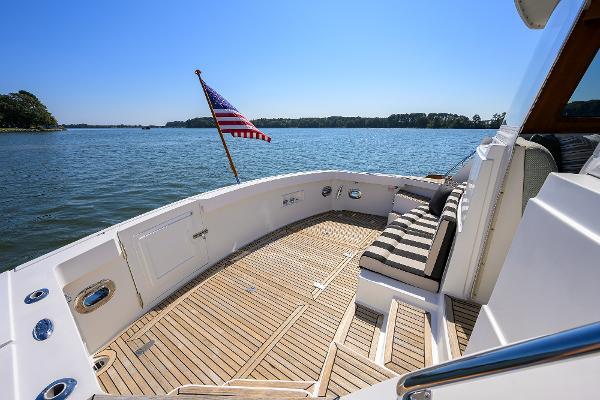

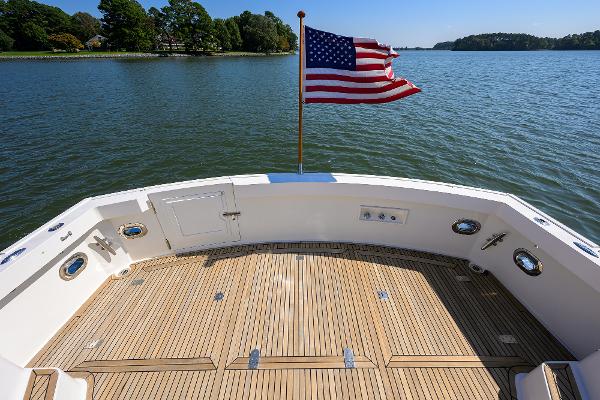

The cockpit is easily accessed by teak side steps from port and starboard sides or through the transom door from the extended swim platform. There is built-in bench seating facing aft with storage below, teak decking, a shower with hot and cold water, and a TNT Hydraulic Dinghy lift system. There is a Glendinning Cablemaster with 50-amp white cord, manual bilge pump, main engine room access which hinges up to access a staircase into the engine room and three lazarettes for ample cockpit storage.

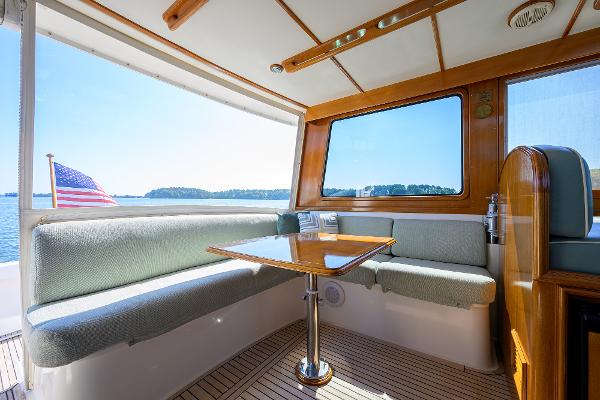

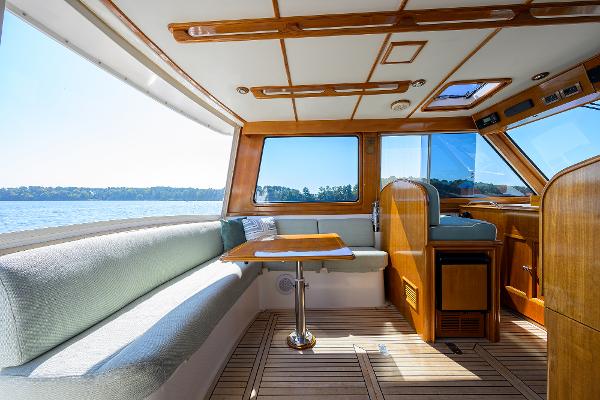

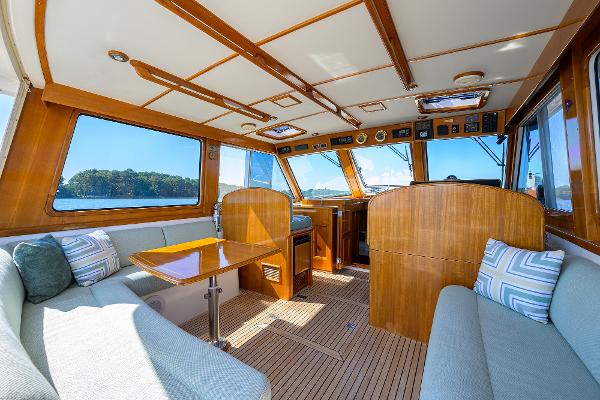

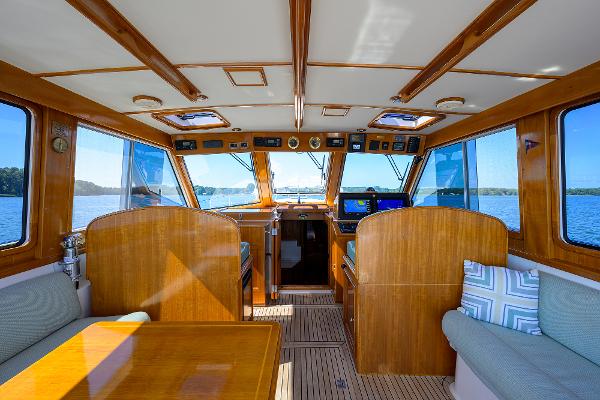

The aft entry door gives access to the helm deck from the cockpit. To port is a large L-settee with storage below and a teak Hi/Lo table. Forward of the settee on the port side is a companion bench seat with U-Line Icemaker underneath on the inboard side, a footrest on the forward side and one storage locker on the outboard side. Outboard against the hull side is a custom built-in drink holder, and binocular holder with additional storage. Forward of the companion bench seat, a teak lid lifts and exposes a GB custom bar arrangement with a GB chart locker above.

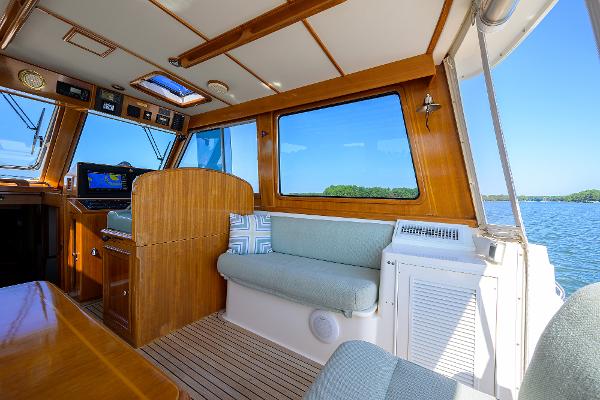

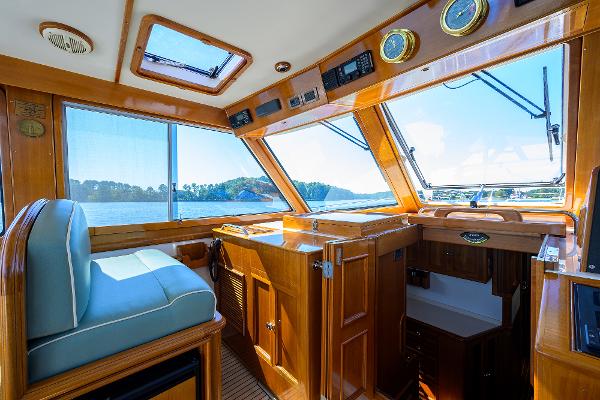

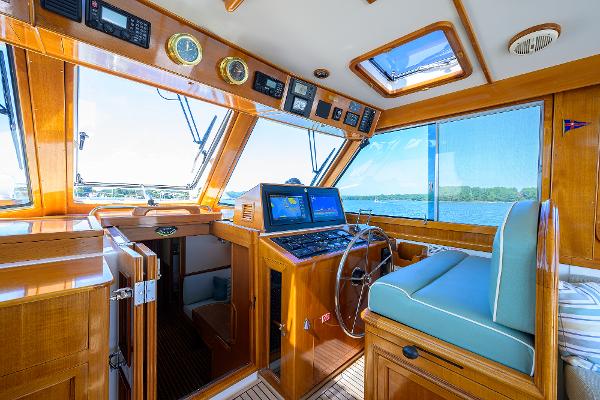

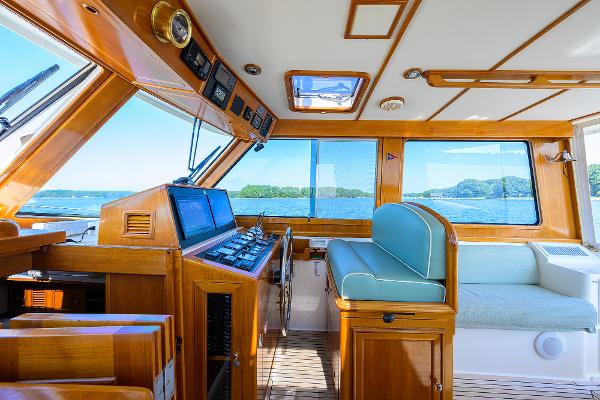

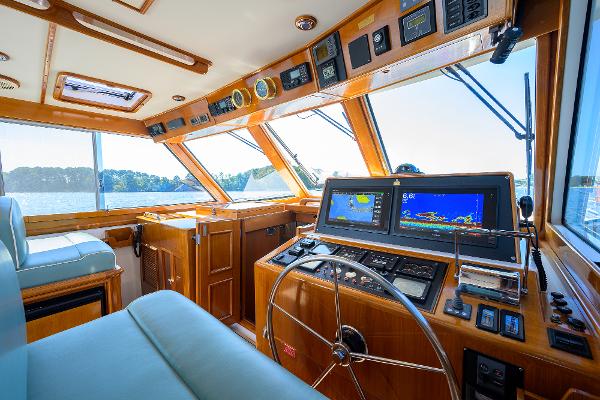

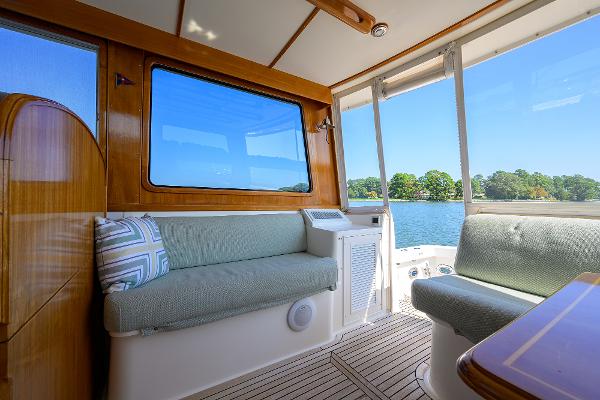

On the starboard side entering the helm deck, there is a 16,000 BTU air conditioner blowing cold air forward. A straight settee is just forward of that. Forward of this settee is the helm seat with same drink holder and binocular holder outboard as there is to port. There is a second engine room access hatch located in the left of the helm deck area. A heavy gauge Polycarbonate enclosure closes off the back of the helm deck from the cockpit and keeps the cool air inside. There are two opening hatches for ventilation, two opening side windows with screens and a forward opening left windshield window which opens electrically at the touch by a toggle switch at the helm.

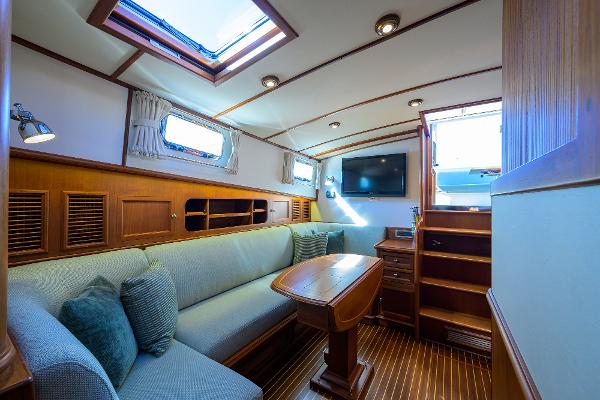

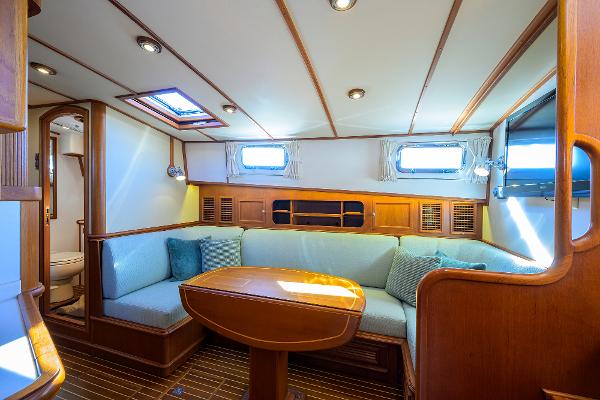

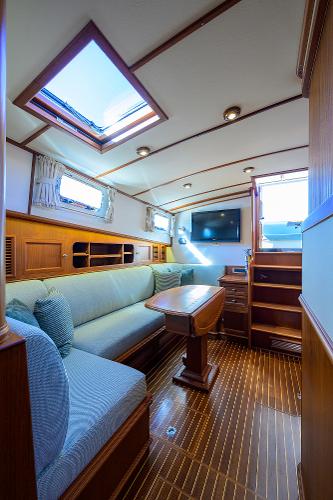

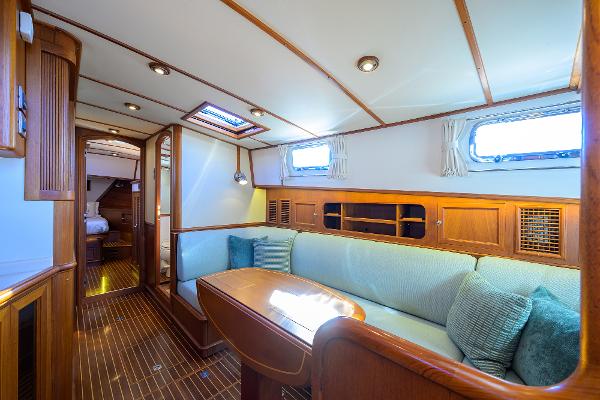

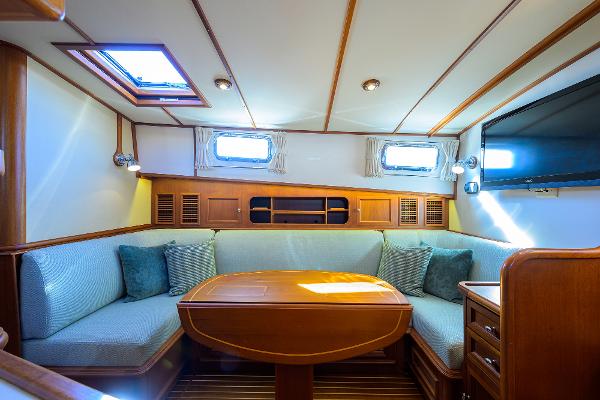

When entering the lower deck from the helm, there is a beautiful U-shaped settee on the starboard side with teak table for dining or entertaining. The U-shaped settee can be easily converted into a single berth. There are also two additional storage lockers with open storage between them.

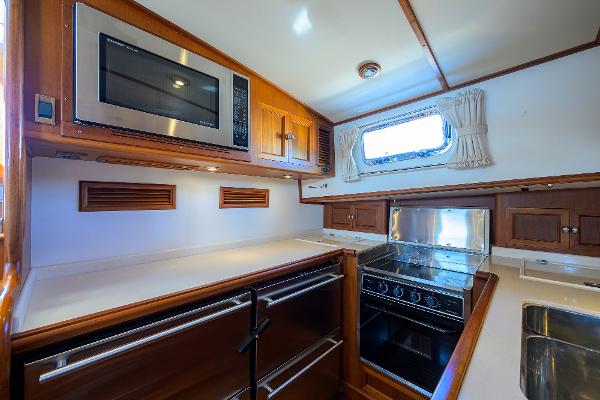

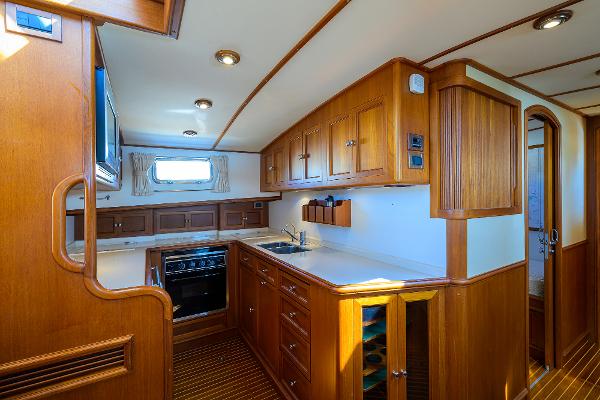

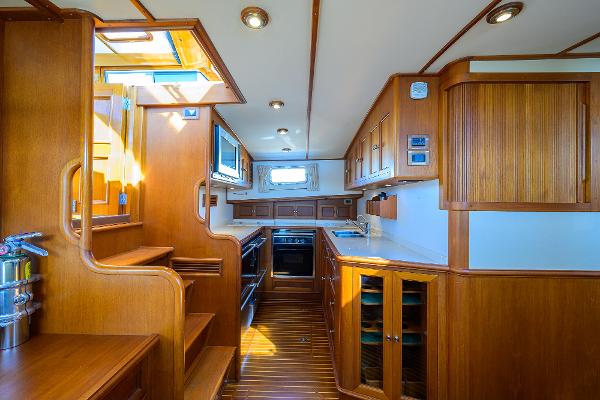

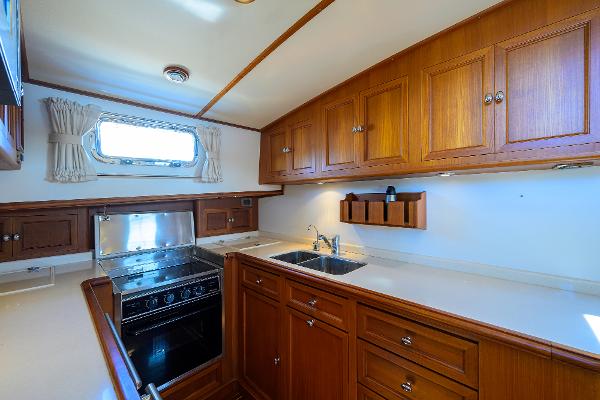

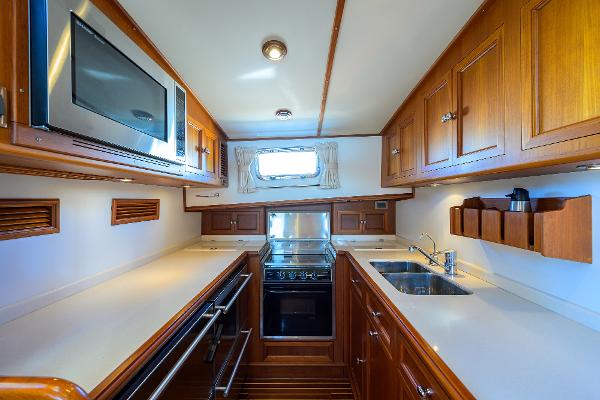

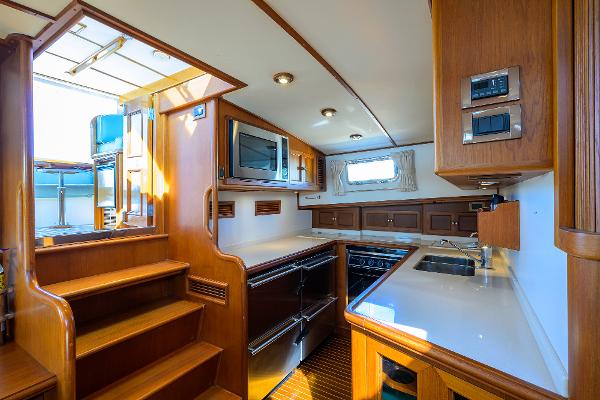

The galley is located on the lower deck on the port side and is adjacent to the dining/lounge area. Facing aft, there is an overhead locker with three cabinets for galley storage. Below the cabinetry and on the inboard side is a designated space for glass and bottle holders, and a bank of four drawers, trash bin and storage locker. Facing aft are four refrigerator drawers, an upper locker with Sharp convection microwave inboard and another storage locker outboard. There is one opening port and opening lockers on outboard fore and aft of the oven. The galley also has a large stainless steel sink, Princess electric range/oven with ceramic cooktop, and Corian countertop over teak cabinetry.

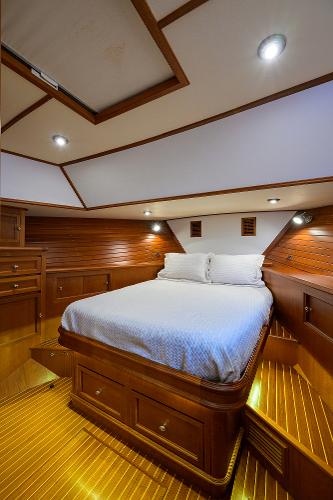

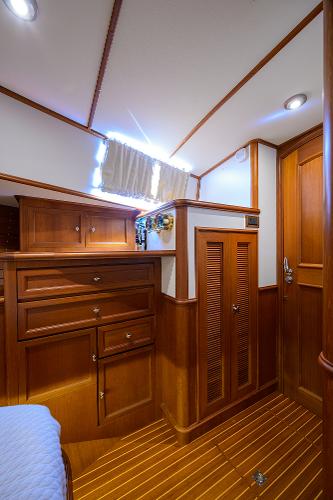

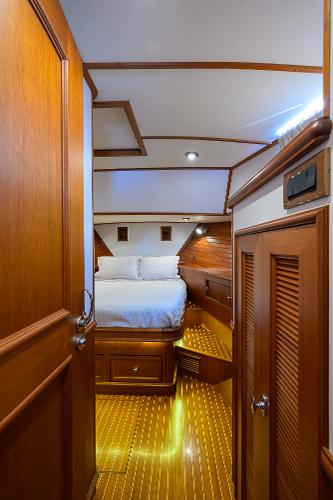

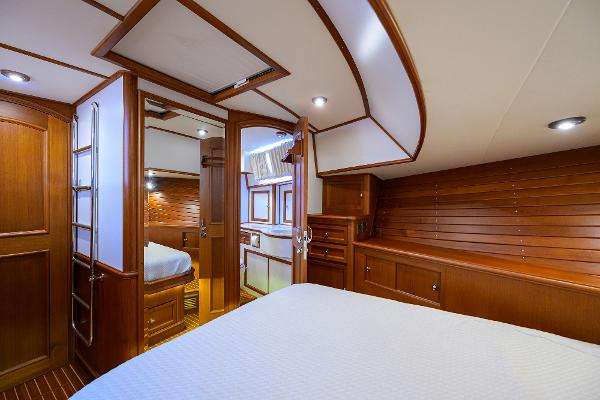

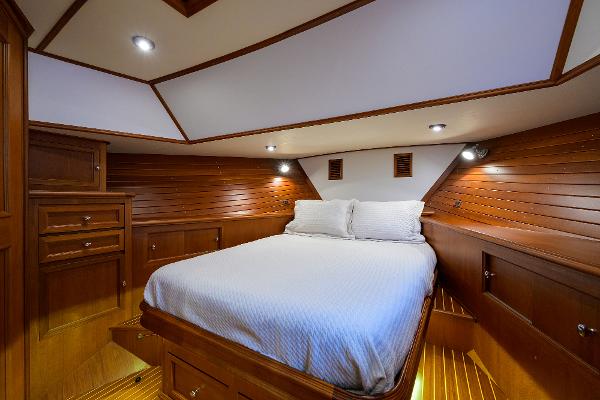

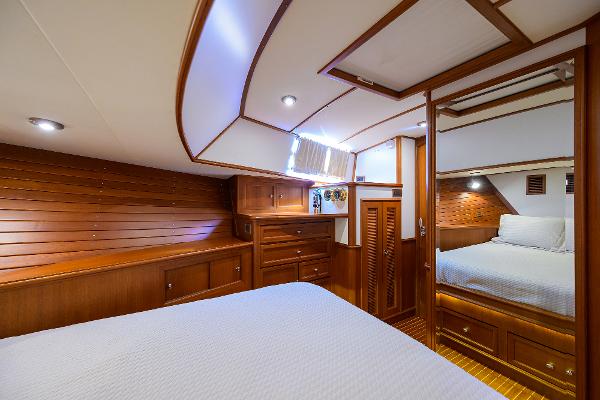

The master stateroom interior is teak with teak and holly sole, which is continued throughout the vessel's interior. The light and airy master stateroom is forward with a queen leftline berth, cedar-lined hanging locker on the starboard side, and an enormous amount of storage space. Continuing forward are two large drawers, one smaller drawer and two opening lockers for storage. Further forward are steps up to the berth with sliding storage locker and two reading lights. To port aft are two storage drawers with opening locker beneath, and a sliding locker is forward to the step up to berth. Above are drawers and one additional opening locker. Under the berth are two drawers and the top part of the berth hinges up with a large storage area underneath. Another overhead hatch is in the left. The private master head is en suite with a separate stall shower.

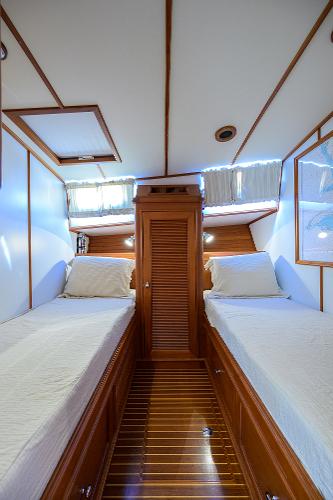

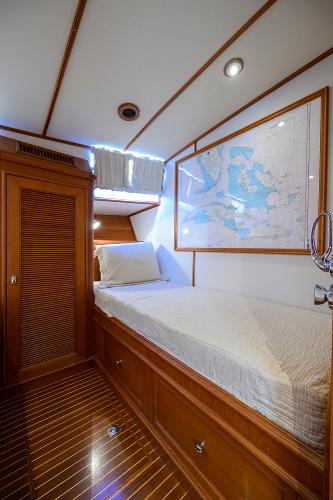

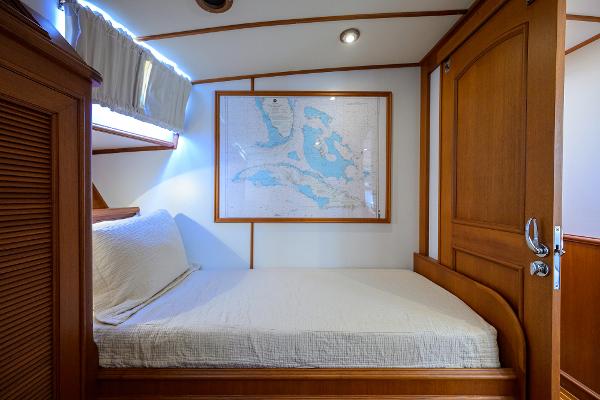

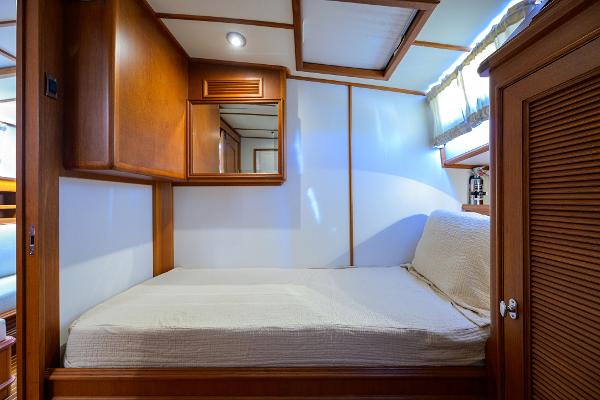

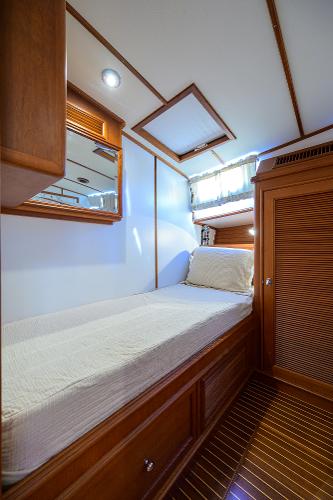

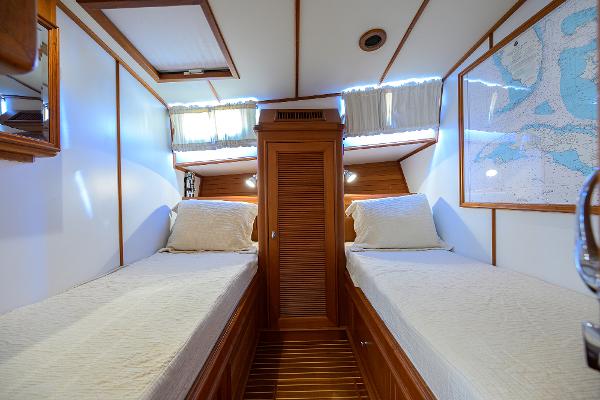

The guest stateroom is located midship to port with twin berths, hanging locker and additional drawer storage under the berths with two drawers forward. Hanging locker storage is outboard between the berths with a hatch over the aft berth. The guest head is opposite to starboard with a VacuFlush head and Corian shower floor with drain. There is a Corian counter with sliding storage above the sink and there is an additional storage locker forward with storage under the sink with one drawer. There is also a vent in the head, teak toilet paper holder and towel rack.

CONSTRUCTION

Gel-coated fiberglass exterior with painted topsides Hand laid fiberglass hull & superstructure Hydrex resin skin coat in hull lamination Hull structural grid, FRP molded and foam Molded quarter guard with SS rub rail PVC foam cored above waterline Solid fiberglass hull below waterline

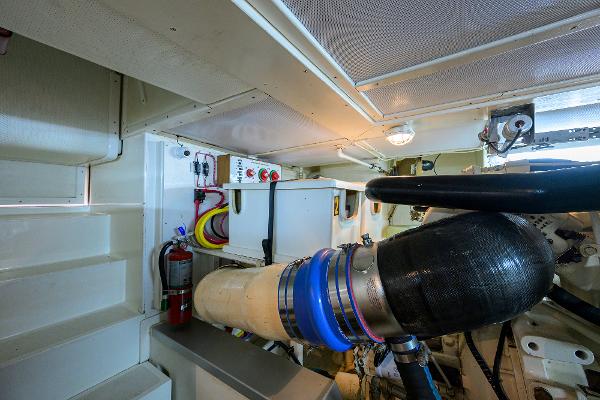

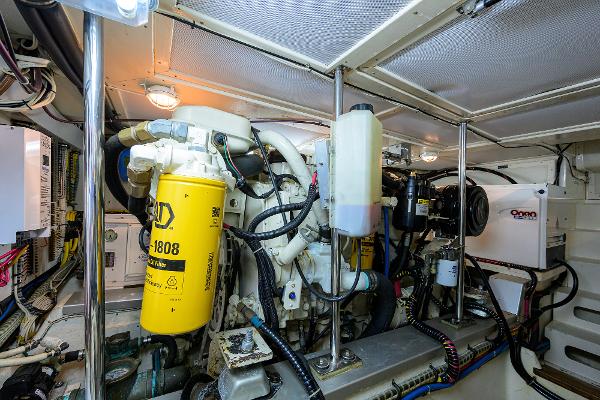

ENGINE & MECHANICAL EQUIPMENT

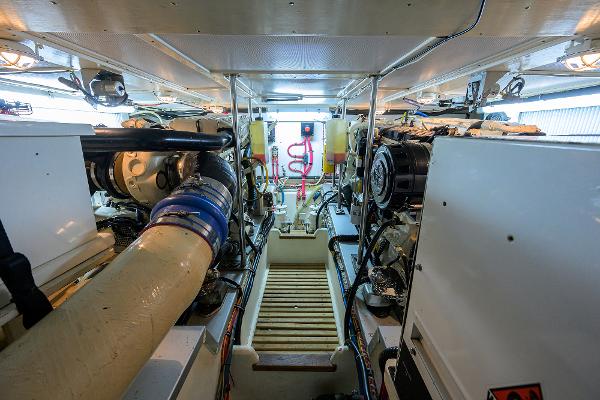

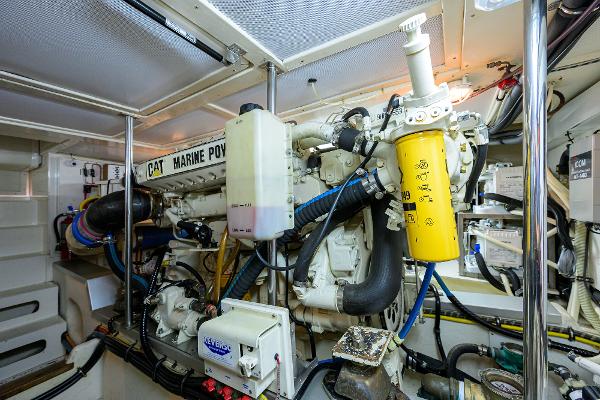

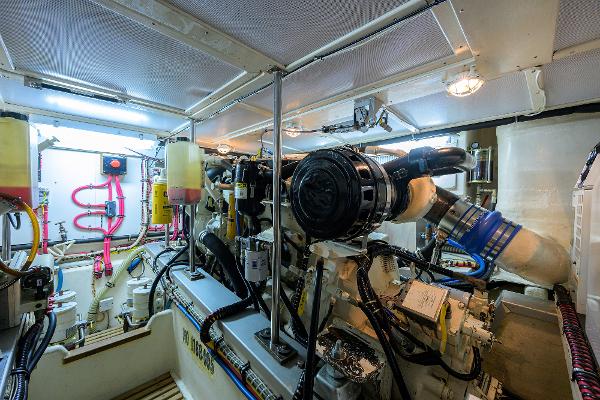

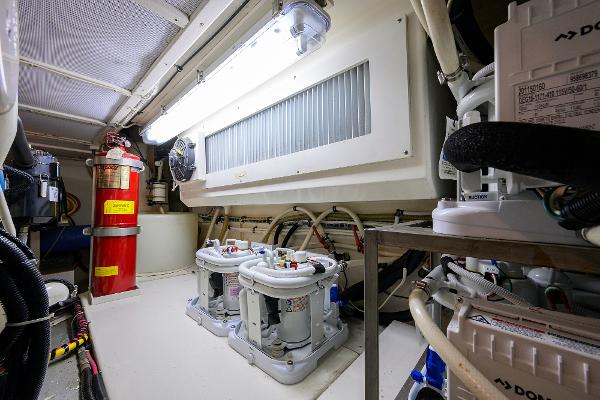

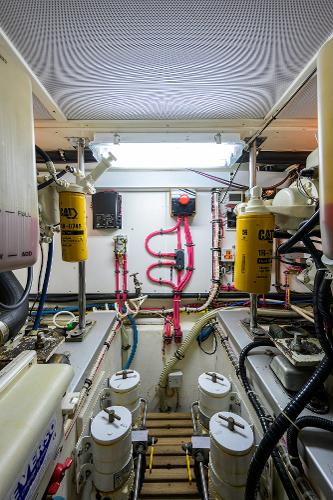

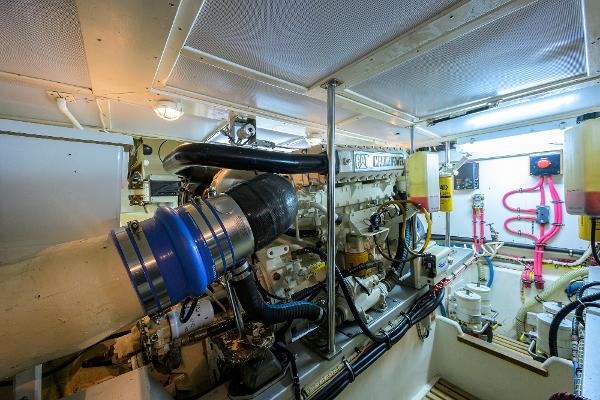

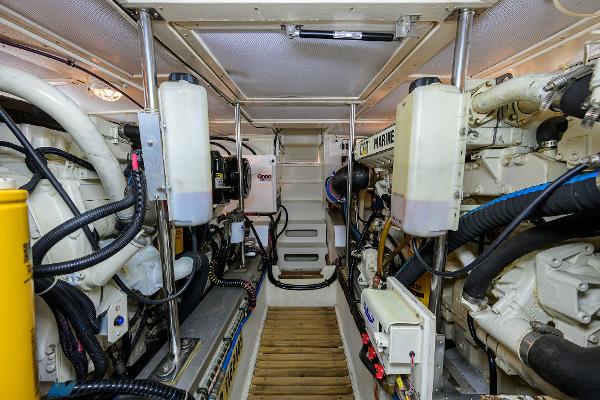

Twin Caterpillar C-12 @ 700hp each with Twin Disc MGX 5114 A Gears; 1,400 hours as of 10-Oct-23 Side-Power Bow Thruster with upgraded props, Optional Upgrade Ball valve on all thru hulls above waterline, bronze Bilge pump, manual Bilge pump system with (3) pick-ups to keep bilges drier than standard system, Optional Upgrade Drip pans under engines Engine controls, single lever mechanical throttle and gear shift controls, electrical Engine raw water intake strainers Engine room faucet, freshwater Engine room sound insulation covered with SoundDown perforated white aluminum Exhaust system, seawater cooled, with mufflers Fire extinguisher, with engine shut downs, generator and override control Fuel filters, Racor water separators on each engine (Duplex) and generator (single) Fuel tank, Auxiliary, FRP, baffled Fuel tank, Main, FRP, baffled Gas/water separator on generator exhaust system for quiet operation at anchor Propellers, nickel-aluminum-bronze, dynamically balanced Rudders, stainless steel Seacocks on thru-hulls below waterline, bronze Safety seacocks on engine raw water inlets Shafts, Temet Shaft logs, conventional for ease of adjustment and repair Steering wheel, Edson stainless steel  Power assisted hydraulic steering Struts, bronze with rubber bearings Sole, engine room, teak slats Water tanks, stainless steel, painted

ELECTRICAL EQUIPMENT

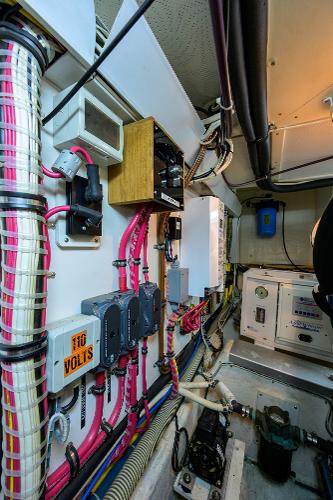

Electrical distribution panels, 120V 60Hz, 12V Upgraded Digital Displays for AC and DC volts, amps & watts, Custom Upgrade Circuit Breaker replaced original shorepower fuses, Custom Upgrade Air-conditioning, reverse cycle at lower deck and helm deck, (4) units Air horn, Kahlenberg Alternator, each engine, 12V Alternator, generator, 12V Alarm panel, single station, w/Engine Oil Pressure and Temperature, Bilge Pumps On, Generator On, Loss of Cooling Water, Engine Room Lights On New House Battery Bank Batteries, AGM glass mat with FRP boxes, lids and straps, 2 x 8D engine starting, 2 x 8D House, 1x 2D Generator starting Battery charger, 12V 50-amp, Upgraded Battery switch, disconnect Battery switch, emergency paralleling with momentary switch Bilge pumps (3), automatic, 12V Bonding system Carbon Monoxide Detector in sleeping areas and salon Control panels, horn, anchor winch, trim tabs Electrical actuator for left windshield 12V Engine room blowers, 12V Engine room lights, 12V and AC fluorescent lights 110V 60Hz Engine gauges and instrumentation electronic (CAT EMS) Engine start/stop single station with keys Extra breaker panel with eight (8) DC circuit breakers for helm instruments, radios, etc. Fresh water system, pressurized, 12V Fuel transfer pump from auxiliary tank to main tank, 12V Galvanic isolator Generator with sound shield, diesel, Onan 13.5kW e-QD for 60Hz; 1,600 hours as of 10-Oct-23 Helm outlet, 12V Holding tank discharge pump, 12V Level indicator panel, holding tank Navigation lights, 12V Oil change kit, 12V Outlets, galley, engine room and heads, GFCI protection, 120V 60Hz  Rudder angle indicator, 12V Shorepower inlet aft, AC, 50-amp 120/240V Fusion radio with lower deck remote control Upgraded Digital fuel and water level senders with readings displayed on Garmin screens, Optional Upgrade Water heater, 20-gal with electrical or engine coolant heating Windshield wipers, (3) 12V with speed control, auto parking and washers Wiring, marine-grade tin-plated copper

EXTERIOR EQUIPMENT

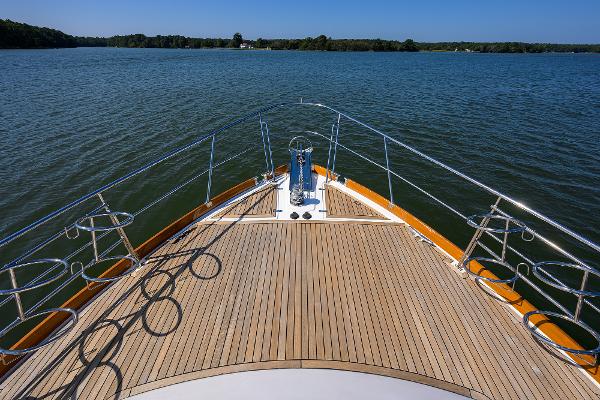

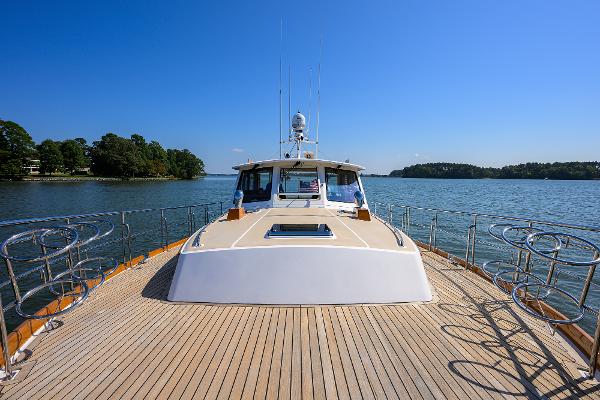

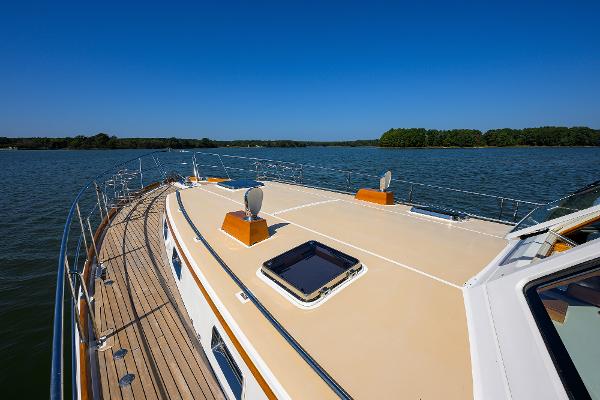

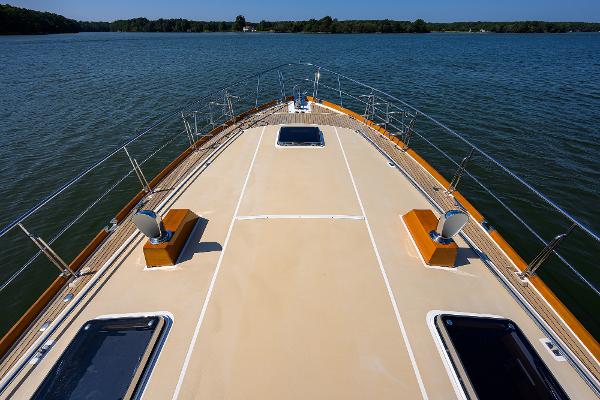

Anchor chain locker, self-draining Anchor platform, single roller, stainless steel Anchors: Primary stainless anchor w/200-ft of chain & 100-ft of nylon rode, and Secondary aluminum anchor w/20-ft of chain and 200-ft of nylon rode (stored in port bow locker), Upgrades Anodes, zinc, shafts, hull & bow thruster Chocks and mooring cleats, stainless steel Deck fills: diesel fuel, water and waste pump-out Teak cockpit, side decks & foredeck w/cabin house deck & hardtop painted with non-skid Dorade boxes, teak w/chrome vents Fender Racks, stainless on port & stbd sides of bow rail; hold (6) fenders, Custom Upgrade Engine room vents, Delta T Air demisters Flagstaff holders, bow and stern Flagstaffs, teak, bow and stern Foredeck lockers, port and starboard Freshwater faucet, inside forward deck locker Grab rails, stainless steel Mast, aluminum Rubrail, heavy-duty vinyl with stainless steel insert Safety rails, stainless steel with intermediate rail & port and stbd Rail Gates Skylight hatches with screens and blinds in staterooms Toe rail, teak Trim tabs, single station control Vents for fuel and water tanks Windlass, low profile, chain/rode, 12V Windows clear, tempered glass, flush installation Windshield, left opening with stainless steel frame and electric actuator

COCKPIT

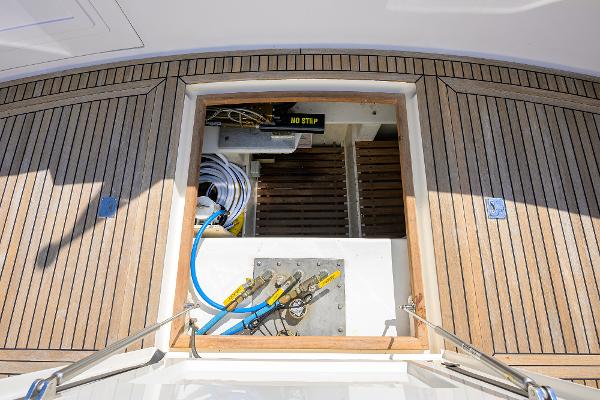

Courtesy lights, 12V Decking, teak, epoxy bonded Engine room hatch, pneumatic Hatches, hinged w/gas cylinder lift-ups Scuppers, stainless steel Seat/storage box, molded with cushions Swim ladder, fold-up, stainless steel w/teak Swim platform, teak TNT hydraulic lift for dinghy launching; Pop-up cleats for tying off dinghy in water; Stainless padeyes for tying down dinghy onboard, Custom Upgrade Transom door, hinged Transom shower with retractable hose, hot/cold

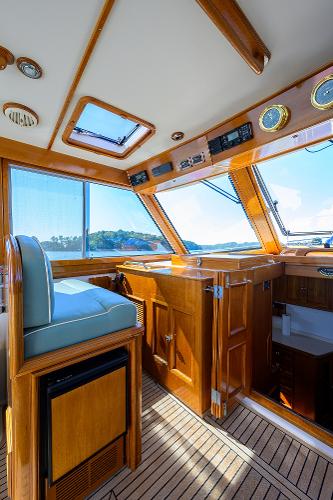

HELM DECK

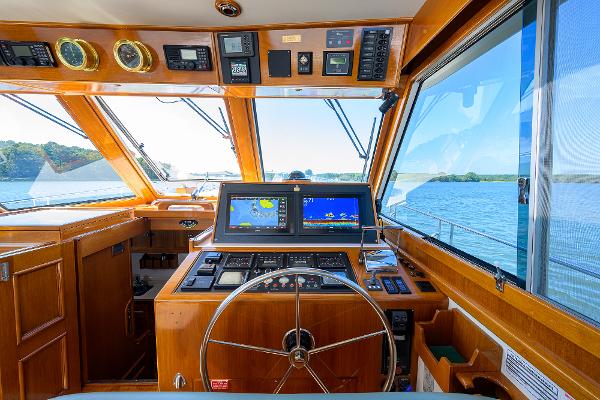

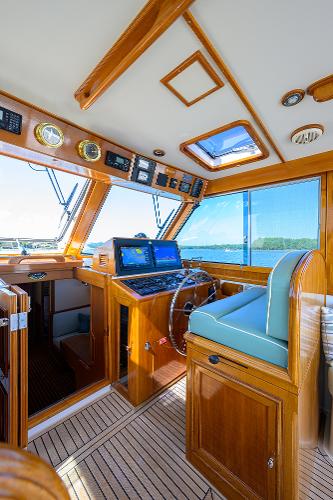

Helm & Passenger bench seats, reupholstered w/UltraLeather Promessa Shetland and contrast piping of UltraLeather Promessa Pearl, done by A La Mer in Jan 2016, Optional Upgrade Chart locker Companionway sliding hatch, teak with lockset Compass Cover for console and steering wheel Decking, teak, epoxy bonded Electronics console, teak Skylight hatches (2)
Settee, straight Settee, L-shaped Speakers, waterproof Side opening sliding glass Table, Teak hi-lo with maple inlay

ELECTRONICS

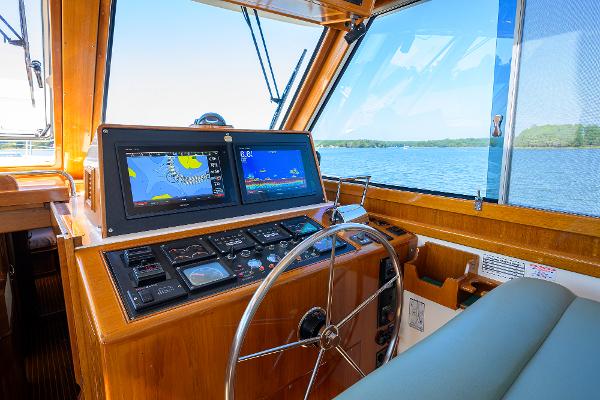

(2) Garmin 7616XSV 16” Dual Screen System w/GPS Chartplotter, New Jan 2016

Garmin Automatic Pilot System w/Shadow Drive, New Jan 2016

Garmin GMR624XHD Radar System, New Jan 2016

Garmin Bronze Transducer, New Jan 2016

Garmin SM Satellite Weather, New Jan 2016

Garmin AIS 600 Class B Transceiver, New Jan 2016

Camera Systems: engine room & stern, New Jan 2016

Hailer PA Horn, New Jan 2016

Speed Wheel, New Jan 2016

External GPS Antenna package, New Jan 2016

(2) Galaxy 8’ VHF Antenna, New Jan 2016

Galaxy 17.6’ VHF Antenna, New Jan 2016

KVH TV5 Satellite TV Dome System, New Jan 2016

DirecTV DVR System, New Jan 2016

Fusion MSUD750 Stereo System, New Jan 2016

Fusion NMEA 2000 Remote Control, New Jan 2016

WiFi Amplifier System w/wireless access, New Jan 2016

(2) ICOM IC-M602 VHF Radios ICOM IC-M802 with external speaker B&G Wind, Motion & Speed Indicators Bennett Trim Trab Indicators, New 2016 VDO Rudder Angle Indicator Remote Spotlight (2) Remote Cameras, Stern & Engine Room

SALON

Settees, reupholstered by A La Mer in Jan 2016 Custom 18x18 Throw Pillows by A La Mer in Jan 2016 Indirect LED Rope lighting on dimmer, 12V Reading lamps, chrome-plated Bookshelves Steps, teak w/non-skid Drop Leaf Table with oval top, teak, adjustable height Storage under companionway steps

GALLEY

Condiment locker Countertop, Corian with backsplash guard Curtains treated with fire retardant spray Exhaust blower, 12V Grohe Faucet, single lever Locker, overhead Microwave oven – convection Range/oven, electric Refrigerators, (4) U-Line drawer refrigerators Sink, single bowl stainless steel

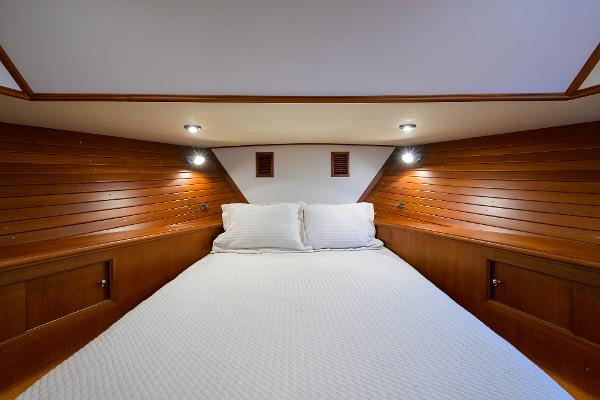

MASTER STATEROOM

Island Queen Berth w/new (Zeno) mattress, (1) custom mattress pad and (2) custom sheet sets done by A La Mer Jan 2016 Reading lights Bureau with drawers Escape hatch ladder Hanging locker with lined cedar wood Mirror, with teak frame

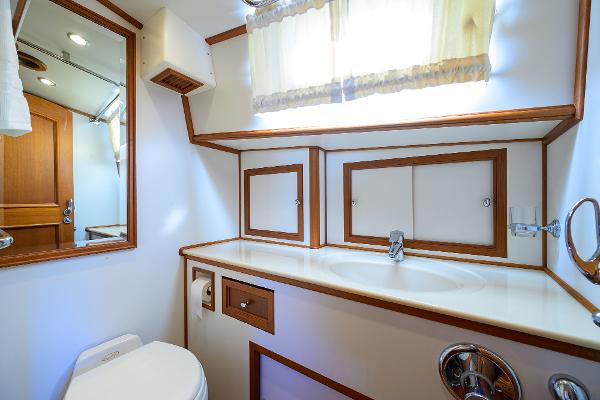

MASTER HEAD

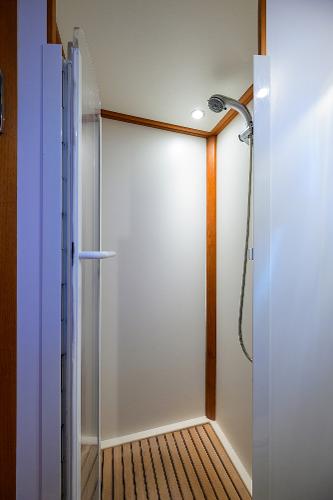

Bi-fold Acrylic shower door Countertop and sink, cultured marble Exhaust blower, 12V Grohe Faucet, single lever Mirror w/teak frame Shower with drain pump, 12V Shower stall, separate w/Corian shower floor with drain and teak grate Toilet, marine, vacuum flushing Toilet paper holder Toothbrush holder Towel rack, stainless steel

GUEST STATEROOM

Twin Berths w/new custom mattress pads and (2) custom sheet sets for each bunk, done by A La Mer Jan 2016 Reading lights Bureau with drawers Hanging locker with lined cedar wood  Mirror Panel, padded with teak frame

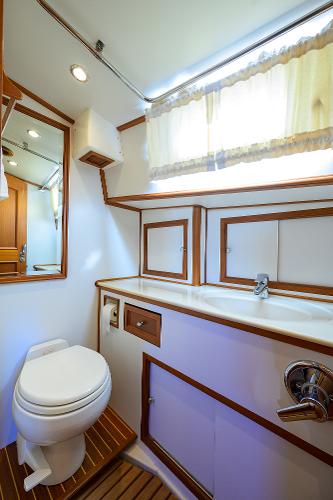

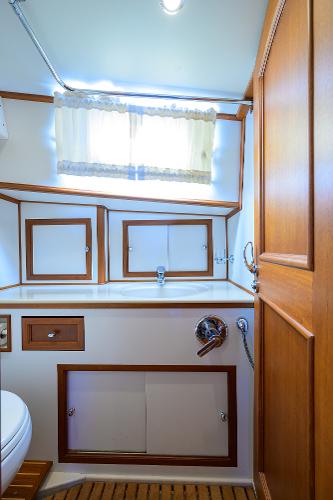

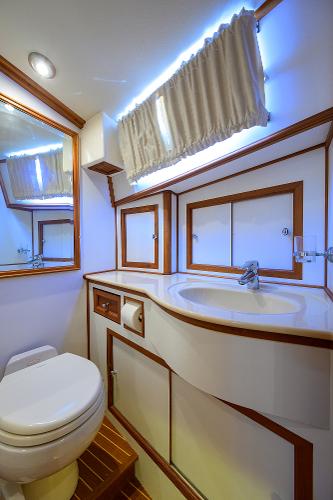

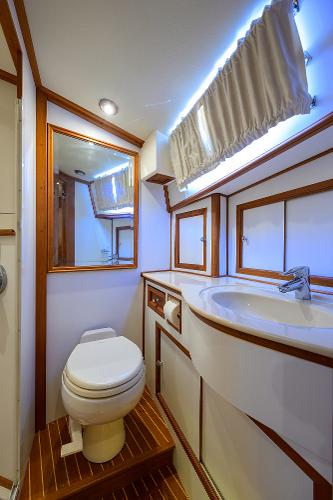

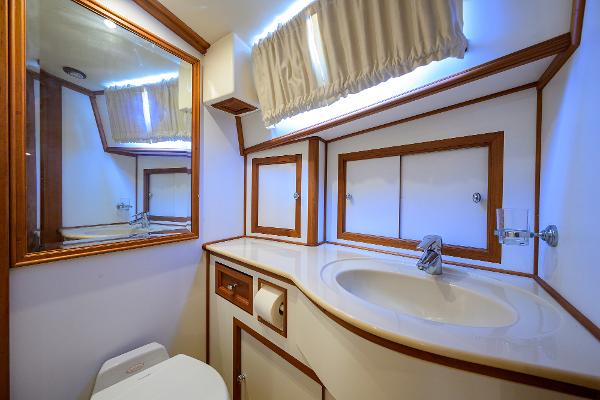

GUEST HEAD

Exhaust blower, 12 V Countertop and sink, cultured marble Grohe Faucet, single lever Mirror w/teak frame Shower w/Corian shower floor with drain and teak grate Toilet, marine, vacuum flushing Toilet paper holder Toothbrush holder Towel rack, stainless steel

INTERIOR THROUGHOUT

Bulkheads, Formica Cabin doors w/lock sets Cabinet furniture, teak face Companionway Bulkheads, upper panel with wall paper and lower panel in teak with teak chair rail separation Curtains, lined Drawers, teak faced with solid wood sides, drawer slides Grab rails, teak Hardware, stainless steel and chrome Headlining, vinyl Hull ceiling, teak Lighting, Halogen, 12V Lights, reading at berths Lights, dimmer at helm w/red night lighting Lockers, with stainless steel knobs Outlets, AC Portholes, stainless steel with screens Soles, access hatches Sole, teak & holly Varnish, satin marine varnish below; High Gloss on helm deck

ENGINE / MECHANICAL SERVICE RECORDS AVAILABLE

1,000 hour engine service, 28 Jan 2016 by SmithWick:

Heat exchangers, fuel coolers, and transmission coolers removed, ultrasonically cleaned, pressure tested and reinstalled Aftercoolers received new cores New impeller on port main engine New raw water pump on starboard main engine Adjusted intake/exhaust valves and injector heights New zincs on main engines Air Sep filters cleaned New Belts New crankcase breather filters Changed engine oil and filters, primary and secondary fuel filters Changed transmission oil and filters

Additional main engine items:

New starter remote slave solenoids on both main engines New steering cooler on starboard engine Removed turbochargers on both engines, blueprinted & reinstalled Resealed Racor filter housings New aftercooler check valves New port raw water pump inlet flange O-ring New exhaust risers from Marine Exhaust systems New starboard engine oil filter remote steel lines with hydraulic hose New heat exchanger to transmission cooler hoses New fiberglass adapter T's (replaced stainless) New starboard engine hoses to hot water heater tank Installed raw water feed to propeller shaft seal crossover hose and replaced shaft seal raw water lines New port oil pressure sensor Installed new (2) EMS panel stickers at helm New exhaust riser support bracket on starboard engine

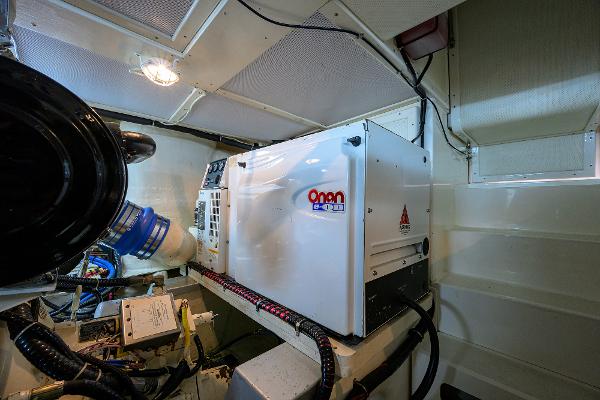

1,000 hour service on generator:

Heat exchanger removed, ultrasonically cleaned, pressure tested & reinstalled New raw water pump New raw water pressure switch Installed protective boot on starter positive terminal New belt New zinc New engine coolant Changed engine oil, oil filter, primary and secondary fuel filter

Generator additional work:

Attempted to Clean and reseal Racor filter housing. Most cost effective to replace entire housing. New fuel lines inside sound shield where corroded with Parker hose New coolant temp sender New fuel lift pump and fuel lines inside sound shield

Recent: 2022-2023

Replaced original a/c units; (4) condensers, (5) air handlers, 10/24/22 CAT Cooler Maintenance. 1/20/23-2/24/23 Removed aftercoolers from both engines and sent for ultrasonic cleaning. Cleaned all mating surfaces and replaced gaskets and o-rings. Reassembled coolers, condensate drains and associated hardware. Replaced (3) CO detectors  New Zincs for engine, generator and exterior 1/19/23 Serviced Thruster 1/20/23 New intake strainer baskets 1/18/23 (2) New CO detectors 12/29/23 Prepped & Painted Bottom 1/20/23 Cleaned & Painted Swim Platform Supports 1/24/23 Pettit Barnacle Barrier applied on props & shafts 1/11/23 Seacocks serviced 1/20/22 Steering serviced 1/20/22 Cleaned & polished stainless steel handrails and rubrails 3/24/22 Exterior Varnish Maintenance 1/31/22 Cleaned & Waxed Hull 2/28/22

2019

Checked/Serviced Engines: changed oil and filters for engines and transmission, changed fuel filters, changed worn belts, changed engine impellers, coolant flushed and refilled, changed air filters, checked all hoses and fittings, cleaned engine pans and put down fresh oil sorbs 7/26/19 Checked/Serviced Generator: changed oil and filters, fuel filters, flushed coolant and replaced, checked all hoses and fittings and air filter 7/29/19 New Cutlass Bearings 7/30/19 New Zincs for engine, generator and exterior 7/31/2019 Props reconditioned 7/18/19 Anchor Windlass serviced 7/18/19 Checked TNT platform lift fluid 7/26/19 Exterior varnish maintenance 7/25/19 Light sand teak decks, caulked as needed 7/31/19

2018

Washed exterior, decks, hardtop and cockpit 8/31/18 Removed swim ladder and polished stainless 7/24/18   Prepped & Painted Bottom with (3) full coats Micron Extra and Paint by Interlux 8/6/18  Prepped and painted underwater metals including running gear, props & Freedom Lift. Pettit Barnacle Barrier spray applied to props, shafts & running gear. Trllux 33 applied to Freedom Lift support structure 8/2/18 Stripped and refinished Exterior Brightwork: toe rails, eyebrow, accent strips and name boards with Epifanes Wood Finish and High Gloss 8/31/18 Cleaned, Waxed & Buffed Hull 7/23/18 New L-bracket installed for starboard exhaust support 7/30/18 5/32" drain holes added w/seals to stanchions 8/7/18

EXCLUSIONS

Owner's personal belongings. A complete list will be provided upon request.

DISCLAIMER

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

MECHANICAL DISCLAIMER

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing.
