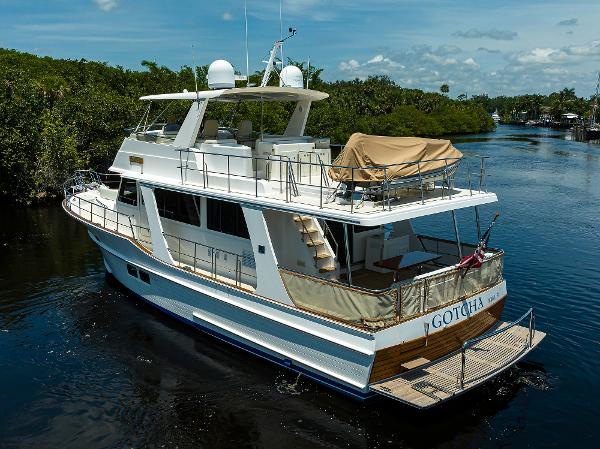

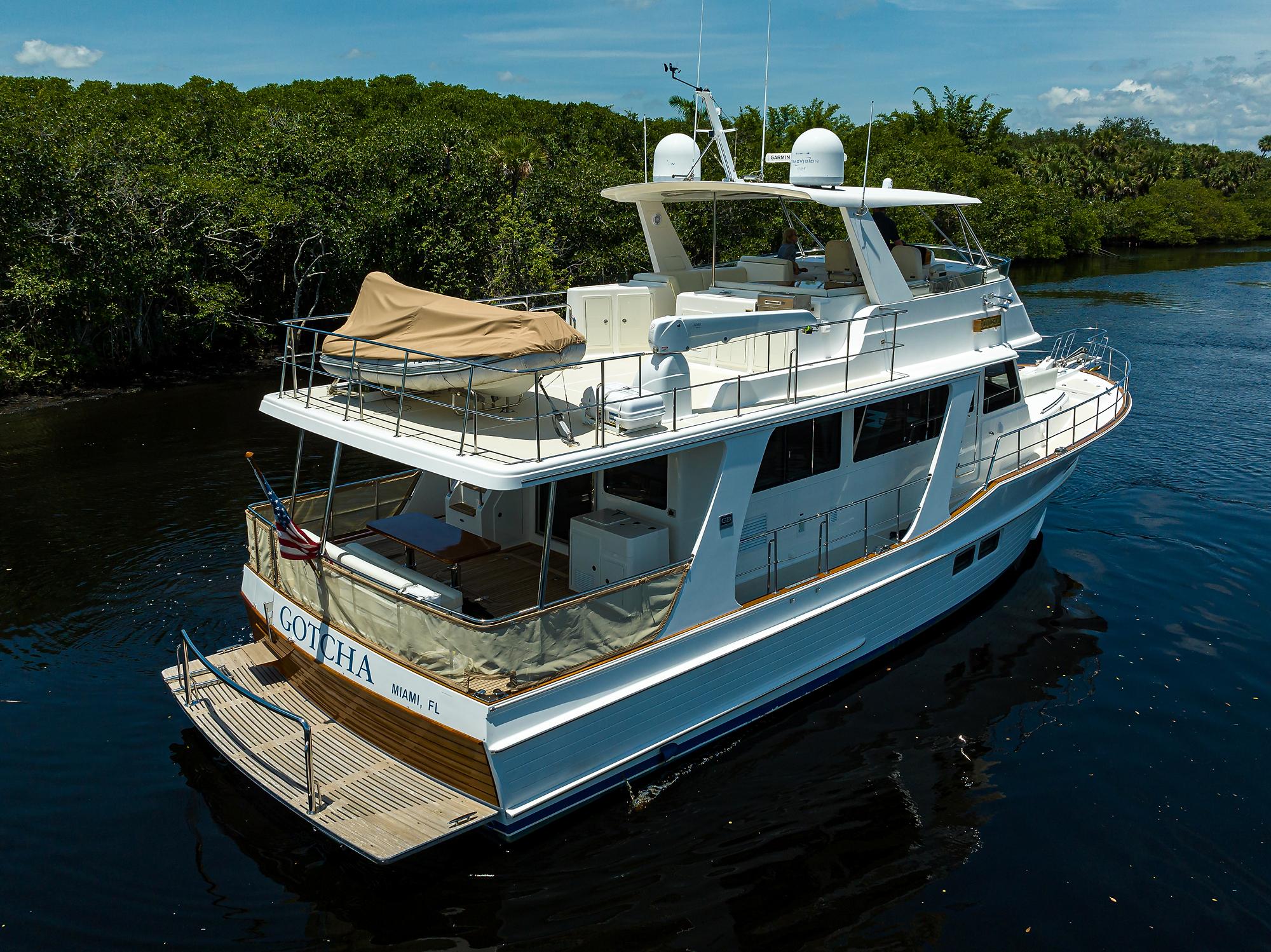

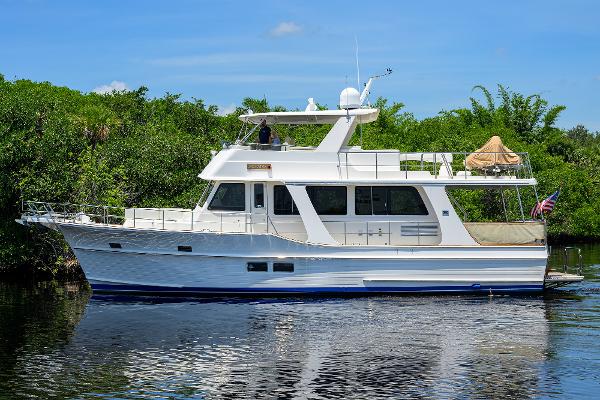

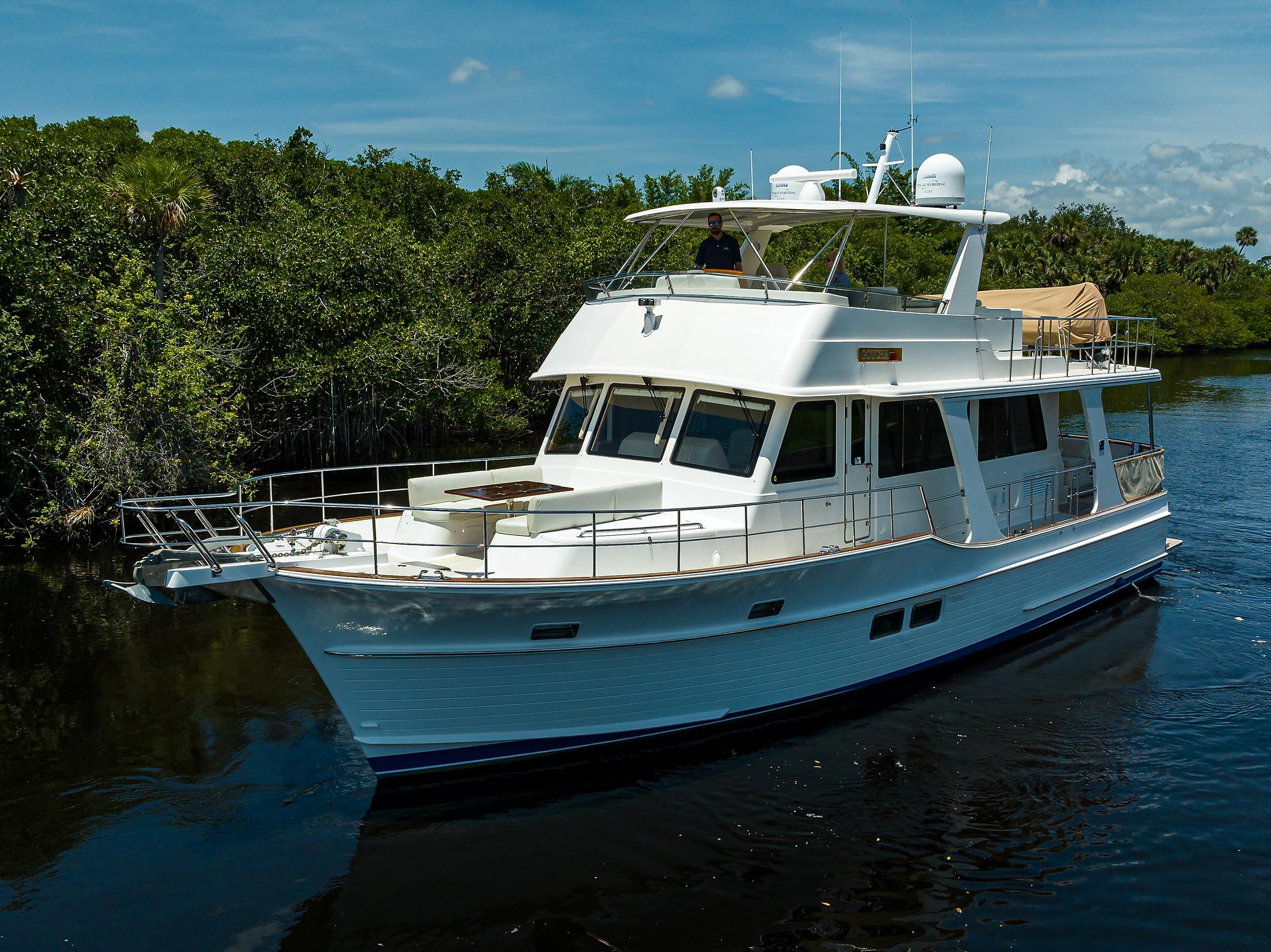

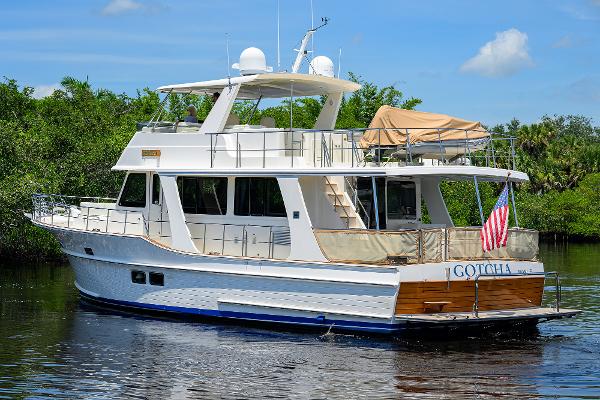

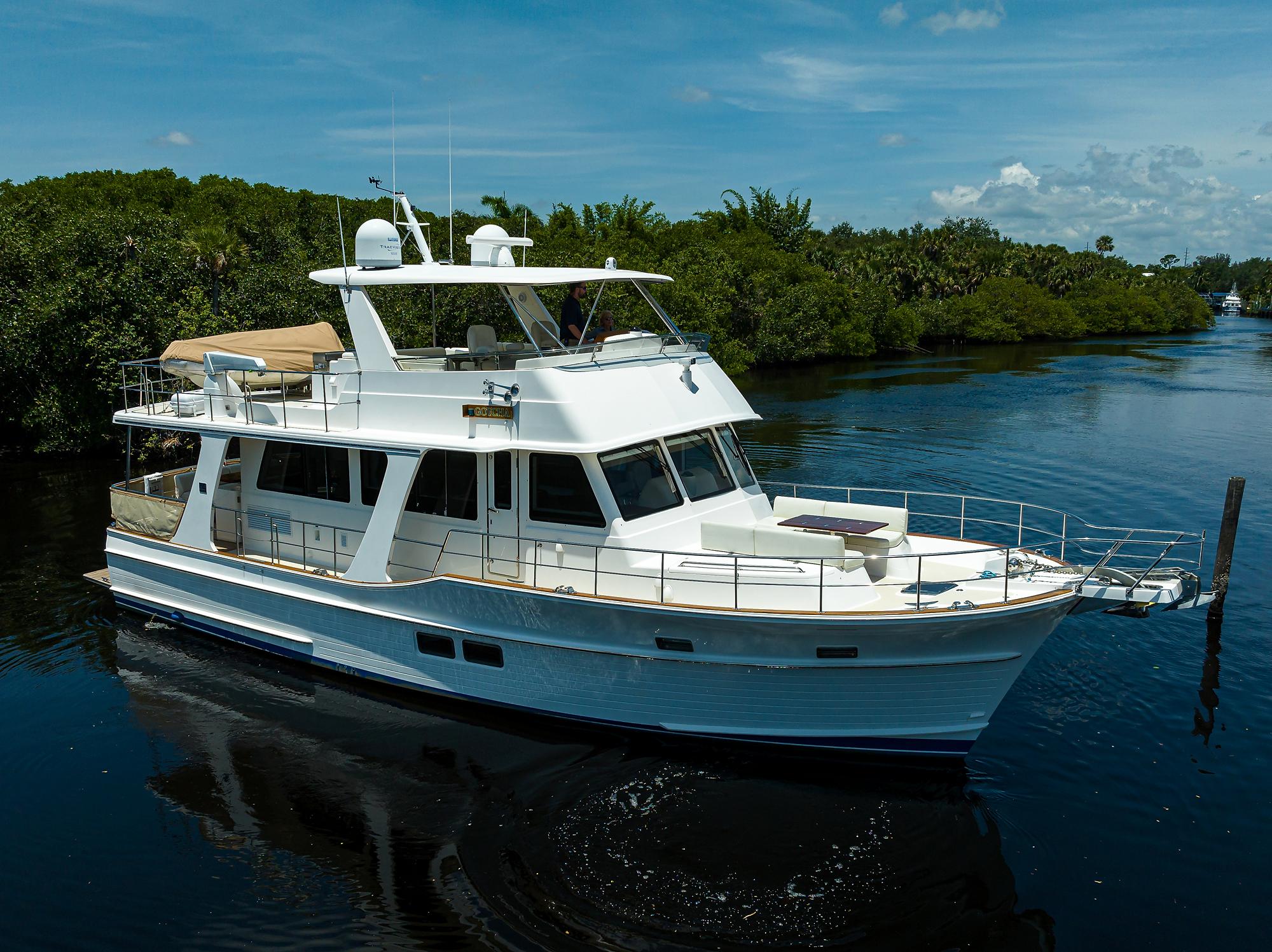

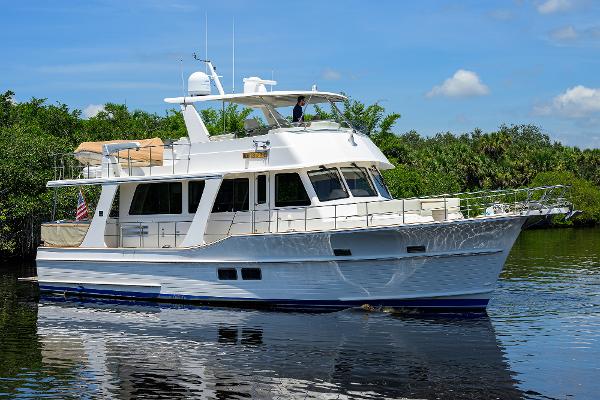

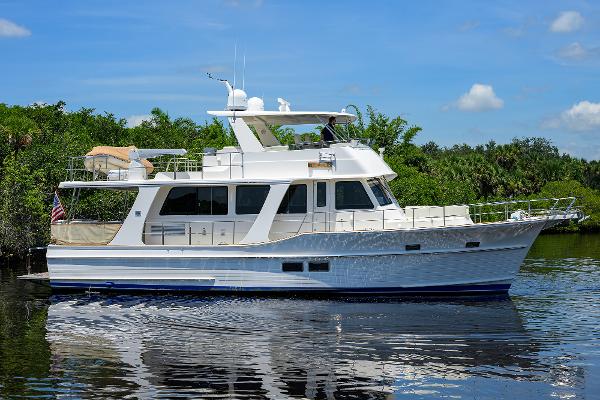

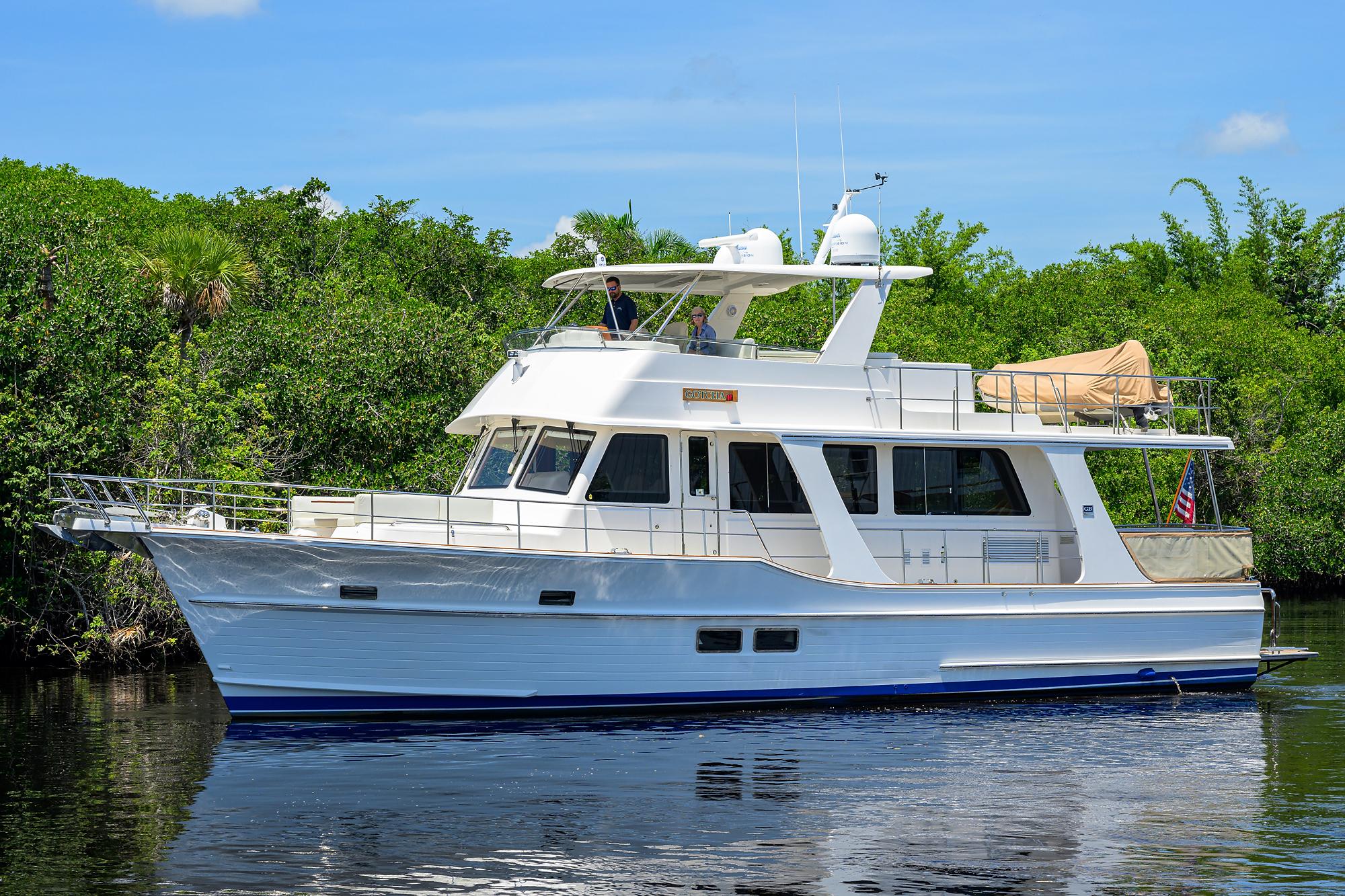

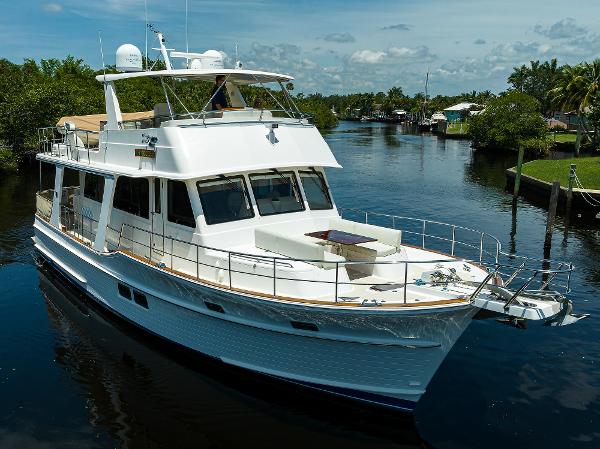

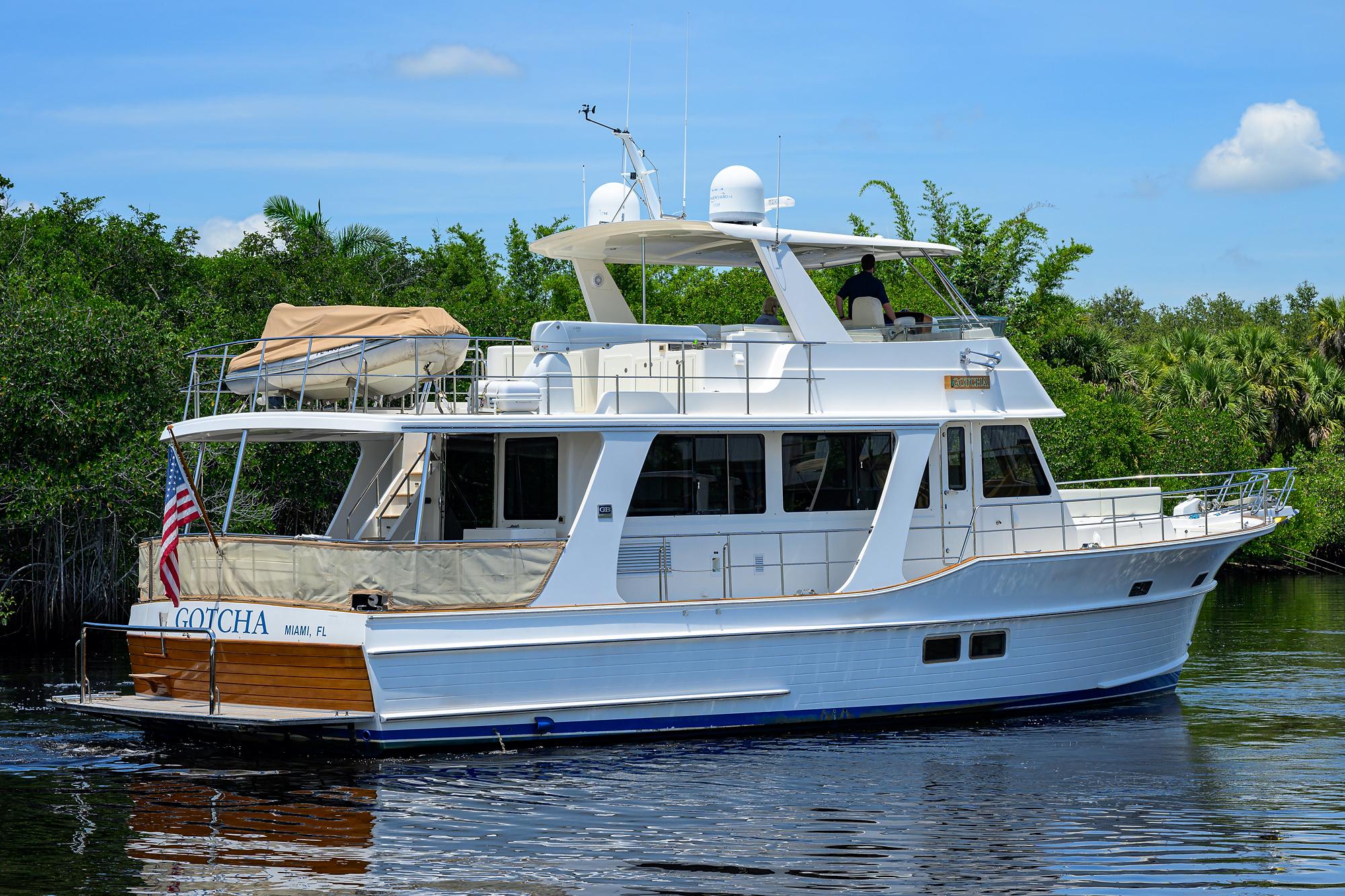

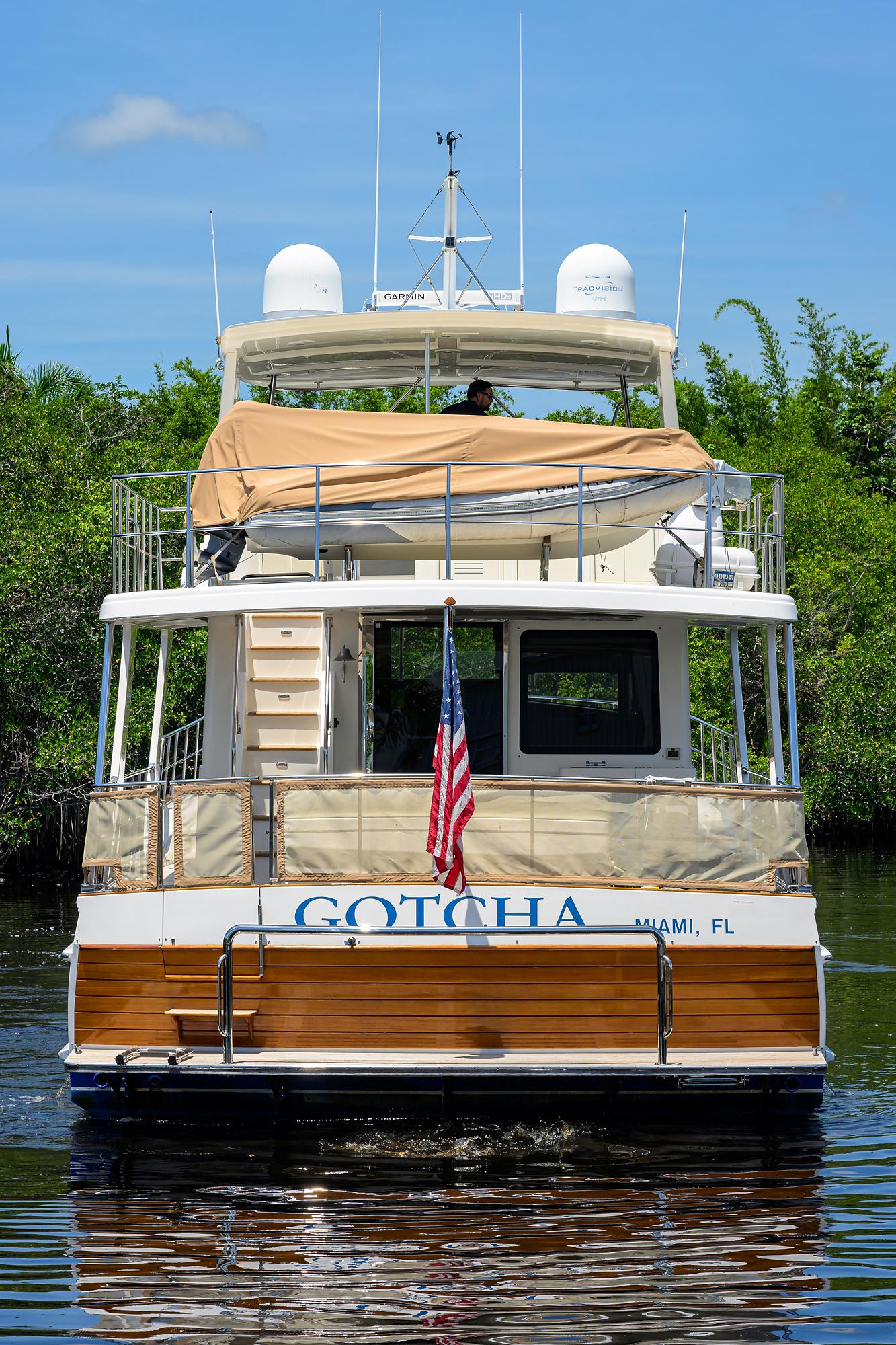

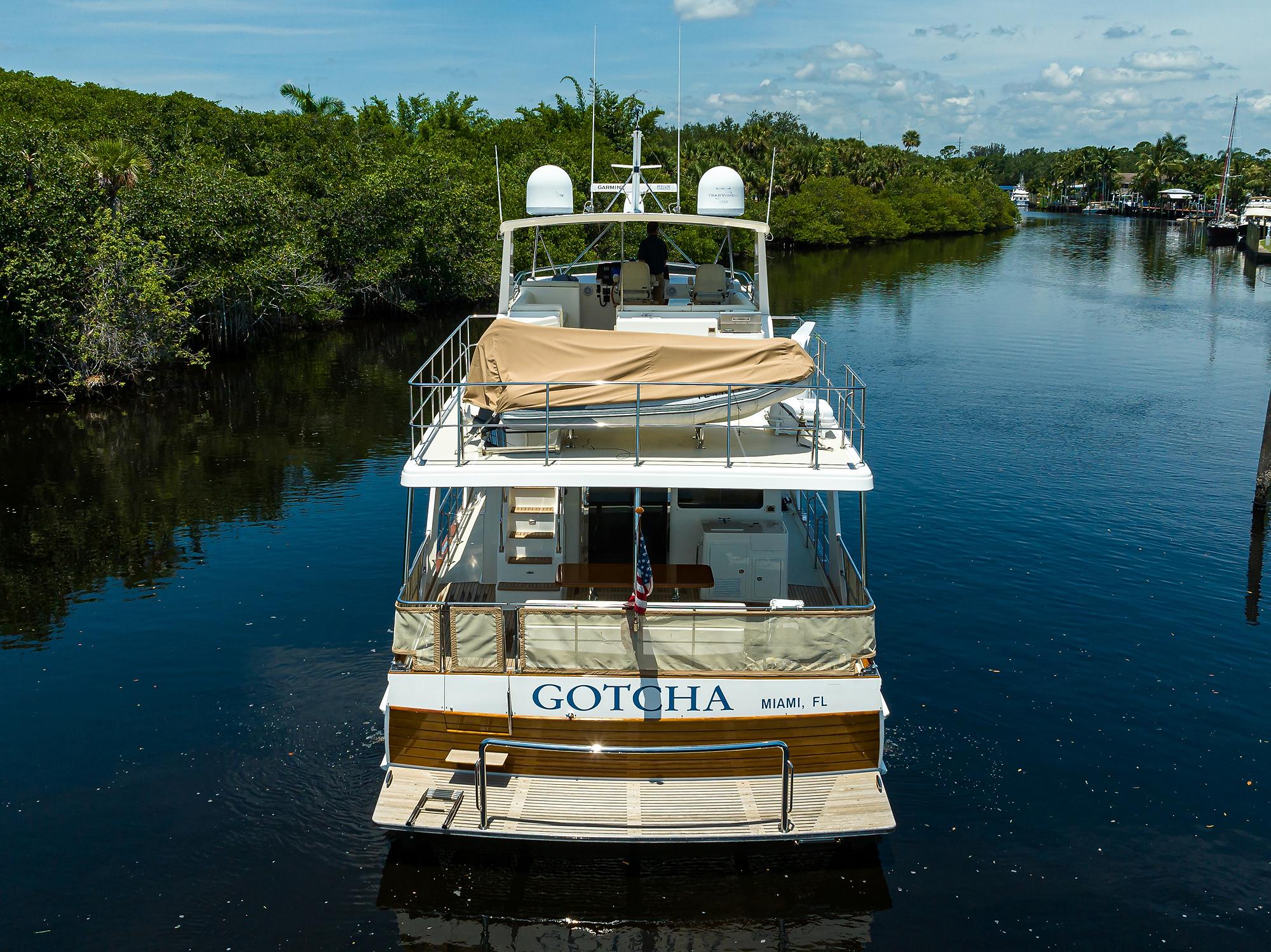

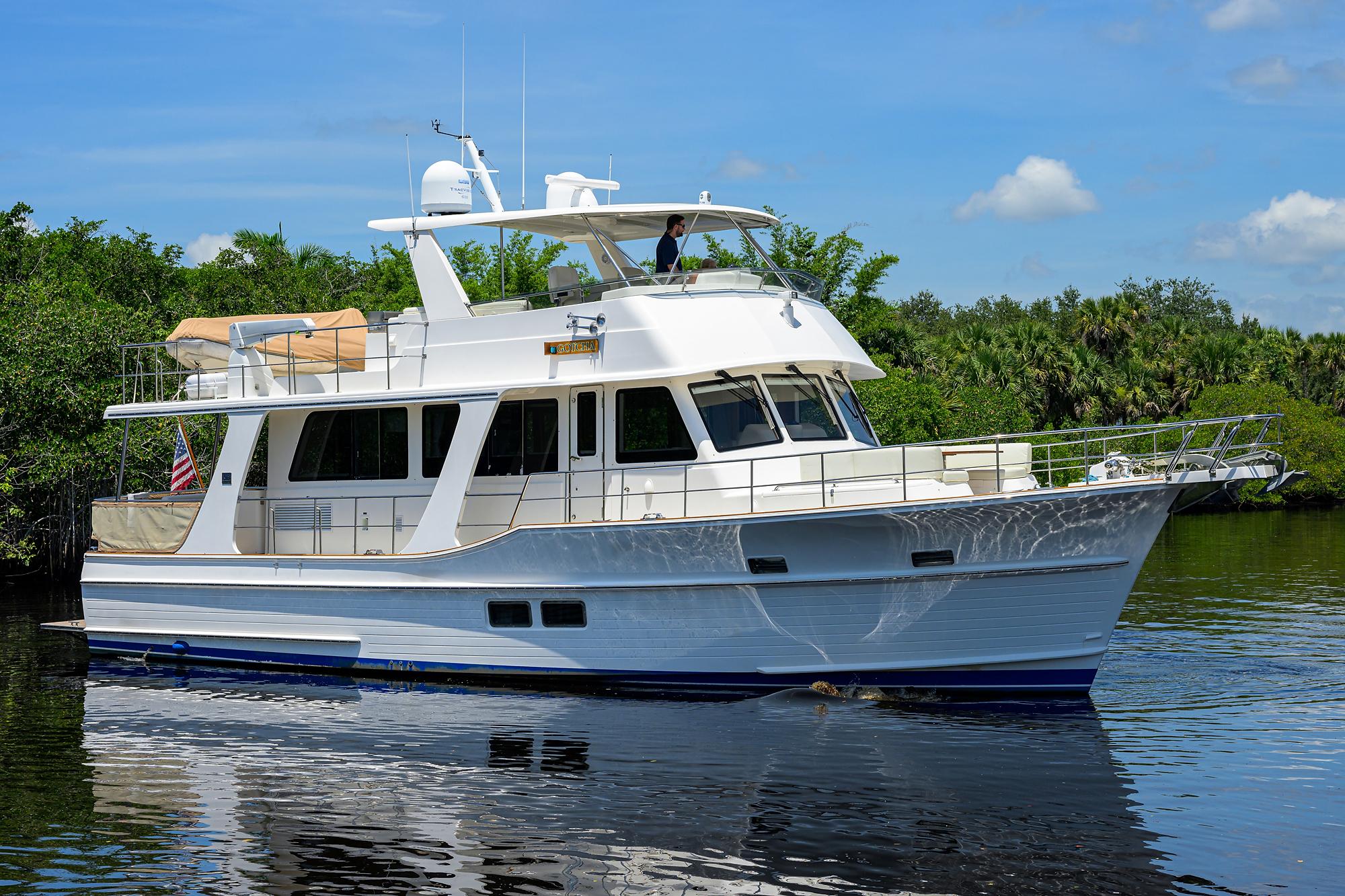

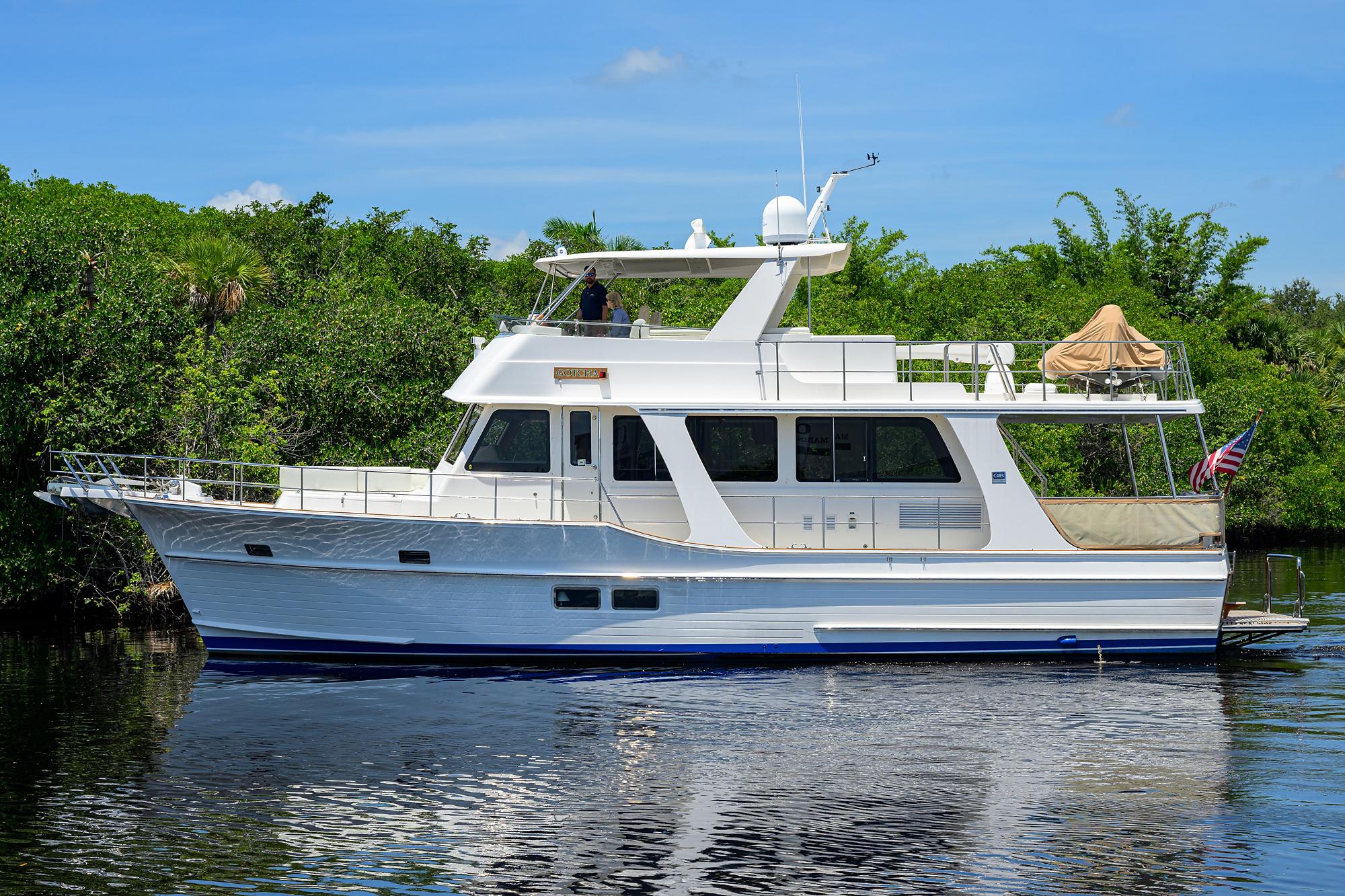

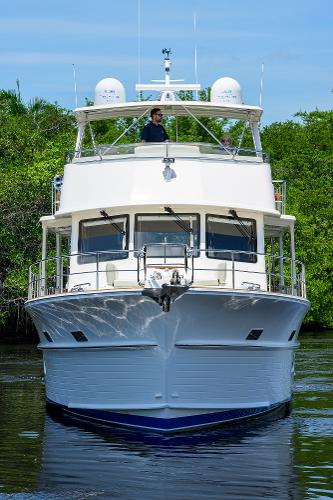

GOTCHA is a 2015 Grand Banks 54 Europa that has had excellent care from her original and most specifically, her current owners as updates and upgrades show. The GB 54EU is one of the most successful models GB has built. From 3 staterooms on lower deck; large salon, galley and dinette plus sizable lower helm on main level; to a large staircase accessing a huge open flybridge with large seating area, outdoor galley for grilling and dinghy storage with davit.
GOTCHA is a smaller "ship" with three levels of living space.
There's an ample sized aft main deck with seating and table and additional seating and table on the bow fore deck. Both areas provide a safe place for both children and adults to enjoy while cruising or upon arriving.
Some of GOTCHA's highlights:
Dometic 1800 gpd SeaXchange watermaker with SpotZero 2000 gpd water purification for dock water Naiad Datum stabilizers with custom 7.5' fins Mid-ship full beam master stateroom with en suite head Full size Asko washer and dryer Stand-up engine room Cummins QSM 11's 715 HP with 1465 hours Bow & Stern thrusters All services up-to-date Many upgrades and additions Easy to see at GB Marine Group in Stuart FloridaWALKTHROUGH

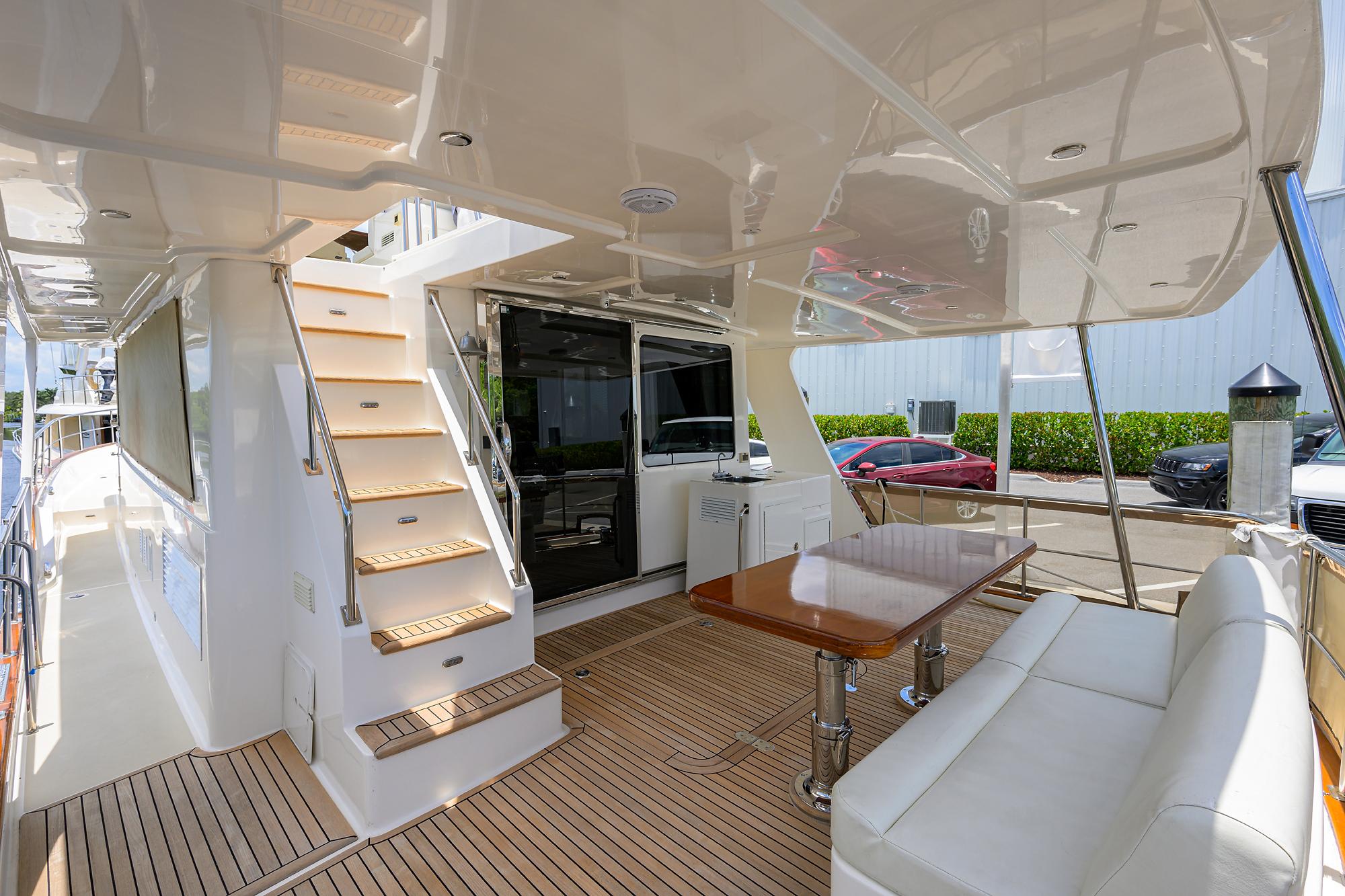

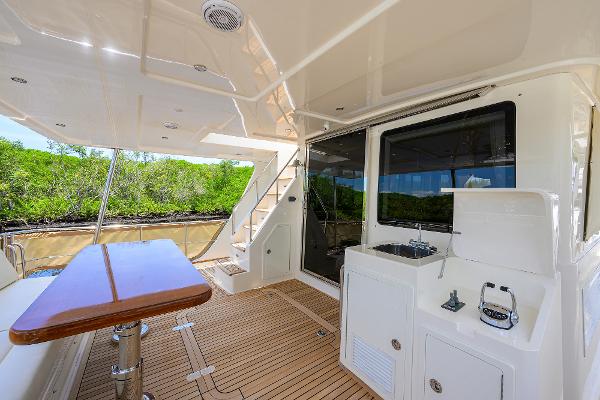

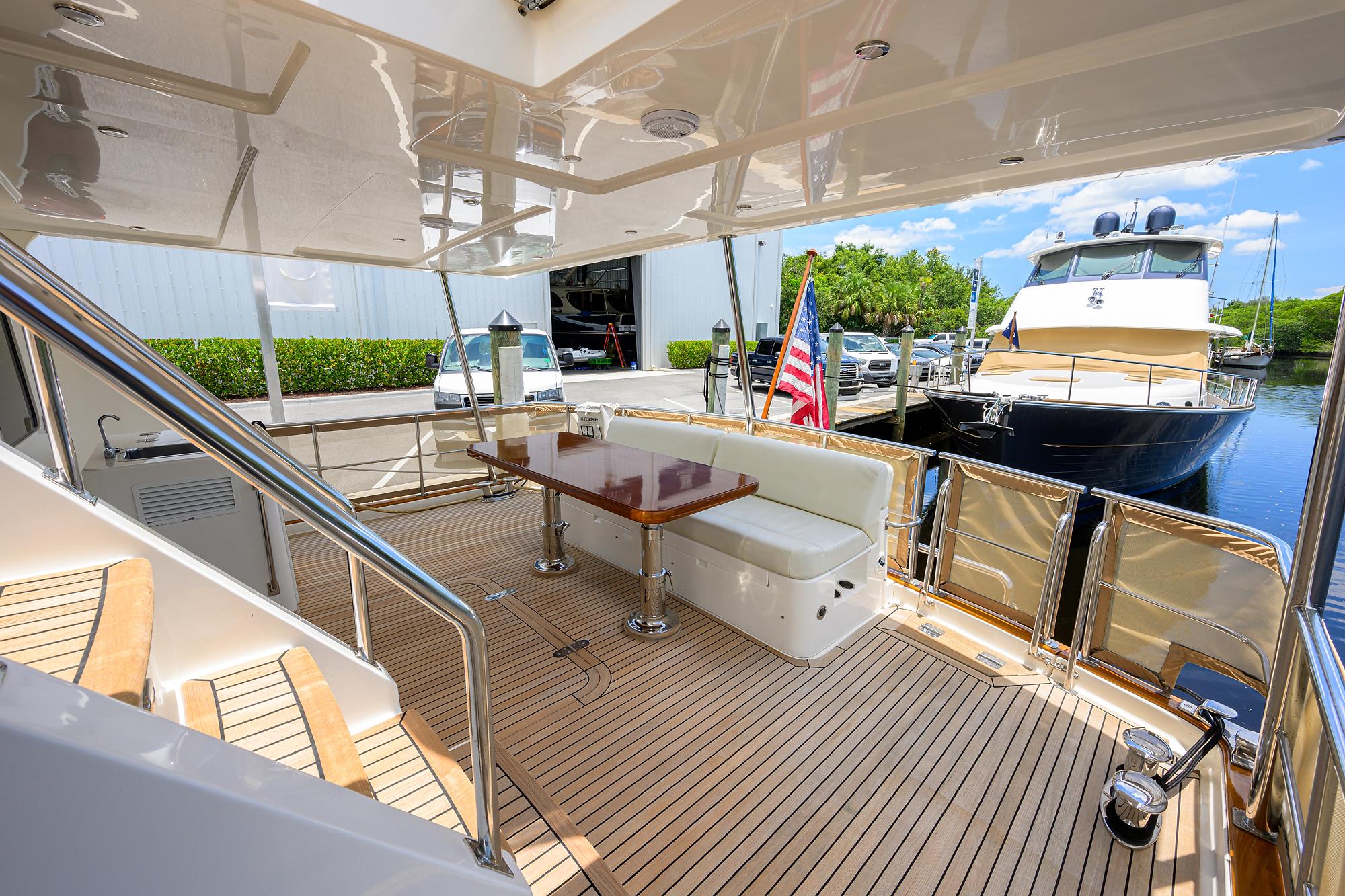

This GB 54 Europa offers an incredible amount of space with her 17' 9" beam and exceptional layout. Her large aft deck is completely covered providing ample shade for the built-in aft seating with large teak table. There is a fiberglass locker on STBD with sink above and storage cabinet below, to the right is an aft docking station complete with throttle and bow & stern thruster controls with flip-up cover. On port is a flybridge staircase with a large integrated storage locker at deck level.
Enter the salon through the aft deck door, which has two (2) Phantom screens that magnetically attach for cool breezes, bug-free. This also allows the aft deck and salon to combine for a large entertainment area. The salon offers a luxurious L-shaped settee on port with teak storage drawers below and straight settee with teak storage drawers below on starboard. The Bose entertainment system is housed in a dedicated aft port cabinet. There is a small step up into the galley and dinette area.

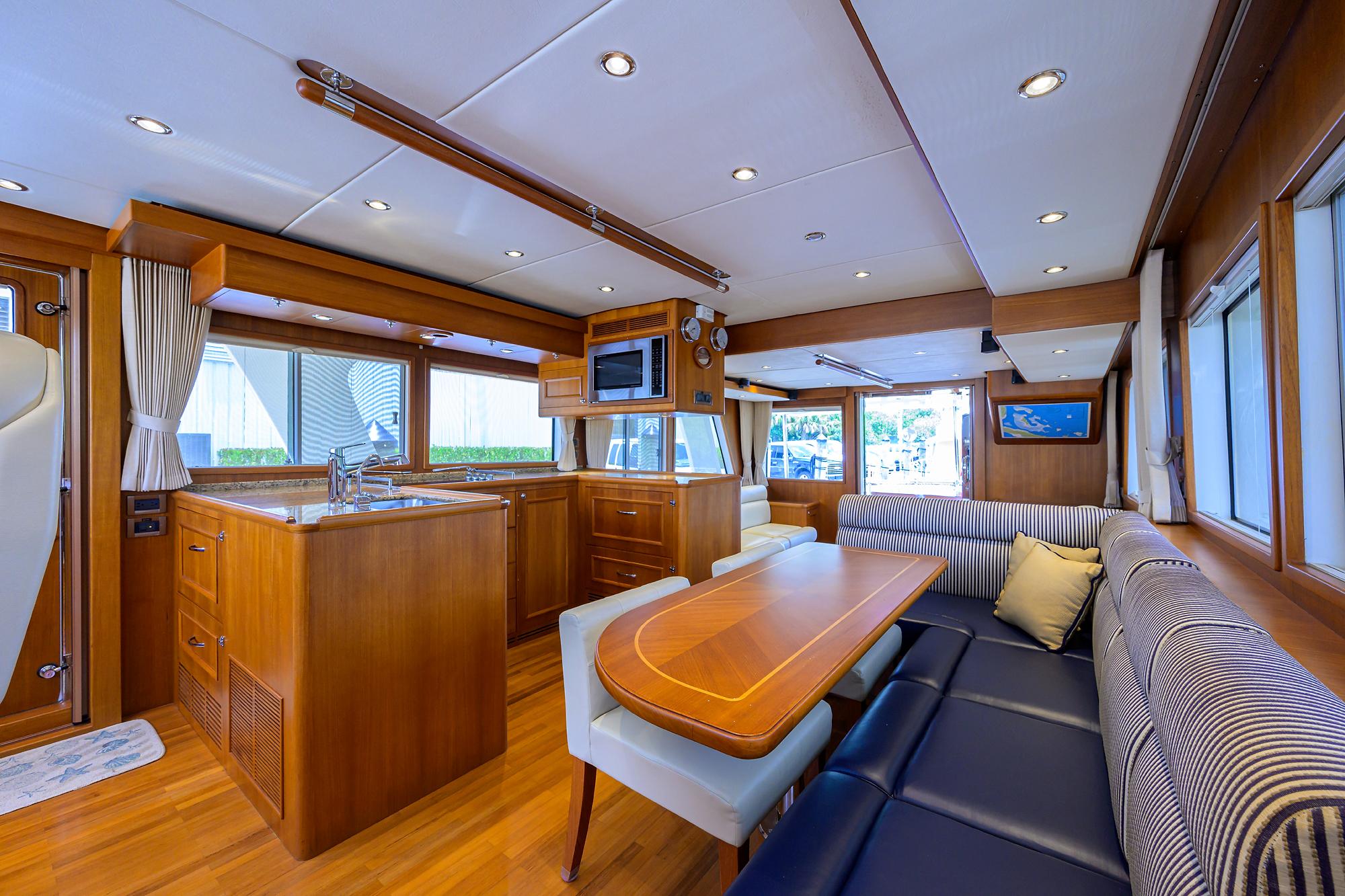

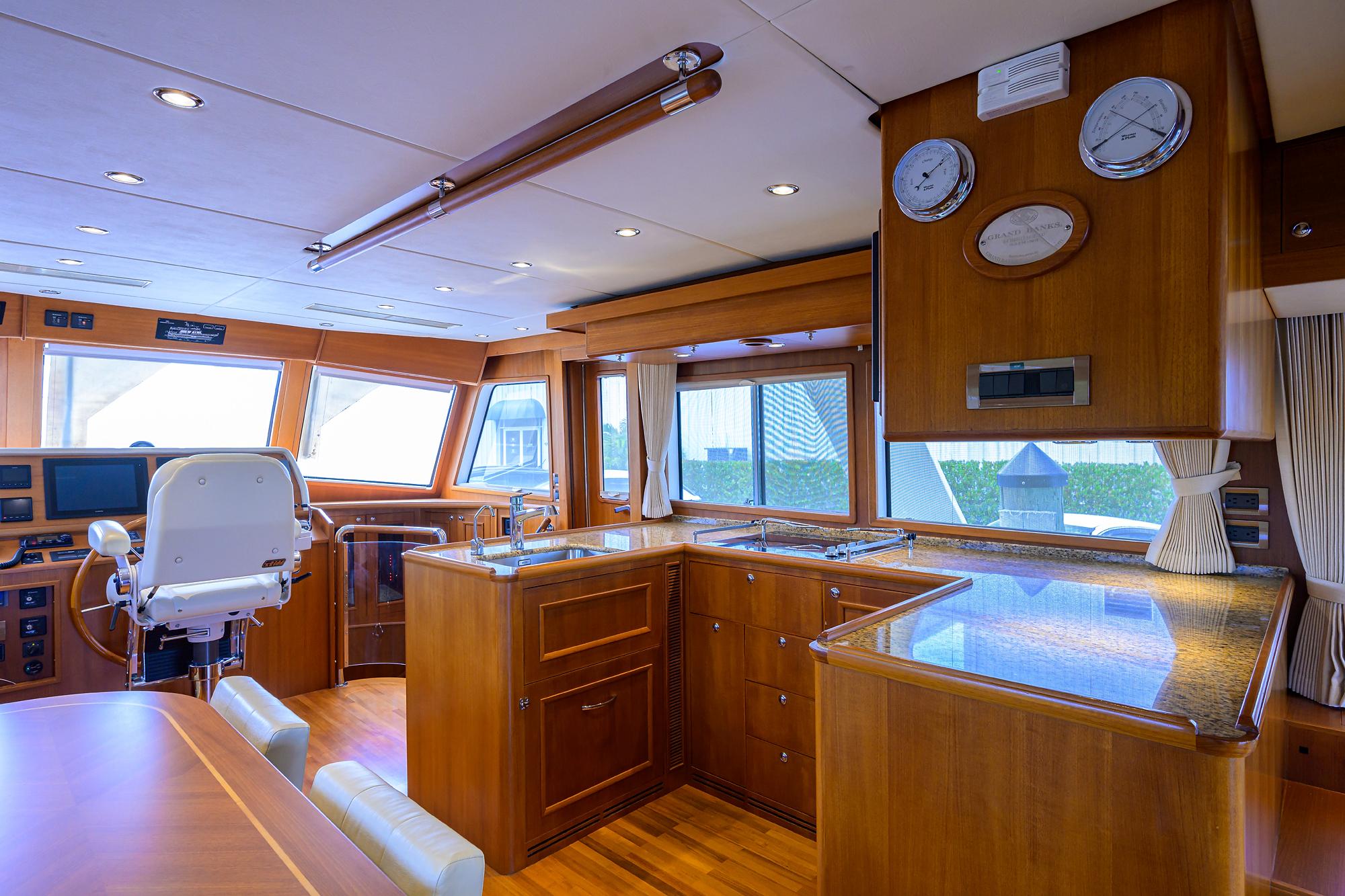

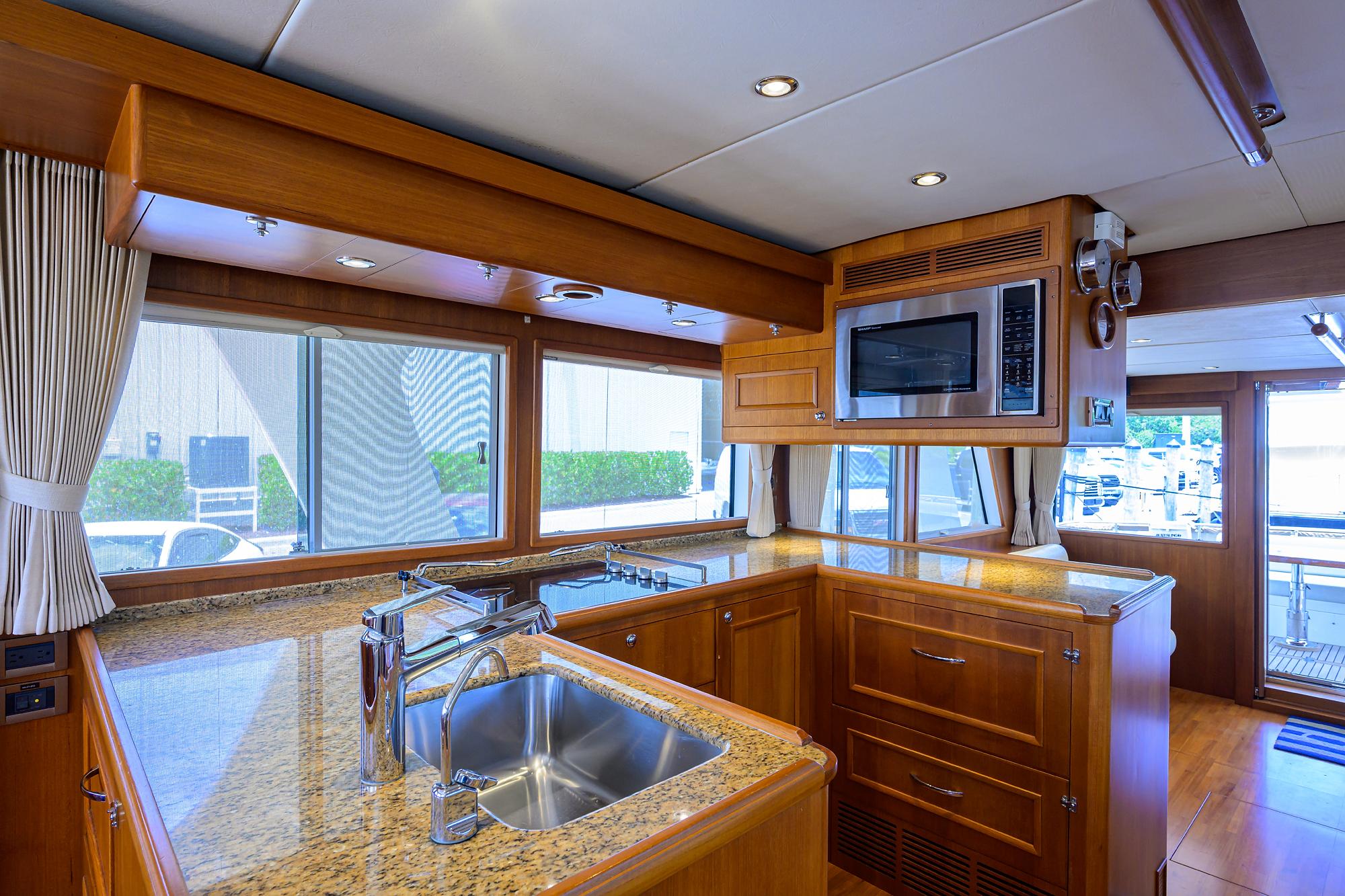

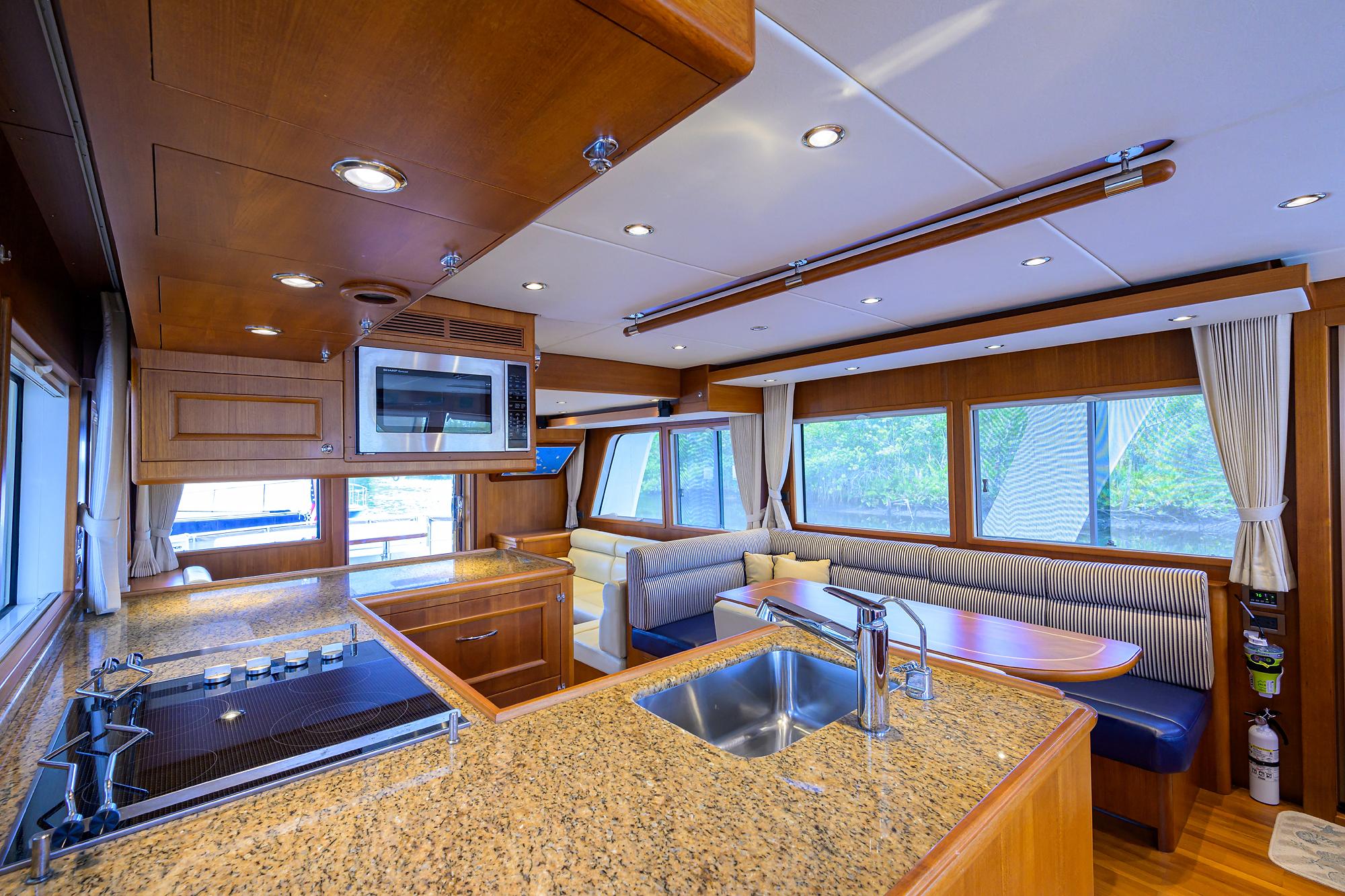

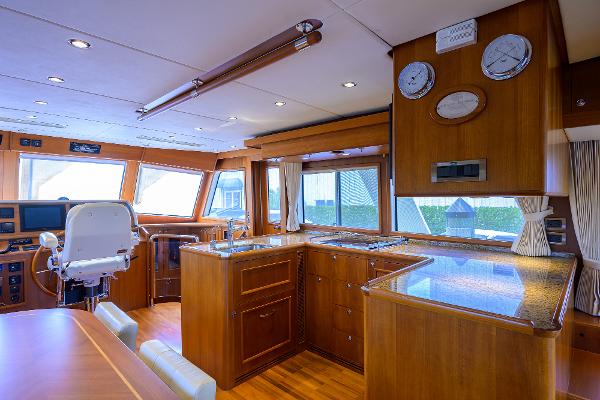

The U-shaped galley is starboard and features Granite countertops, Sub-Zero drawer refrigeration, overhead microwave/convection oven, overhead galley dish locker storage running the full length of the galley outboard. The aft counter corner provides a large storage slide-out for pantry items. There are drawers for silverware, glass storage and other galley utensils and slide-out double trash containers. The forward counter cabinets features a large stainless steel sink with Fisher Paykel dishwasher drawer below. An additional set of Sub-Zero drawers with refrigerator above and freezer below are located facing forward toward helm area.

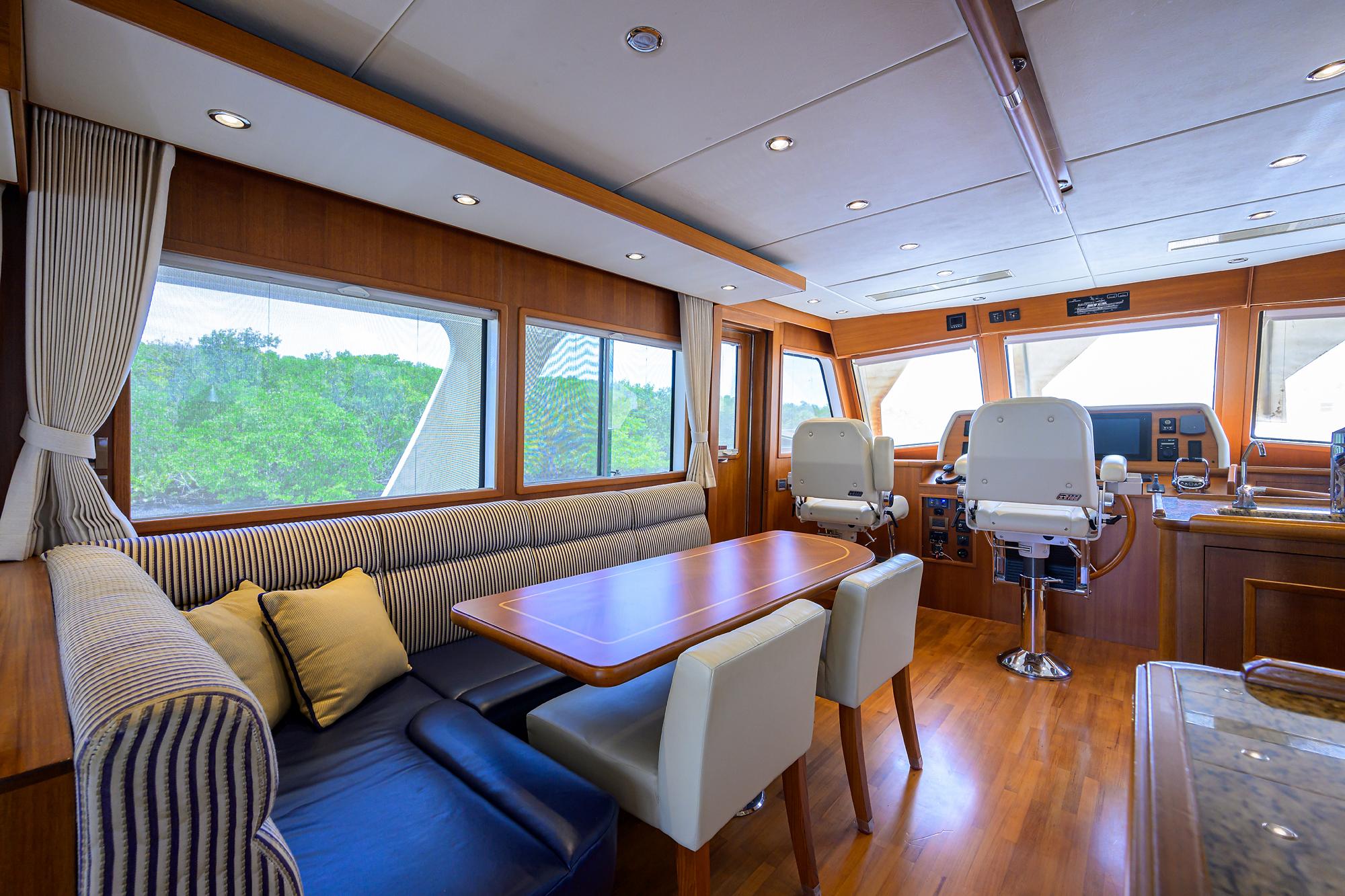

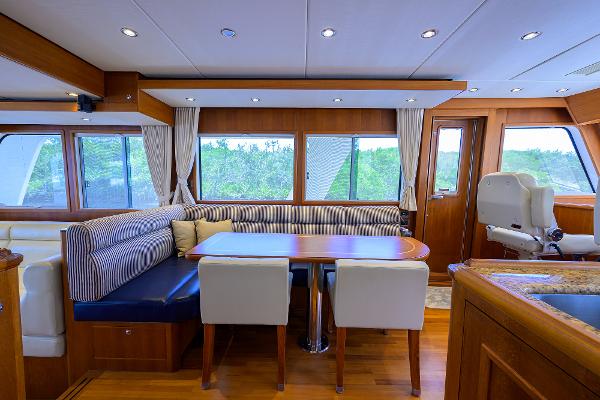

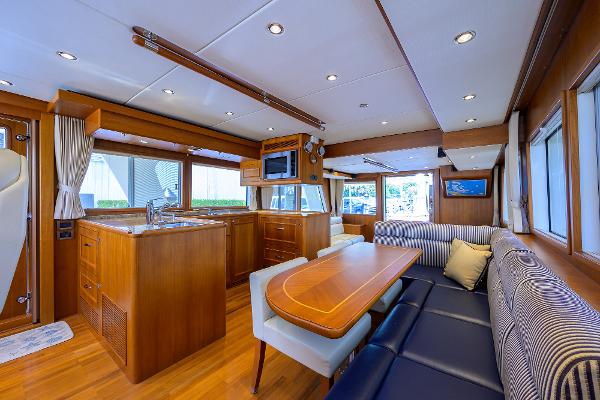

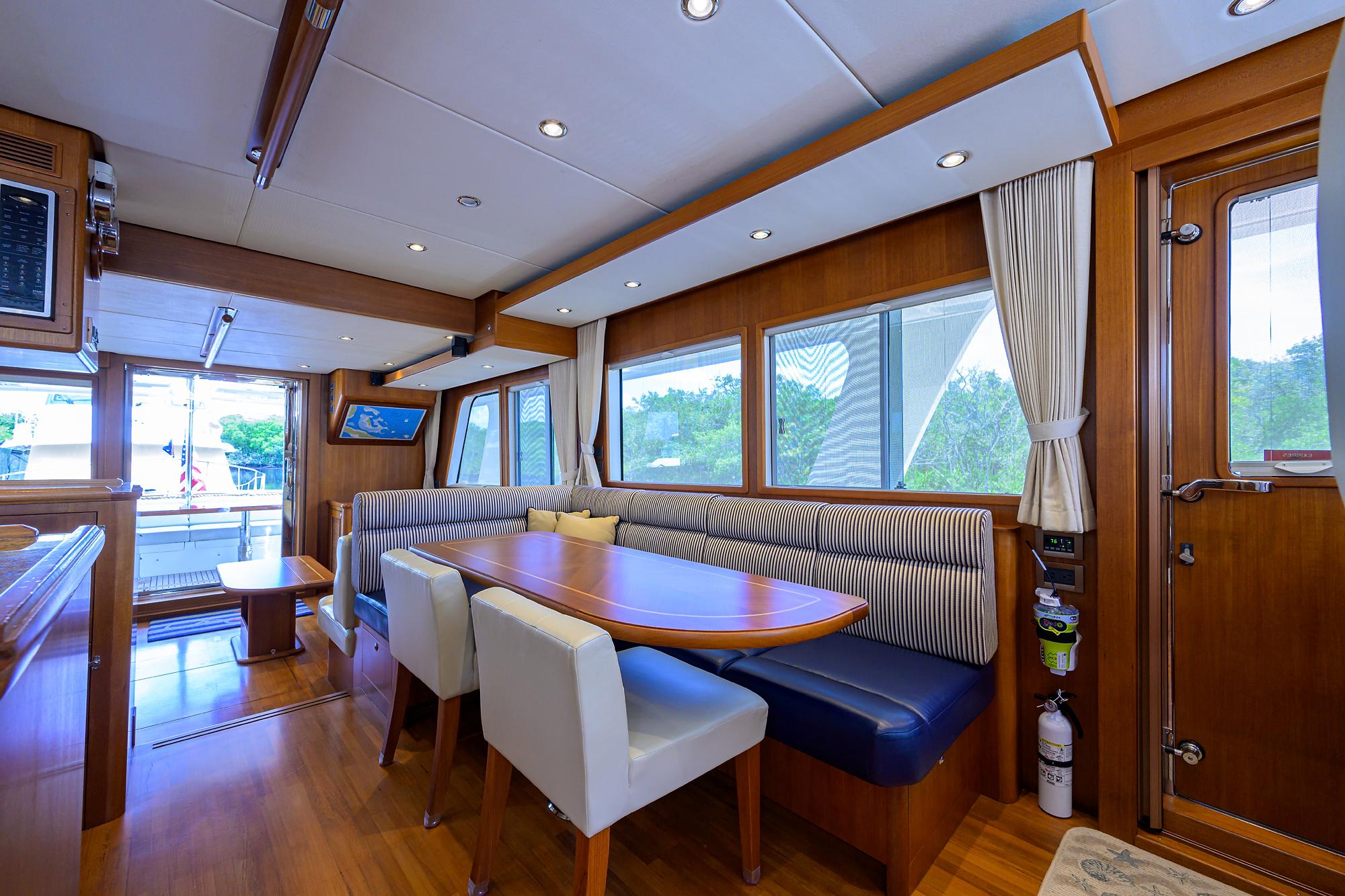

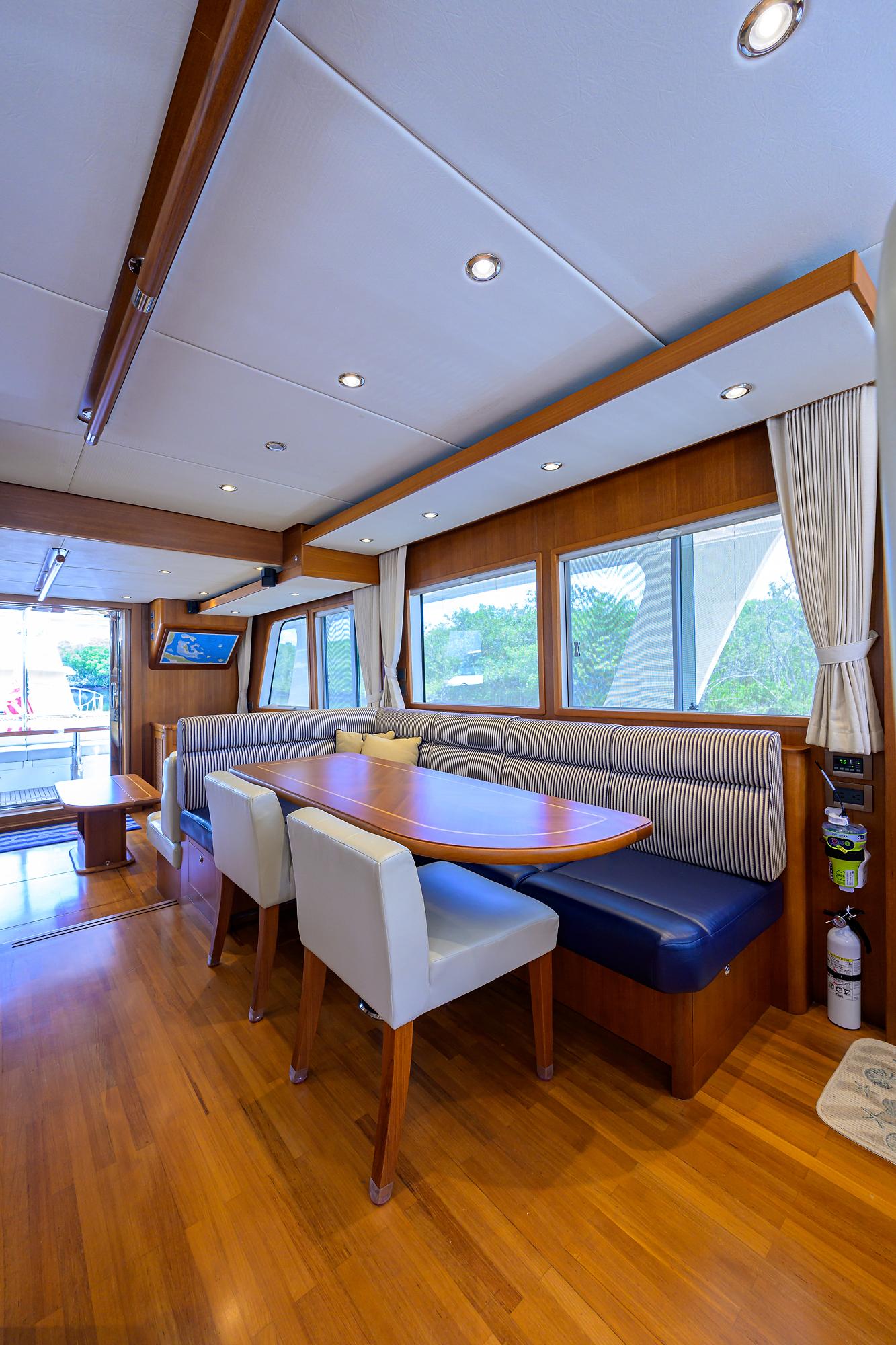

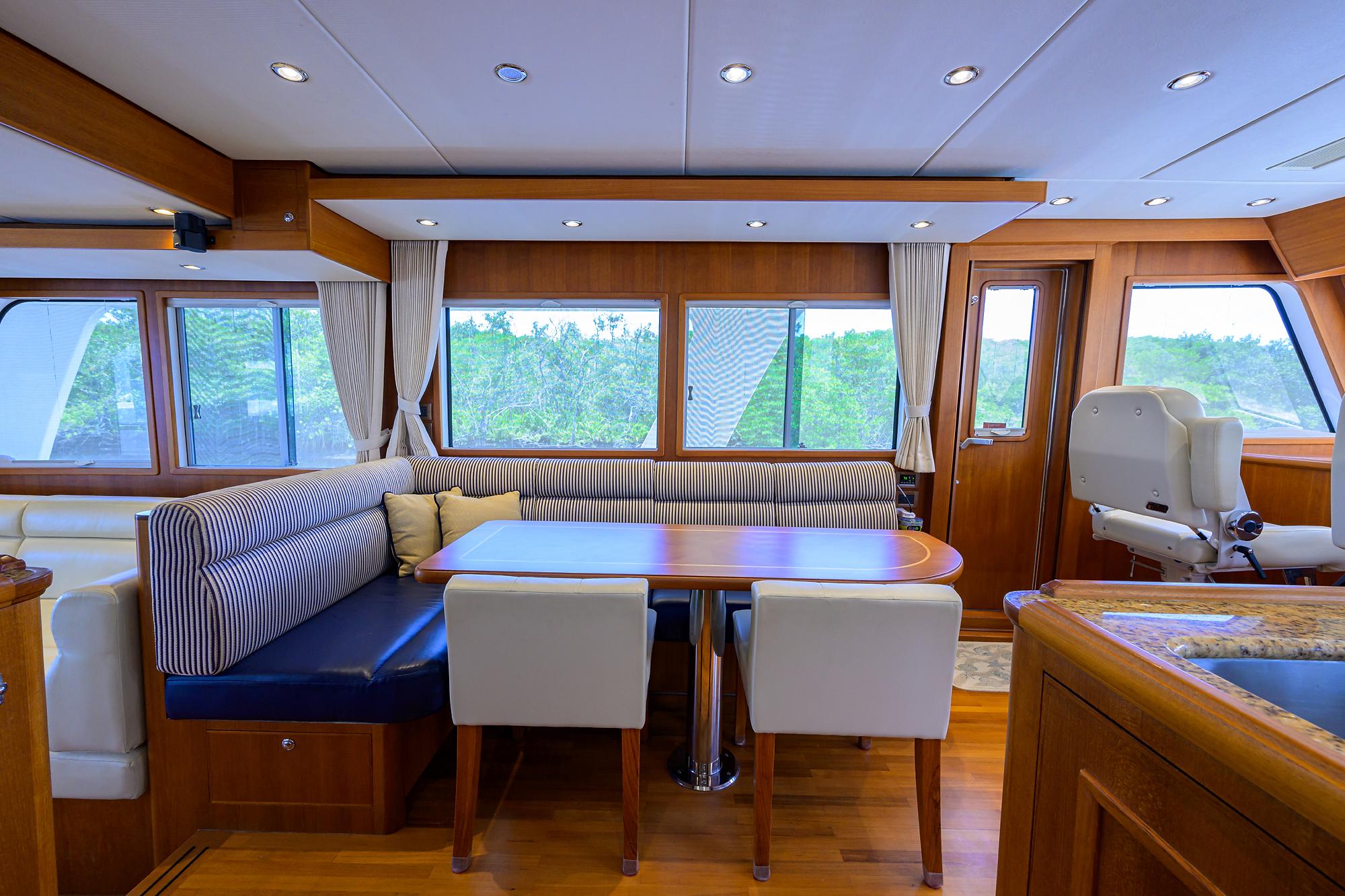

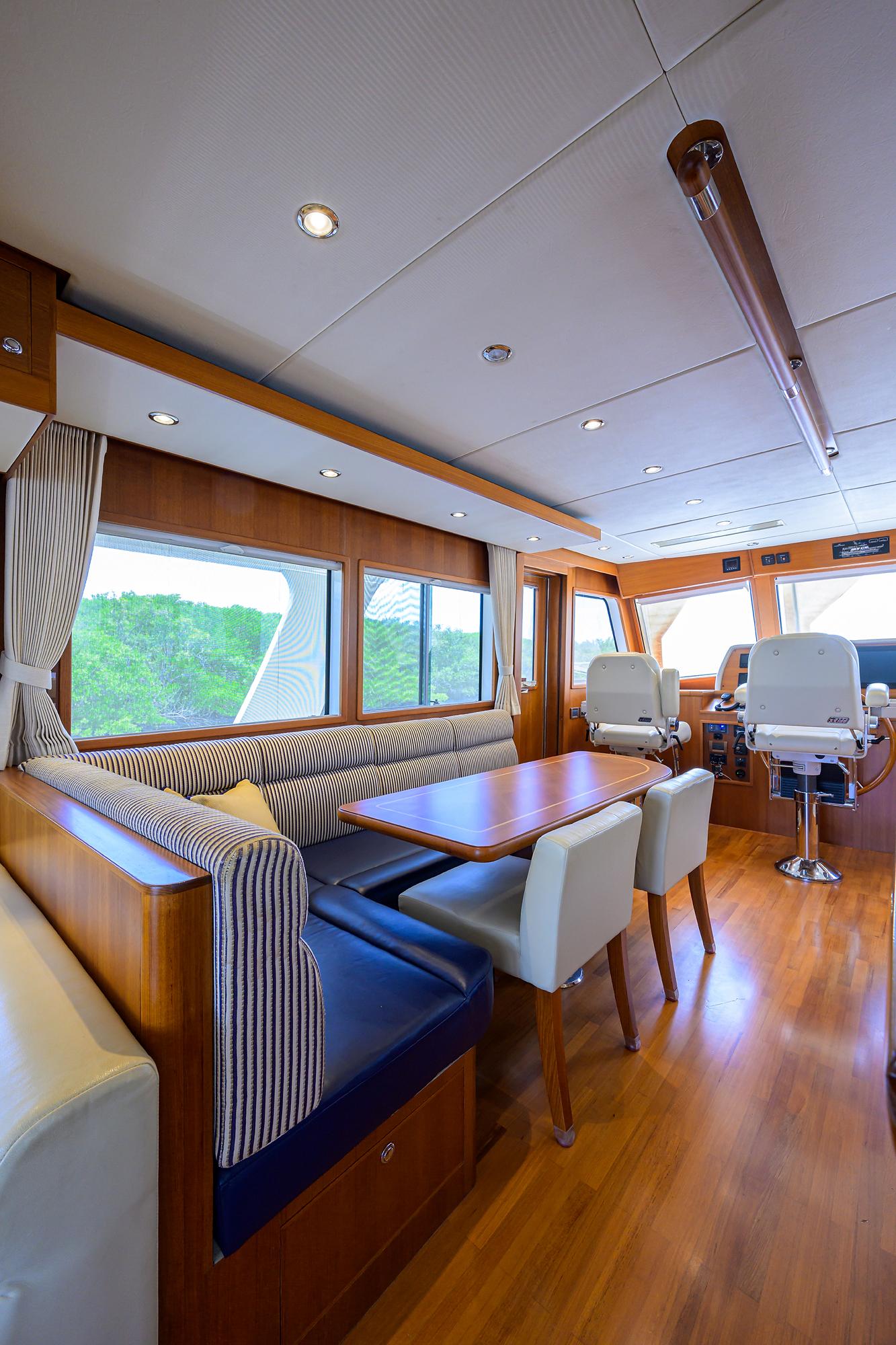

The dinette is opposite the galley with a comfortable L-settee, teak dining table and two custom movable teak chairs on the inboard table side. There is storage below the seating functioning as additional galley storage for longer-term cruising.

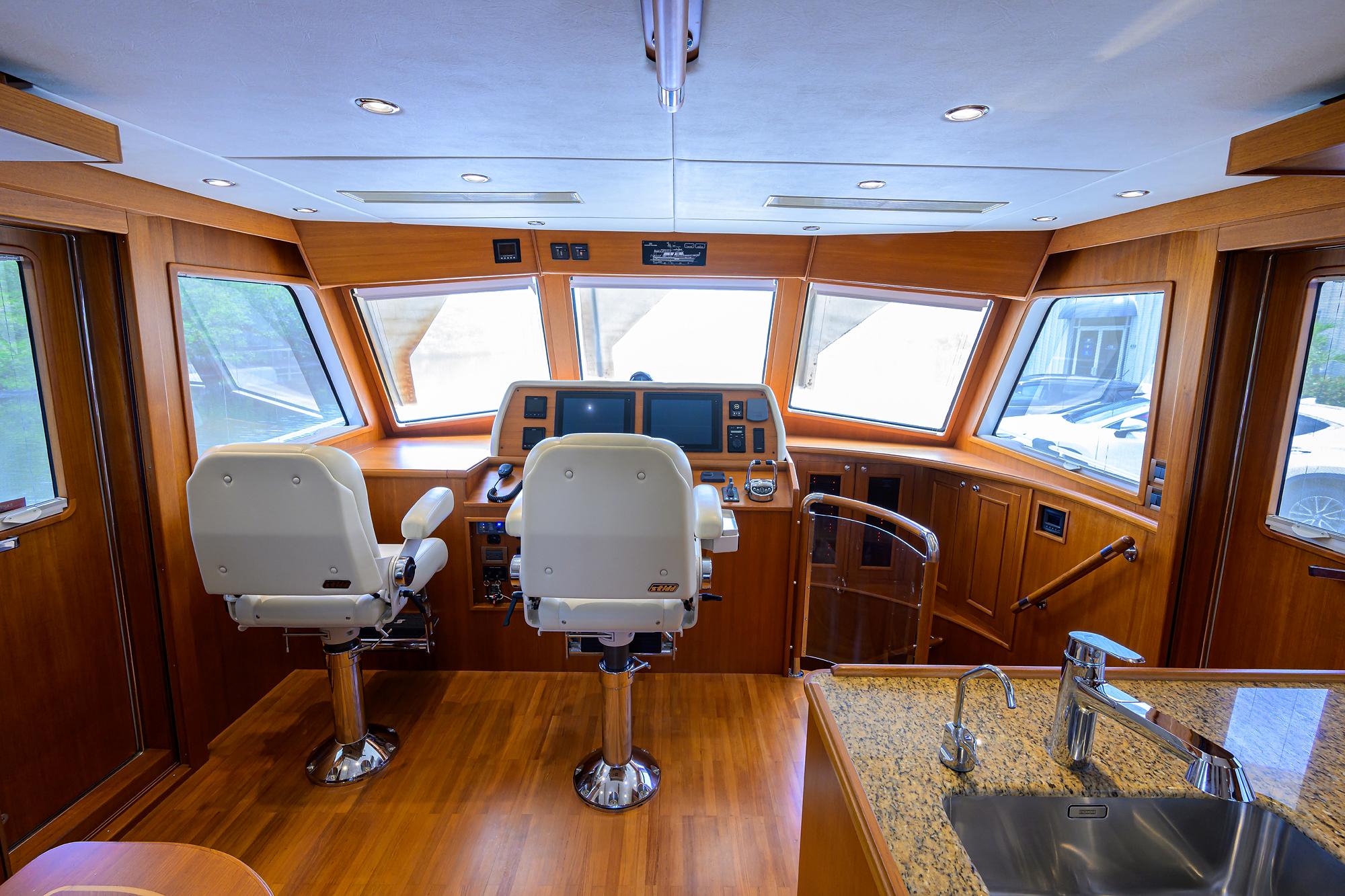

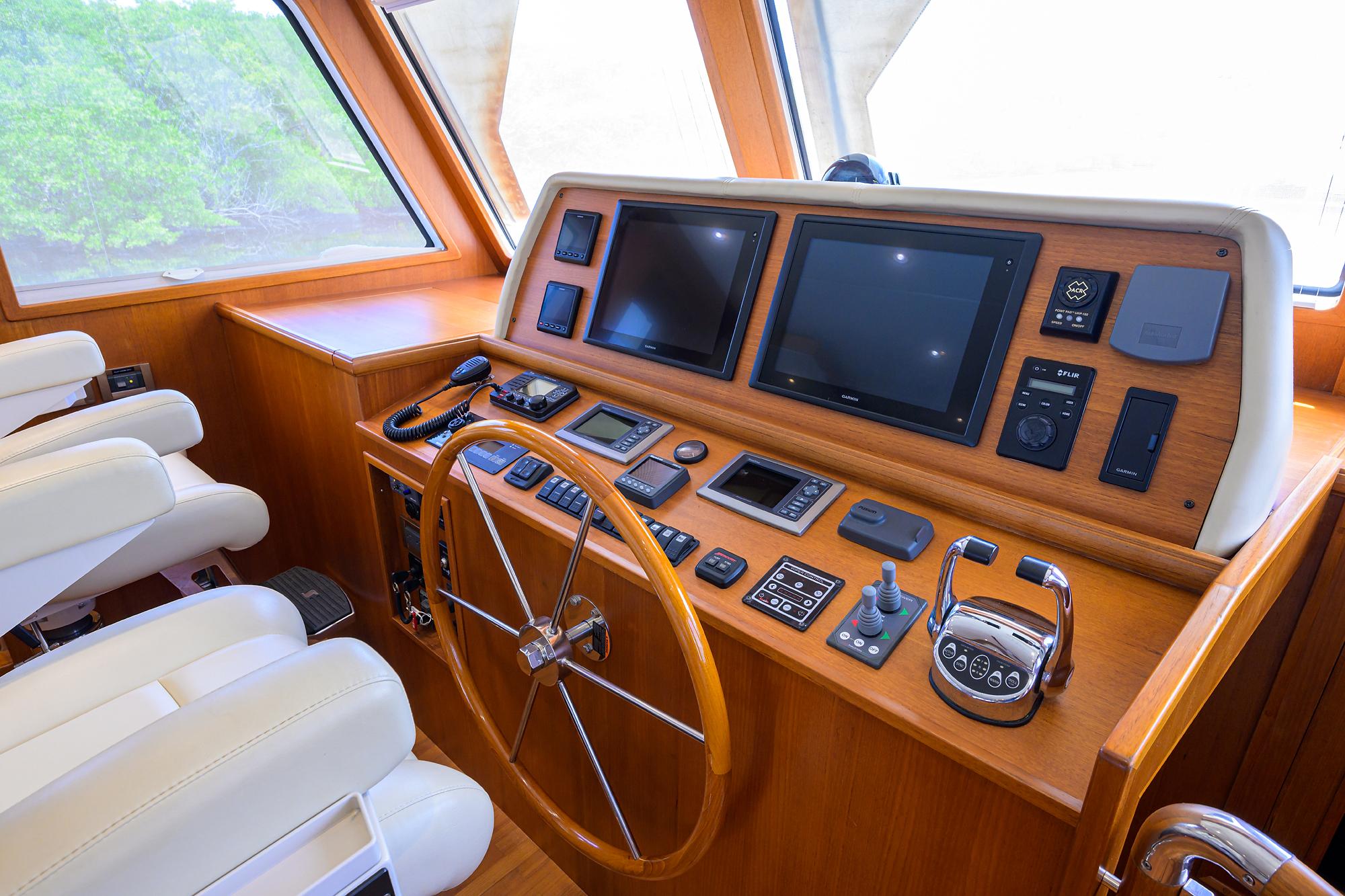

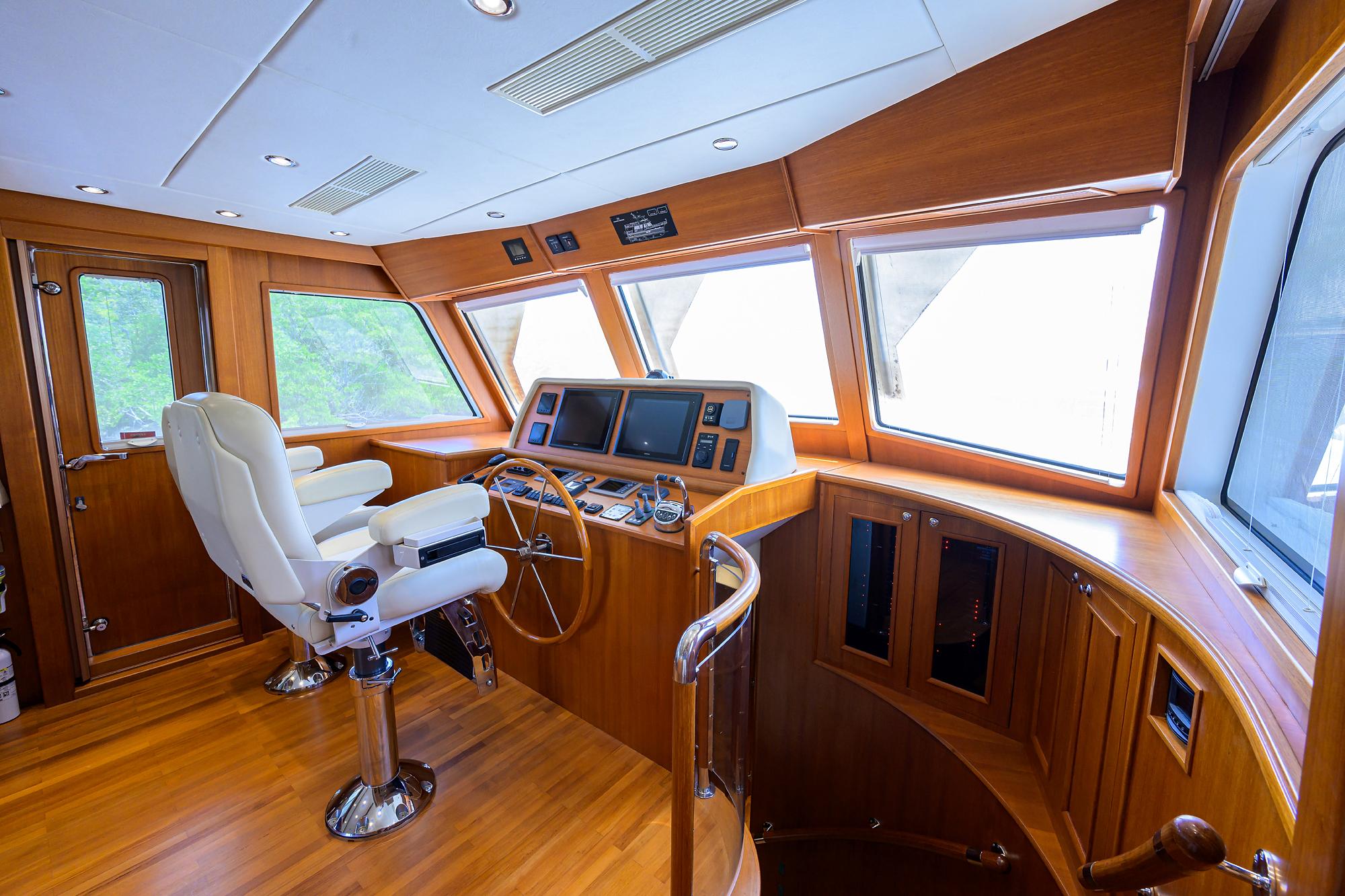

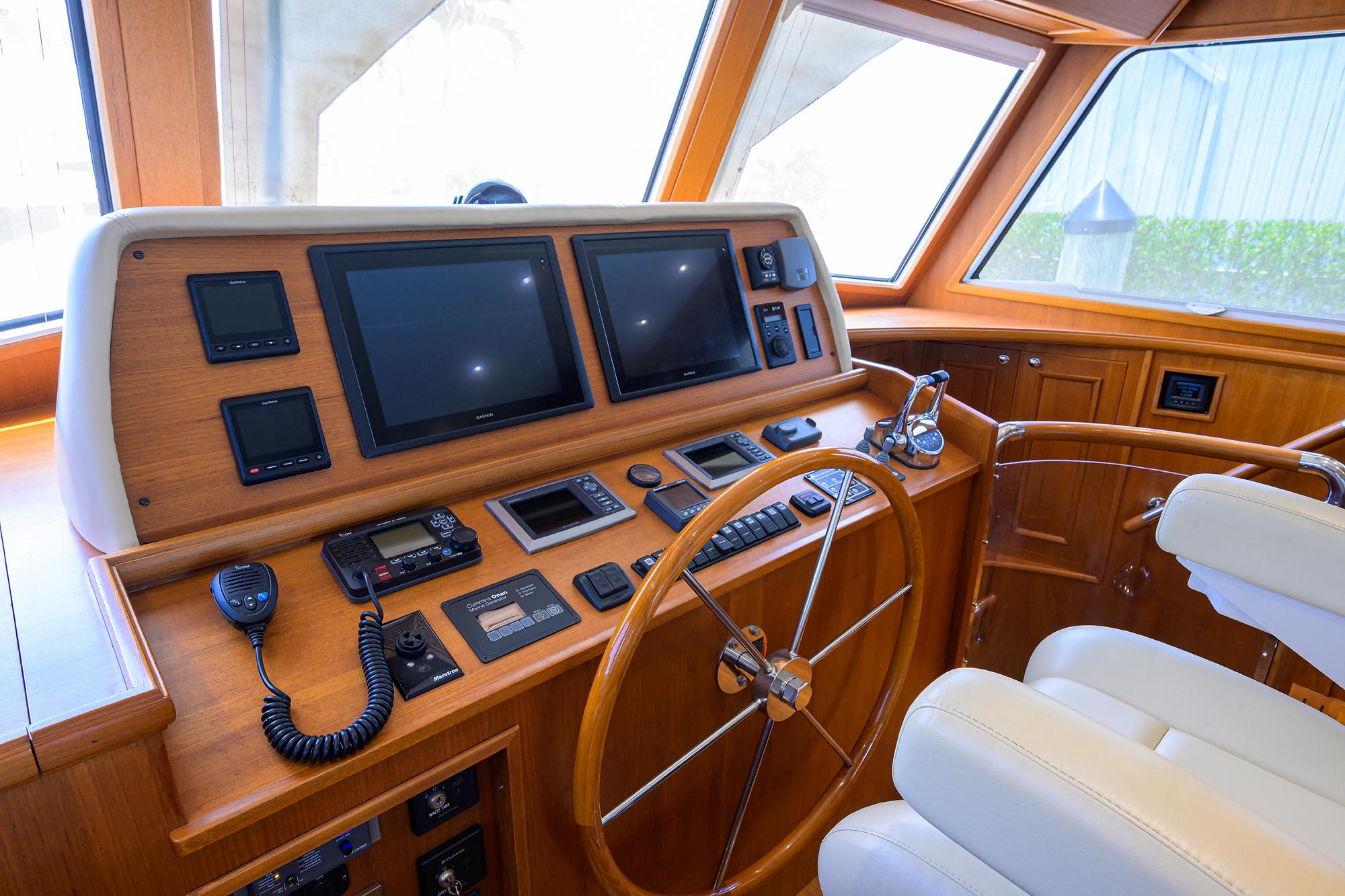

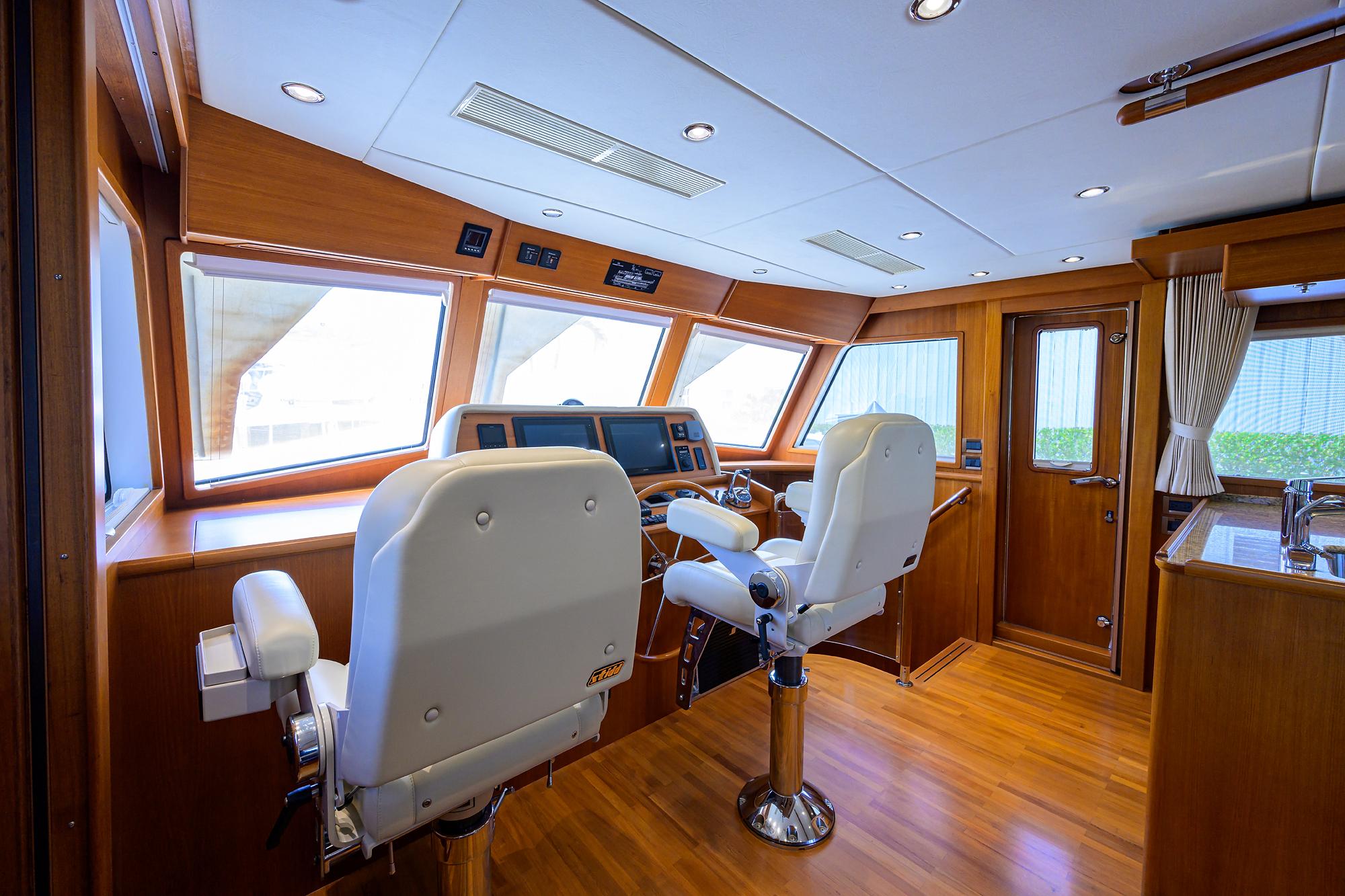

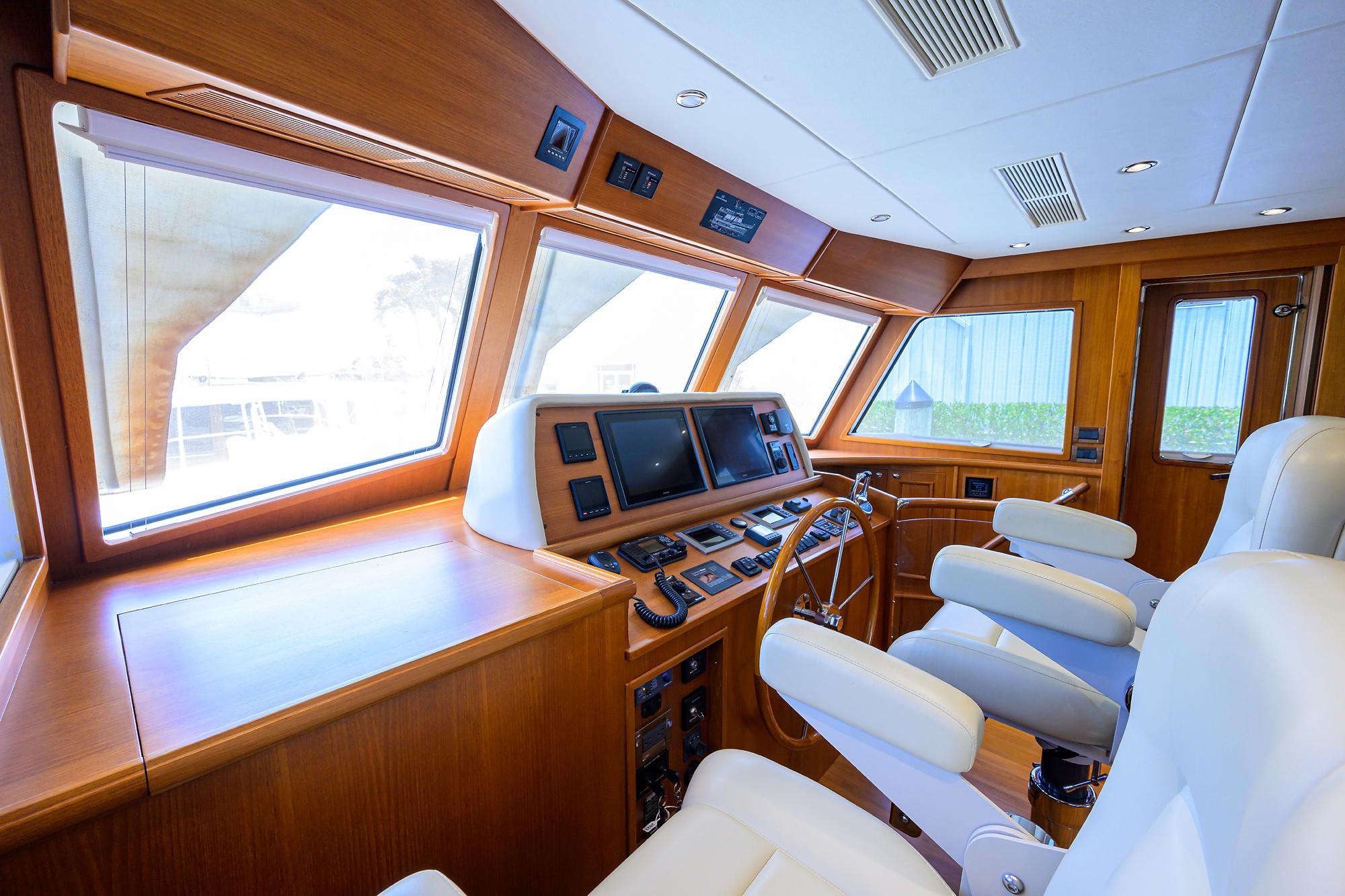

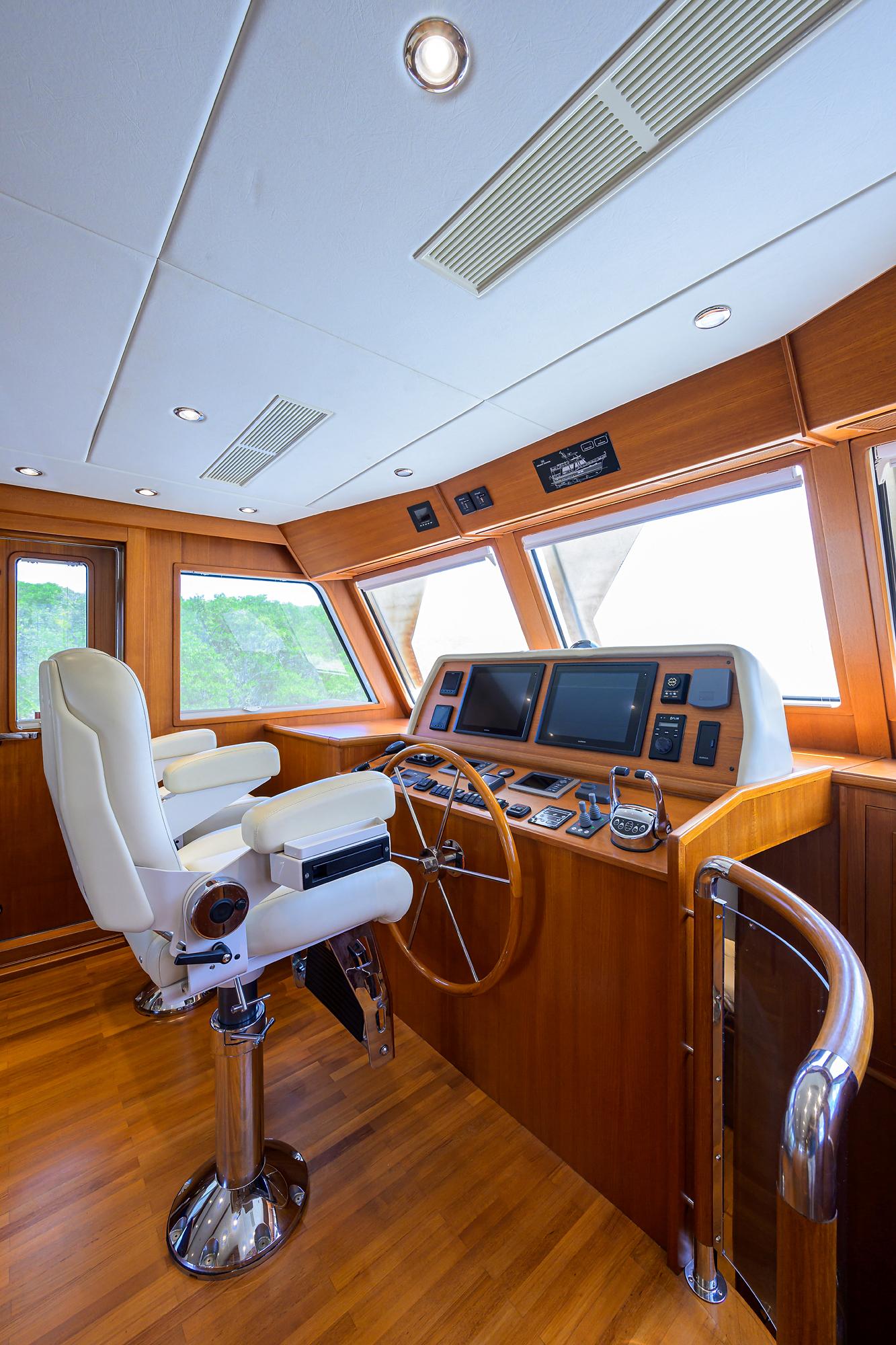

The lower helm area is forward with a large electronics console, two (2) STIDD helmseats, and chart locker on port. There are port and starboard pilothouse doors, both with Phantom screens. Operation is a breeze from this lower helm station thanks to the window size and the proximity of the steering station to her bow. She offers almost a full 360-degree view and you can easily step onto the wide side decks to help with dock lines from either side.

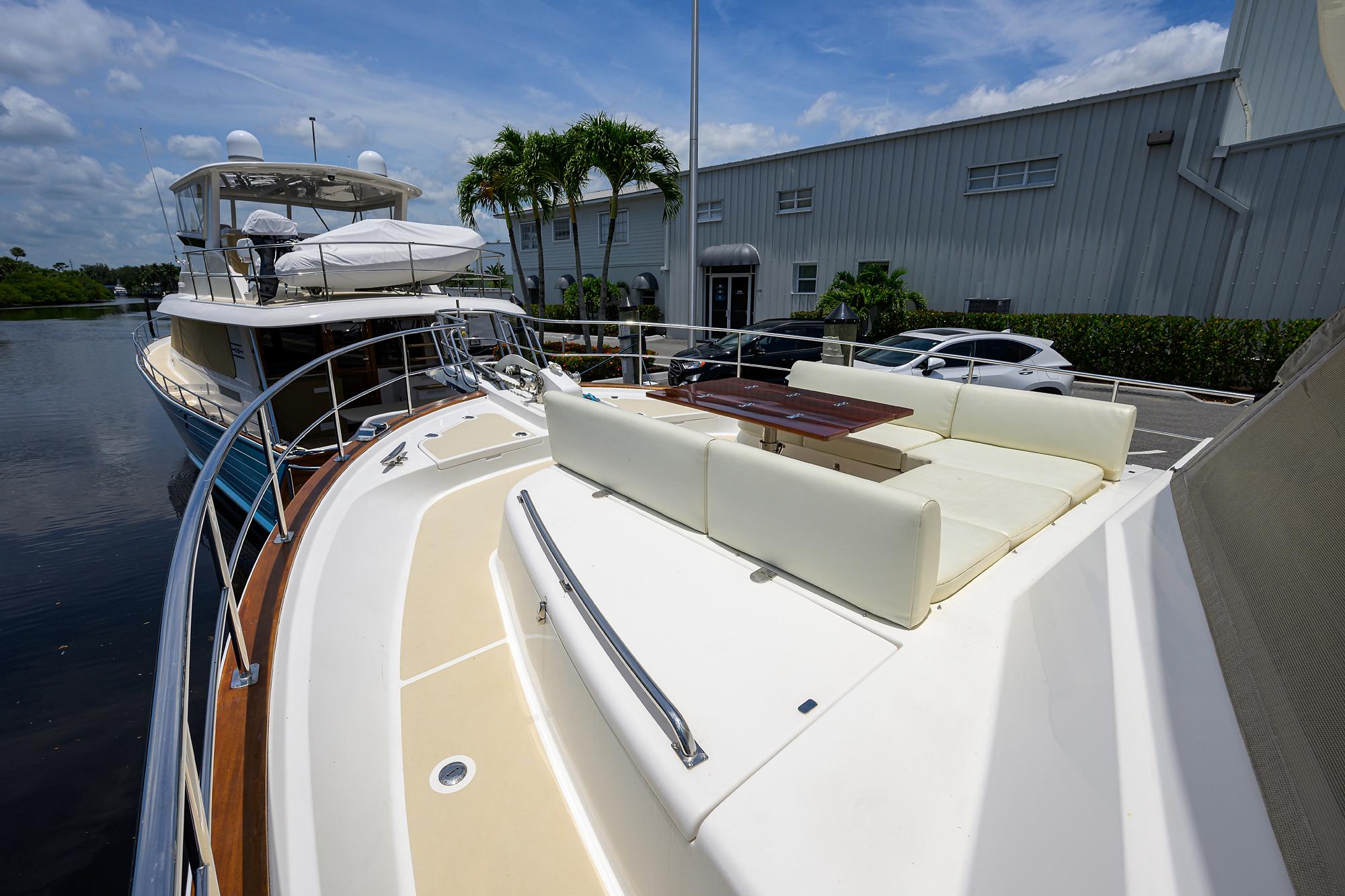

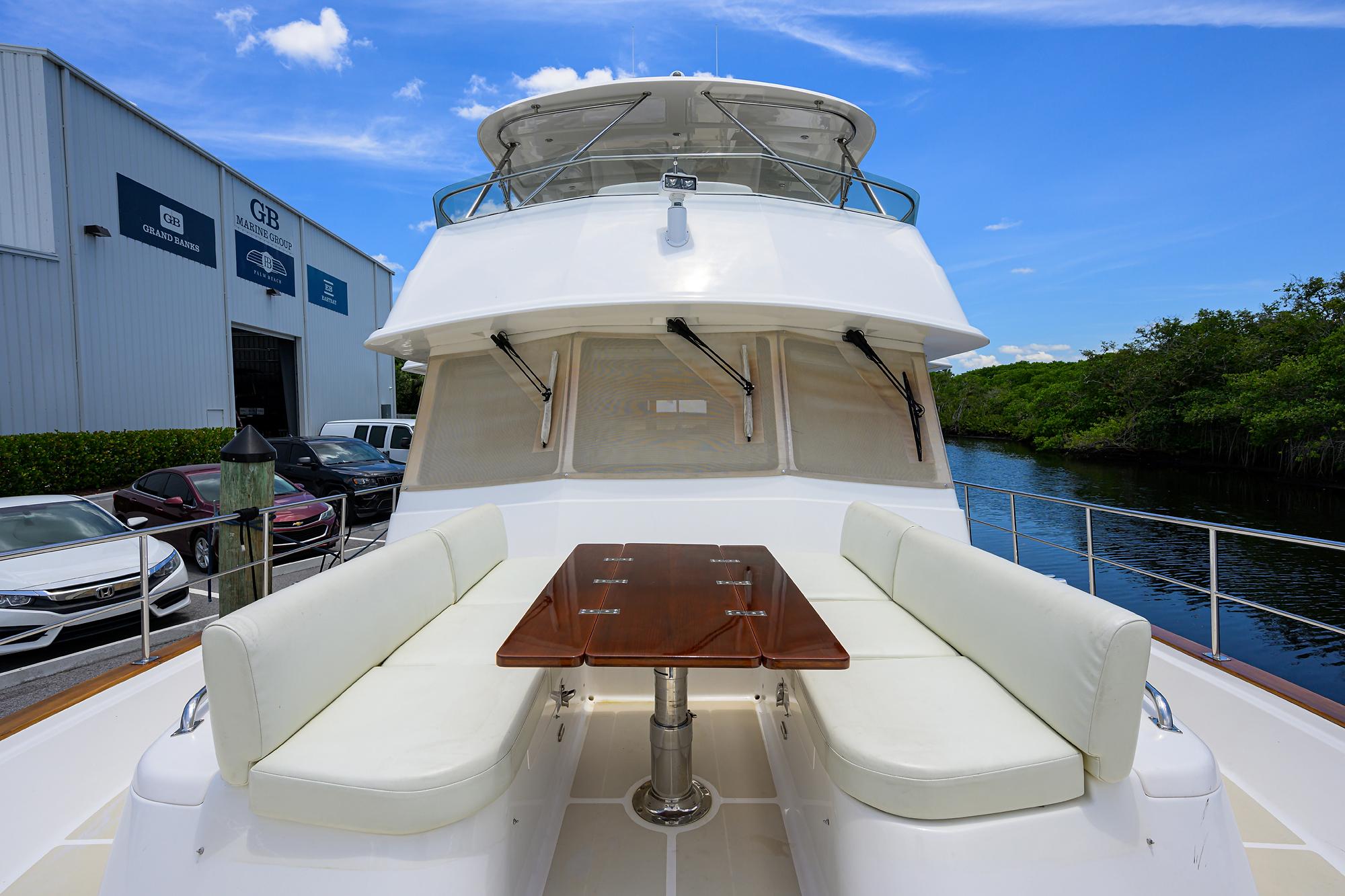

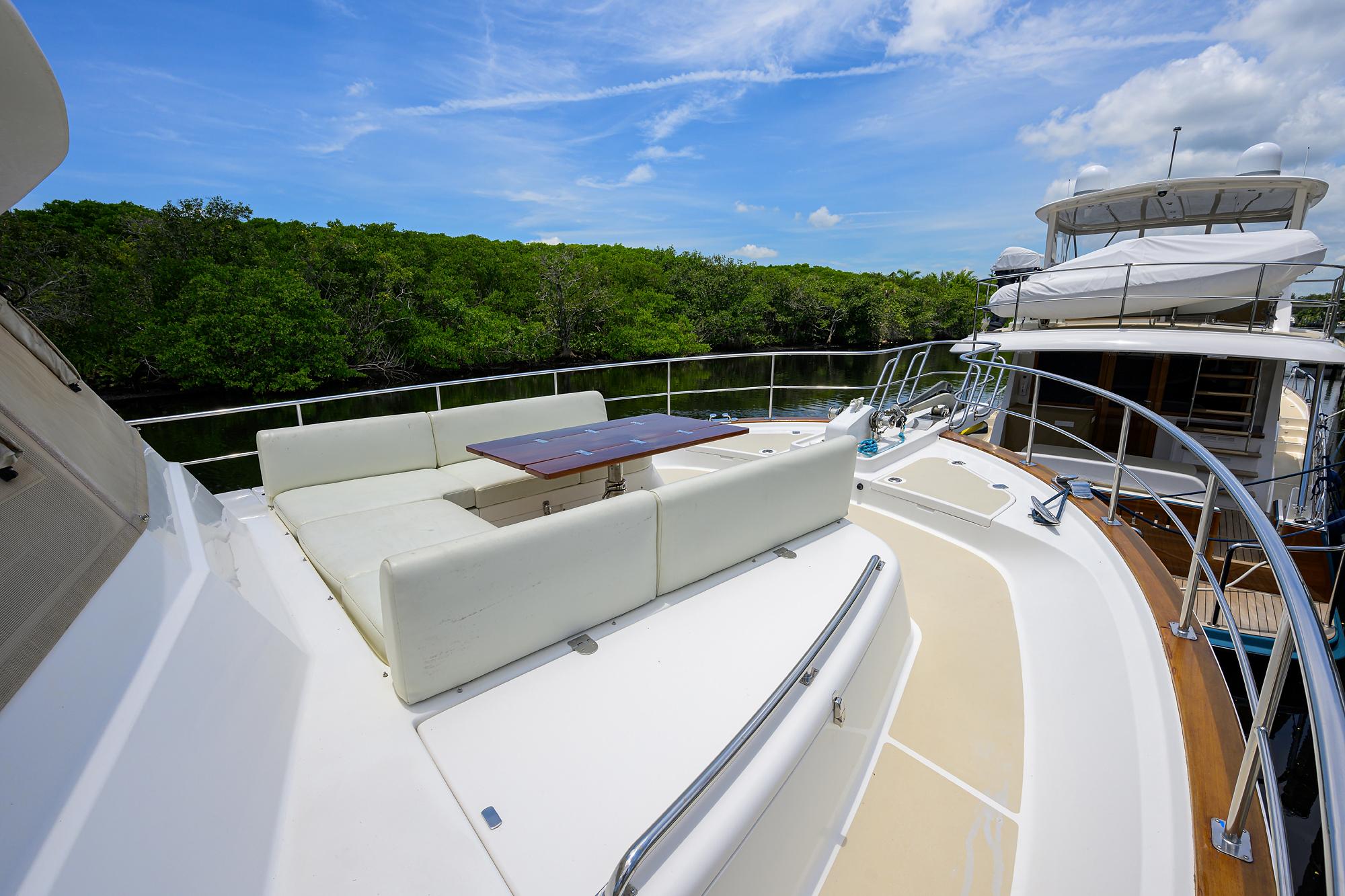

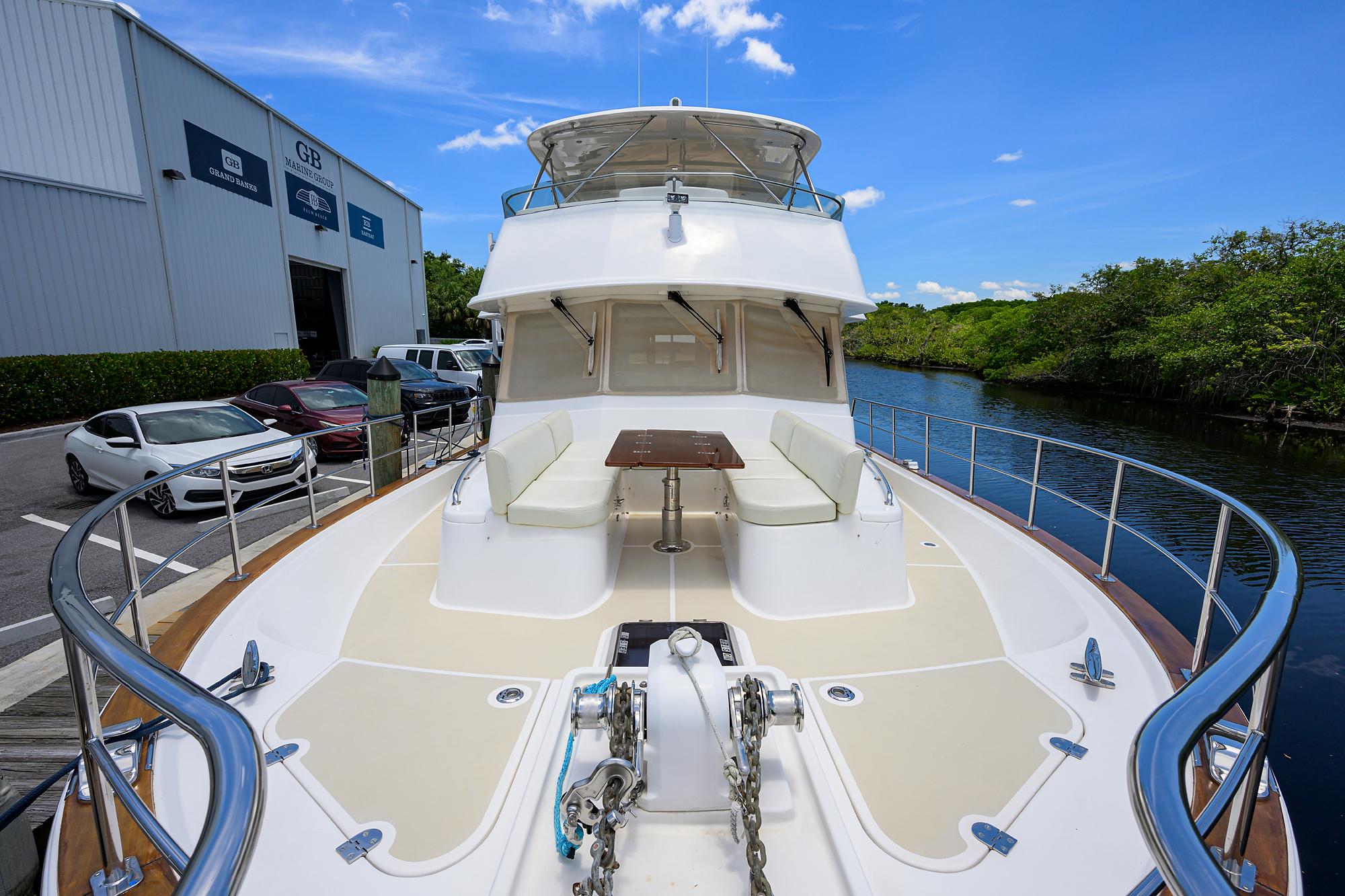

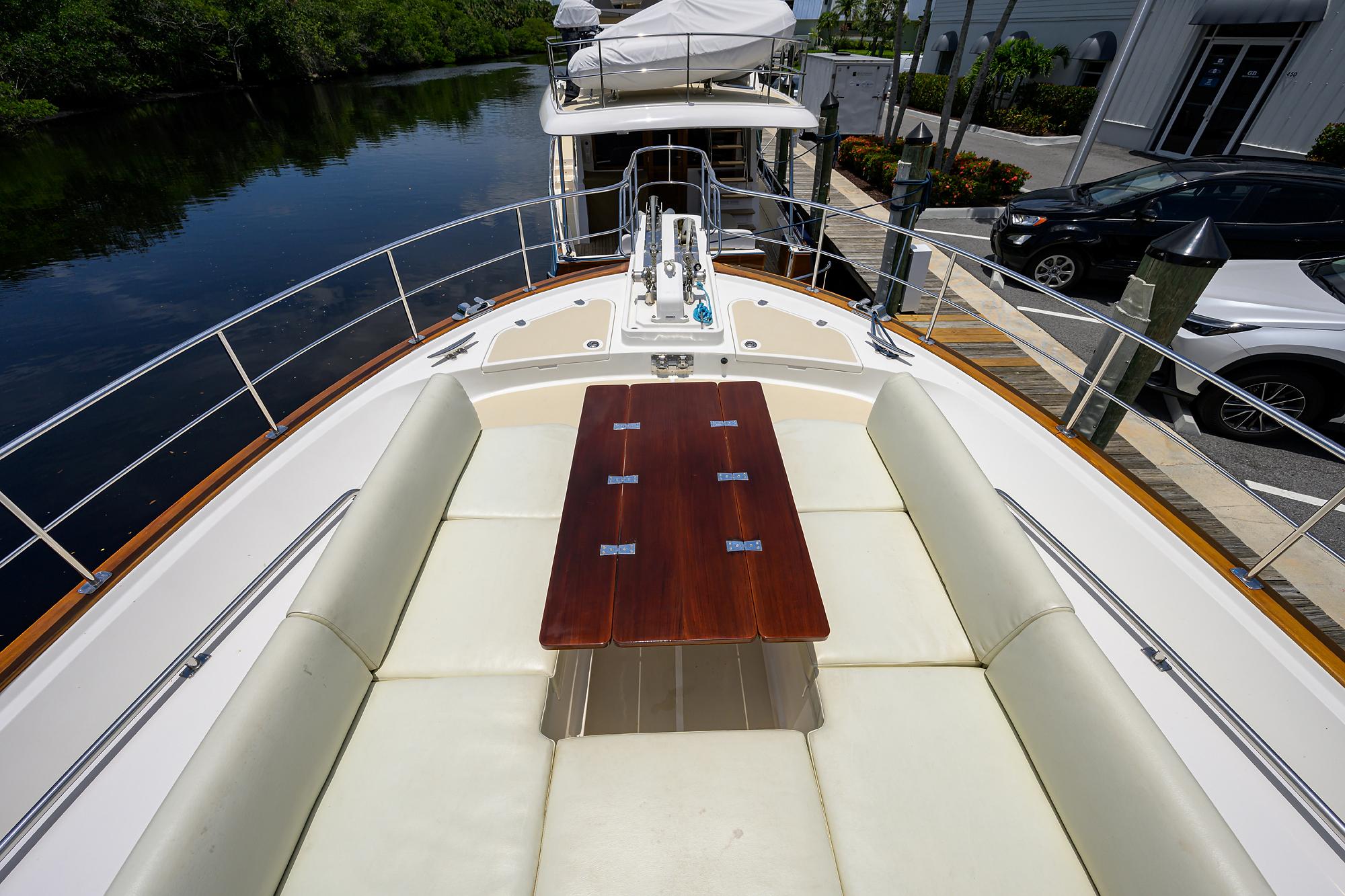

The foredeck provides another great outdoor entertainment area with very comfortable seating and table. Outboard of this area are two very large storage lockers. The stainless steel anchor platform is set up for dual anchors: a 130-lb. spade with 300' chain and 75-lb. support anchor also with chain. Outboard of the anchor platform are two storage lockers with a freshwater washdown in starboard locker. Wide walkaround sidedecks and high stainless steel double rails make her safe and easy for a couple to handle in any seaway.

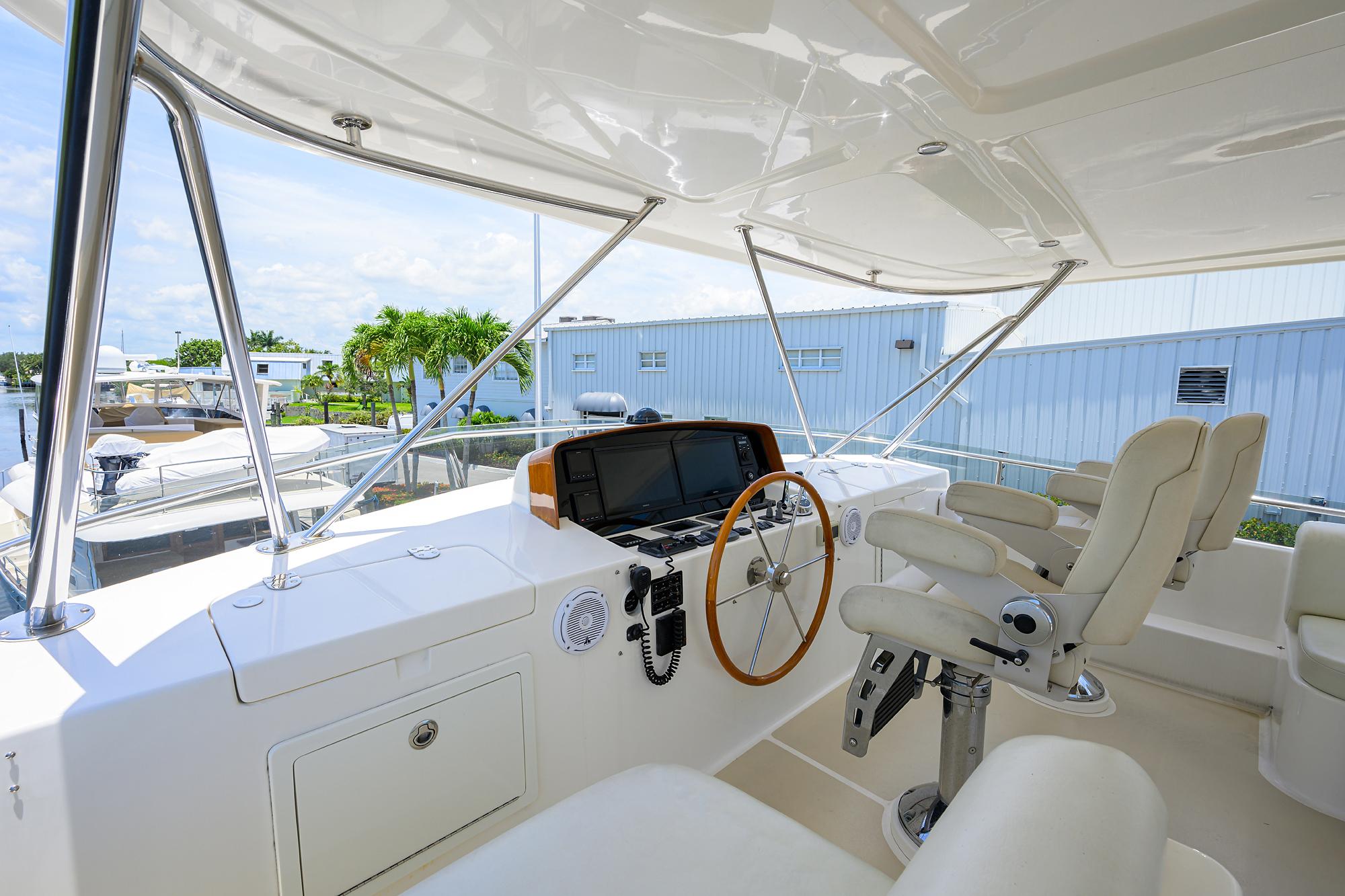

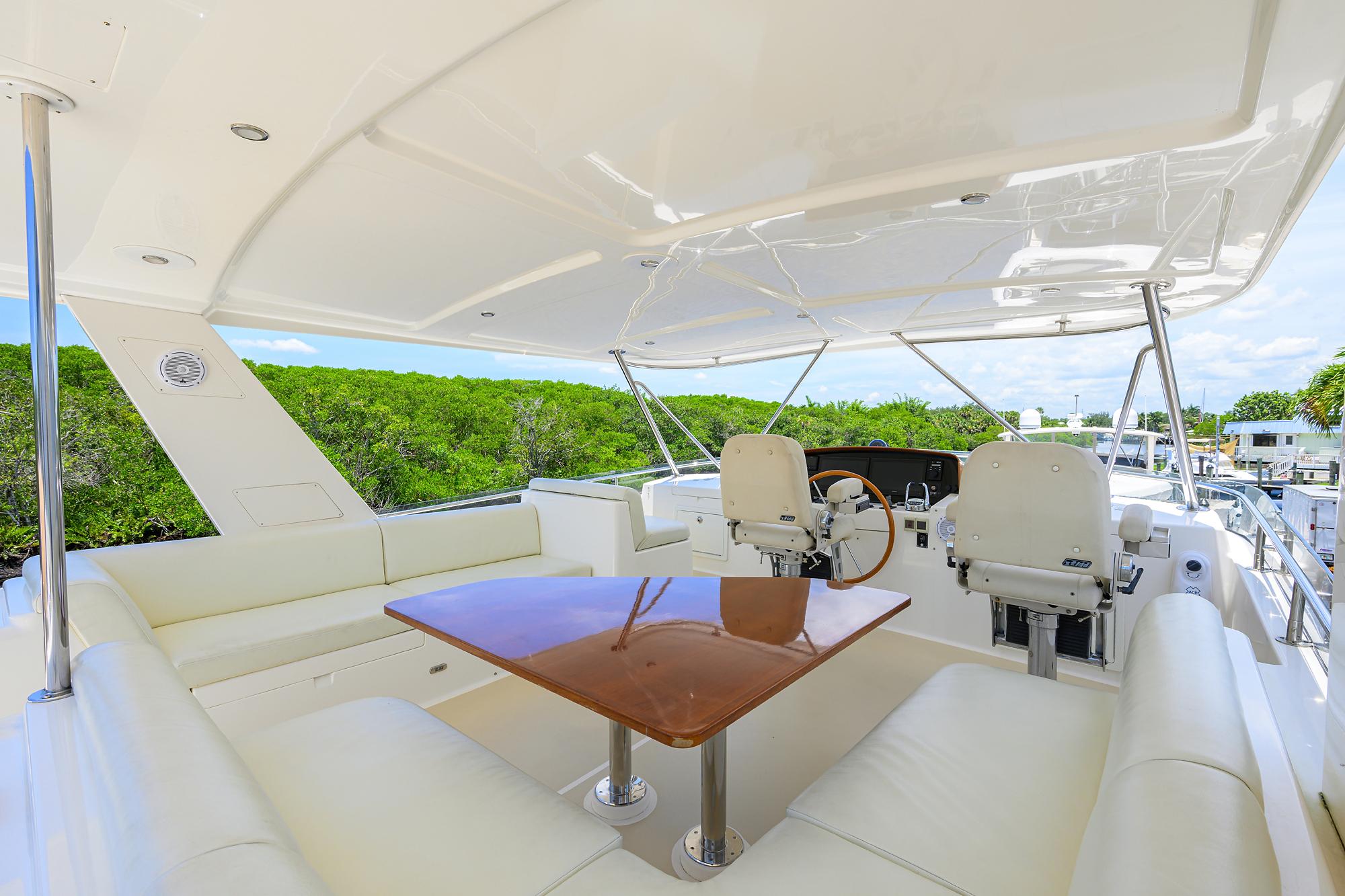

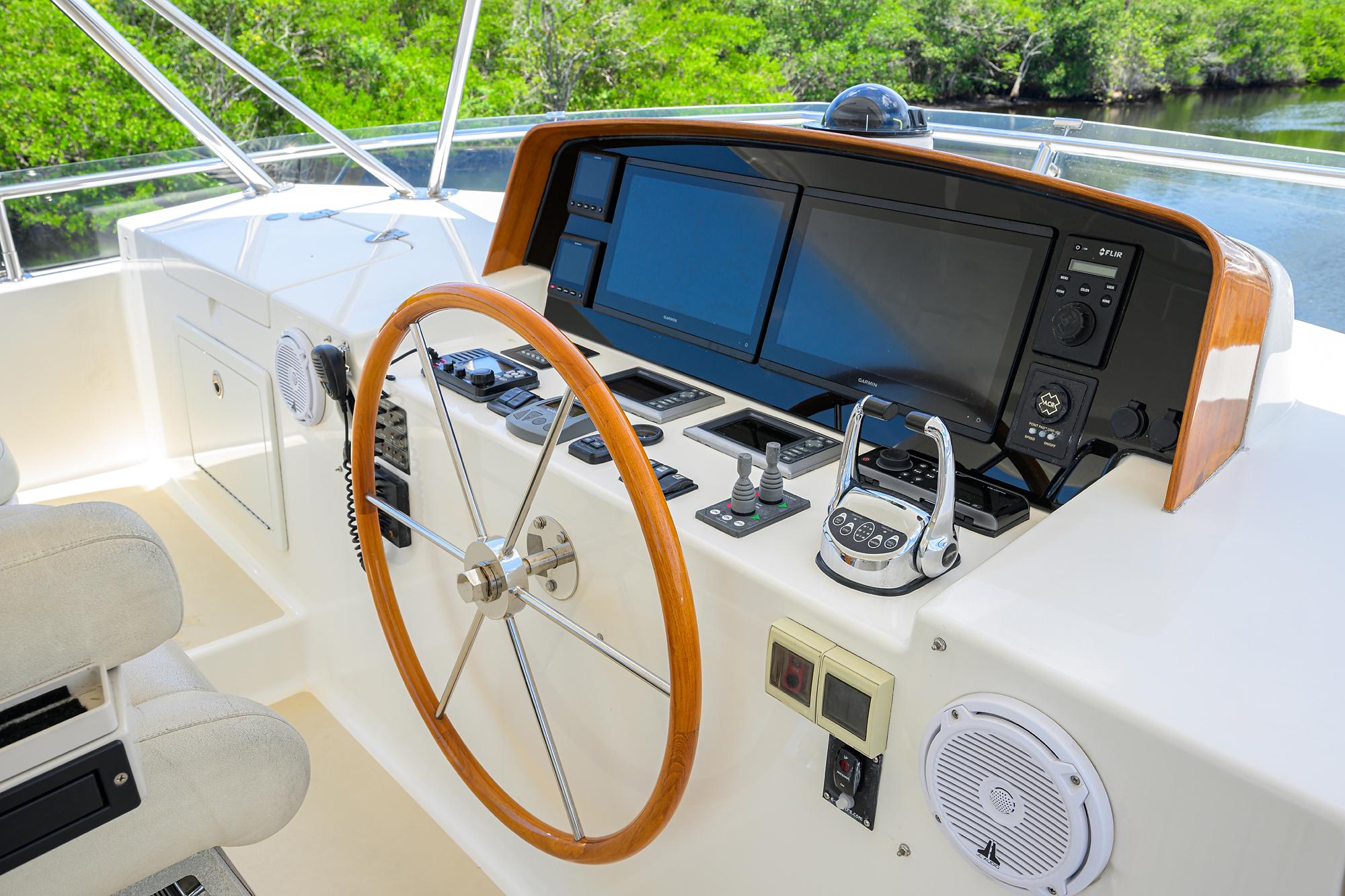

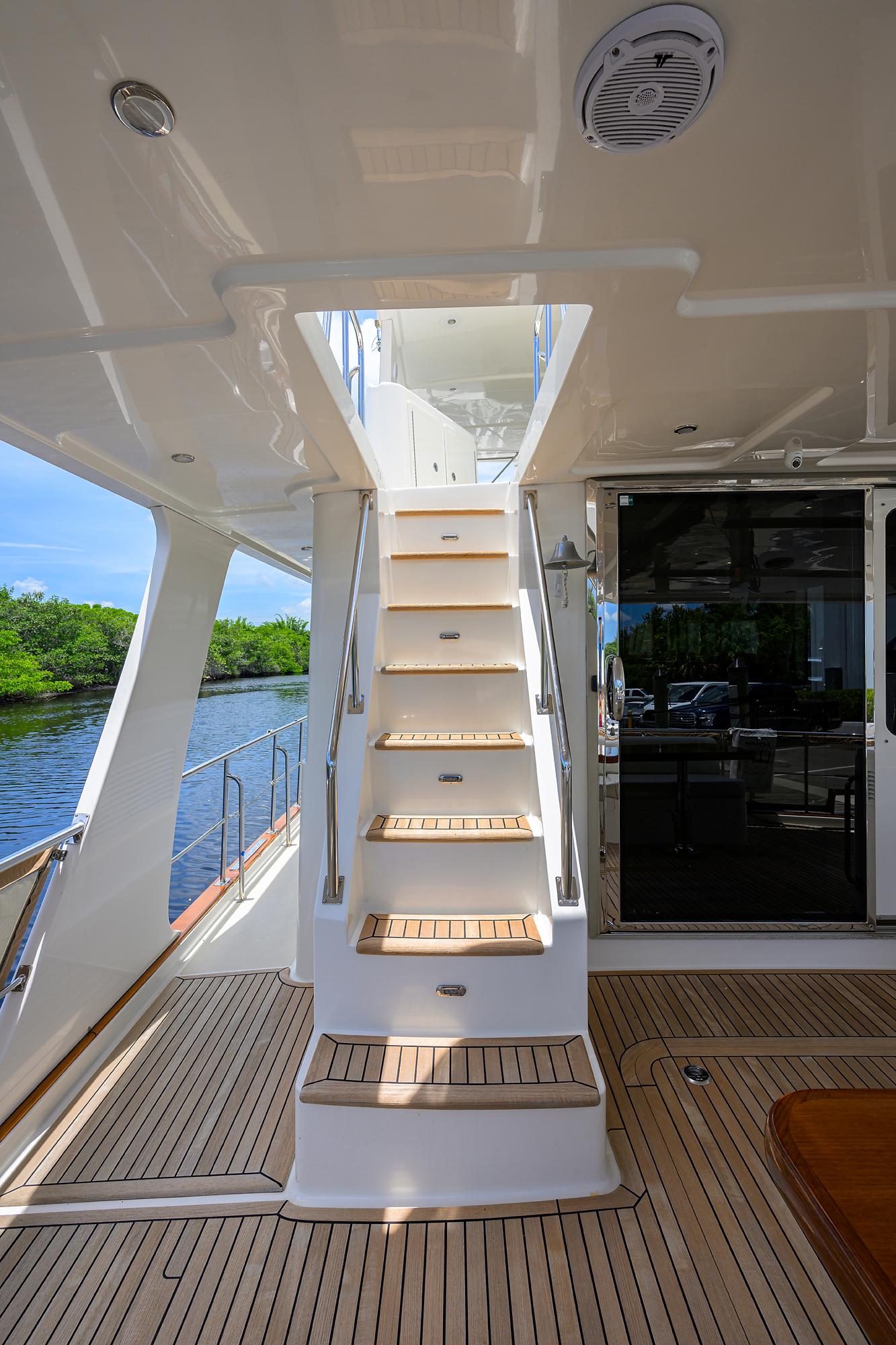

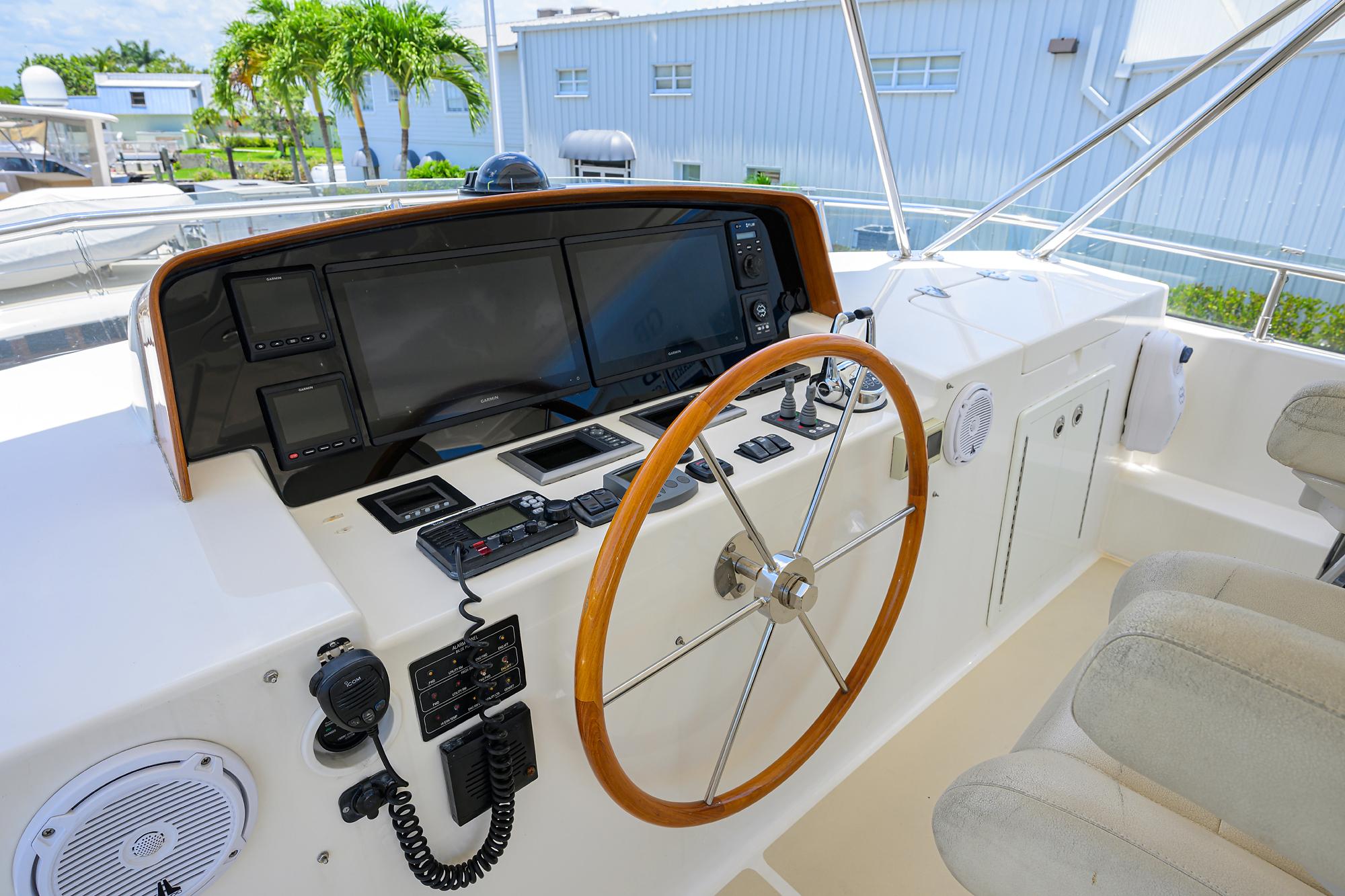

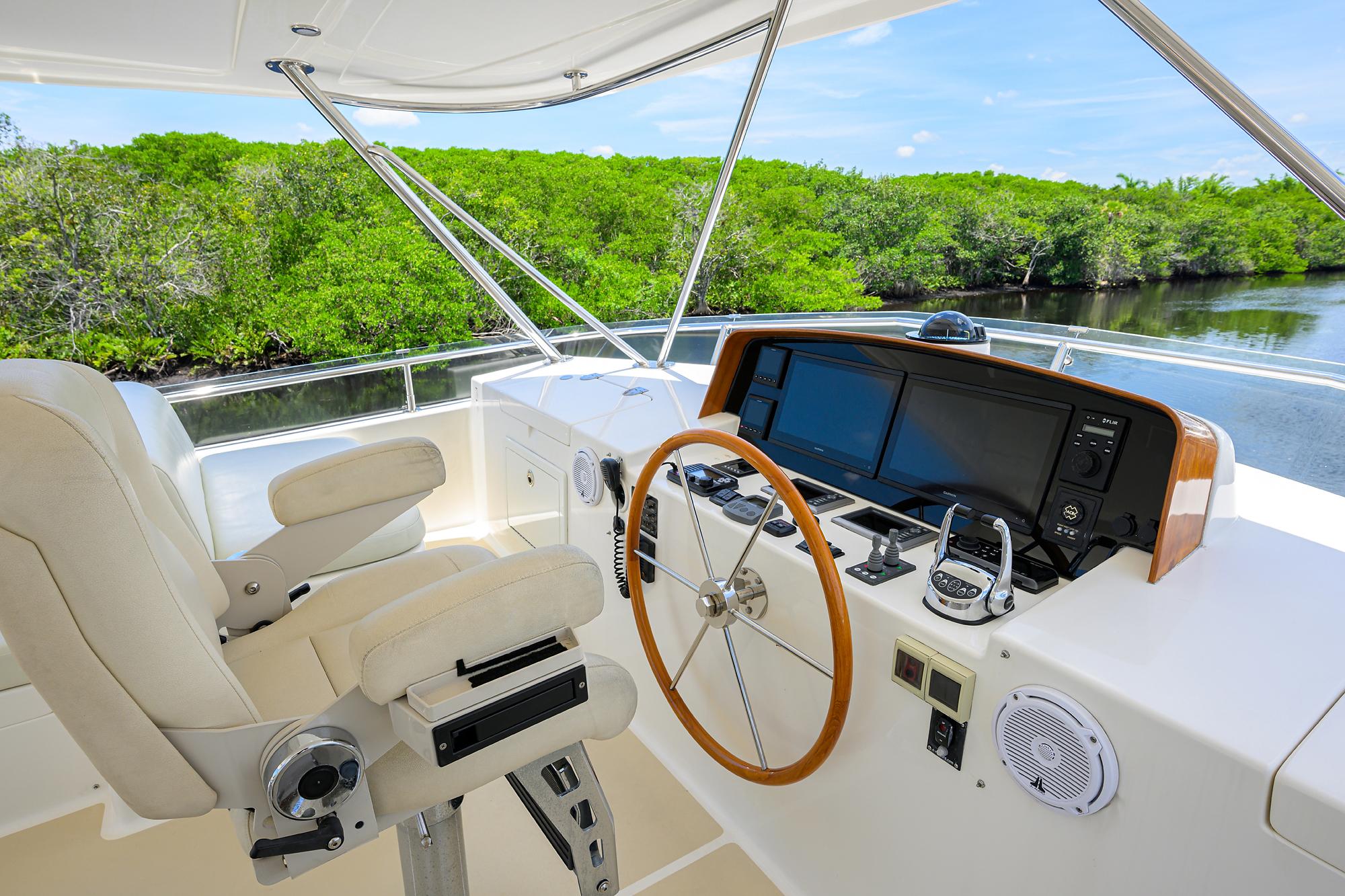

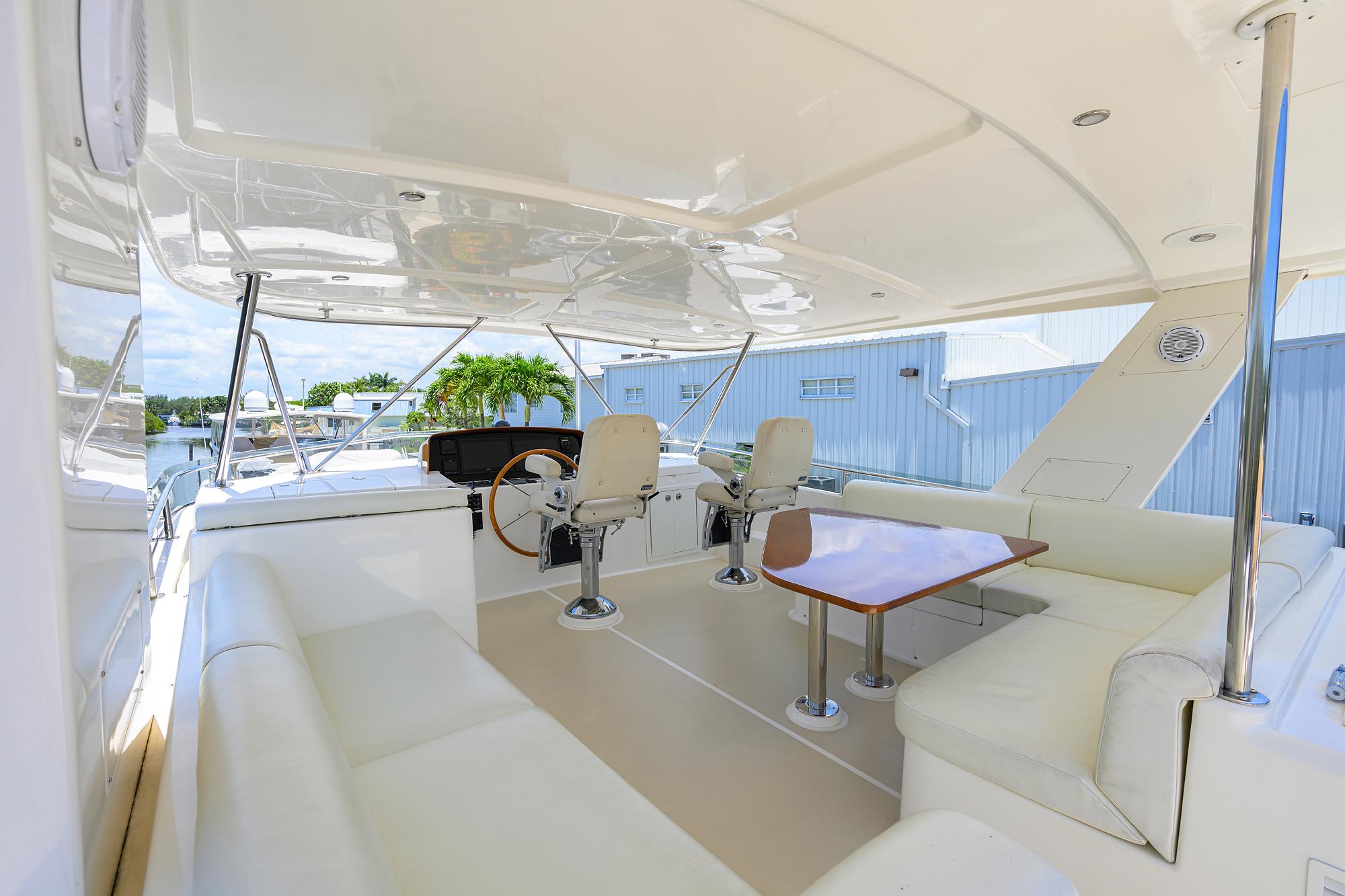

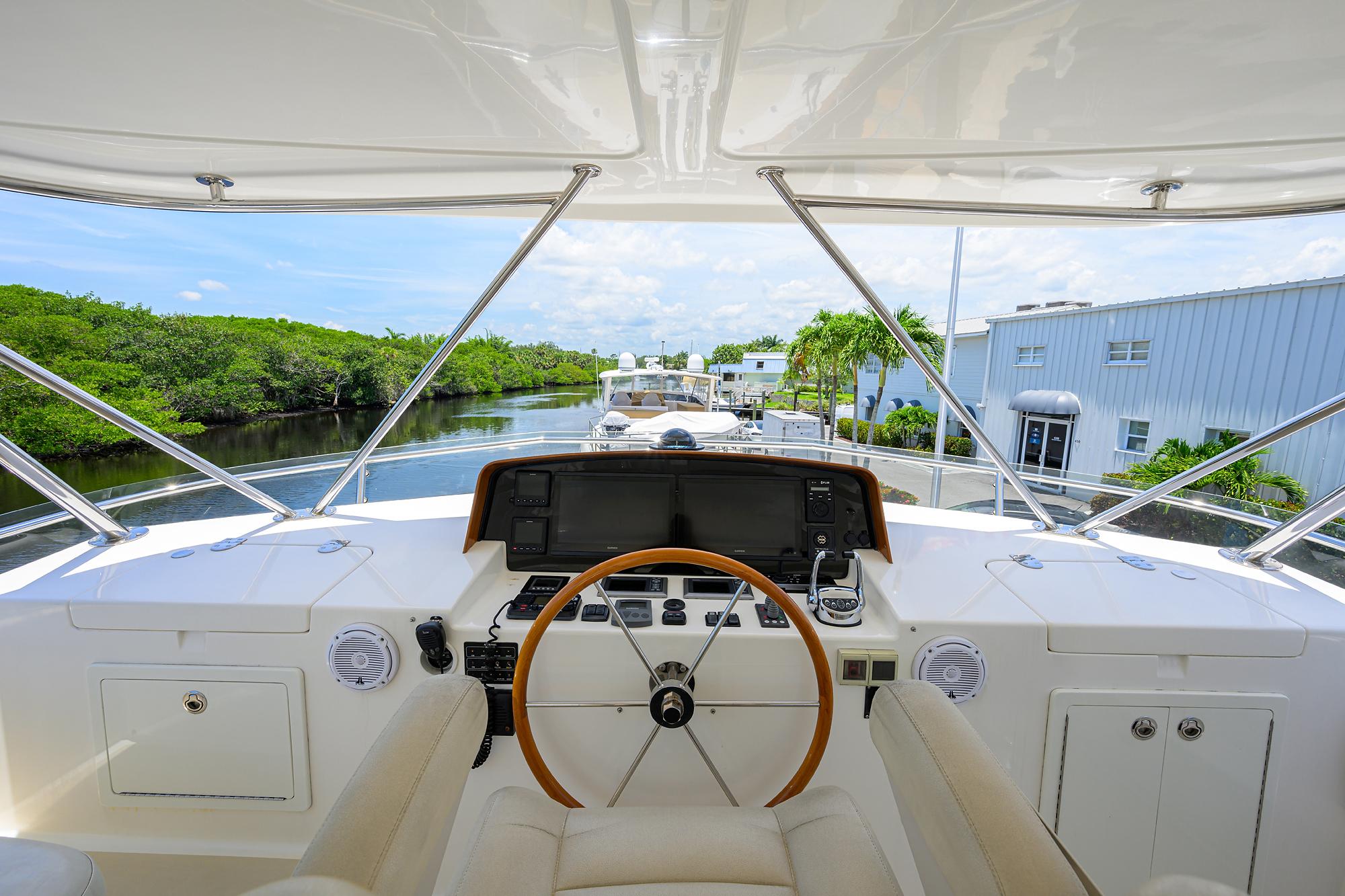

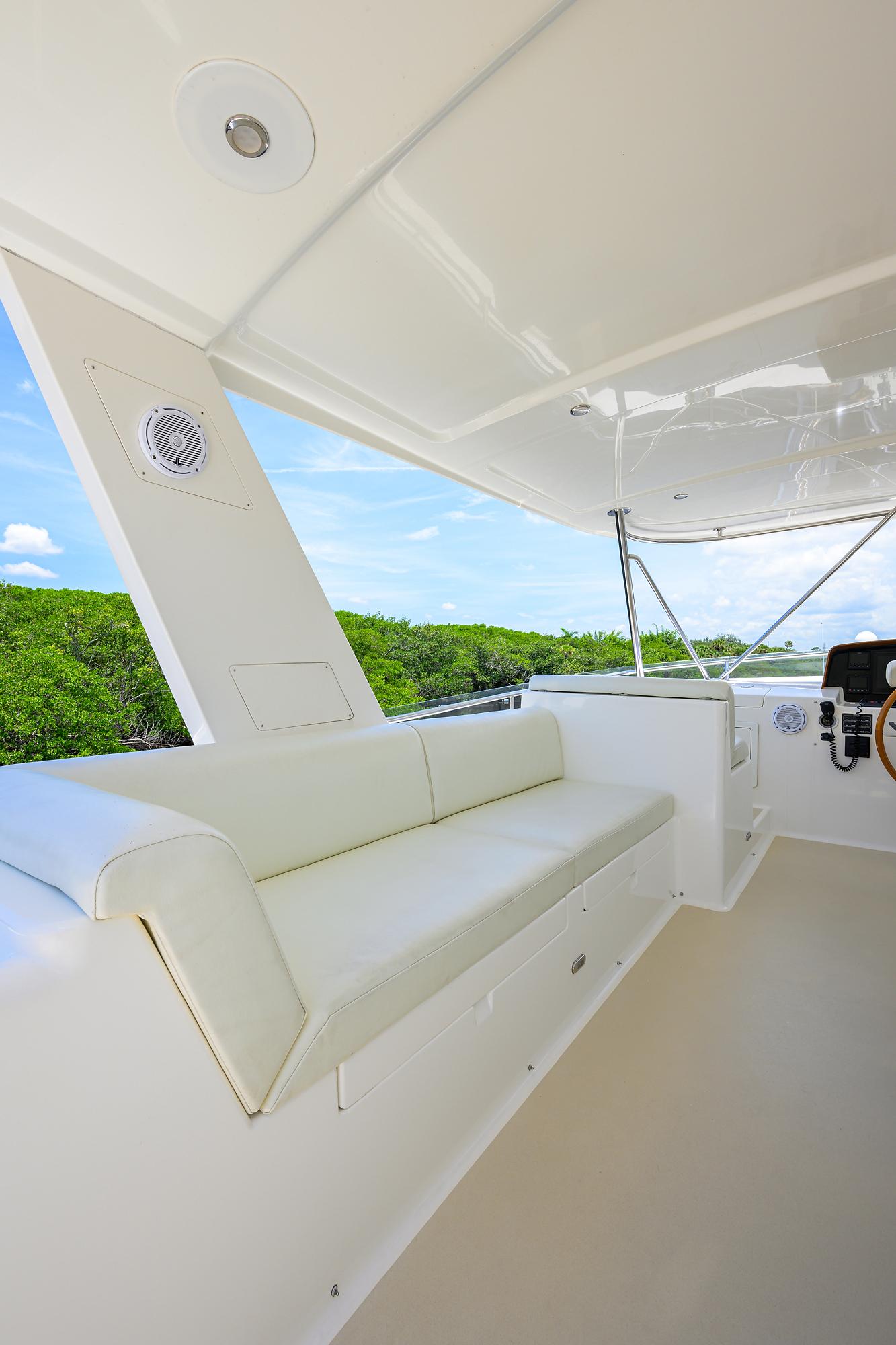

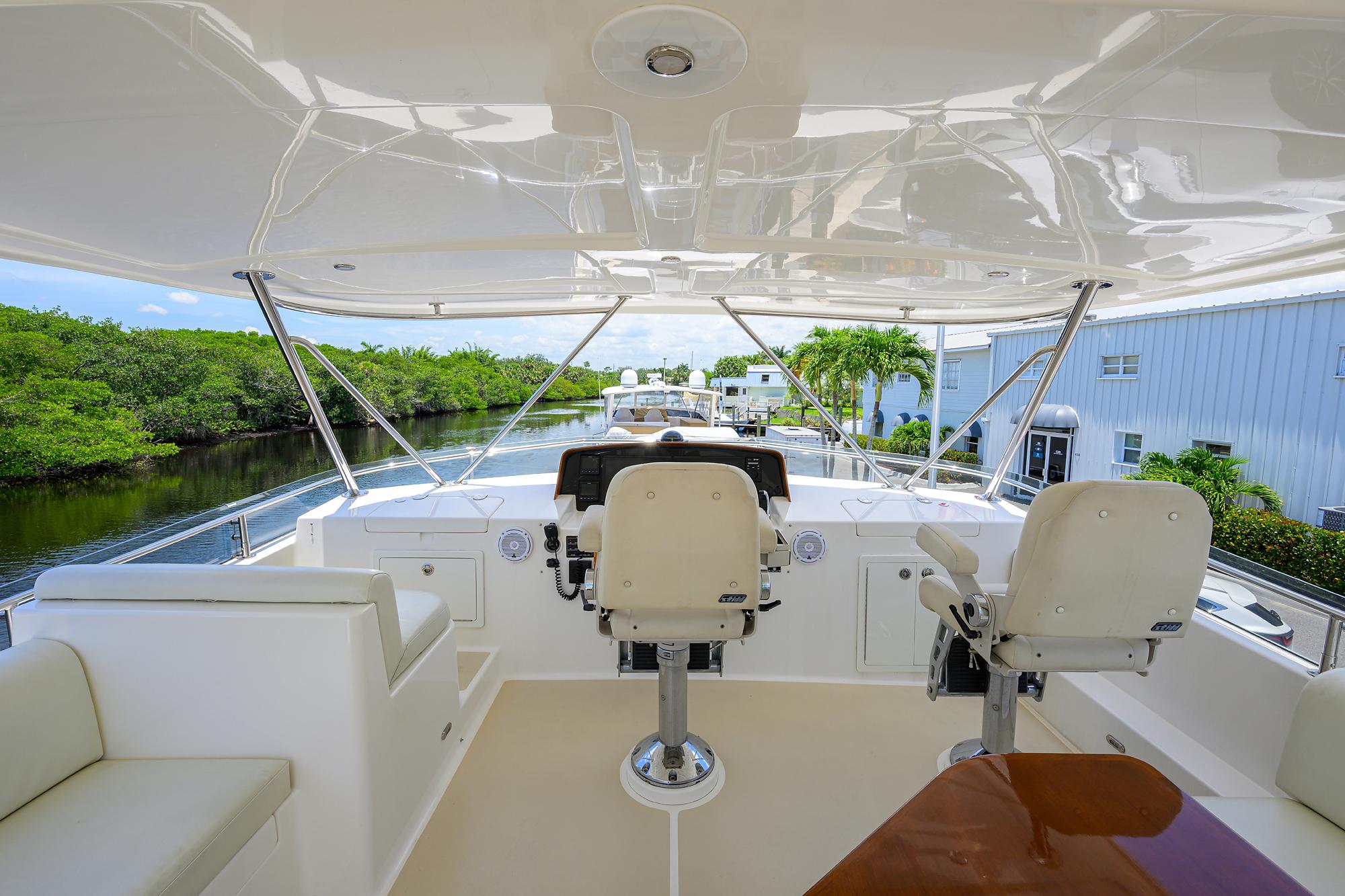

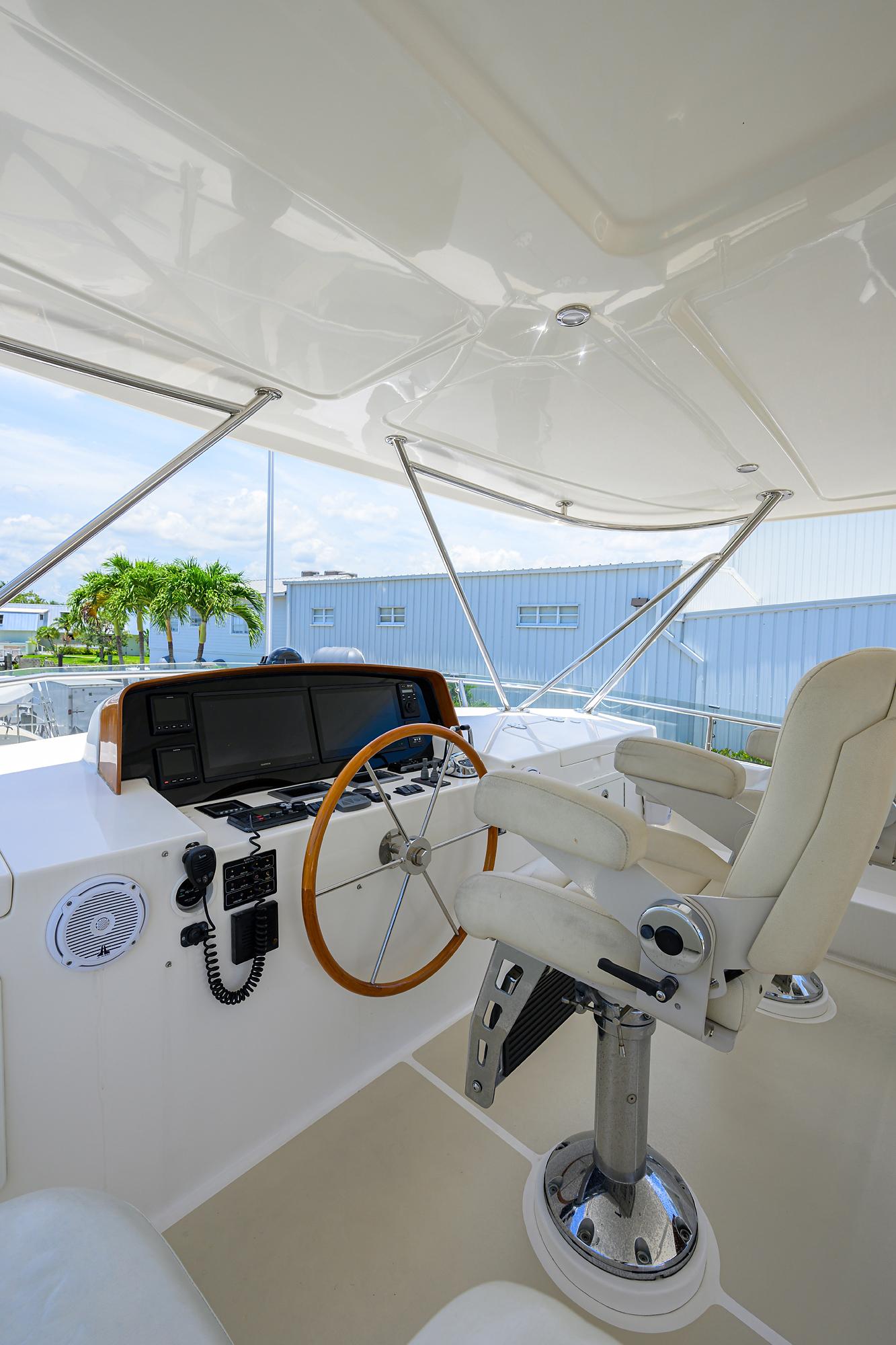

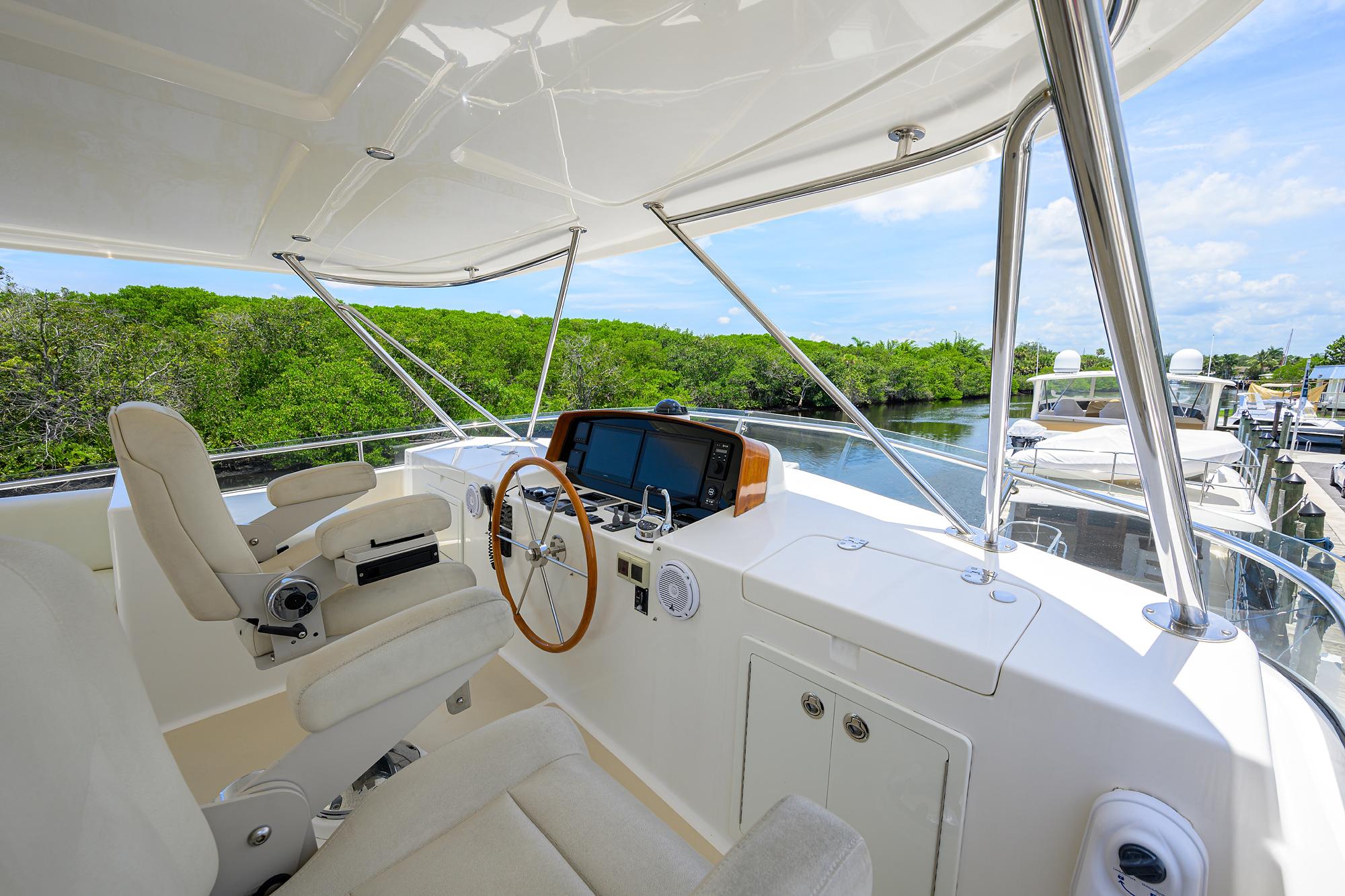

Access the flybridge from a staircase on the port aft deck. The upper helm station has two STIDD seats and a generous electronics console. To port is a forward-facing bench seat and on starboard, a very large L-settee with teak table. There is storage below all seating. Aft of the seating area are several lockers and a wet bar with refrigerator, sink, custom propane grill and storage lockers. There is a standard 1,000 lb. capacity davit and 2015 model 12’ Zodiac tender with Yamaha 40hp outboard (less than 50 hours). Just aft of the wet bar and forward of the tender is an enormous amount of space that can accommodate additional deck furniture or provide storage for toys.

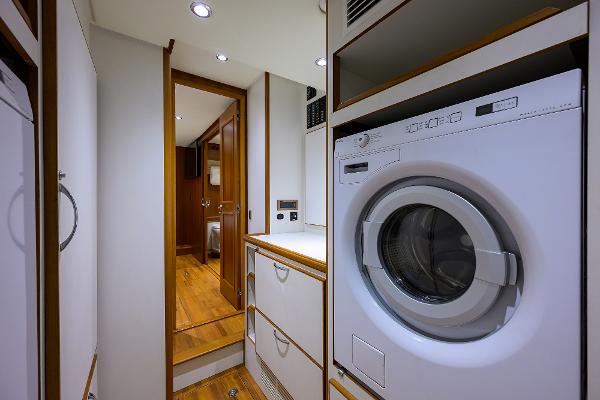

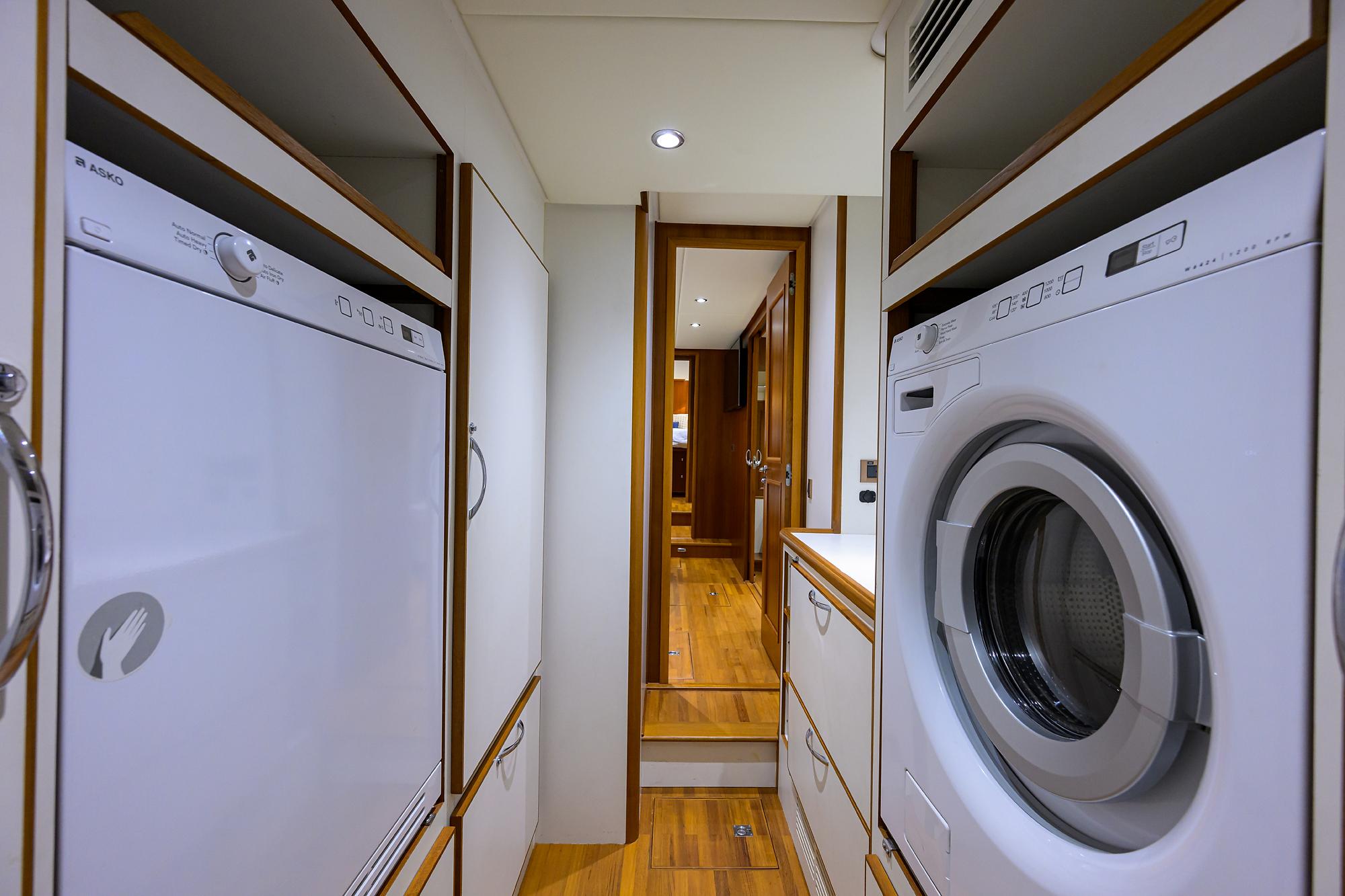

The lower deck offers an incredible layout with three staterooms, two heads with separate stall showers, and a utility room aft of the master. The utility room houses a full-size Asko washer and dryer, two (2) additional freezer drawers and several tall and wide storage lockers and drawers. The engine room has dual access via the aft deck or from the utility room and is very spacious with full stand-up headroom and exceptional access to service the engines and other systems.

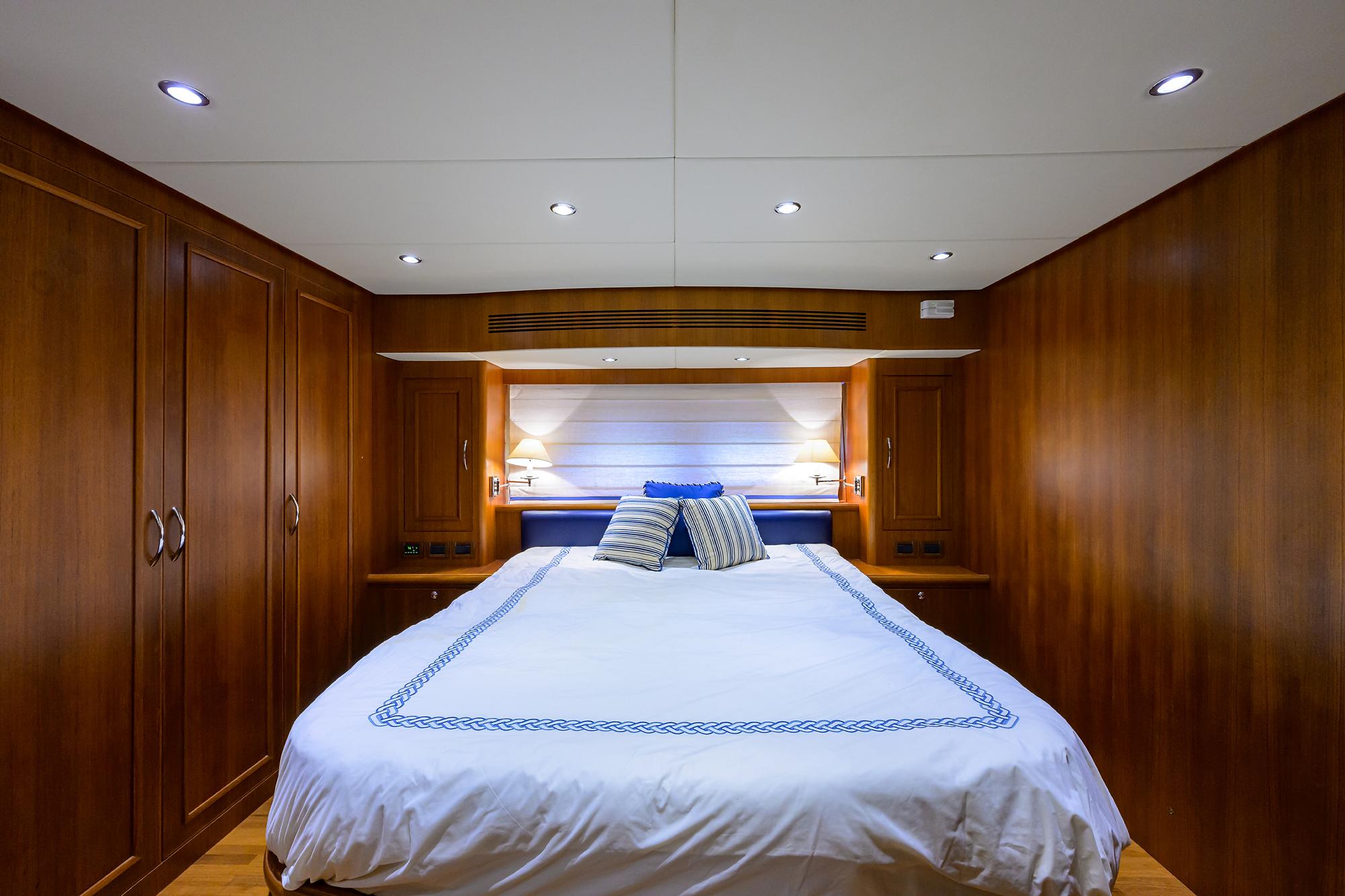

The full beam master stateroom is amidships with a private ensuite head. This stateroom features a large walkaround 65" wide berth, with storage below. There is large cedar-lined hanging lockers aft, and several smaller lockers located throughout the stateroom for additional storage needs. The private ensuite master head is on port and features a large Corian sink, lift-up storage lockers with vanity mirrors below, two large opening ports for natural light and ventilation, large medicine cabinet, storage below the sink and large shower with built-in seat and Corian floor.
Forward is the VIP guest stateroom with an island berth (easy access on both port and starboard), storage drawers below the berth, cedar-lined hanging lockers are both port and starboard, hatch overhead and two large opening ports. A private entrance door opens to guest head.
The guest stateroom is on port offering two single bunks, drawer storage below, a cedar-lined hanging locker aft, and an opening port. The guest head is shared with VIP, a second private door from companionway allows VIP access. Guest head features a stall shower, Corian sink with storage below, and opening port.
CONSTRUCTION
Fiberglass outer skin: gel-coated, Cook Composites & Polymers Fiberglass: hand-laid Hull barrier: epoxy undercoat, Z-Spar, 2 coats Hull bootstripe: painted Awl-Grip Blue Hull lamination: Hydrex resin skin coat, Reichold Hull structural grid: fiberglass and foam Hull: solid fiberglass below and cored above waterline, with cross-linked PVC foam core Recessed prop pockets and keel Quarter guard: FRP molded, with stainless steel rubrail Structural bulkheads: composite, partially watertight (3)RECENT UPGRADES AND UPDATES
NEW twin 8616 Garmin GPS chart plotters, touch screen - late 2020 NEW Garmin Autopilot remote control - late 2020 NEW Garmin engine room cameras (3) integrated into Garmin Media - 2020 NEW dual electronic antenna lifters for main Shakespeare antennas on FB hardtop - 2021 NEW 4' supporting Shakespeare antennas, one for Fusion stereo other prewired for additional connection - 2021 NEW Fusion 750 head unit direct control with bluetooth control ability or via Garmin Media - 2019 NEW Wave wi-fi router - 2018 NEW DirecTV separate boxes in salon and master stateroom - 2018 NEW AIS added - 2018 NEW Auto Anchor with chain counter in addition to STD - 2018 NEW EPIRB - 2022 NEW Muir Jaguar dual chain windlass - 2018 NEW upgraded 130 lb spade anchor with 300' high tensile strength 3/8 chain - 2018 NEW custom 6 step boarding stair with railing systems and low tide riser for stationary high docks - 2021 NEW custom swim platform heavy duty staple rail - 2018 NEW 6 step swim ladder added - 2018 NEW custom DeAngelo riser and exhaust system - 2021 NEW salon aircon unit - 2022 NEW Dometic SeaXchange and SpotZero with dockside water filtration system - 2018 NEW Cummins 21.5 kW generator - 2017 NEW Dockmaster wireless docking system with bow/stern and anchor controls NEW Victron Quattro inverter/charger with remote at lower helm - 2022/2023 NEW Mastervolt battery charger - 2021 NEW All batteries - 2021 NEW SeaStar steering arms control system - 2023 NEW SeaStar oil cooling system - 2022 NEW double collars for shaft seals - 2020 NEW shaft line cutters - 2020MECHANICAL EQUIPMENT
What follows is emblematic of the standard quality component parts used by Grand Banks when this boat was built.
Ball valves and thru hull fittings above waterline: bronze housings, chrome valves, Groco Bow and stern thrusters - Sleipner Bilge pump: manual, Whale Gusher Titan, 4 units Engine raw water intake strainers: Groco Engine room faucet: freshwater, cold only Engine room sole: teak slats Engine room sound insulation: fiberglass wool, composite panels Exhaust system: Centek underwater outlet muffler, custom outlet cowling and idle bypass Fire extinguisher: in engine room, with engine-generator-blower shut down and override control, Fireboy Fuel filters: Racor water separators on each engine (duplex) and generator (single) Fuel tanks: two aluminum tanks, baffled, total 1500 US gallon (5678 liter) capacity Generator exhaust system: with gas/water separator, Centek Oil change system: Groco pump, DC, Model G-3, with quick disconnect fittings Propellers: nickel-aluminum-bronze, dynamically balanced, 4-blades Seacocks: safety seacocks on engine raw water inlets, Groco Shaft log: dripless, Packless Sealing System, PYI Shaft seals upgraded to PSS Dec. 2017 Steering: hydraulic, with Sea Star Power Assist system NEW steering arms control system and oil cooling system - 2022/2023 Stabilizers - Naiad Datum control with custom 7.5' fins Struts: bronze with rubber bearings Water purification system: Seagull IV X-1F microbiological purifier with faucet, in galley Water tanks: two tanks, polyethelyne, food grade, 300 US gallon (1136 liter) total capacity, Moeller Marine Watermaker: Dometic 1800 gpd SeaXchange and SpotZero 2000 gpd dockside water purification systemENGINE ROOM

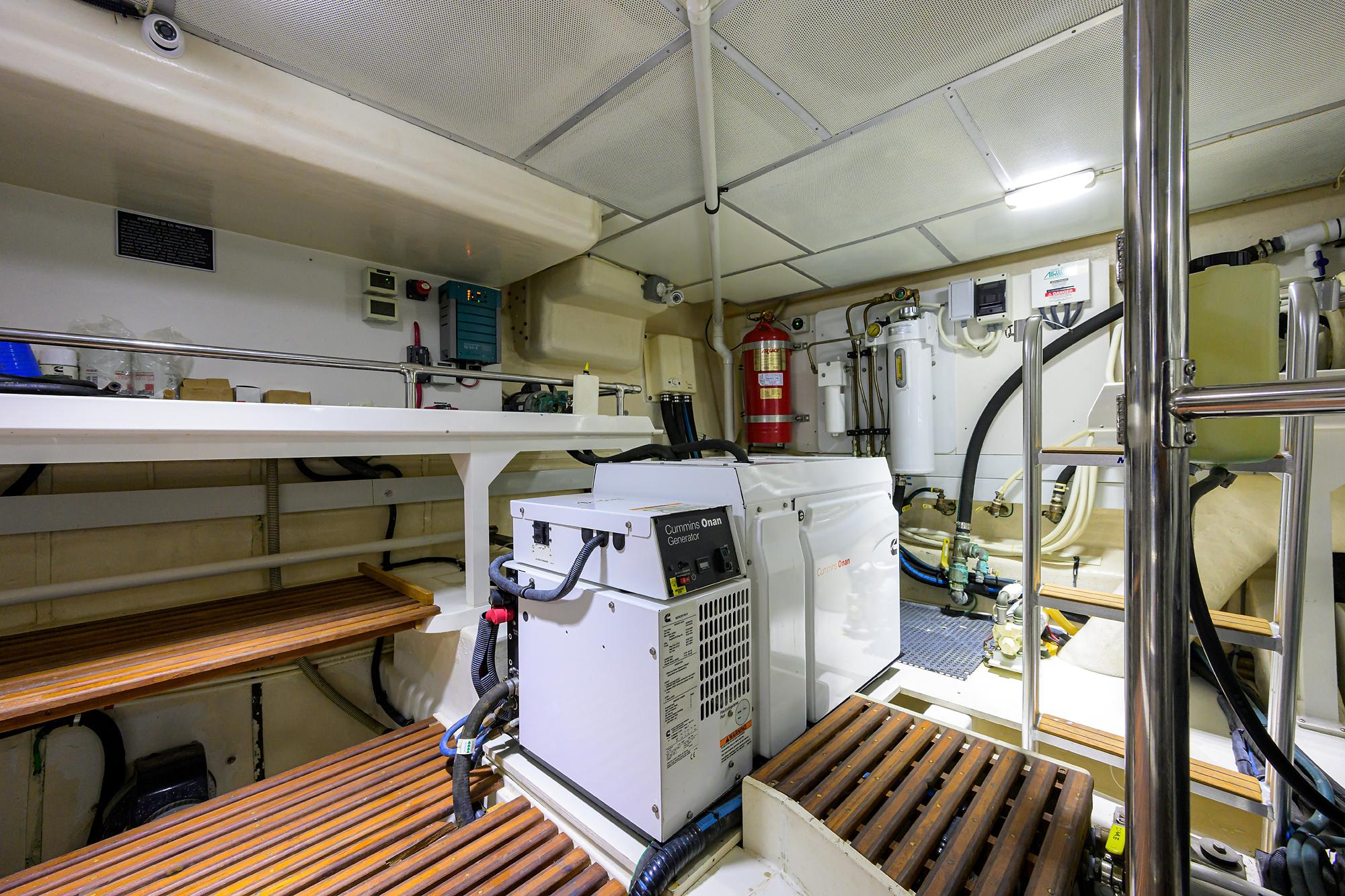

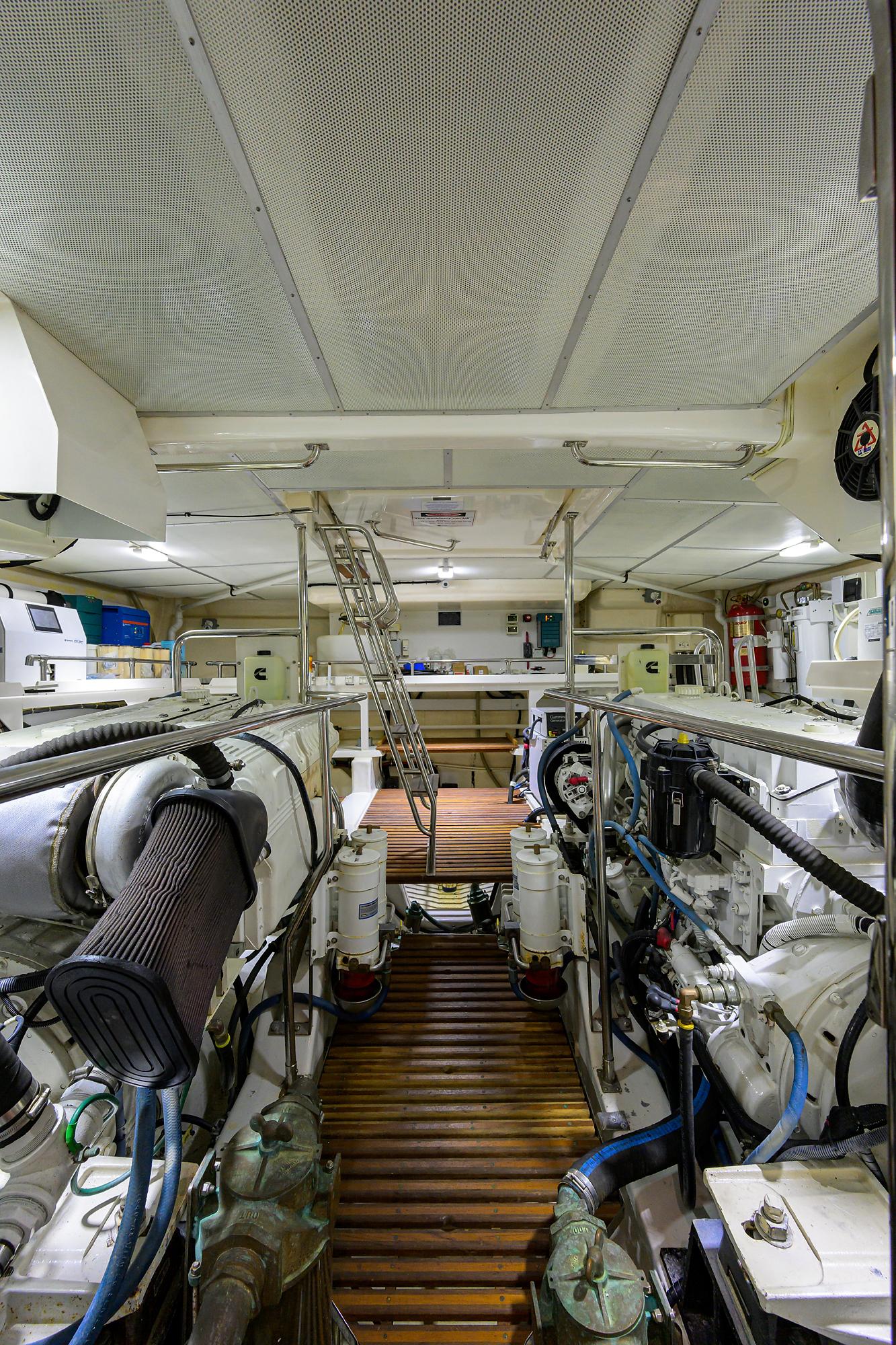

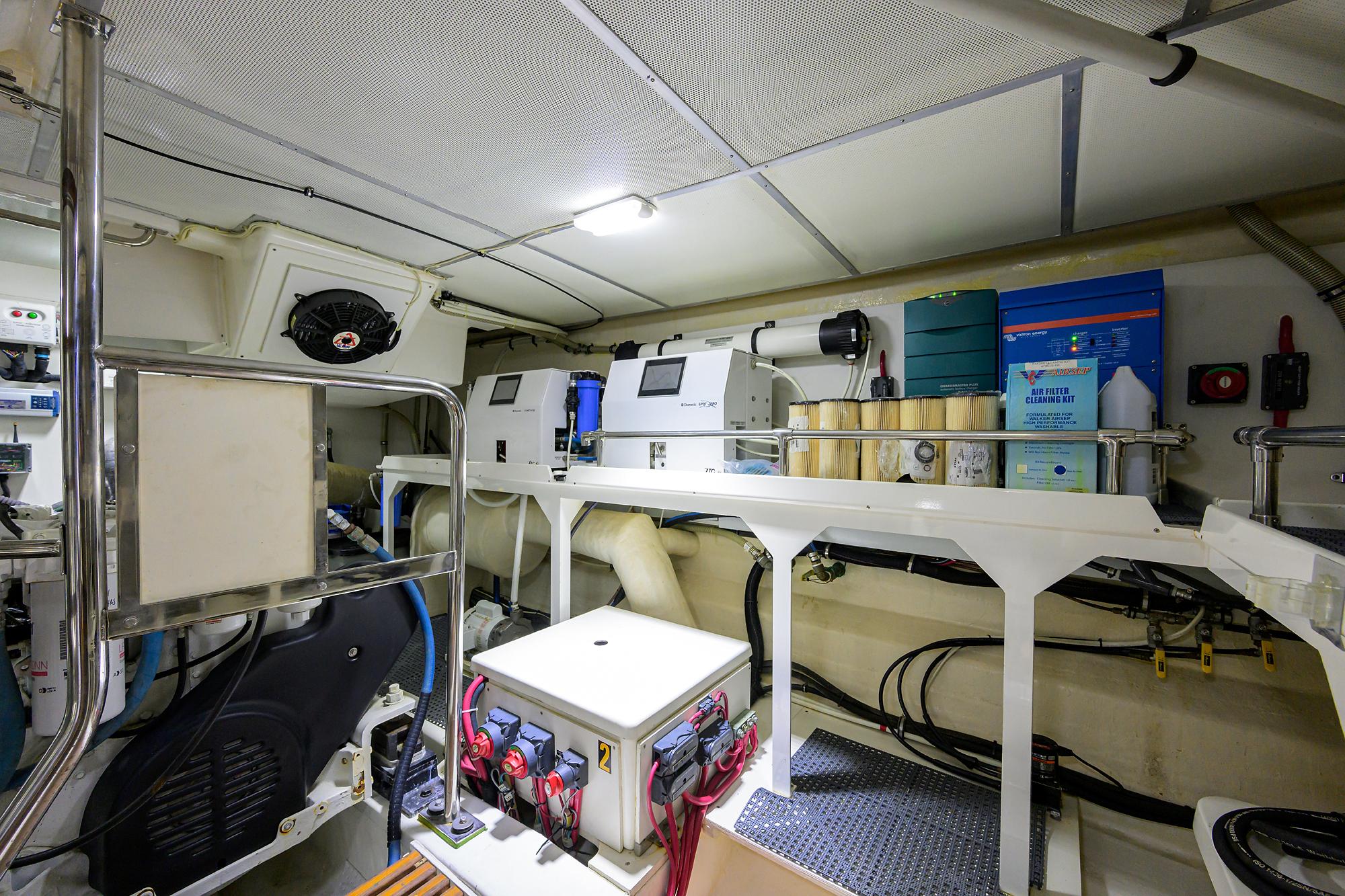

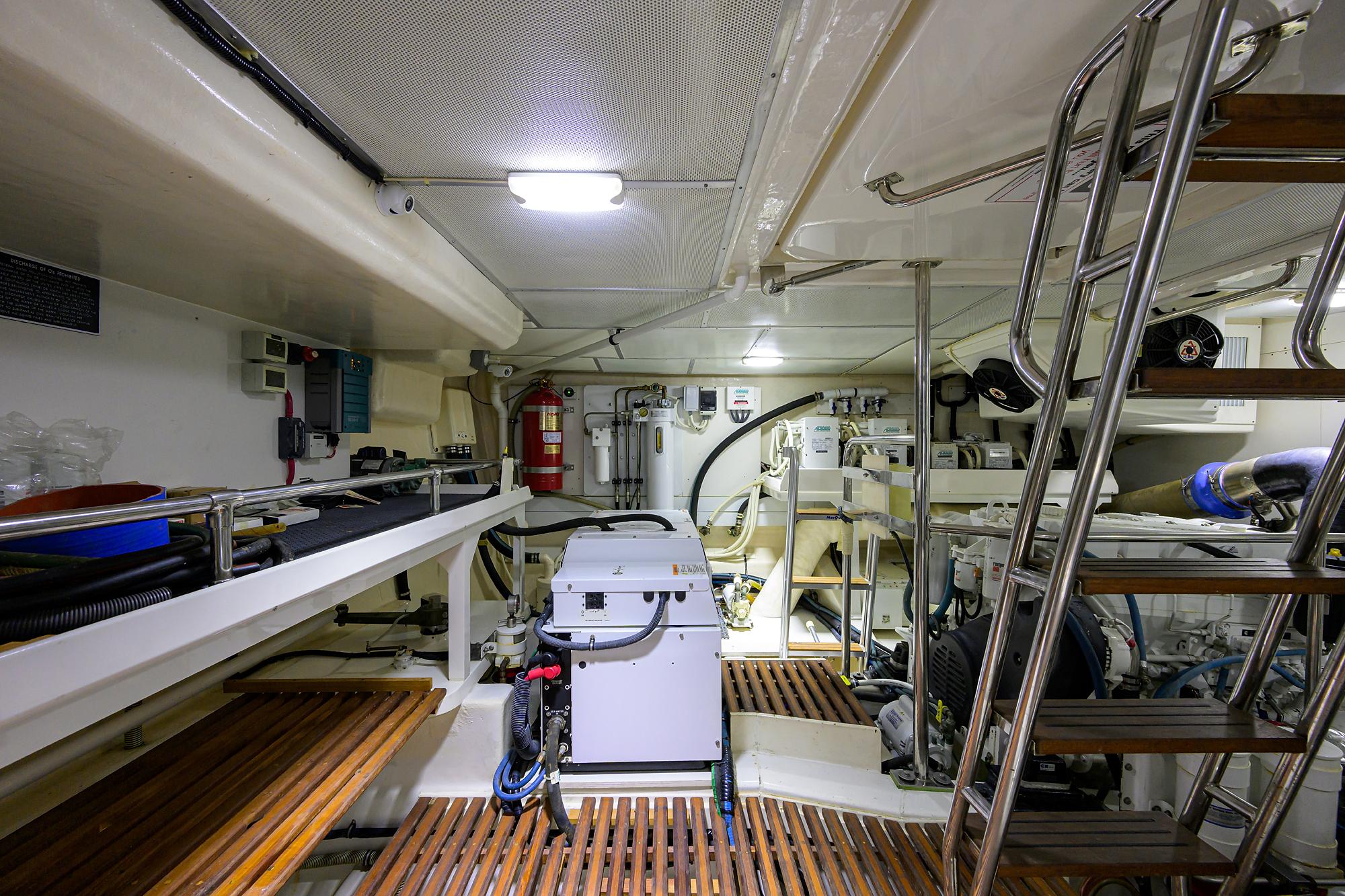

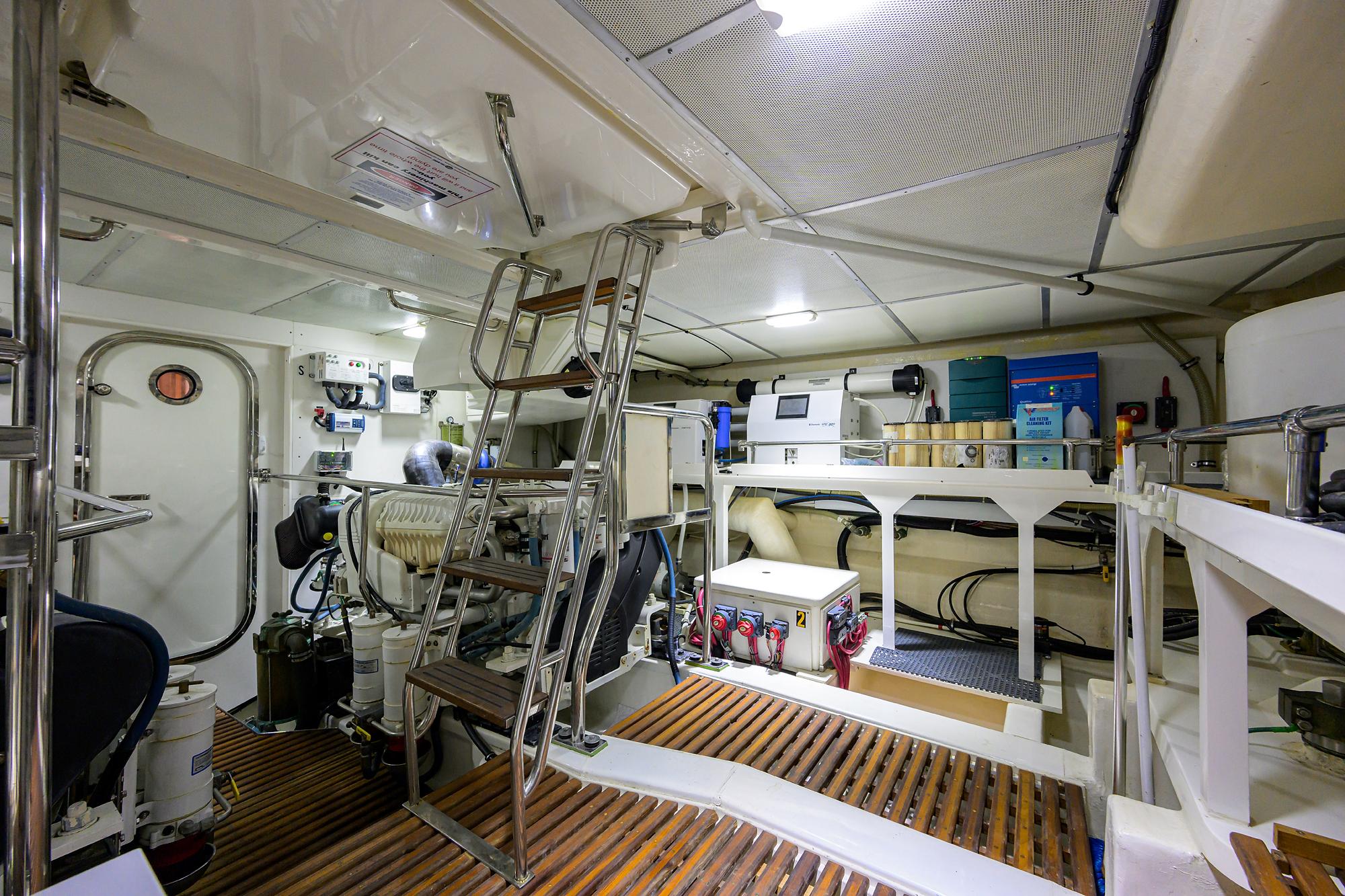

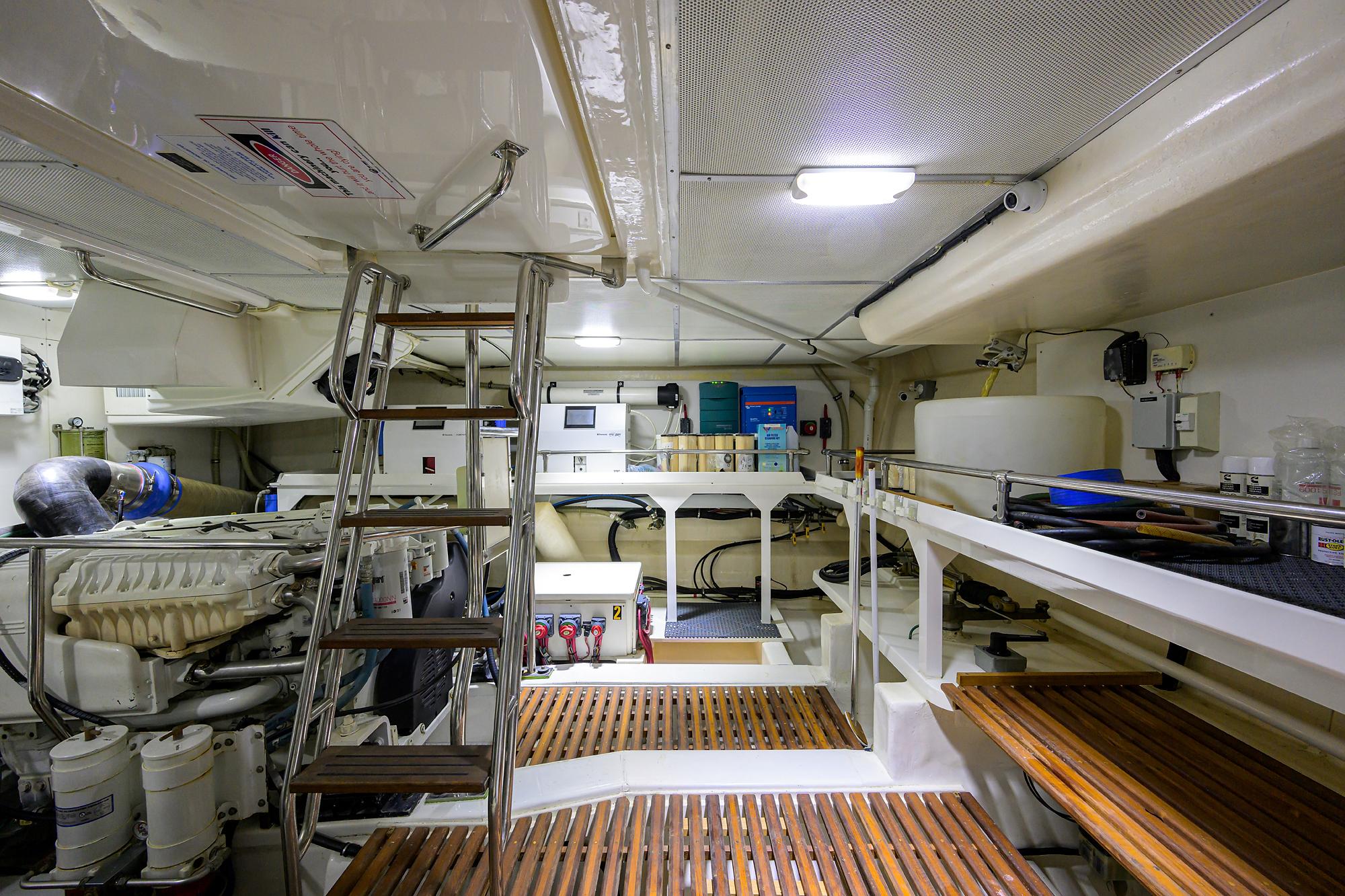

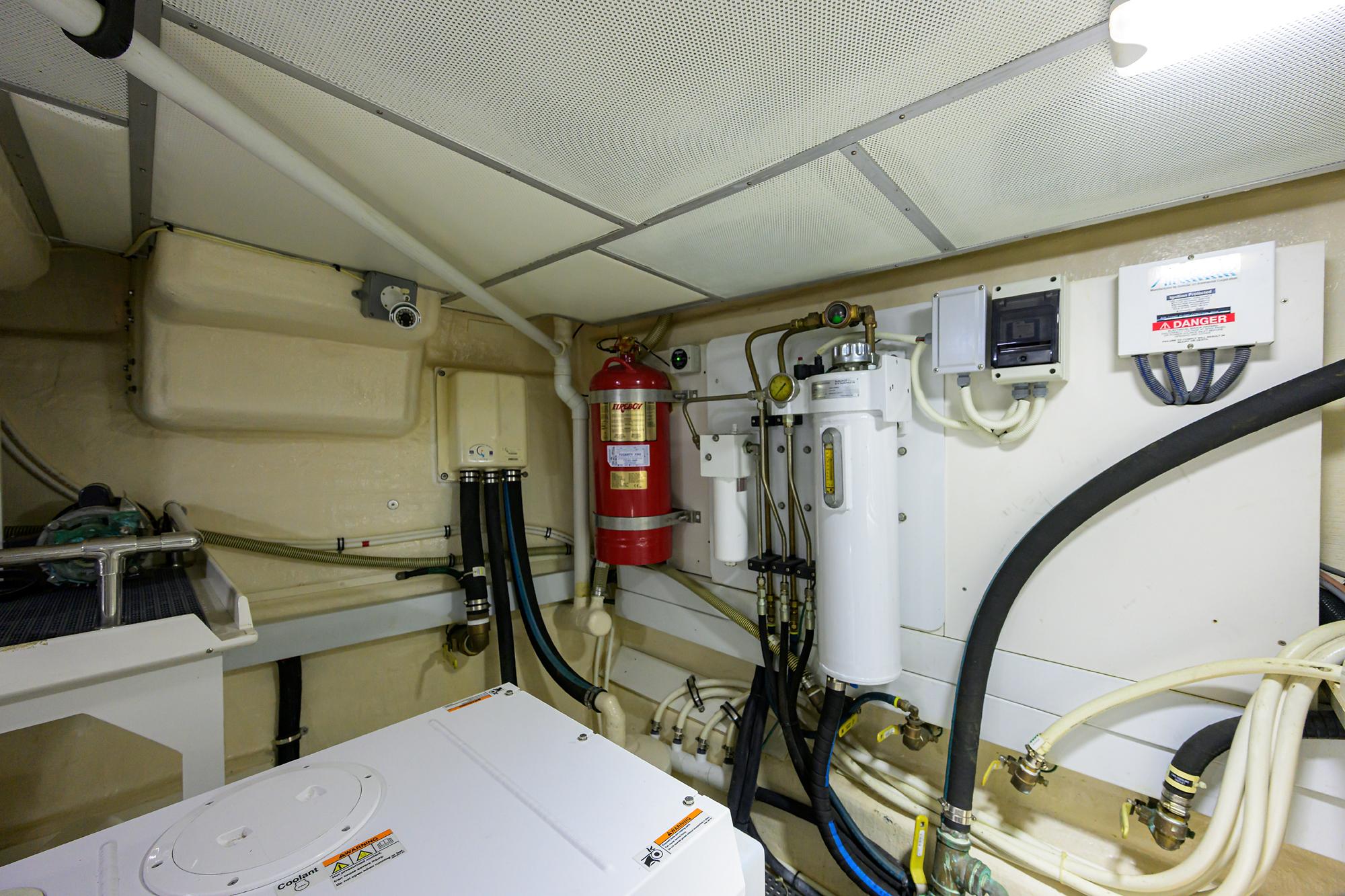

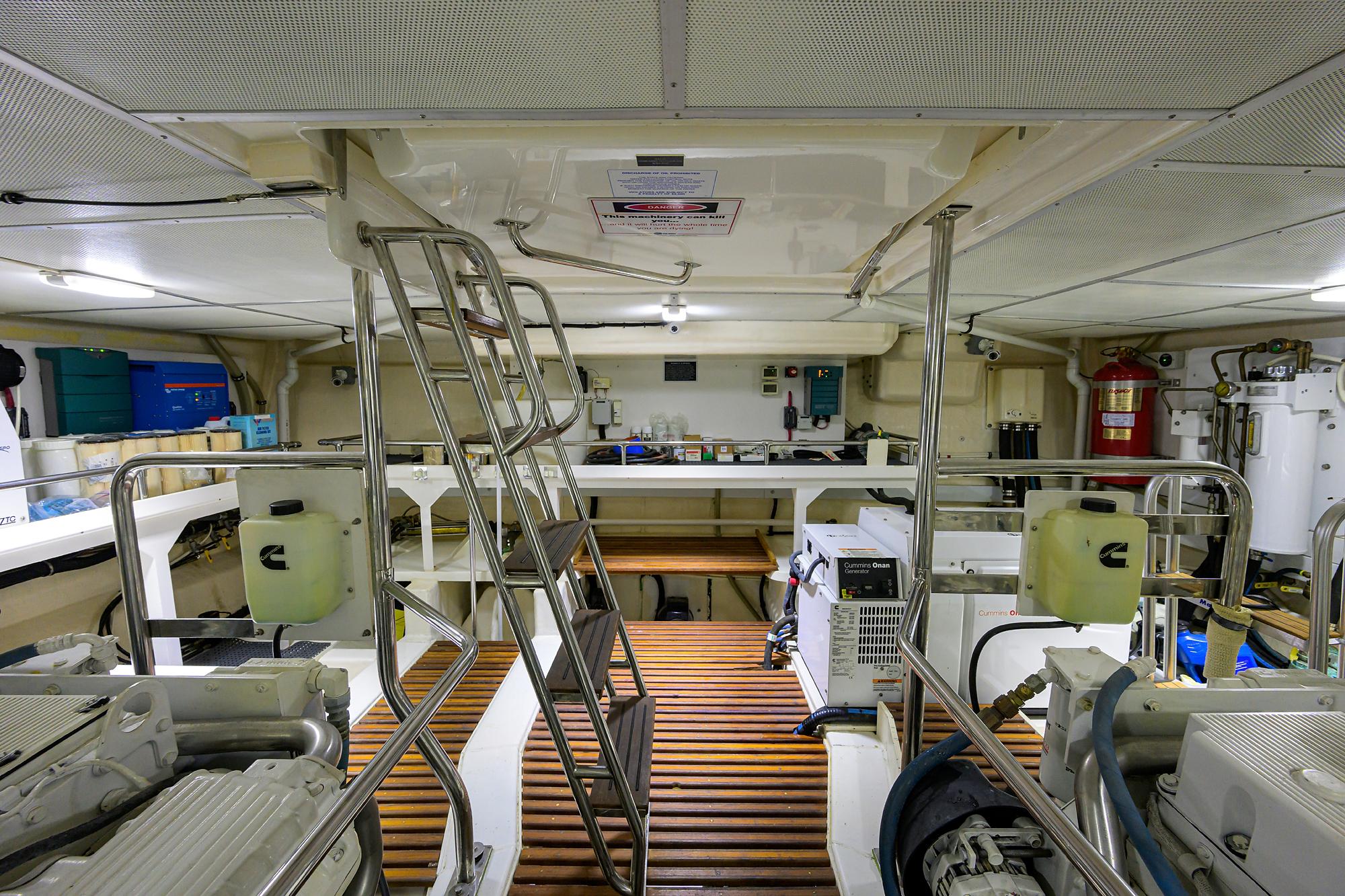

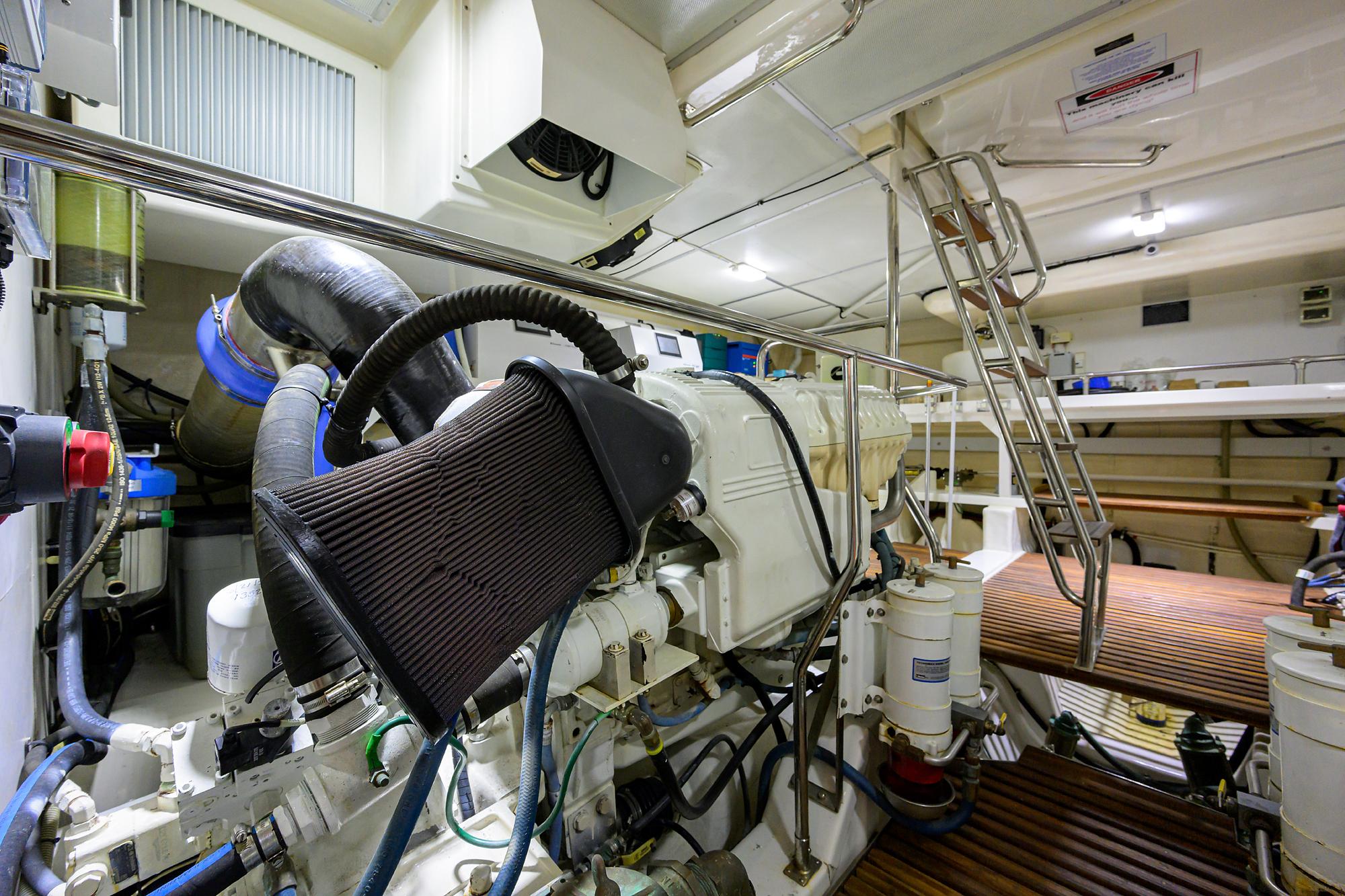

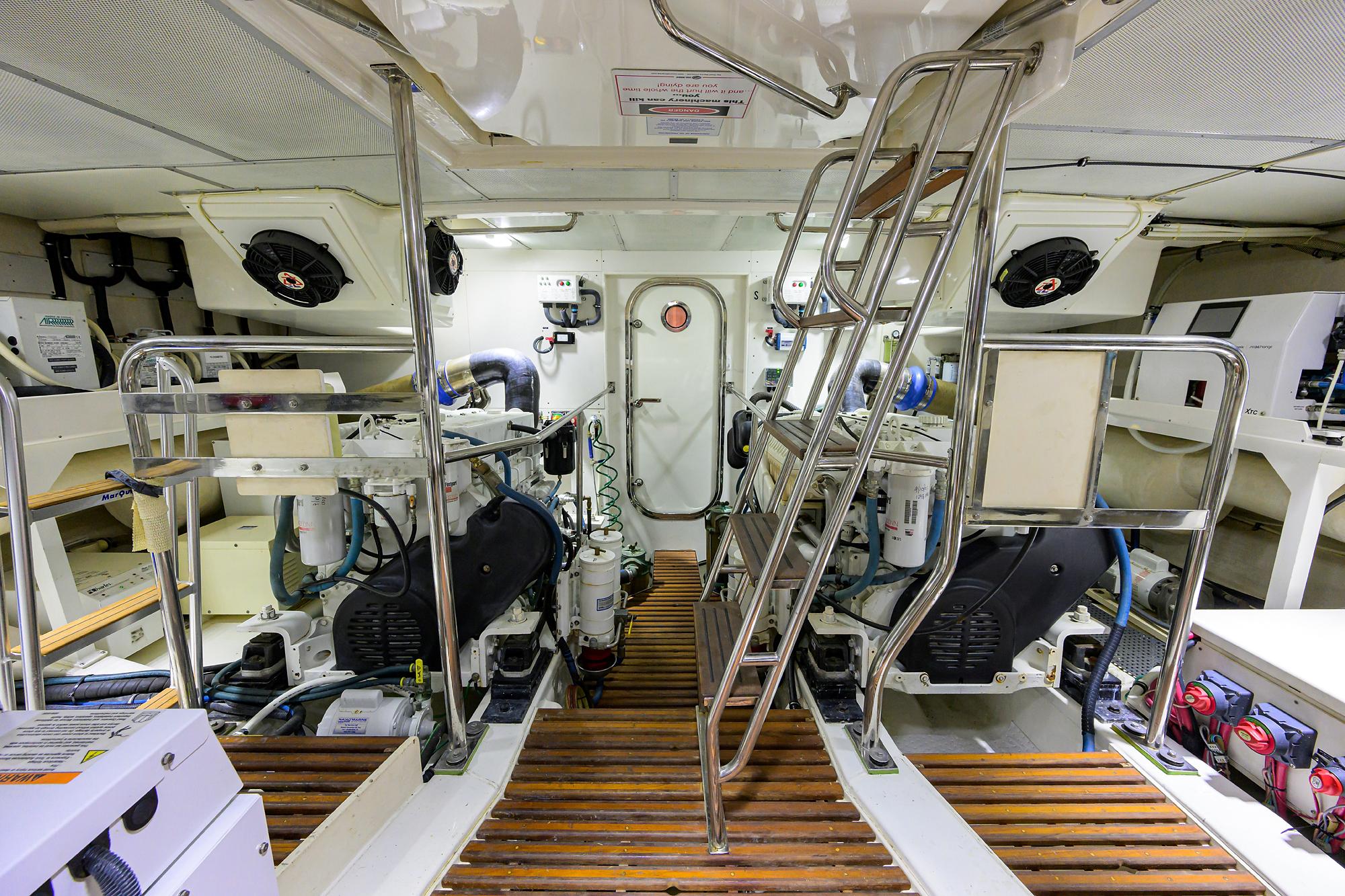

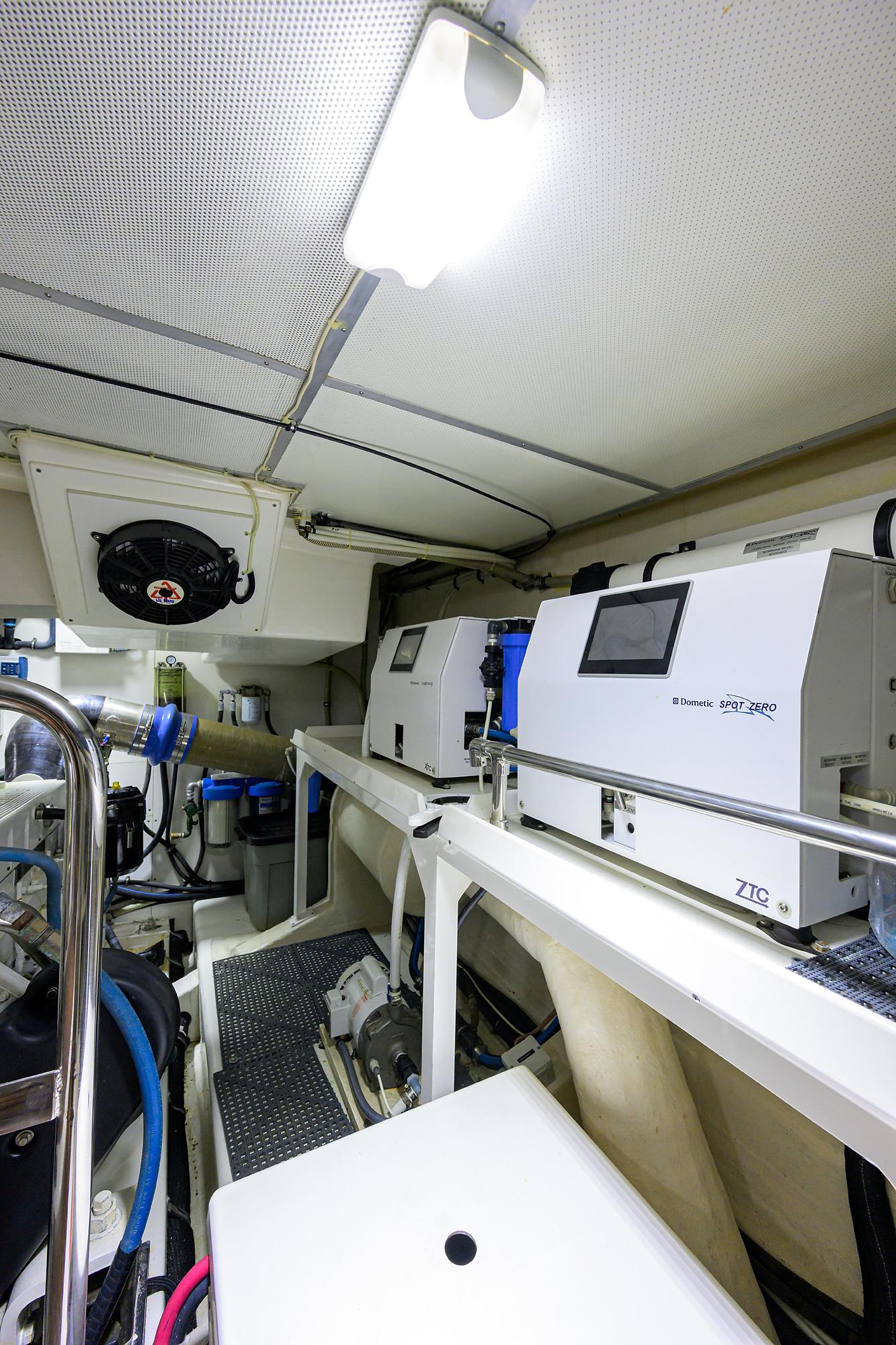

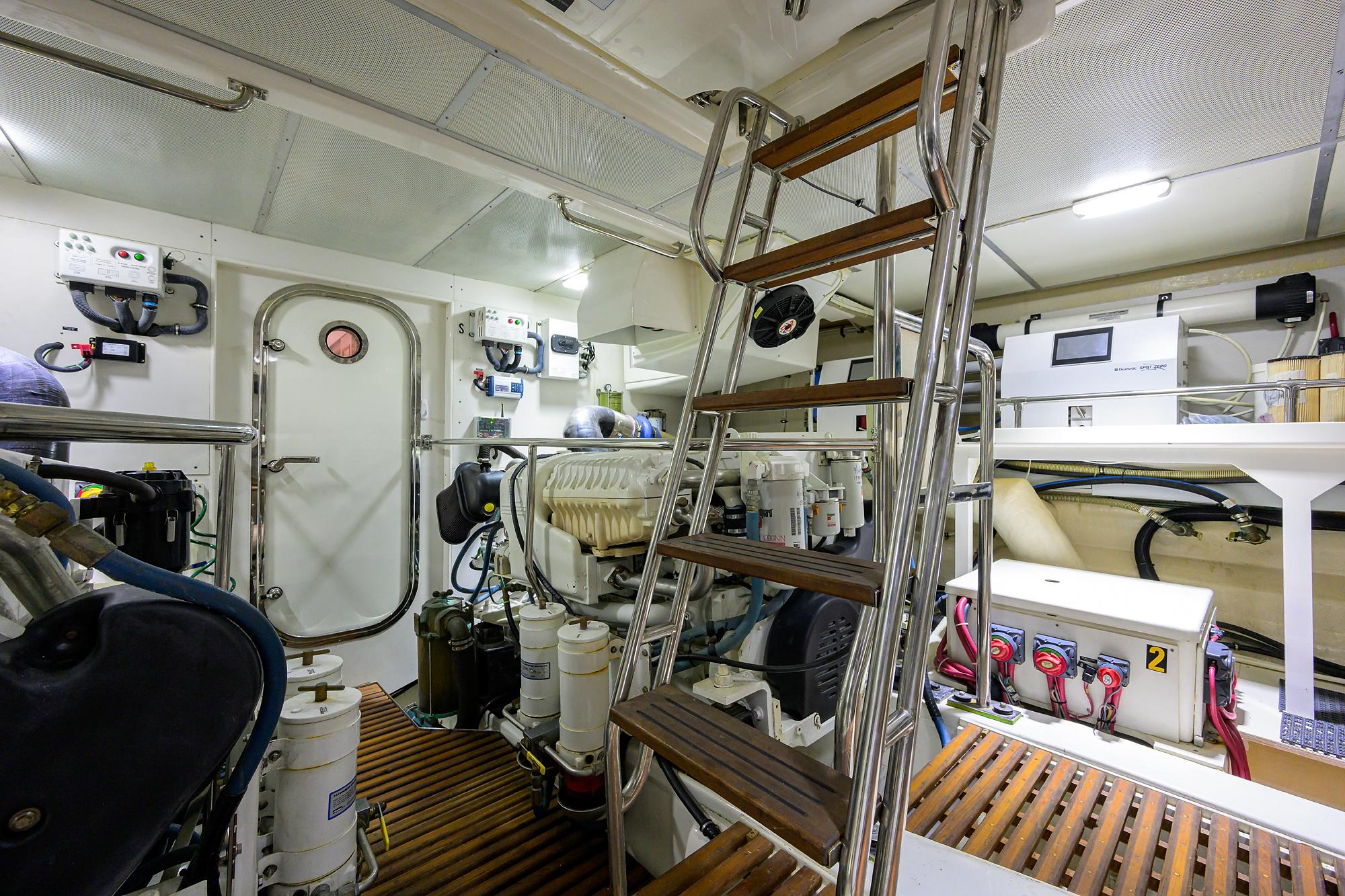

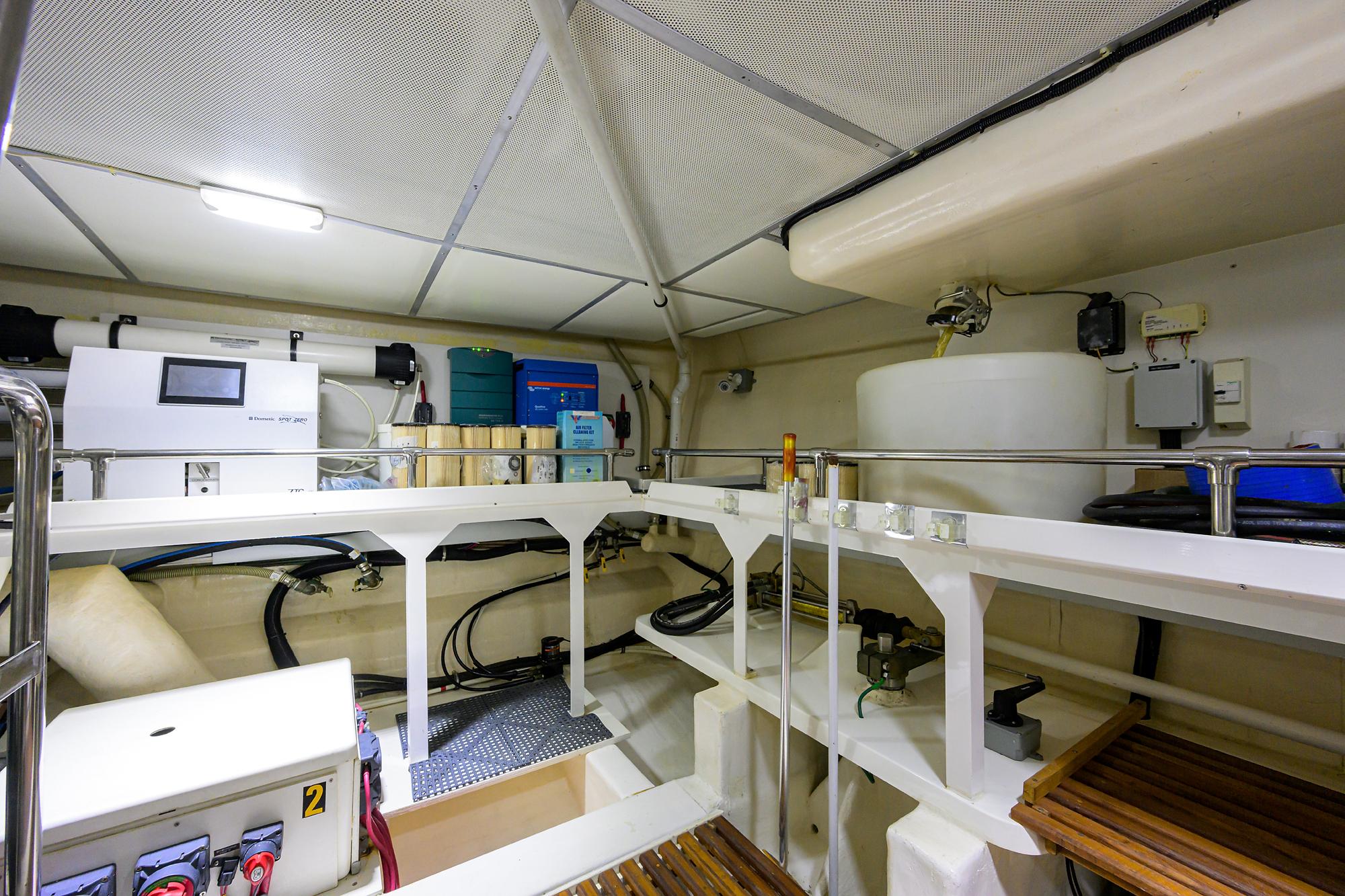

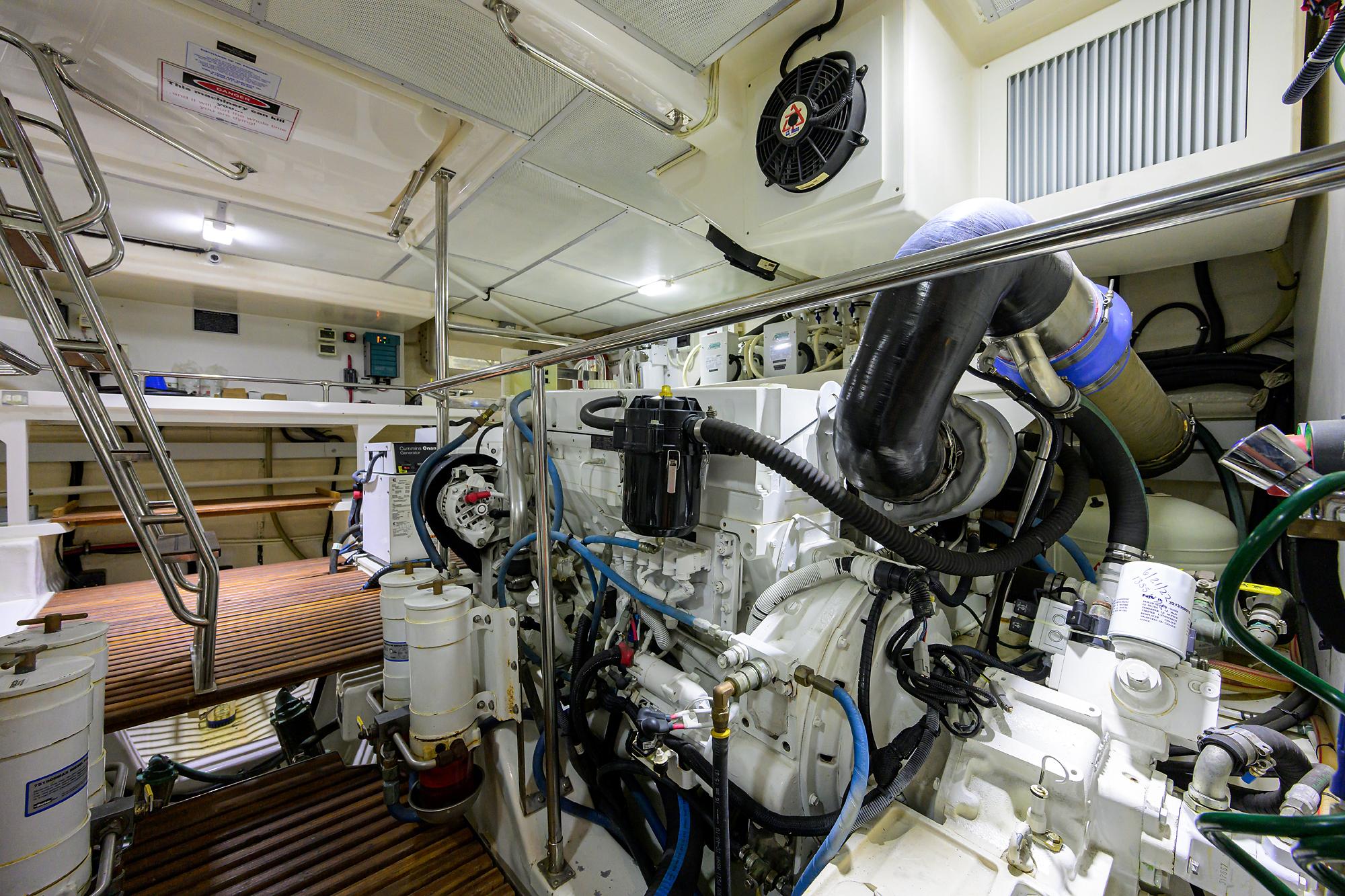

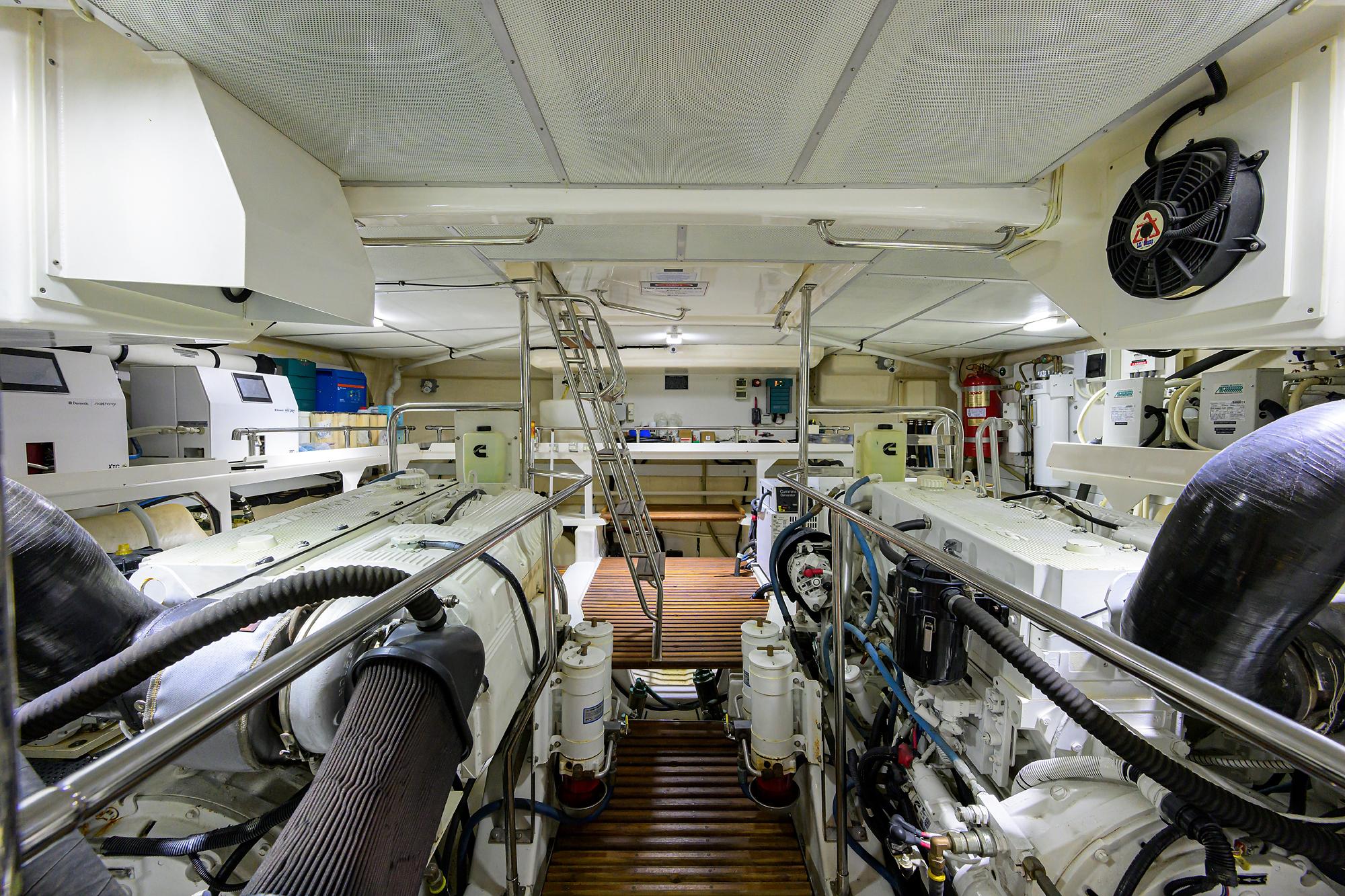

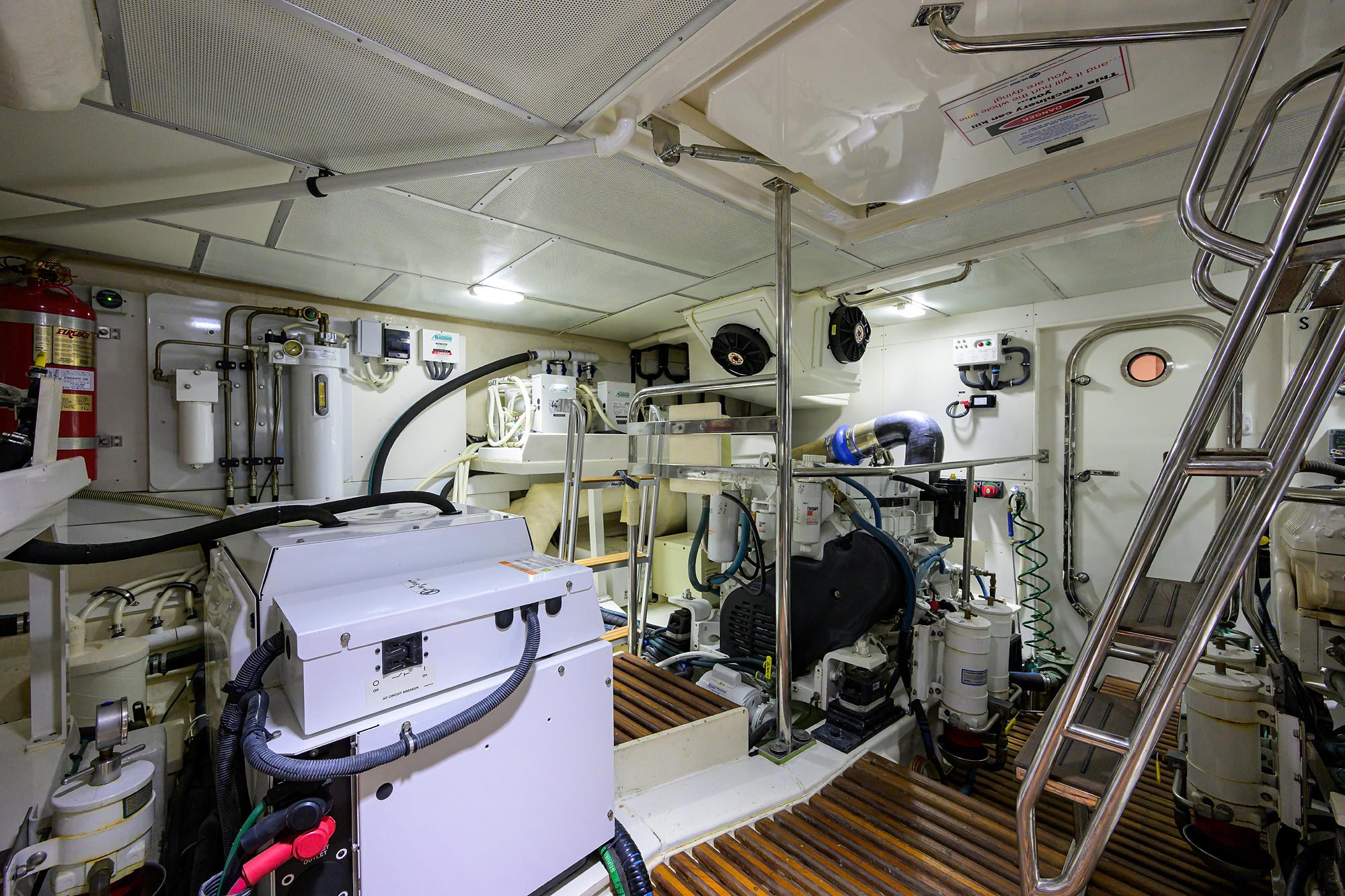

The engine room is located aft and accessible from both aft deck and walk-thru watertight door from the utility room. There is a separate on/off light switch before entrance as well. The engine room is large with full stand-up head room. Please note NEW updates listed below.
Twin Cummins QSM 11 with 715 HP, 1465 hours as of 6/22/23ELECTRICAL EQUIPMENT
This is an extensive list of both standard items and later updates listed below.
Air horn: DC, upgraded to dual Kahlenberg Air-conditioning: Dometic Marine Air, reverse cycle, with compressors and blowers at Salon NEW (24k BTU), helm area (36k BTU), master cabin (16k BTU), fwd cabin (12k BTU), utility room and port cabin (12k BTU) SALON aircon replaced NEW 2022 Upgraded intake and outtake AC manifolds with hose blowout connector NEW 2023 Alarm and indicator panel: mimicked boat profile LED panel, at lower helm Alarm panel: LED panel, at upper helm Batteries - Engines: one 24V bank, made of 2 units AGM Lifeline, 12V, 255Ah, with fiberglass boxes, lids and straps Batteries – Service: one 24V bank, made of 6 units AGM Lifeline, 12V, 255Ah, with fiberglass boxes, lids and strapsBattery – Generator: 1 unit AGM Lifeline, 12V, 105Ah, with fiberglass box, lid and strap Battery - Generator: 1 unit AGM lifeline, 12V, 105AH, with fiberglass box, lid and strap All batteries NEW mid 2021 Battery charger - Engines: Mastervolt ChargeMaster 24/100-3, 24V, 100A, automatic NEW mid 2021 Battery charger – Generator: Mastervolt ChargeMaster 12/35-3, 12V, 35A, automatic Battery condition indicator: BEP, at electrical panel Battery disconnect switches: BEP, remote motorized Battery paralleling: BEP, dual sense Voltage Sensitive Relay (VSR), 125A Bilge pumps: four (4) units, DC, automatic, with high water alarms at helm(s), Rule Mate RM2000-24 Bonding system: zinc anodes, on raw water cooling systems and heat exchangers Bow and Stern thrusters: Both Sleipner Sidepower SE170/250TC, DC, joystick controls at lower and upper helms Carbon monoxide detectors: in sleeping areas and salon, Seafire Marine DC converter: 24-12V, 40A, Newmar DC outlets: 12V, two units, one at each helm Distribution panels: AC/DC, BEP Engine gauges and instrumentation: Cummins, two Vessel View displays, at lower and upper helms Engine room lights: DC, LED, Hella Marine Engine room ventilation: four blowers, DC two intakes on one side, two exhausts on the other side of engine room, Delta “T” Engine start/stop: at lower and upper helms Engine room electrical switch and transmission electrical switch NEW 2021 Entertainment system: (i) Bose AV35 surround sound, iPod interface, Blu Ray player, 5 speakers in salon with subwoofer, and (ii) Panasonic 3D CD/DVD player Freshwater system: pressurized, DC, Groco Paragon Senior, rebuilt 2022 Generator: Onan with sound shield, e-QD Series, 21.5 kW for 120V/60 Hz - New 2017 Holding tank – black water: polyethylene, 100 US gallon (379 liter) capacity; deck fitting for dockside pumpout; equipped with direct discharge pump, DC, Sealand Sani Pump T24 Holding tank - level indicator: Dometic Sealand, model DTM, at lower helm station Icemaker: AC, upgraded to Isotherm Indel stainless steel Kahlenberg Dual Trumpet air horn Victron Quottro 24v/5000/120a Inverter/Charger with remote at lower helm, NEW 2022, remote NEW 2023FLYBRIDGE

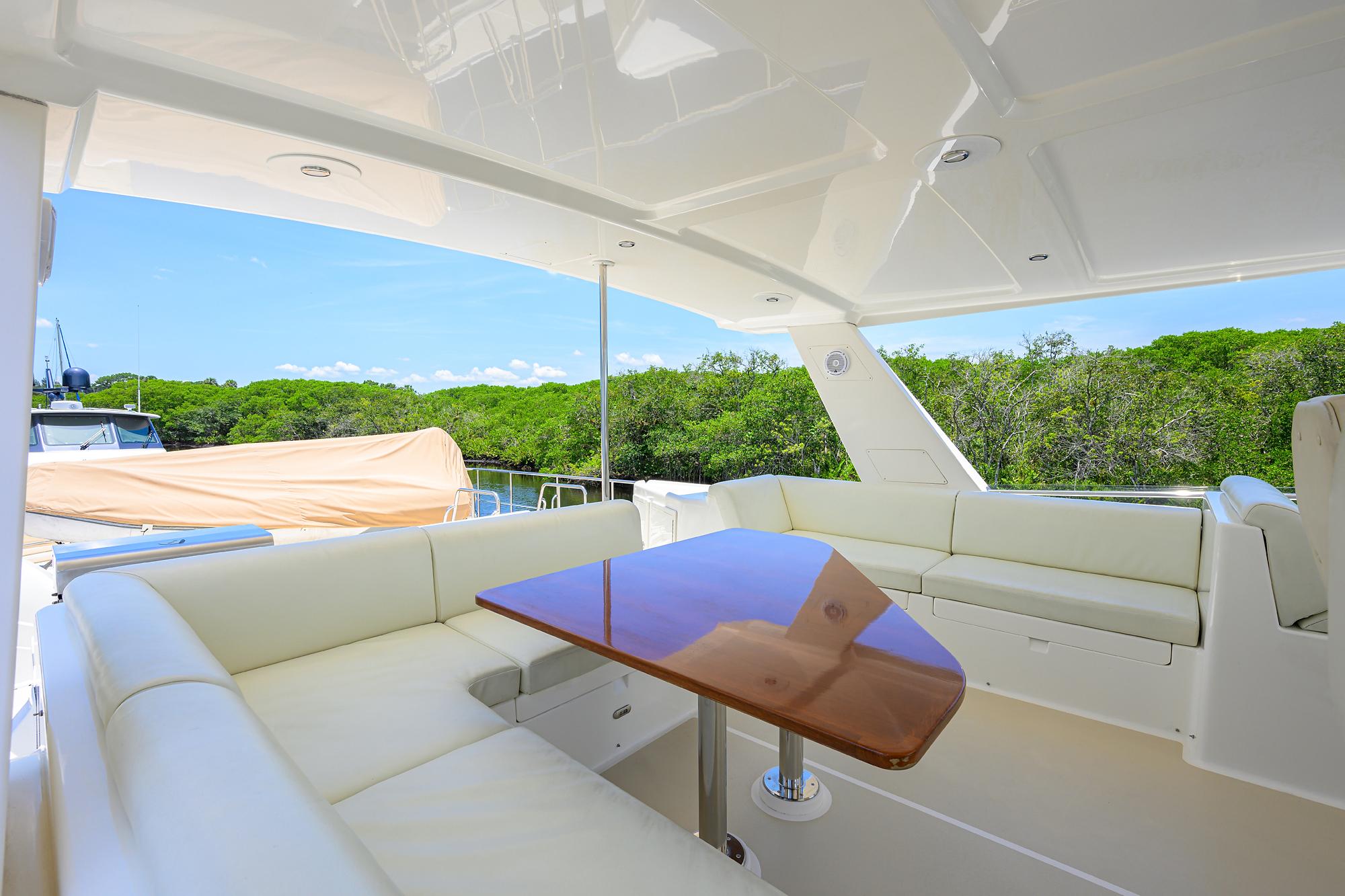

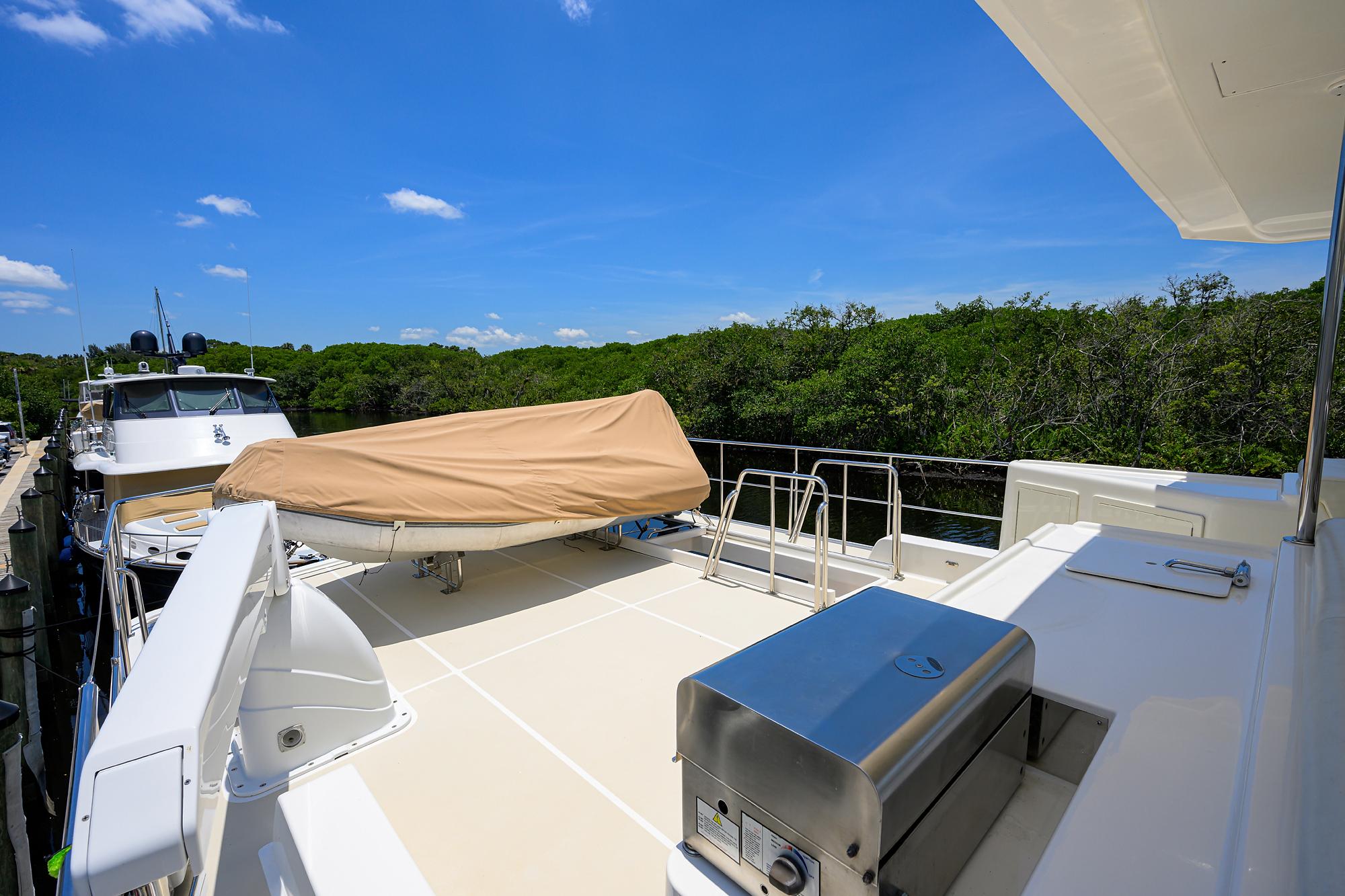

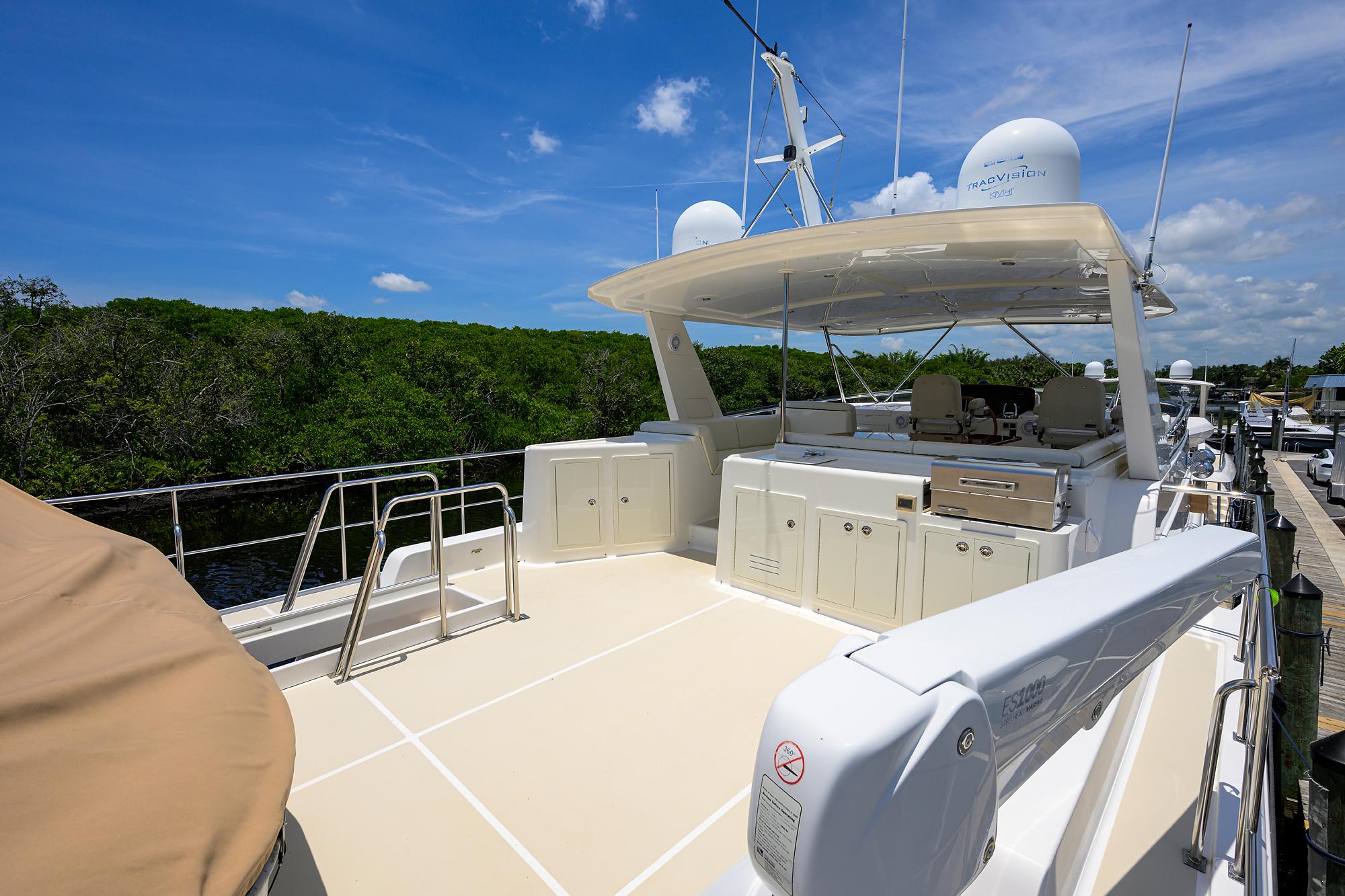

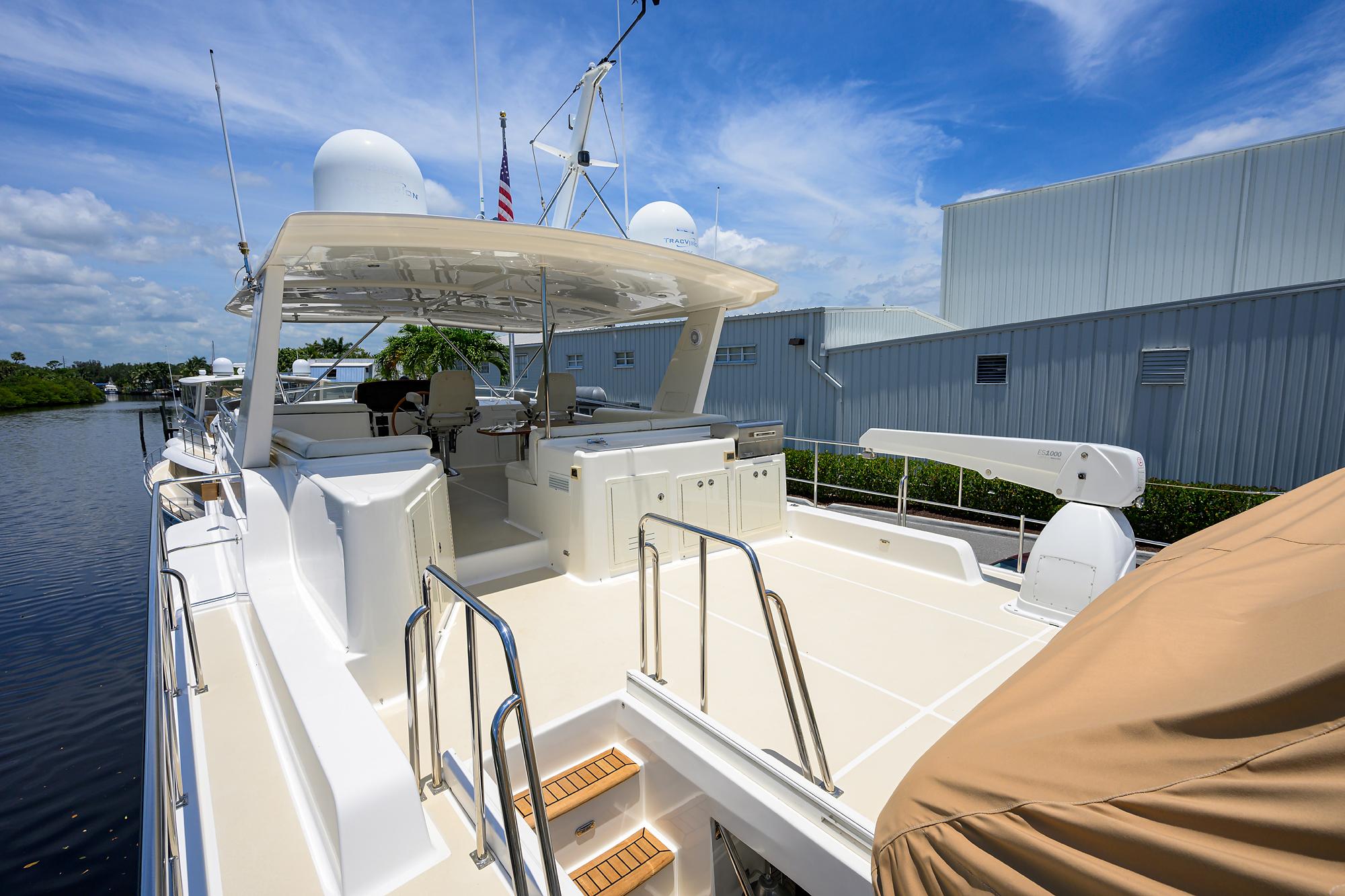

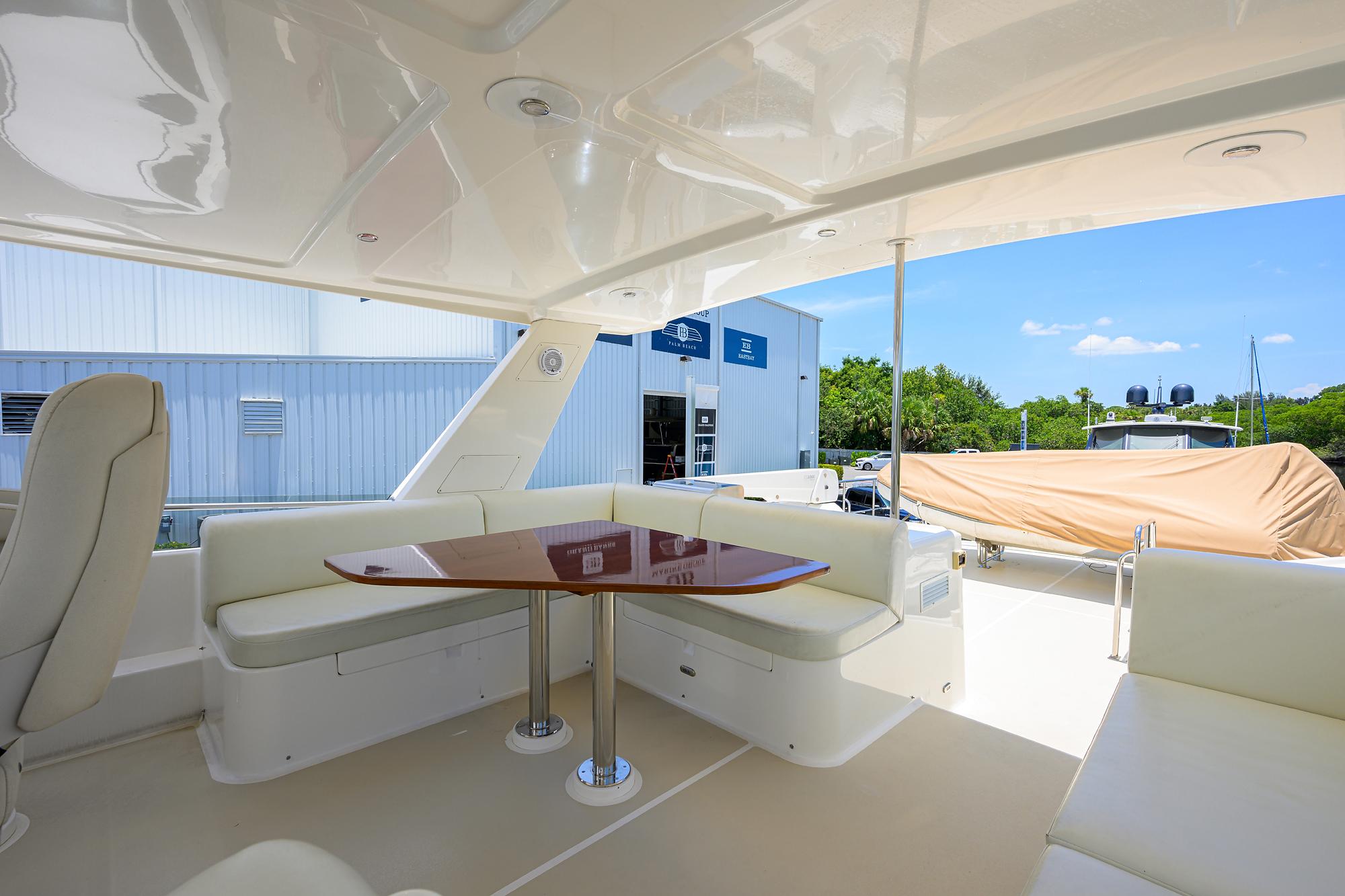

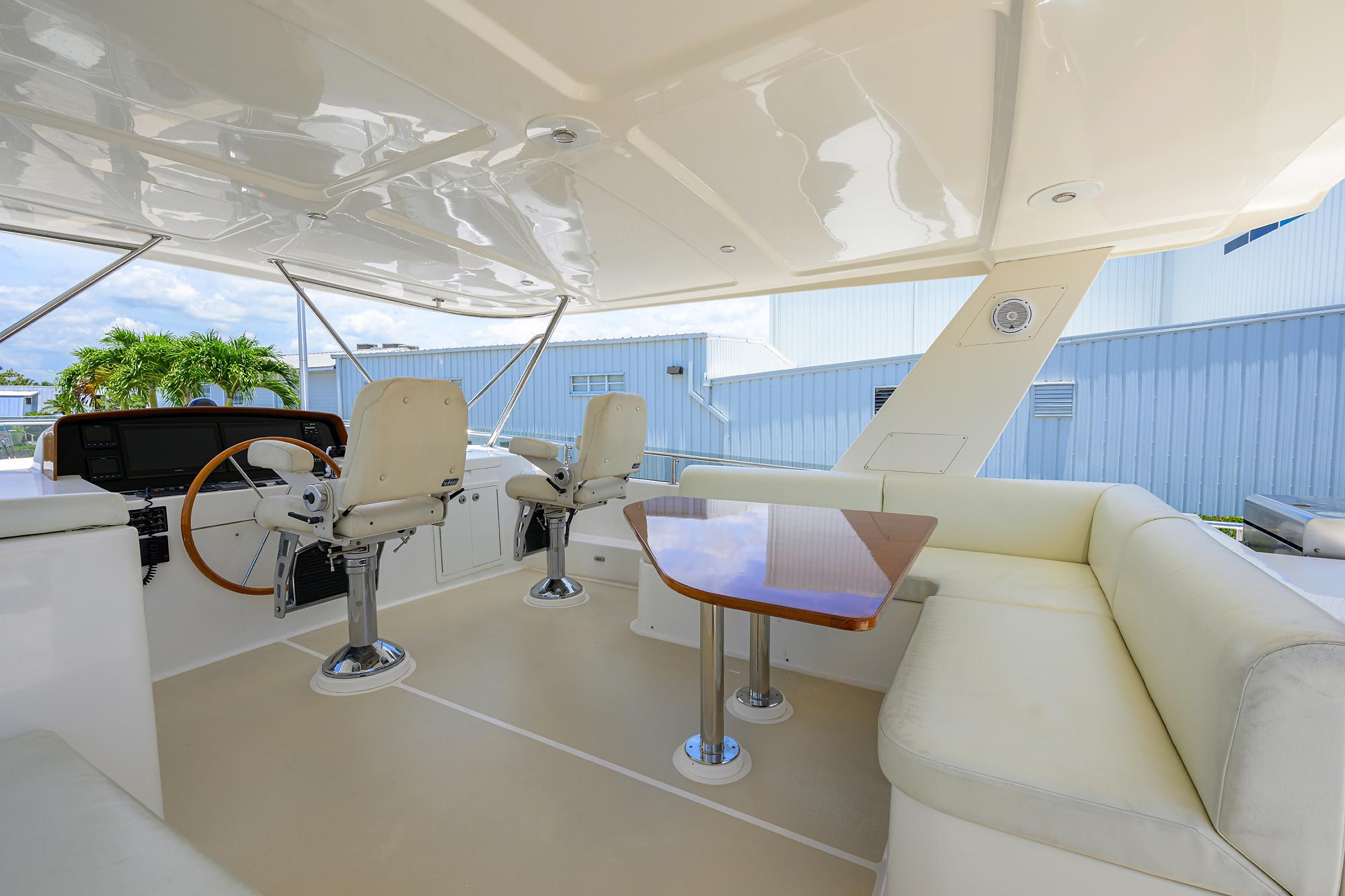

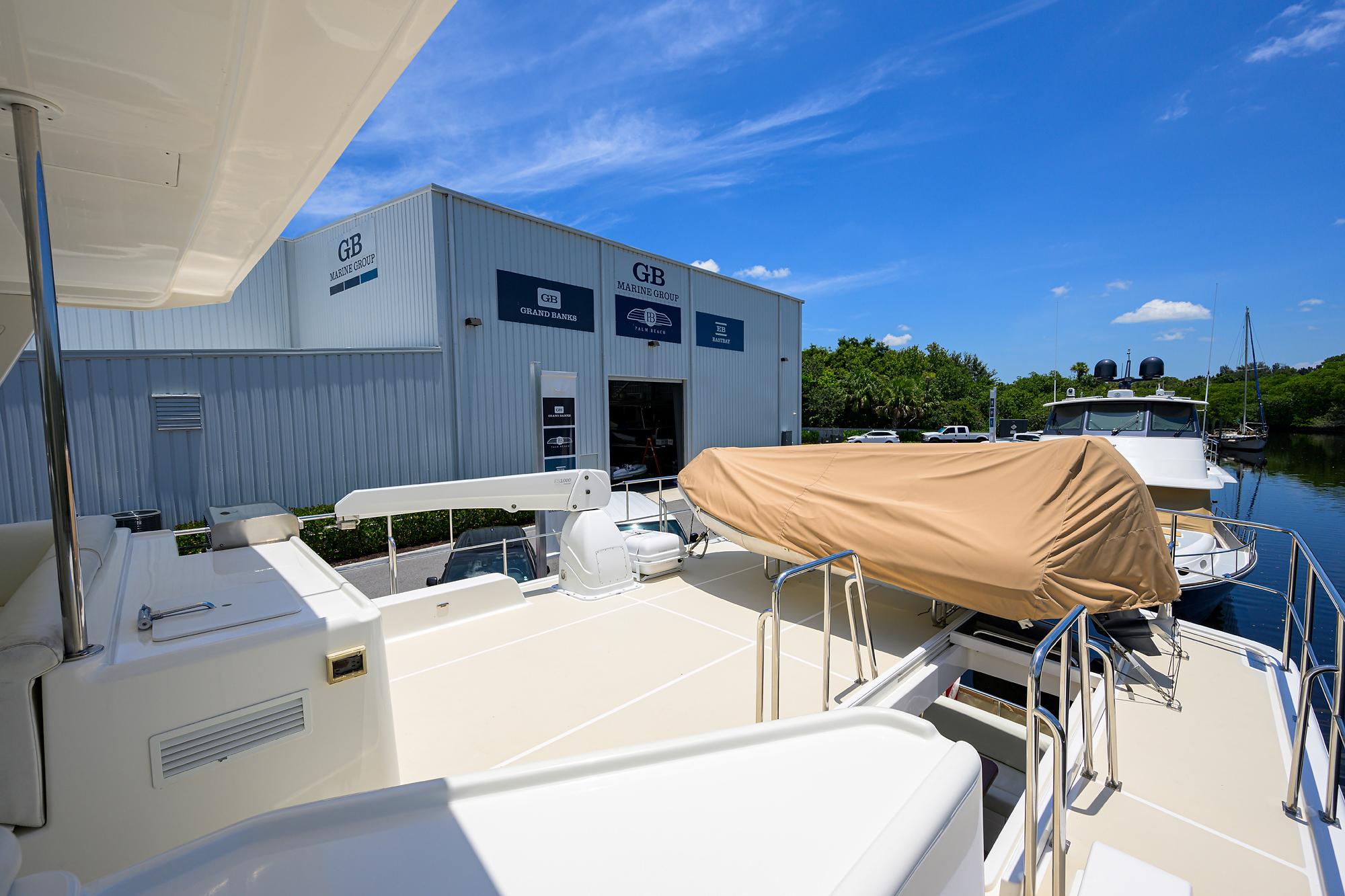

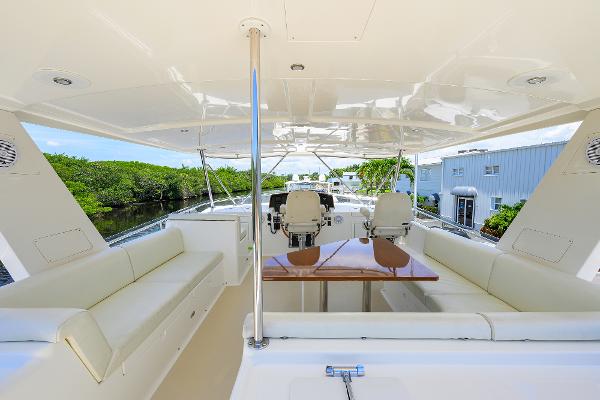

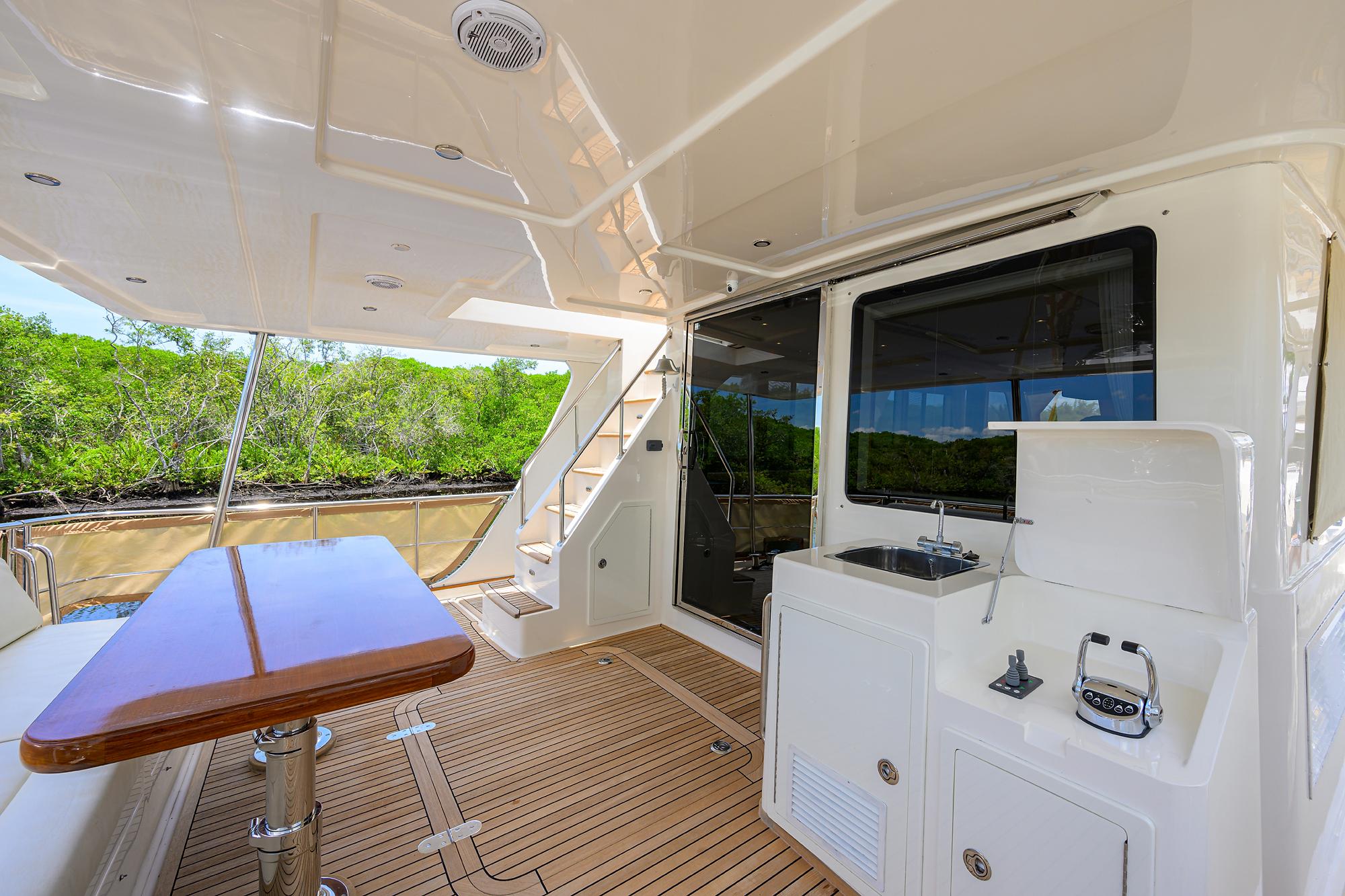

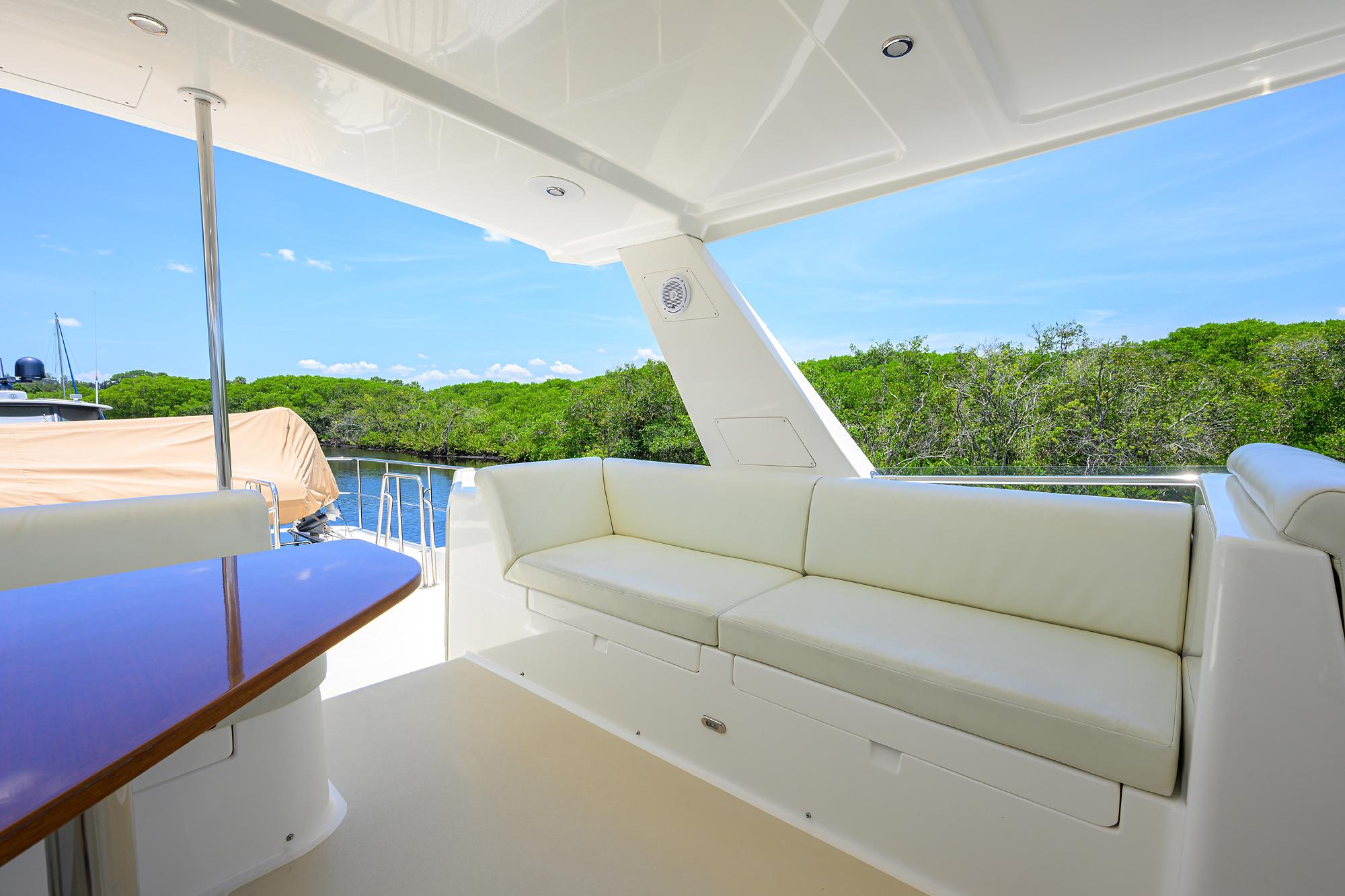

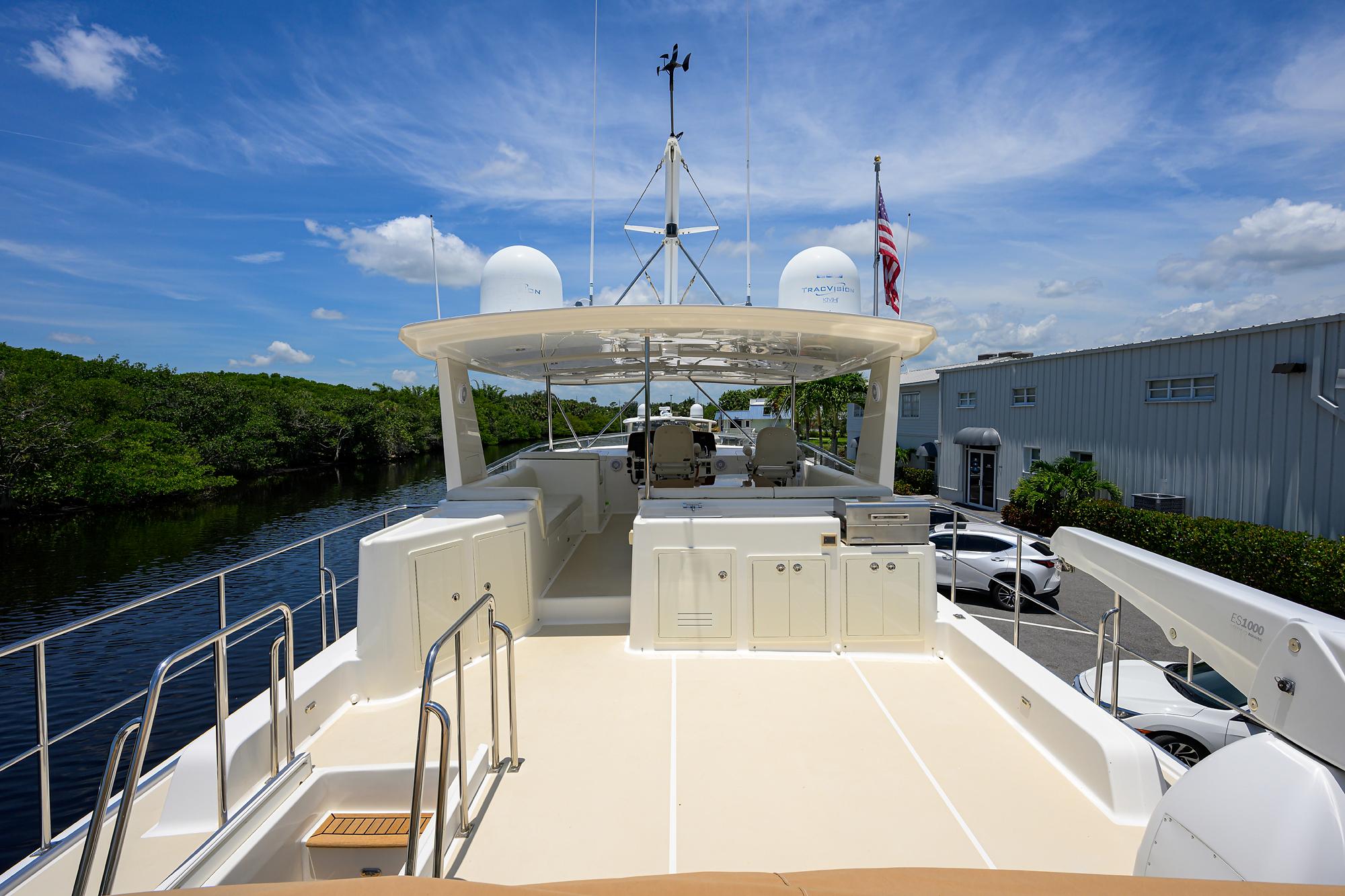

Gotcha has an open large flybridge with plenty of seating, large dining or snack table, an outdoor galley and storage for dinghy with large davit.
Hardtop with built-in lightingBOW UPDATES
Custom Muir windlass – Jaguar Dual Chain, NEW 2018 Muir windlass full service done 2022 Main anchor upgraded to 130 lb. Spade Anchor with 300 ft of High Tensile Strength 3/8 Chain, 2018 (std is 75 lb. anchor) Support 75 lb CQR Anchor with 300 ft all 3/8 regular strength chain. Two (2) remote systems to drop and retrieve anchor in addition to auto anchor and factory system (redundancy), 25-ft 50-amp chord, 3 Fenders, approximately 10 dock lines, dock pole, smaller misc. use lines, HT shackles for anchor system, single and double side snubbers, and other itemsEXTERIOR EQUIPMENT

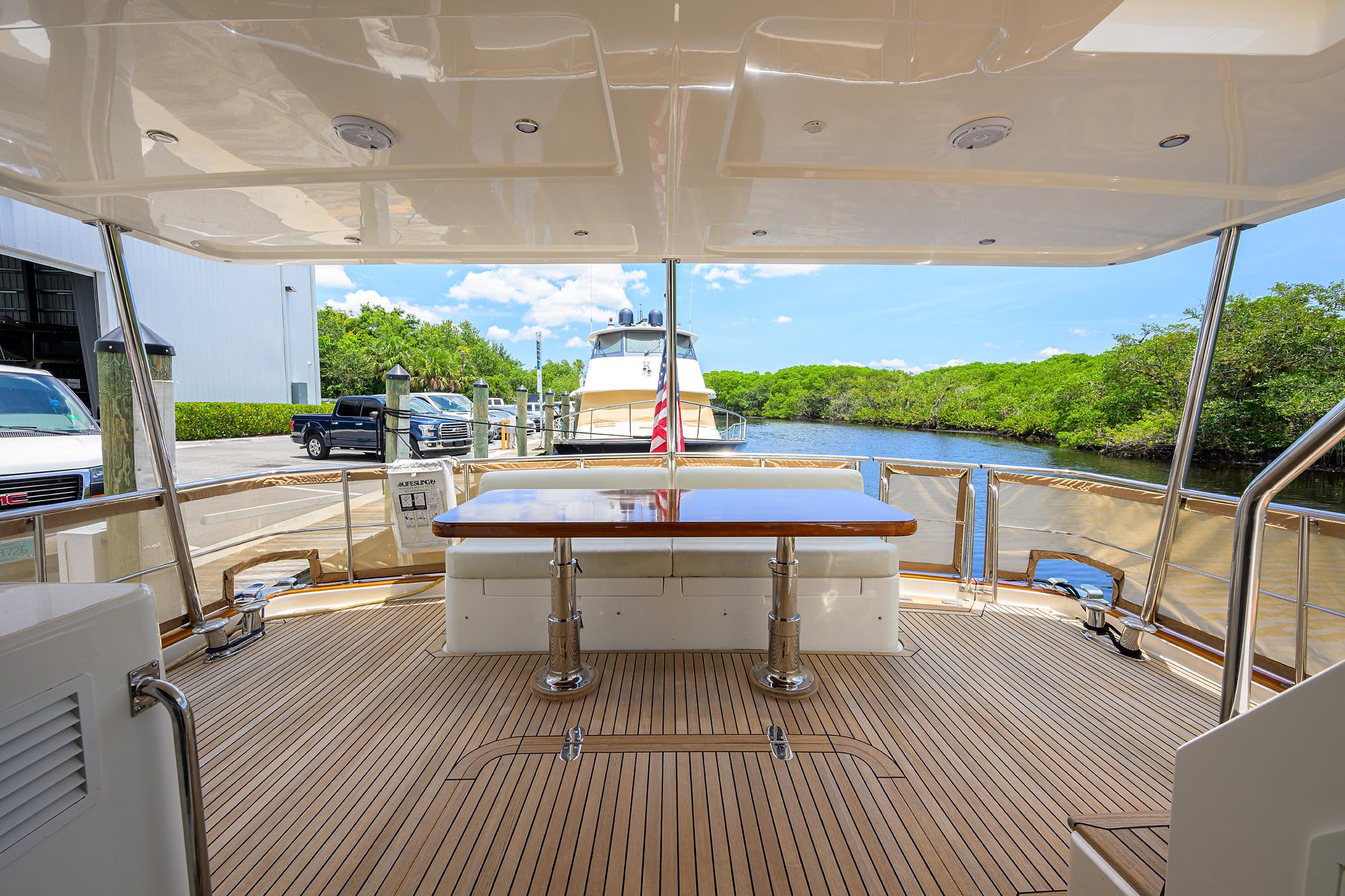

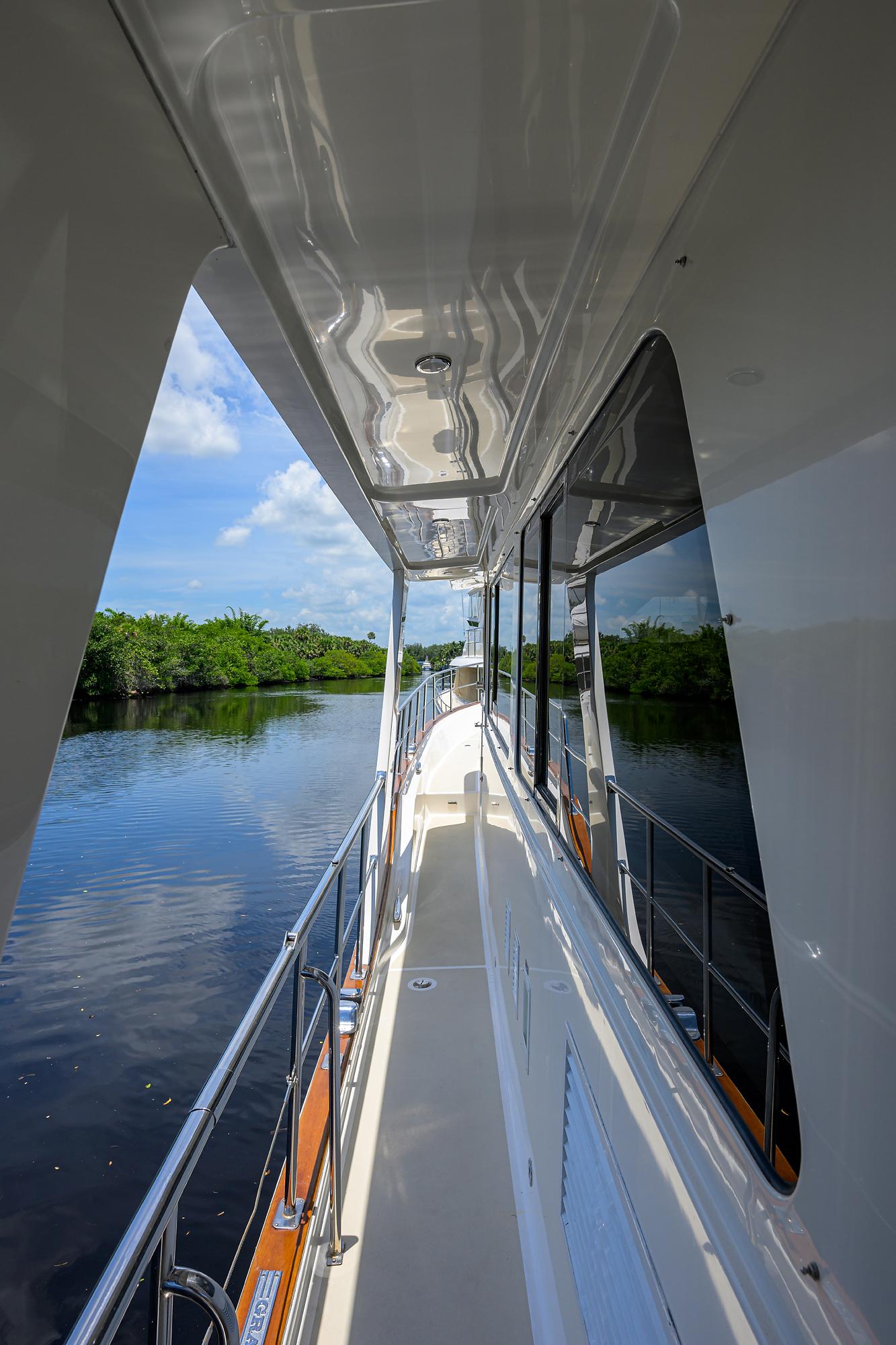

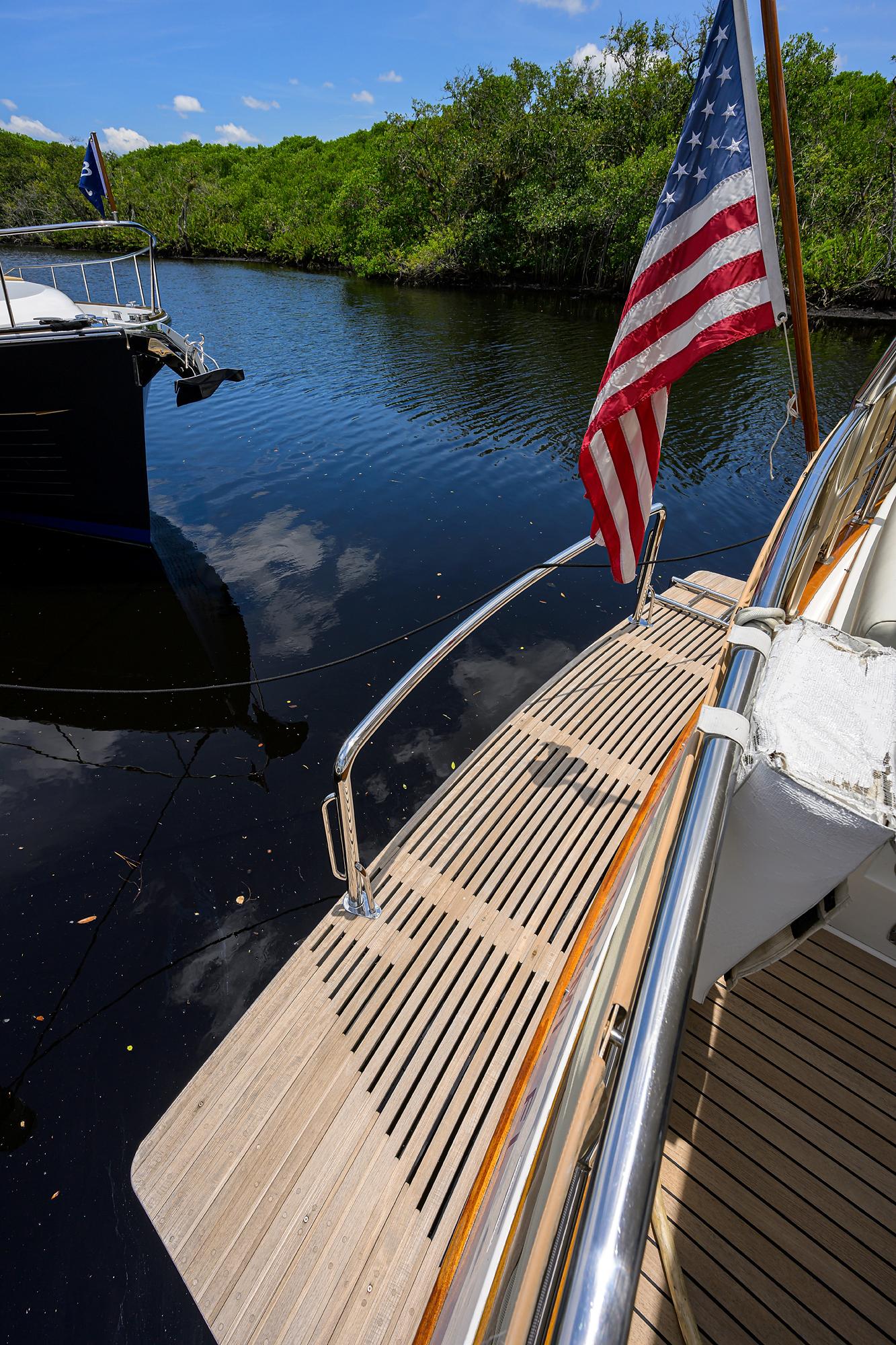

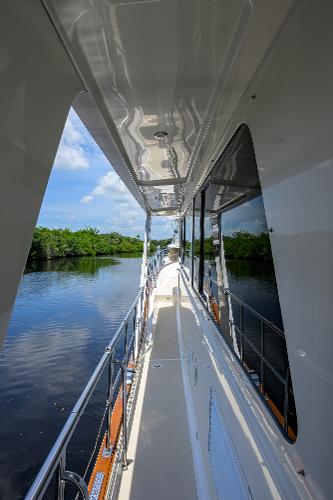

Aft deck and side decks are covered for sun and rain protection. Aft deck is teak planking and side and fore decks are painted non-skid. Side decks are wide and easy to walk forward while underway.

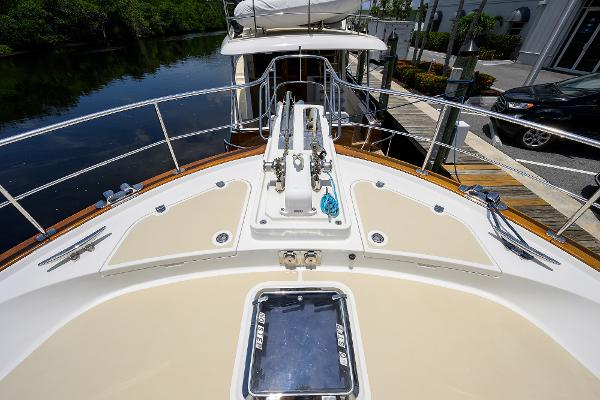

Anchor chain locker: with partition for rope and chain, self-draining Anchor platform: fiberglass pulpit, double stainless steel rollers for two (2) anchors Cleats: for mooring, stainless steel, fixed Courtesy lights: LED, Hella Marine Deck fills: fuel, water and waste pump-out; at side decks Decking: side and forward decks, painted non-skid, Awlgrip, “Moondust” color Decking: solid teak, epoxy bonded, TDS System Exterior lockers & settees matting: 3M 9100T Entrap, Z-web vinyl ridges, “grey” color, helps prohibit mold Flag poles: varnished teak, with stainless steel holders at bow and stern Foredeck lockers: port and starboard Foredeck: U-shaped “dinette”, molded fiberglass settee with cushions, table with single hi-lo pedestal, storage lockers underneath Freshwater washdown: with quick disconnect outlet, at bow, including one hose Grab rails: stainless steel Navigation light boards: varnished teak, port and starboard Rail gates: stainless steel, port and starboard Rubrail: heavy-duty vinyl, stainless steel insert profile Safety rails: at flybridge, 1 1/8” diameter custom oval profile stainless steel, with intermediate rail, on flybridge deck perimeter (upgraded) Safety rails: at main deck and flybridge, 1 1/8” diameter custom oval profile stainless steel, with intermediate rail Skylight hatches: Manship, stainless steel Step plates: chromed, with casted “Grand Banks” name, at rail gate opening, port and starboard sides Swim ladder: stainless steel, collapsible/sectional, mounted under swim platform Swim platform: teak, 19 slats, 44 1/2” (113 cm) Utility room vents: natural ventilation, port and starboard Windlass: DC, horizontal, chain gypsy and capstan, three stations, Muir, Jaguar HR3500C, 1500W Windows: at hull sides, grey tempered glass, fixed, fritted, bonded in place Windows: grey tempered glass at salon sides, clear tempered glass at salon front, fritted, bonded in placeCOCKPIT, SWIM PLATFORM & GENERAL EXTERIOR
Custom 6-Step Boarding Steps and Railing System (holds over 400 lbs.) includes a low tide riser for stationary high docks (cost over $8K), NEW 2021 6-Step MarQuipt swimladder (stowed in Engine Room), NEW 2019 Port and Starboard side mounts for ladder and boarding steps, NEW 2019 Garmin Camera for multiple uses; connected directly to all Garmin Chartplotters onboard Icemaker – full maintenance and new internal mechanical system, 2022 Fuel additives, cleaning supplies Custom Built Swim platform Staple Rail, New 2018 Additional 6-Step Swim Steps (holds up to 400 lbs.) added to port, NEW 2018 50-amp splitter for 30-amp service, misc, cords, NEW Engine room access: pneumatic deck hatch, aluminum ladder Flybridge access: molded fiberglass integral straight staircase, storage within, with teak treads and dual stainless steel hand rails Self-draining cockpit: stainless steel drains, one each port and starboard Settee: (i) forward facing at transom, straight, molded fiberglass, underseat storage, (ii) cushions, self-piping, vinyl SoftDura “Off White” Shower: hand-held, in cockpit, with retractable hose, hot/cold, Scanvik Table: stainless steel pedestals, varnished teak custom table Transom access: port access stairs to cockpit, integrated steps Transom door: hinged, opening outwards, solid fiberglass, teak-clad, fiberglass transom door, with magnetic locking device Transom: horizontal solid teak planking, varnished Cockpit storage cabinet Aft deck docking station with engine controls, bow & stern thruster controls Fresh water wash down outlet at port side cockpit setteeUTILITY ROOM

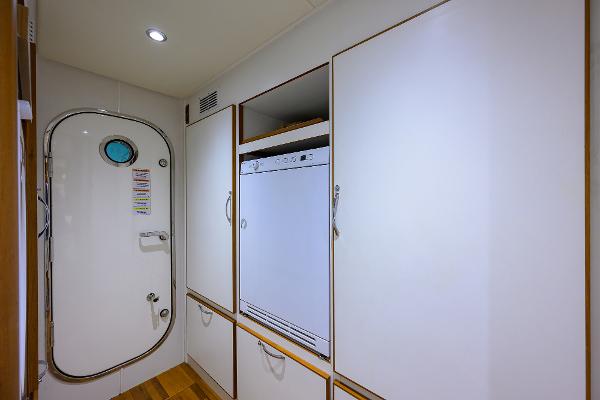

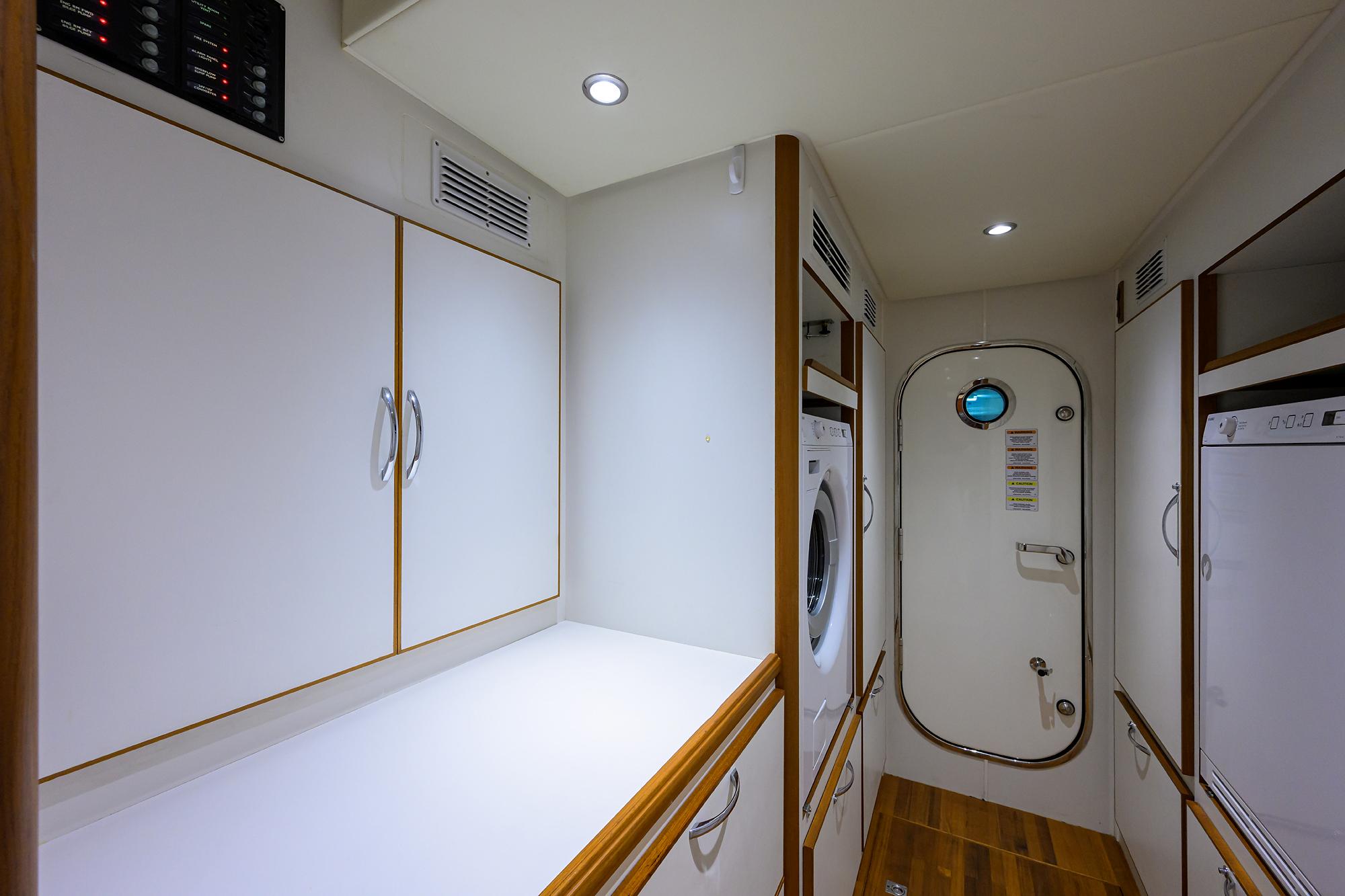

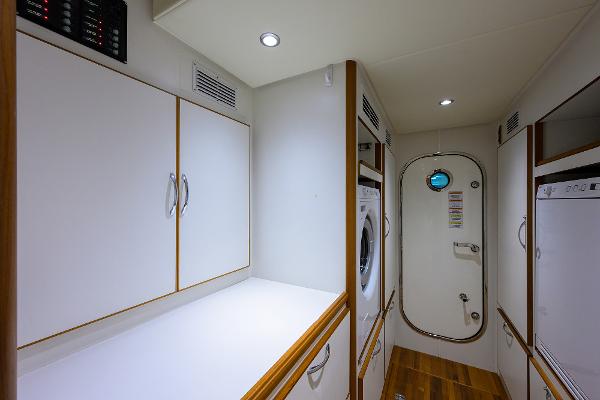

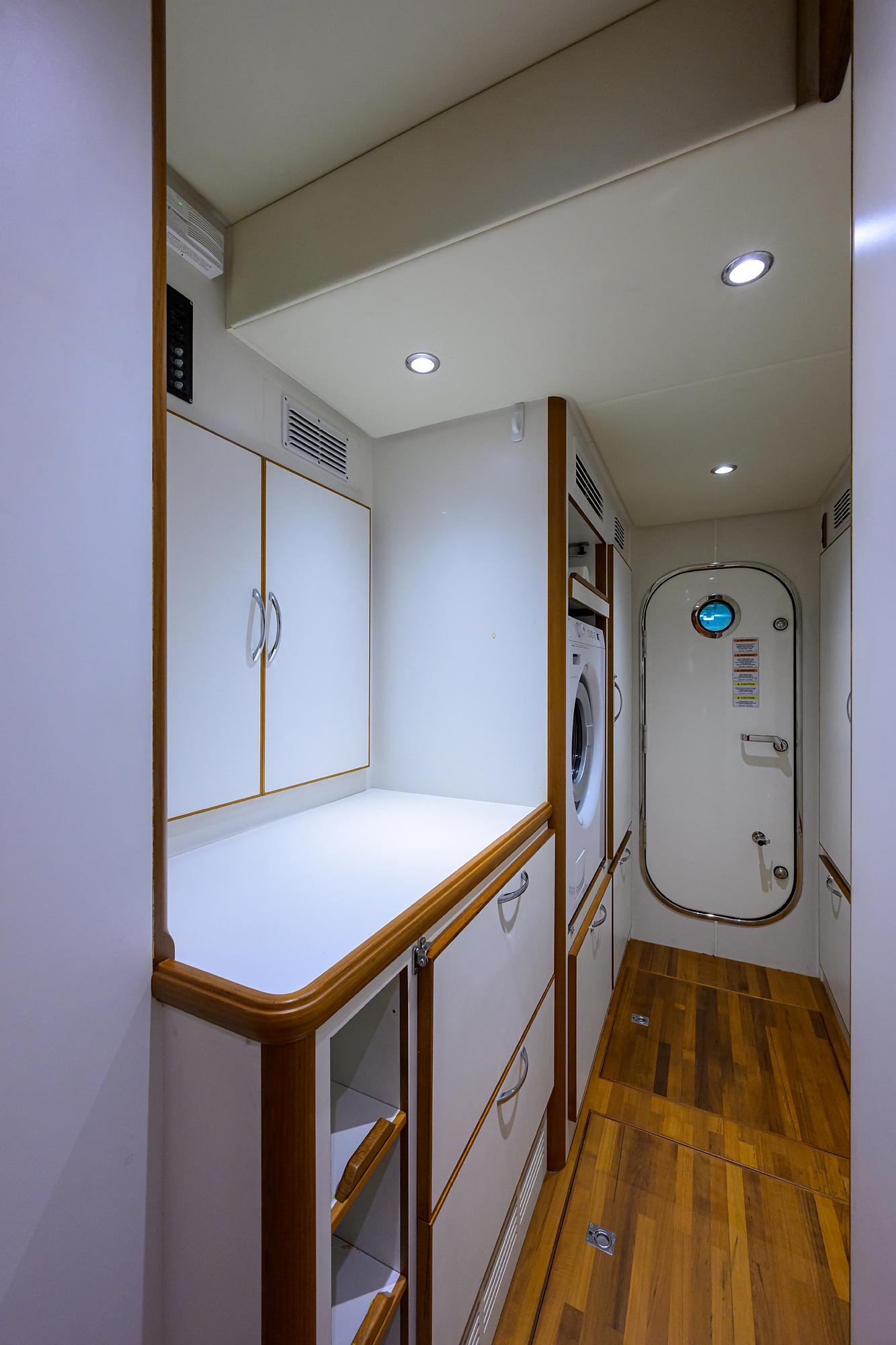

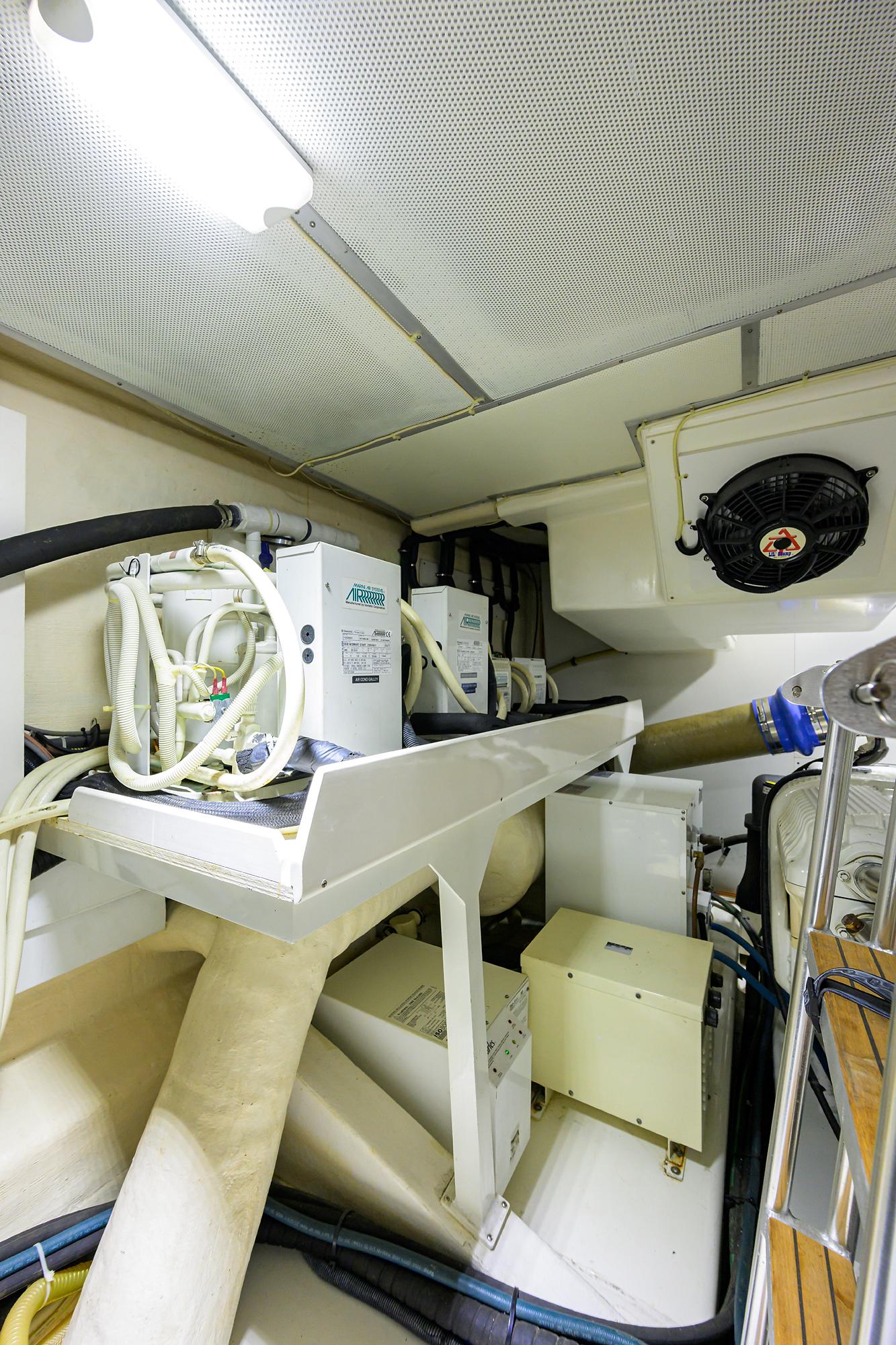

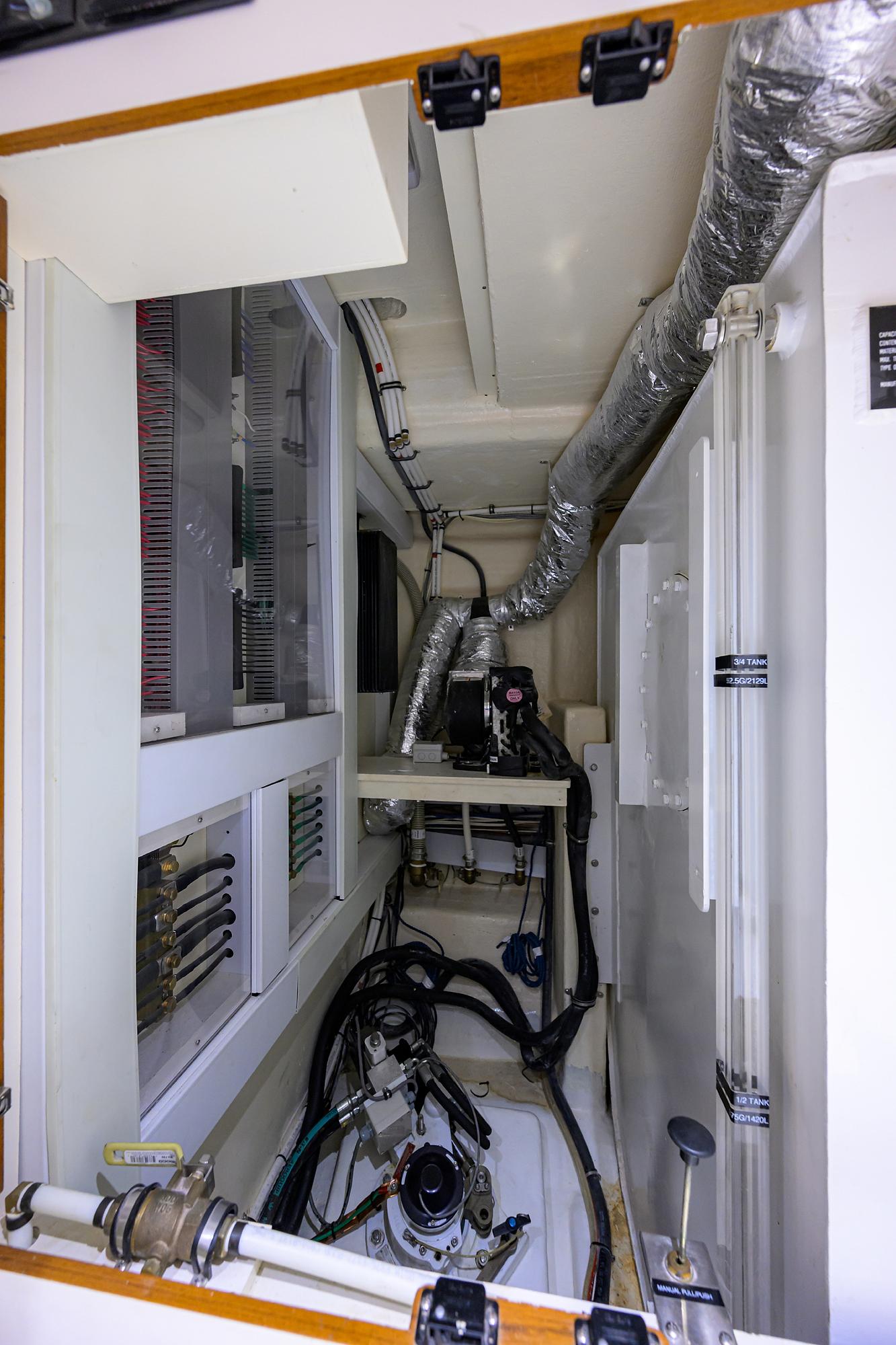

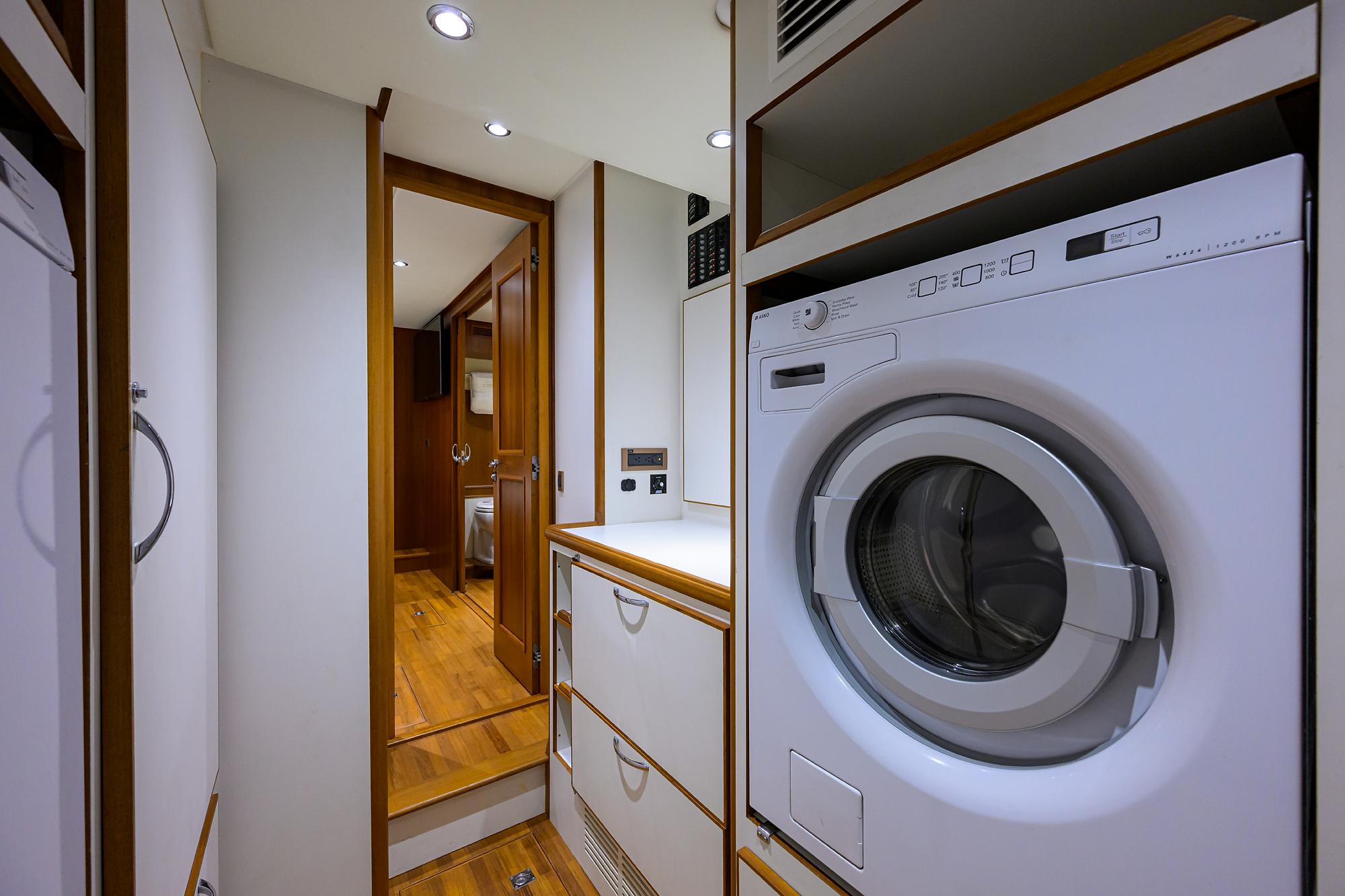

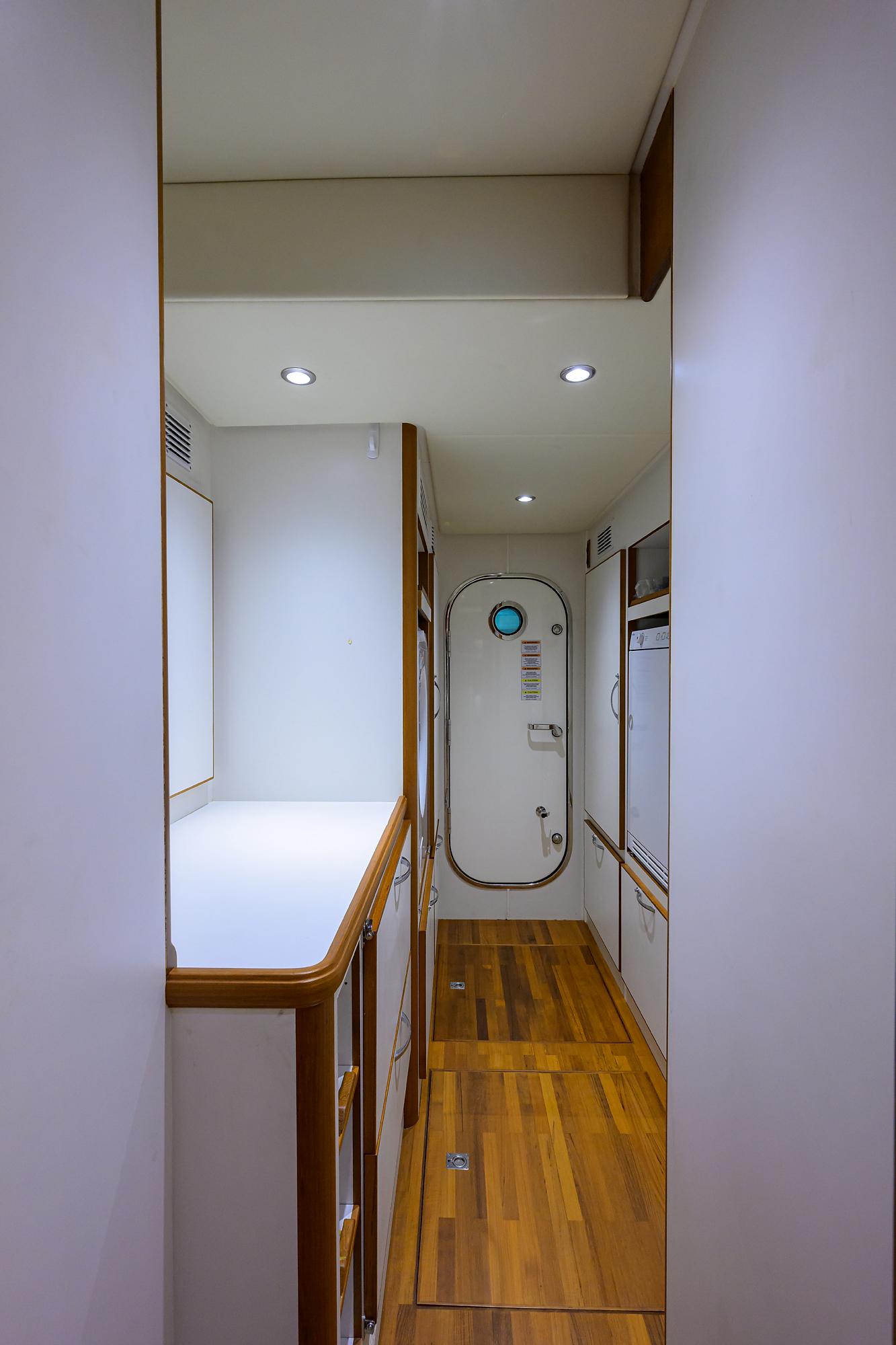

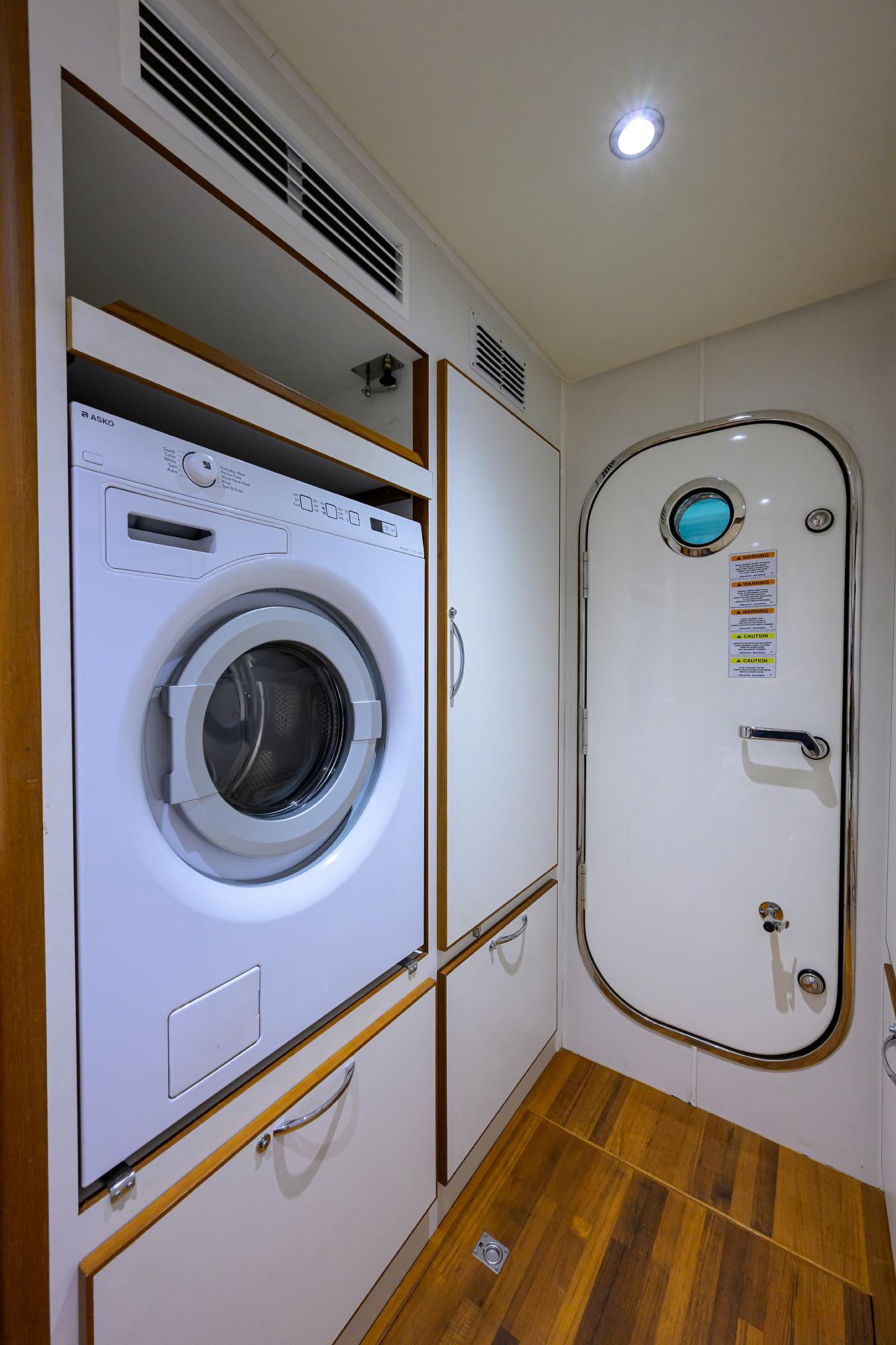

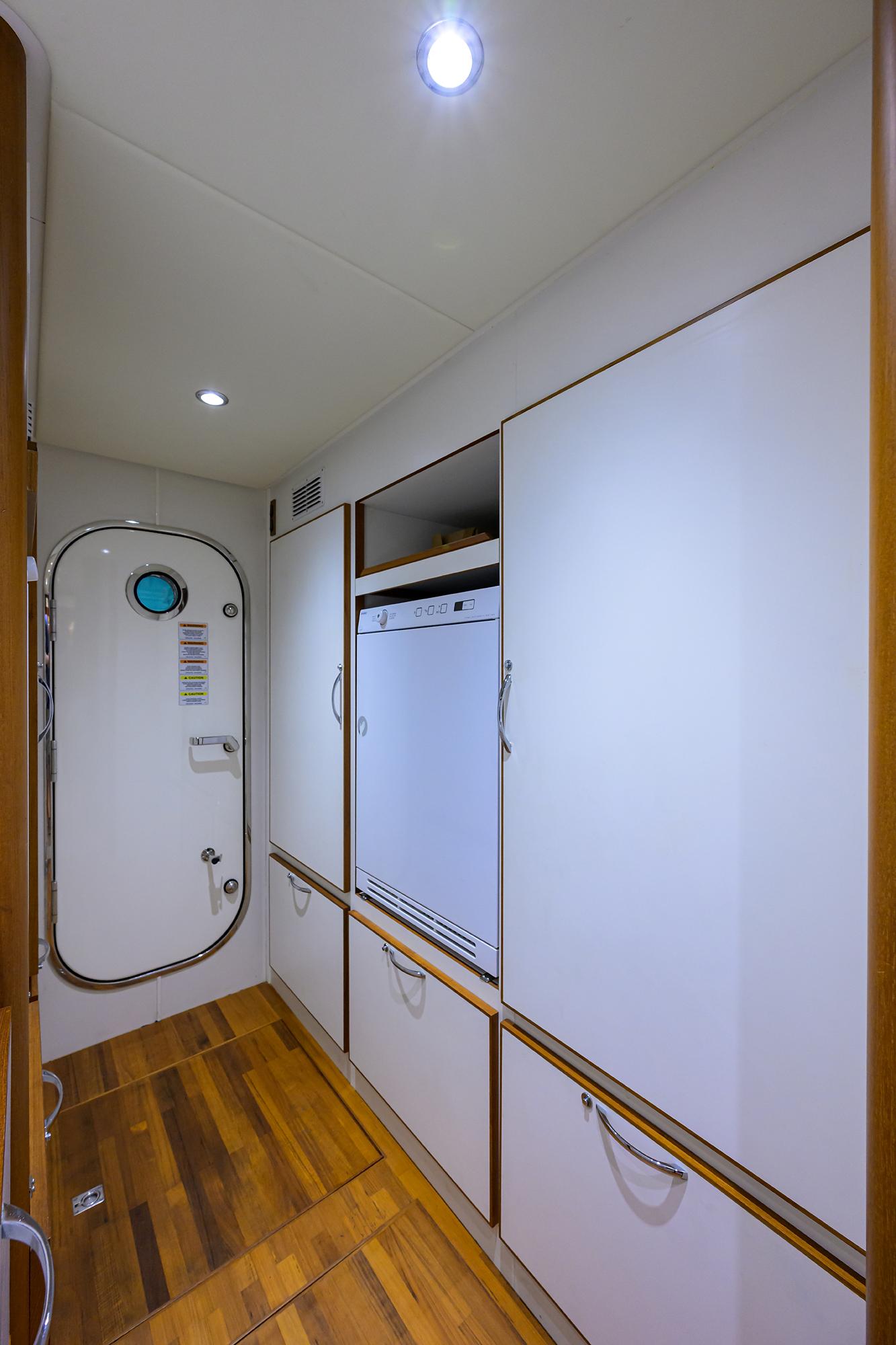

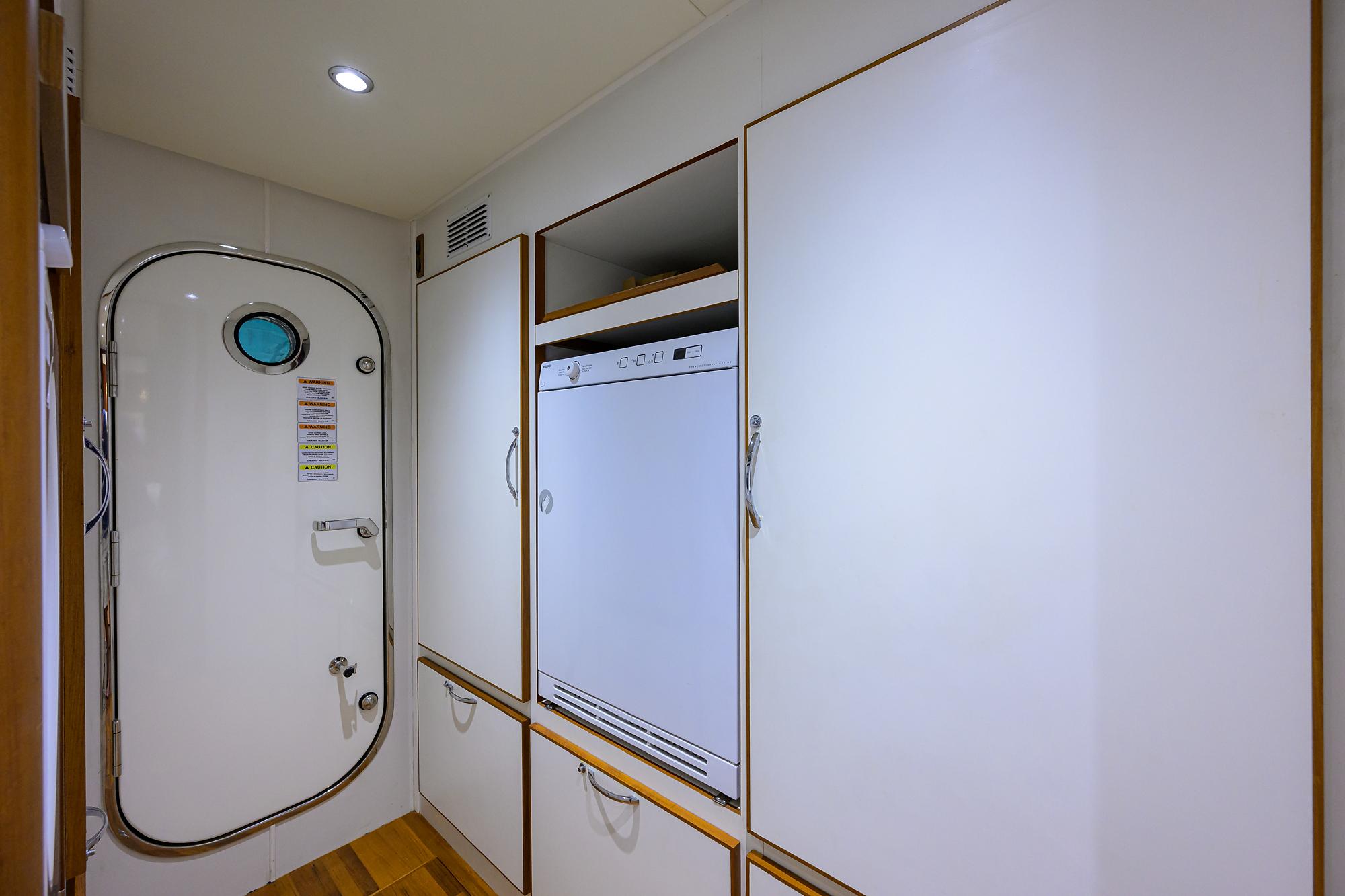

The utility room is aft of the mid-ship master stateroom. There is built-in storage cabinets with large drawers on both sides and access to the engine room through a stand-up watertight door.
Asko separate Washer and Dryer Misc Parts: 316 SS Hose Clamps of various sizes, various Electrical connectors and high amp fuses, high water pumps, freshwater drinking filters, multiple new and used strainer baskets, hoses, and more Bulkheads: Formica Engine room access: watertight door with viewing port Lockers: storage, port and starboard Workbench: at starboard Teak planking soleLOWER HELM AREA
Chart Locker: teak, on port side of helm station Compass: flush mounted on top of electronics console, Ritchie Doors: port and starboard, Aluminum painted, interior teak inlay, with stainless steel frame, Aritex Electronics console: wrapped with ultraleather, with teak instrument panel Electronics overhead console: teak, with removable panels Helmseat: Stidd Admiral Low Back, with deluxe chrome package and cupholder Second STIDD Admiral Low Back seat at helm with deluxe chrome package and cupholder Steering wheel: stainless steel, teak rimmed Port and STBD side doors with sliding Phantom screen on eachELECTRONICS & ENTERTAINMENT
Twin 8616 Garmin Chartplotters, Touch Screen, FB helm NEW 2020 Garmin Remote Control for Flybridge Chartplotters (upgraded No Screen Touch System, everything can be done via remote if preferred), NEW 2020 Garmin Remote Control for Autopilot (No Screen Touch System, Autopilot can be engaged/disengaged and controlled via remote once a waypoint has been set) NEW 2020 Dual Electronic Antenna Lifters for Main Shakespeare Antennas (on top of hardtop), NEW 2021 Dual 4’ supporting Shakespeare Antennas, can be adjusted manually (one wired to Fusion radio, one pre-wired for additional connection on the side of hardtop support beam), NEW 2021 750 Fusion Head unit (Direct control via unit, complete Bluetooth control ability or via Garmin Media), NEW 2019 AIS installed 2028 (2) 8215 Latest Generation Color Touch Screen Multi-Function Chart Plotter for Lower Helm Garmin 4kW, 72 Nautical Mile 4’ Open Array High Definition Radar Garmin GSD24 Sonar Module with Bronze Through Hull transducer Garmin 2x NMEA 2000 GPS WAAS antenna Garmin NMEA 2000 Backbone and Cabling as required for proper NMEA2000 Network Garmin XM Satellite Weather system w XM Satellite music down-feed (2) Garmin GMi20 Color Digital Display with Smart thru hull transducer package as required for Lower Helm & Flybridge Garmin Dual Station GHP12 High Performance Inboard Automatic Pilot System with GHC20 controls for lower helm & flybridge FLIR fixed night vision camera for lower helm & flybridge Independent Satellite (DirecTV) boxes for Salon and Master Stateroom Rudder Feedback system as required for Rudder angle indications on automatic pilot (2) Icom M506 VHF Radio with DSC Capabilities (2) High Gloss 8’ VHF Antenna packages with stainless steel mounts ACR Dual Station RCL100 dual bulb remote control searchlight KVH HD7 High Definition DirecTV Satellite Tracking Dome system Satellite Dome Mounting pedestal and or shim kit as required Satellite Antenna control unit installation for salon as required (2) cabling infrastructure as required for HD receivers (2) 42" LG HDTV's for Salon and Master Stateroom Fusion iP750i dual zone stereo system with Bluetooth and USB inputs for flybridge (2) Fusion NMEA 2000 Remote control for cockpit (3) pair JL Audio 6.5” Waterproof Speakers for Bridge and Cockpit Bose Output link to Flybridge Stereo with Remote control for stereo continuity Interface satellite receiver with Salon stereo system Garmin Certified installation WAVE WI-FI router/repeater - dual band 2.4Ghz and 5Ghz installed 2018 Garmin Wind monitor Upgraded DirecTV boxes in Salon and Master stateroom to H25/500 - 2018SALON

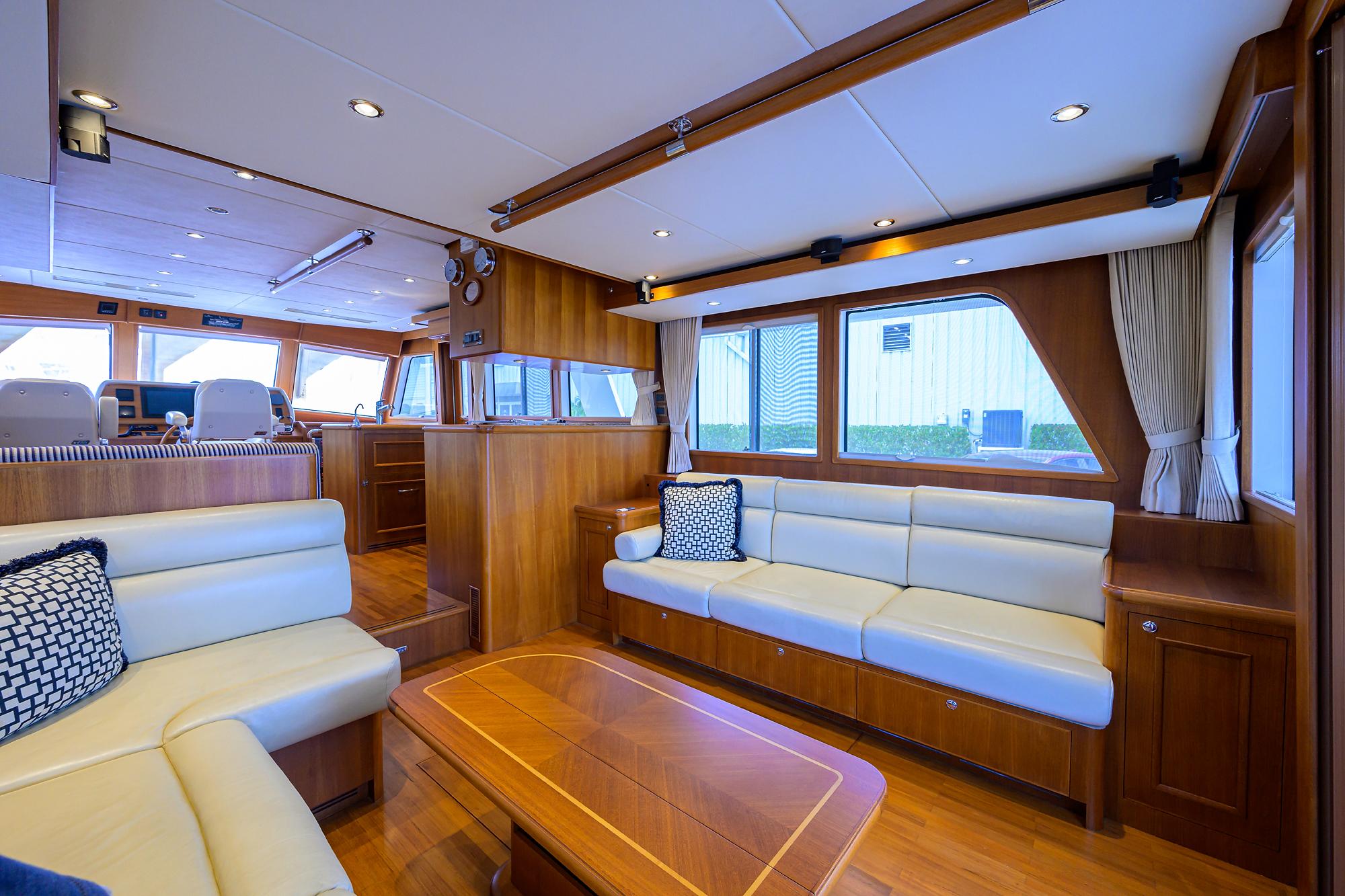

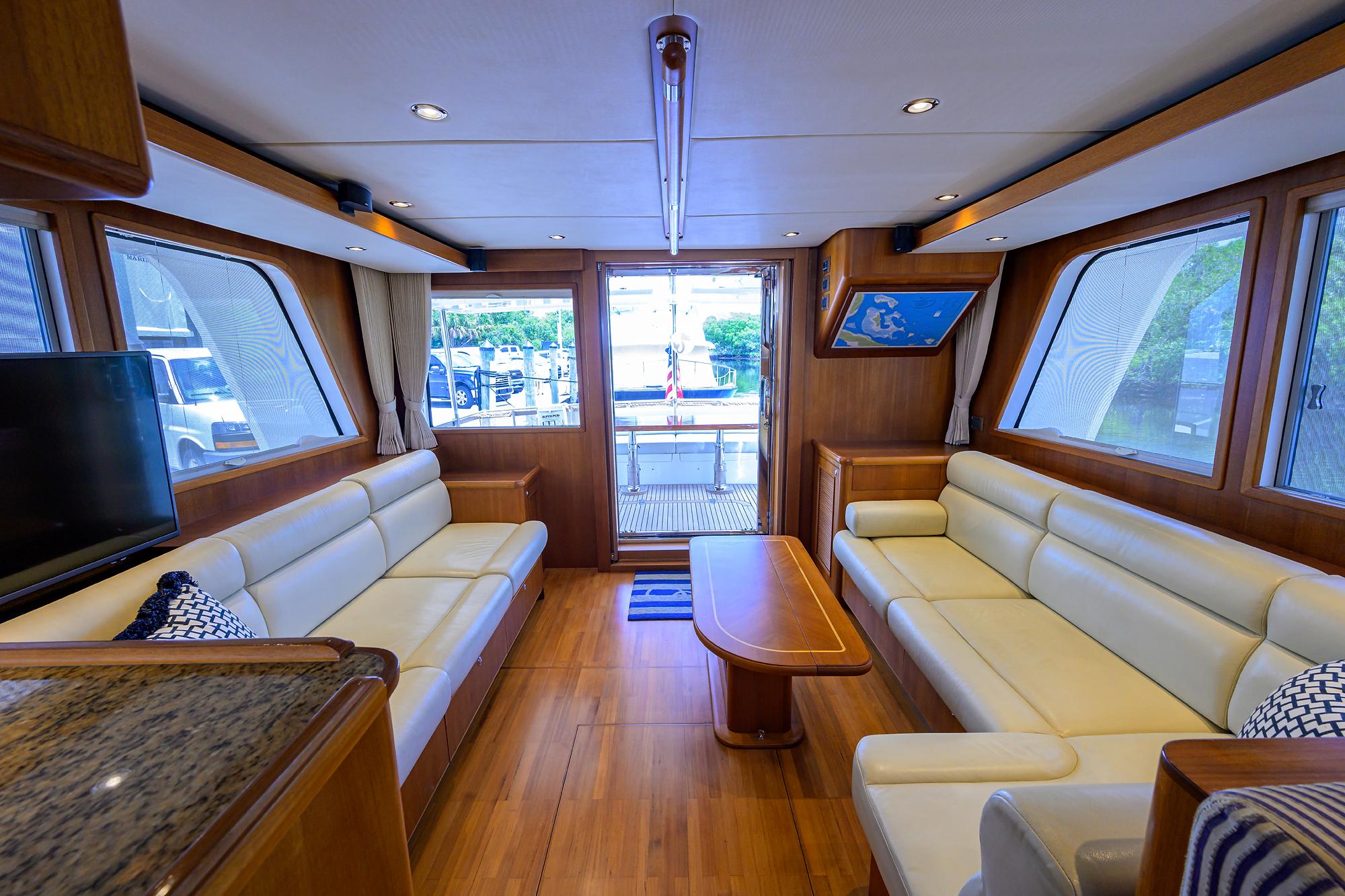

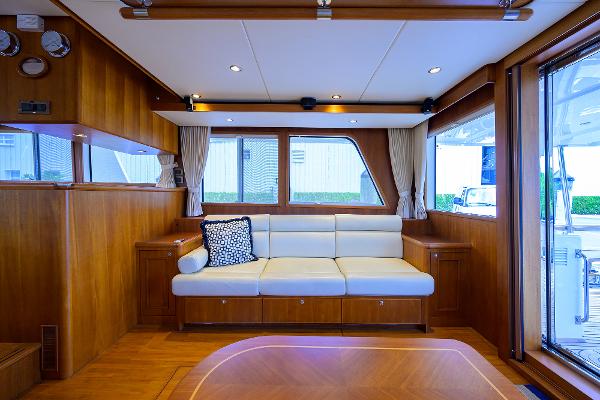

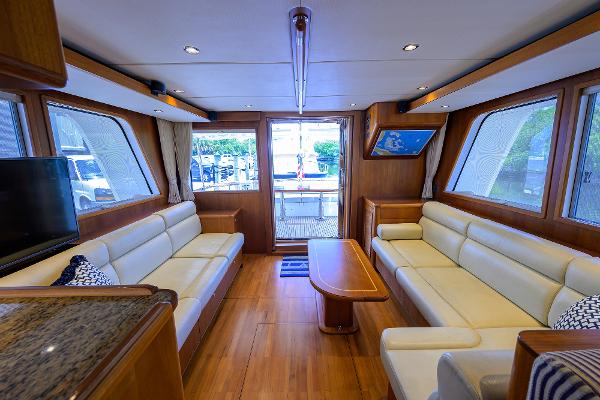

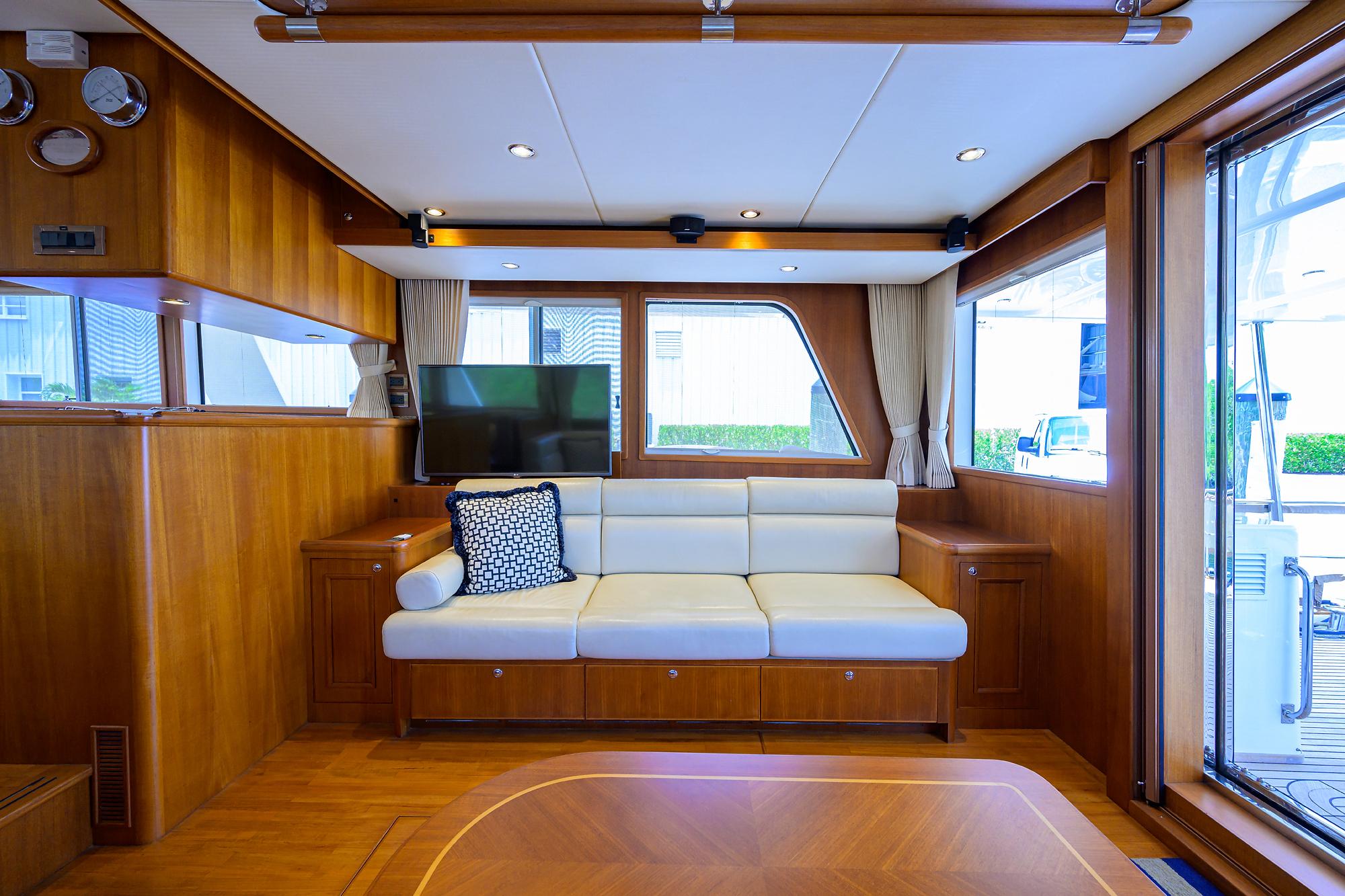

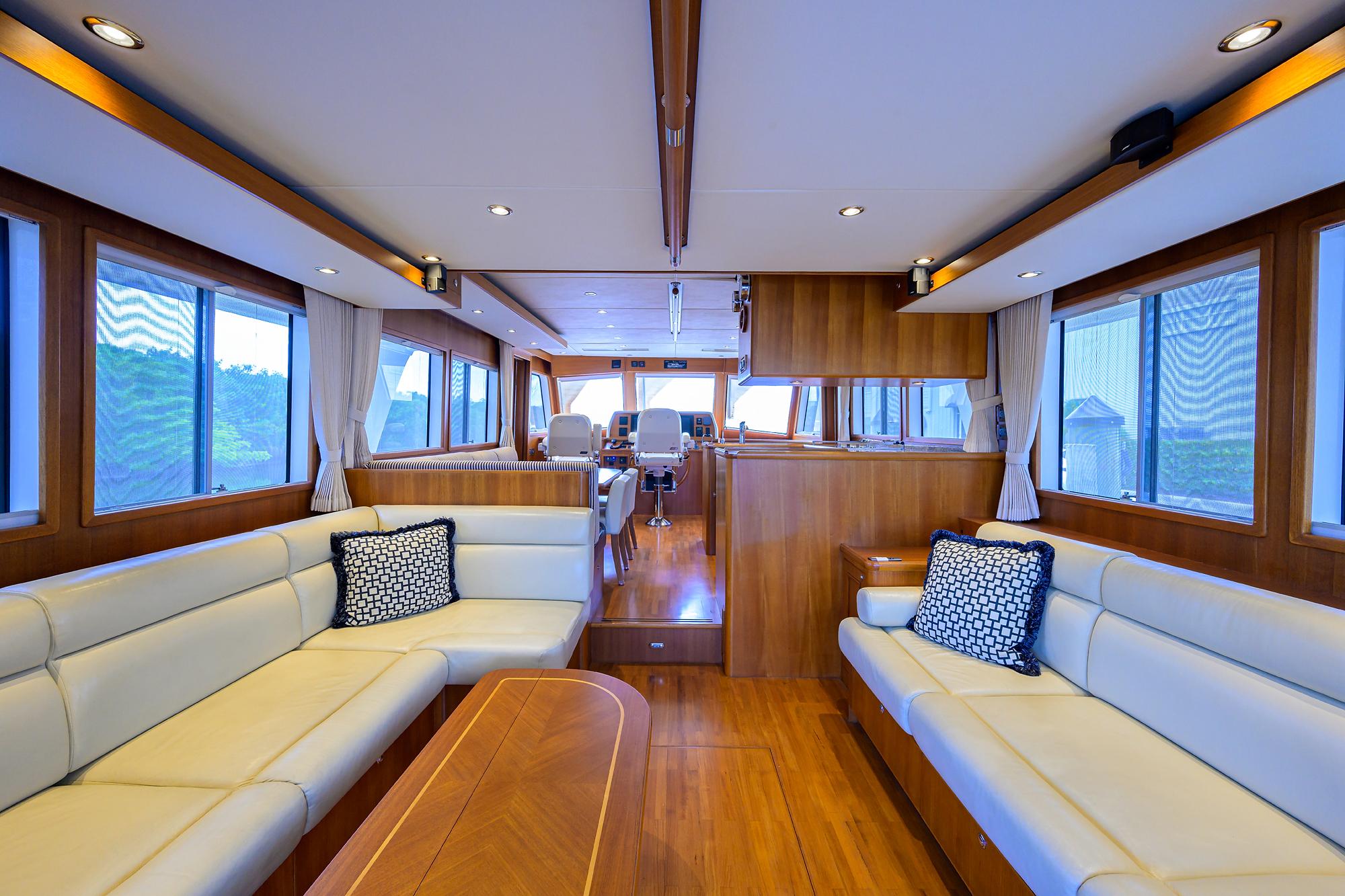

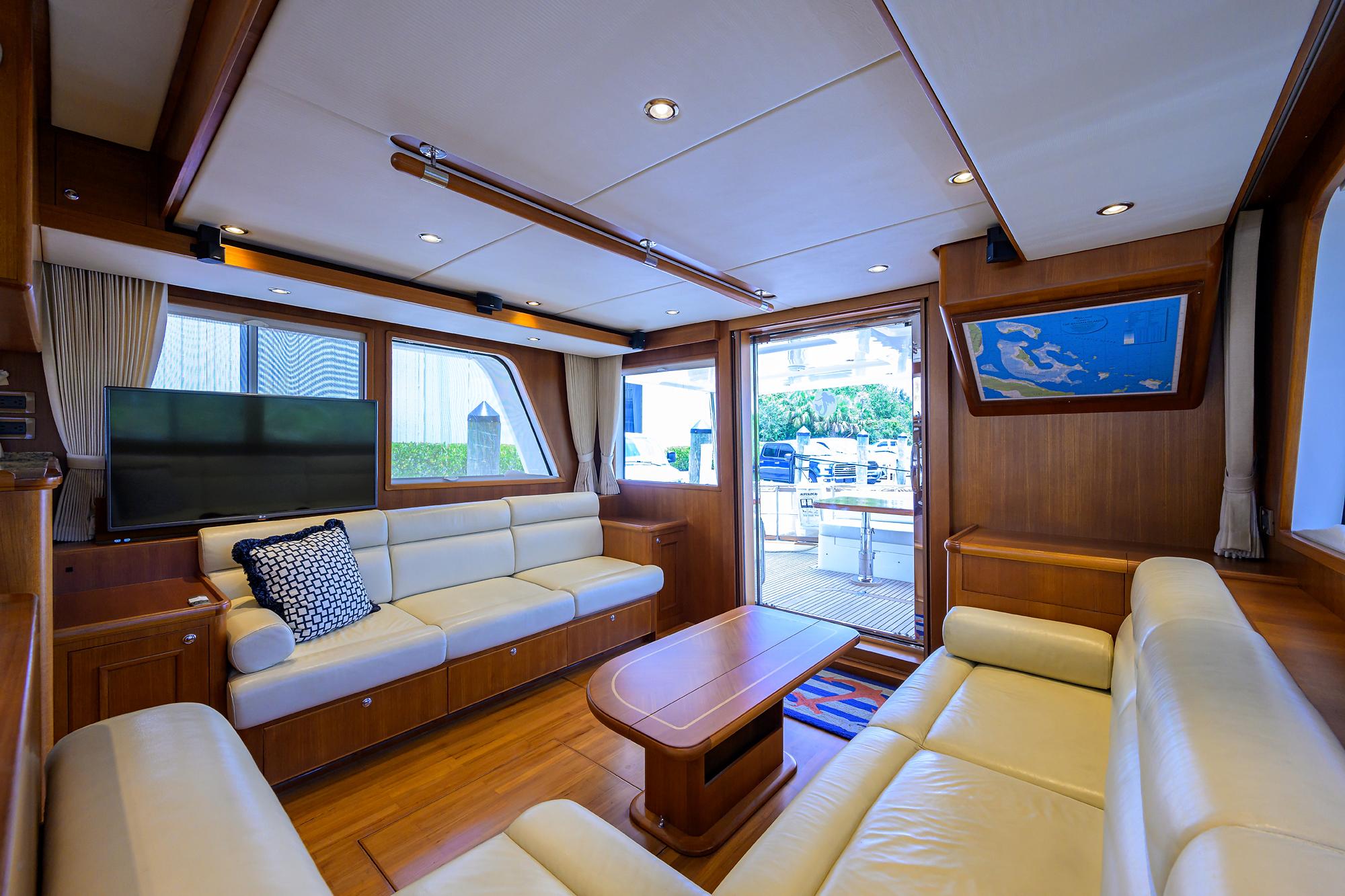

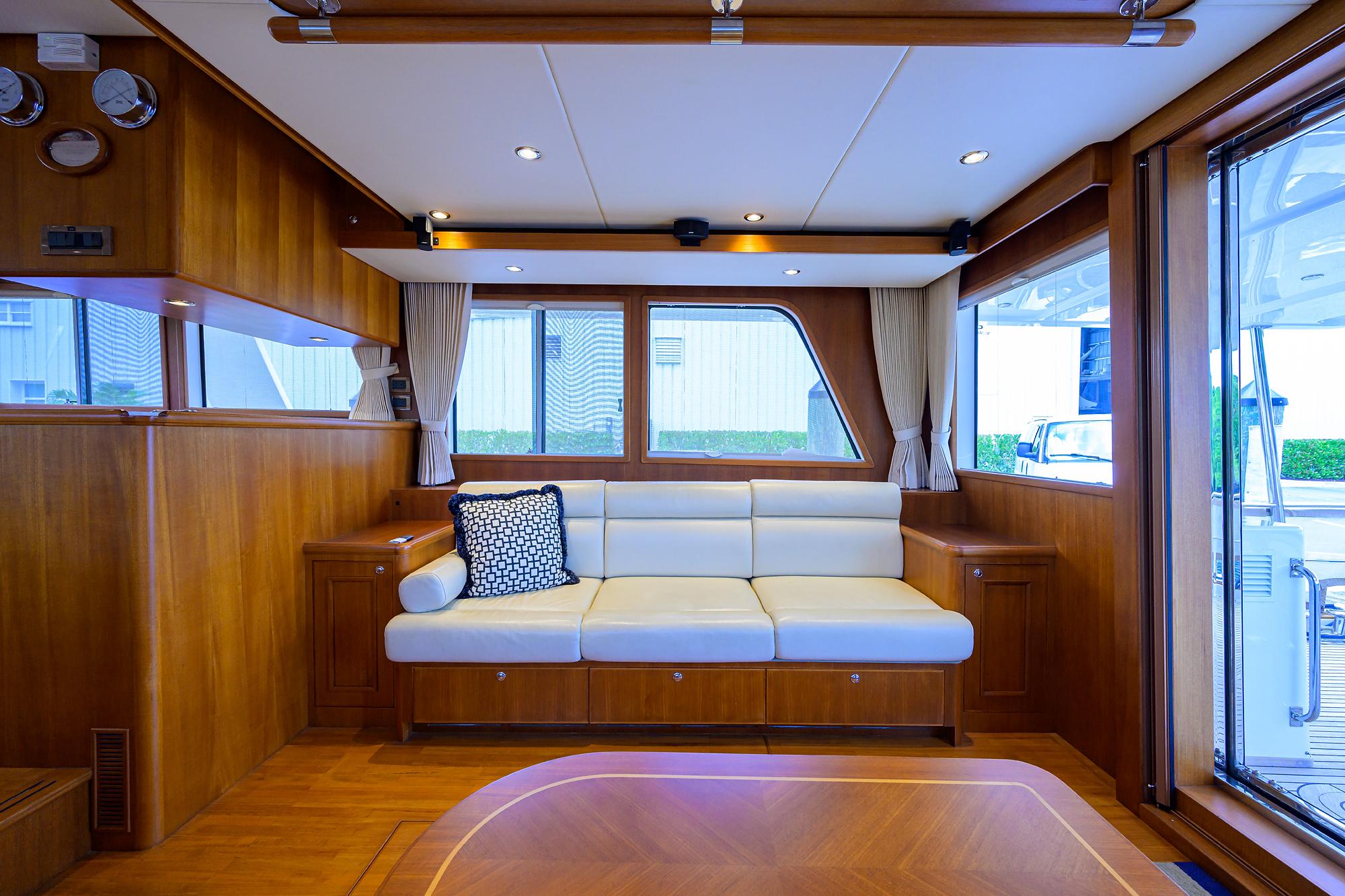

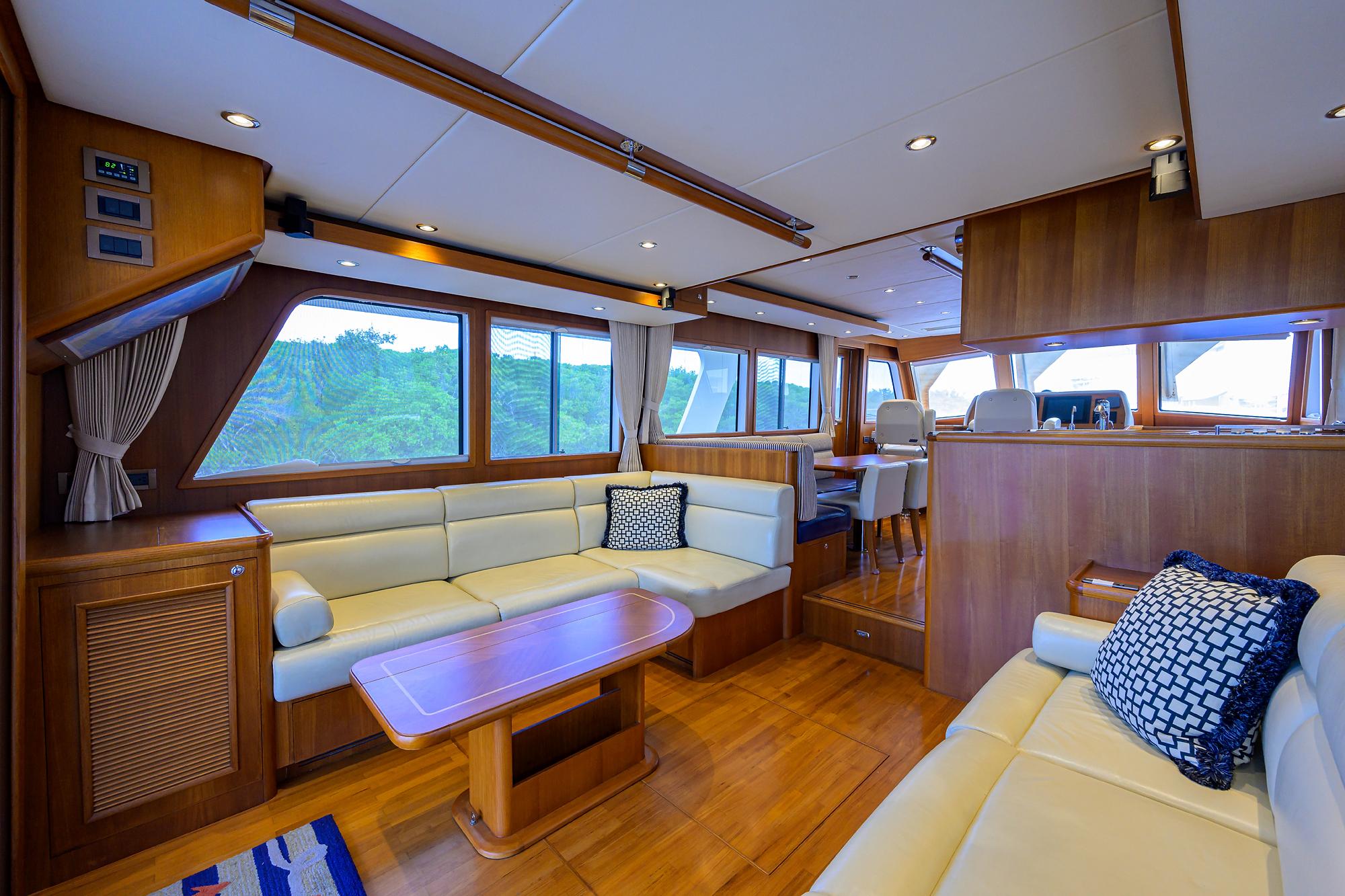

The salon is large and airy with a large glass sliding door that locks in place, for entrance. The salon windows are big and all seating is at window level. Two large settees face each other with teak coffee table between.
Bar cabinet: teak, with bottle and accessory storage Door – aft deckhouse: glass sliding, stainless steel frame, Aritex Entertainment left: teak cabinetry Settee to port: L-shaped, under-seat storage drawers Settee to starboard: straight, under-seat storage drawers Table: teak, low profile, fixed foot, with pattern and maple inlay TV cabinet: powered Manship pop-up TV lift Windows: opening, with screens, port & starboard Phantom screens that meet in middle - (2) separate screens for aft sliding door Oceanair Blinds, manual in salon, electric at windshield Teak planking soleDINETTE AREA
Custom designed L-Settee with large teak dining table (2) movable custom upholstered chairs, inboard Basket drawer storage at either end of dinette settee, perfect for galley pots and pan storage Additional drawer storage under setteeGALLEY

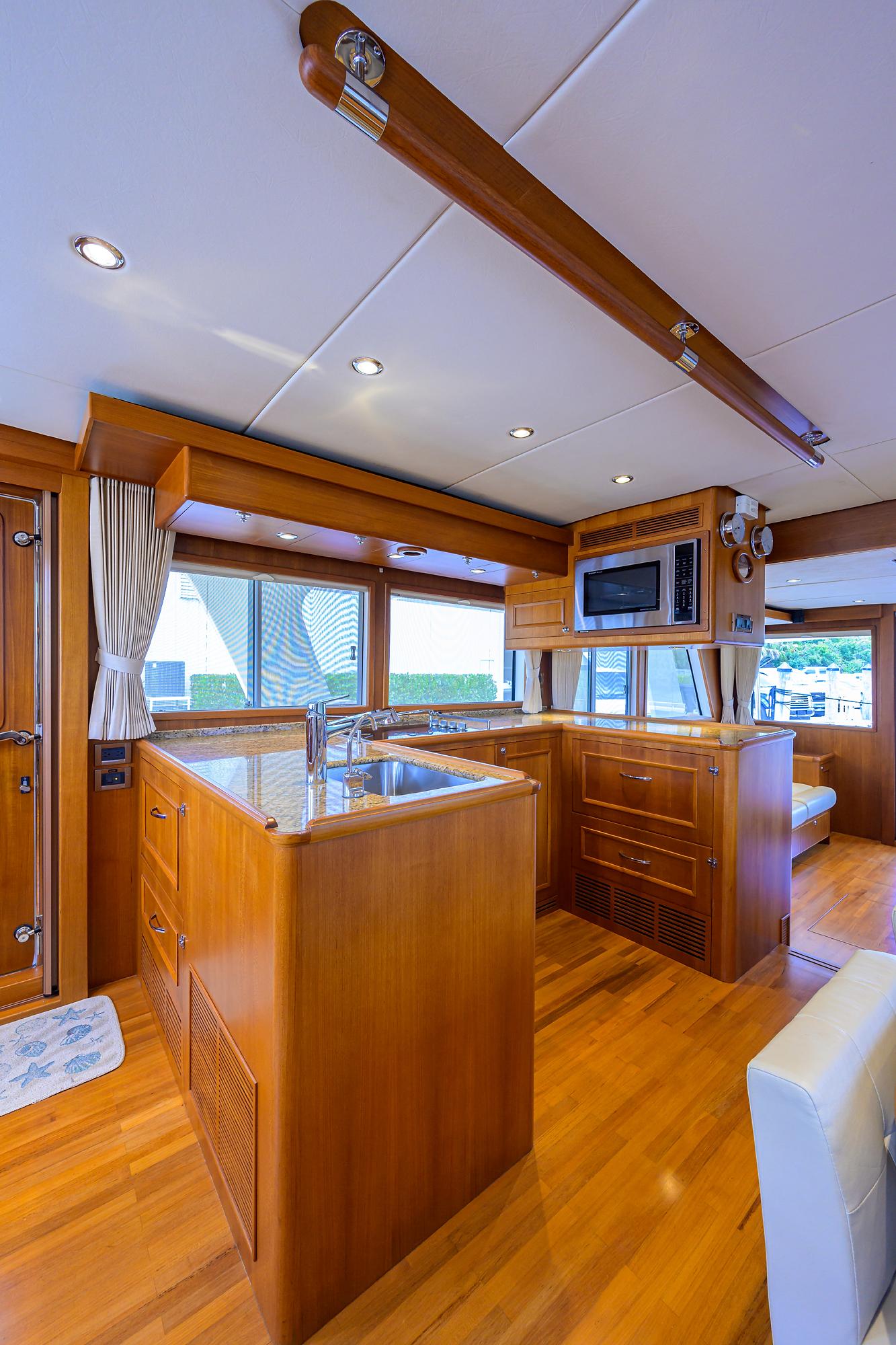

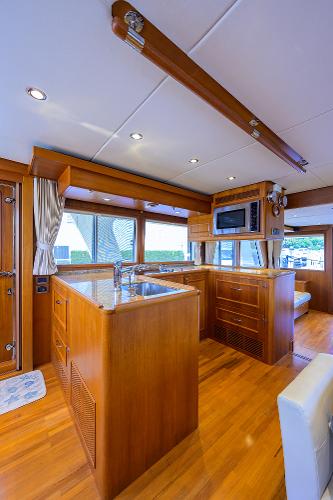

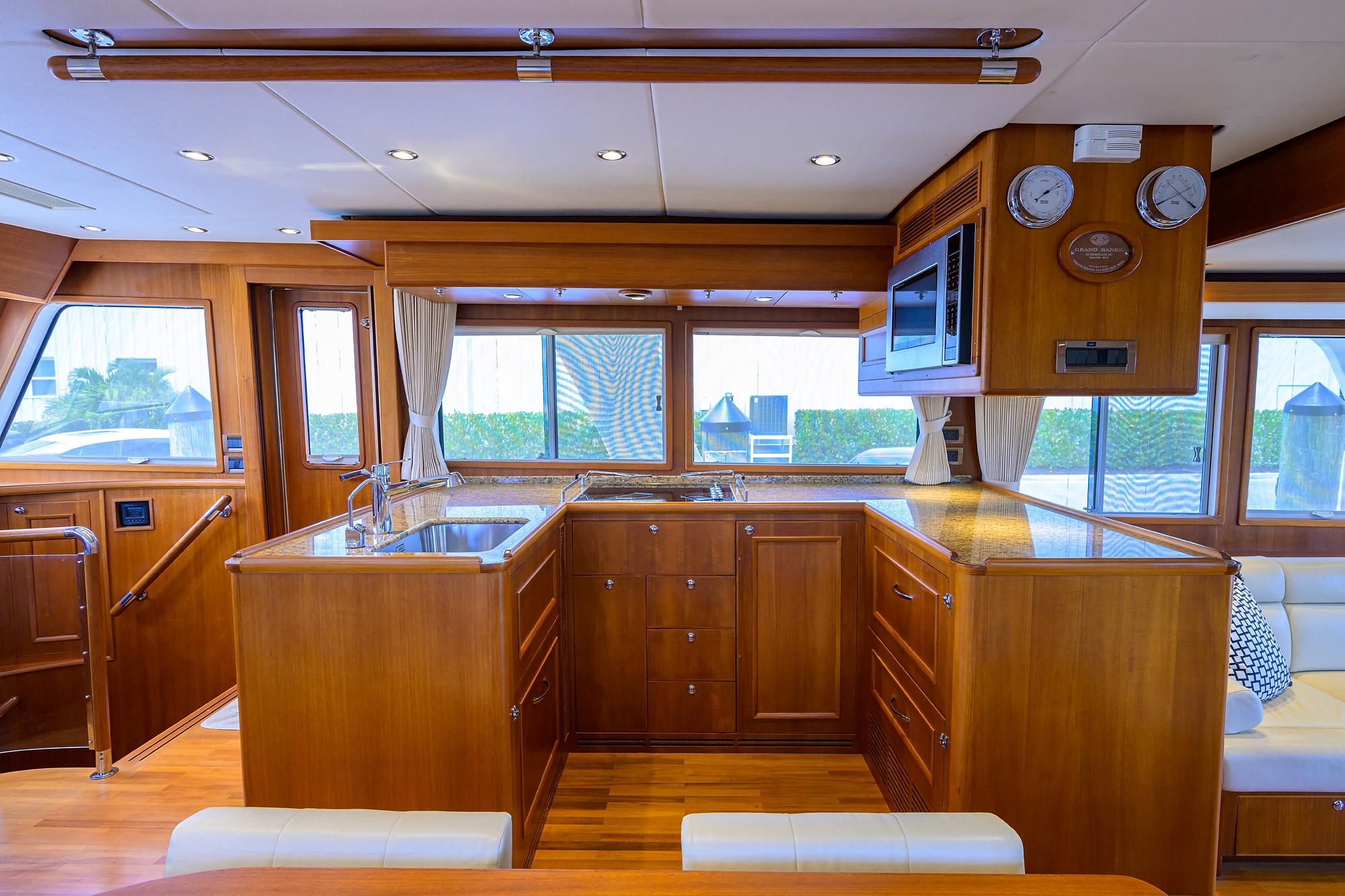

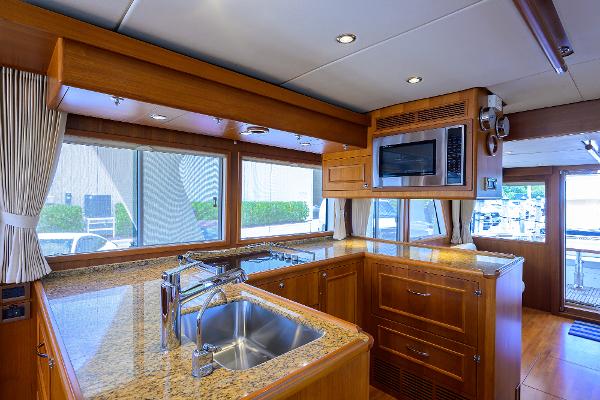

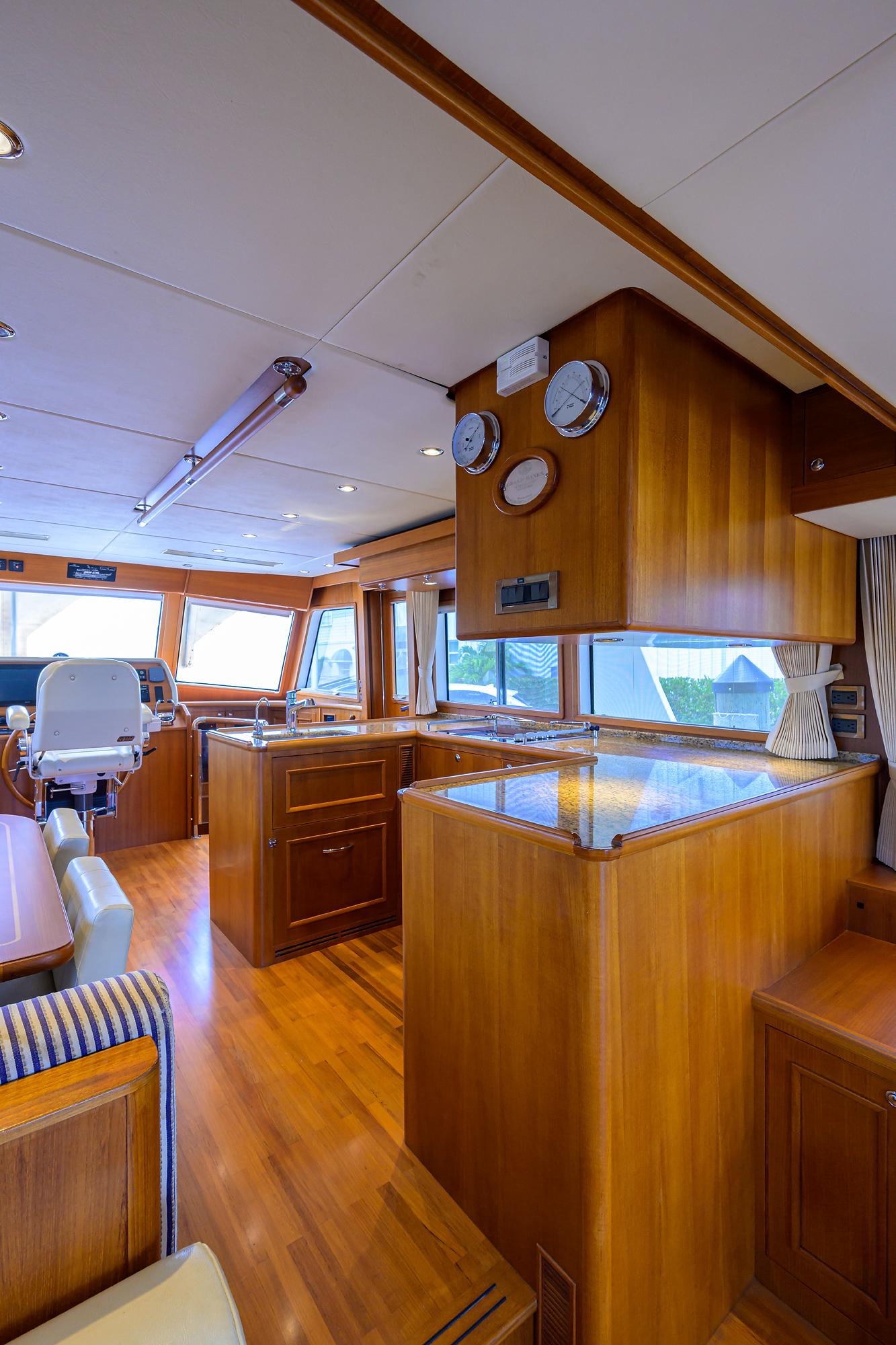

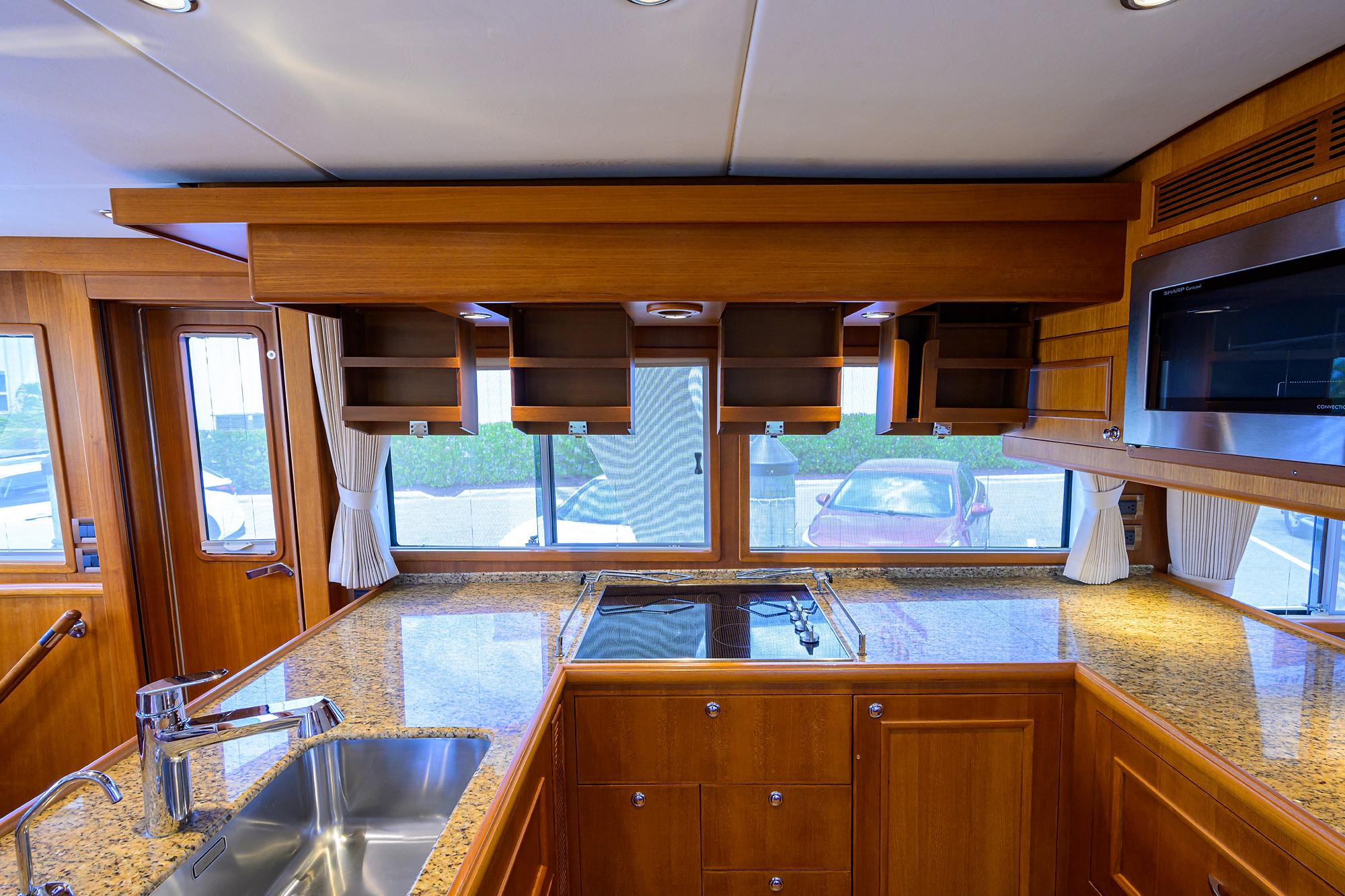

The galley is a large u-shape on STBD and offers high-end appliances with great storage. There is a L-dinette directly across from galley.
Cooktop: Miele with four electric burners Countertop: Granite, “Giallo Topazio”, backsplash guard, varnished teak fiddles Exhaust blower: DC, 3” diameter, Jabsco 35115-0020 Faucet: Grohe, single lever, pull-out head with hose GB Galleyware - dishware: six sets of bone china (each set includes dinner plate, salad plate, bowl, coffee mug) plus 2 serving platters GB Galleyware - flatware: six sets (each set includes dinner fork, salad fork, soup spoon, teaspoon, knife) plus 2 serving utensils GB Galleyware - glasses: six sets (each set includes highball, tumbler, red wine, white wine) Garbage Bin: stainless steel double bin, under sink, Hafele Lockers: teak, storage Custom teak overhead drop down dish lockers Oven: Sharp microwave/convection oven Refrigerator/Freezer: SubZero drawers - refrigerator on top, freezer under Refrigerator: SubZero drawers - both refrigerator Sink: Franke single bowl, stainless steel Grohe Europlus single lever sink faucet with pull-out sprayer Teak planking soleMASTER STATEROOM

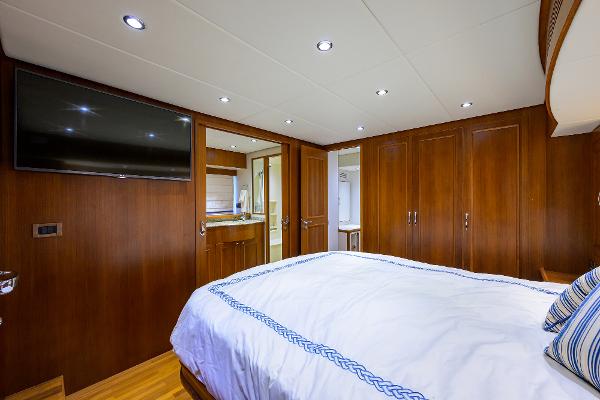

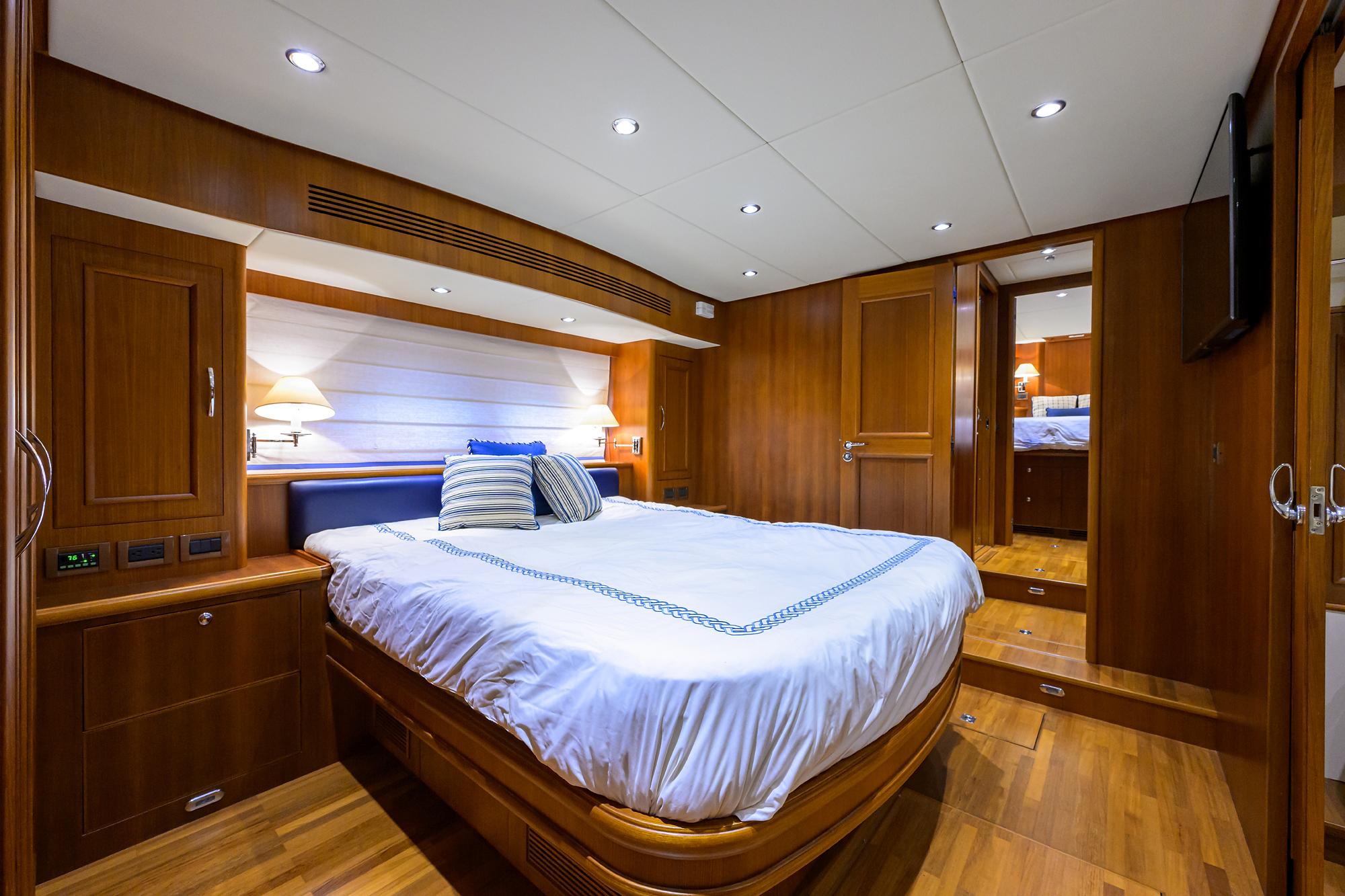

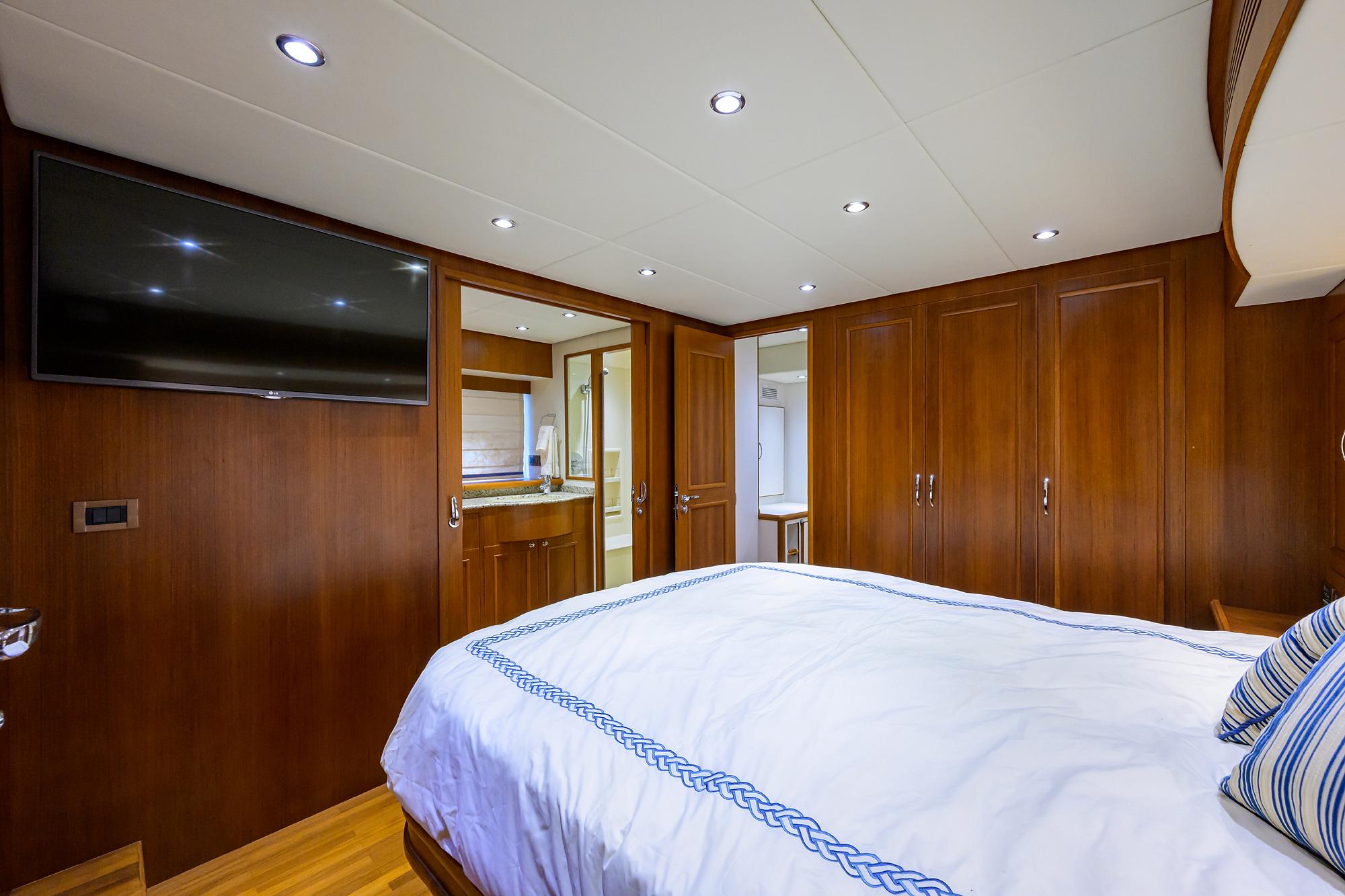

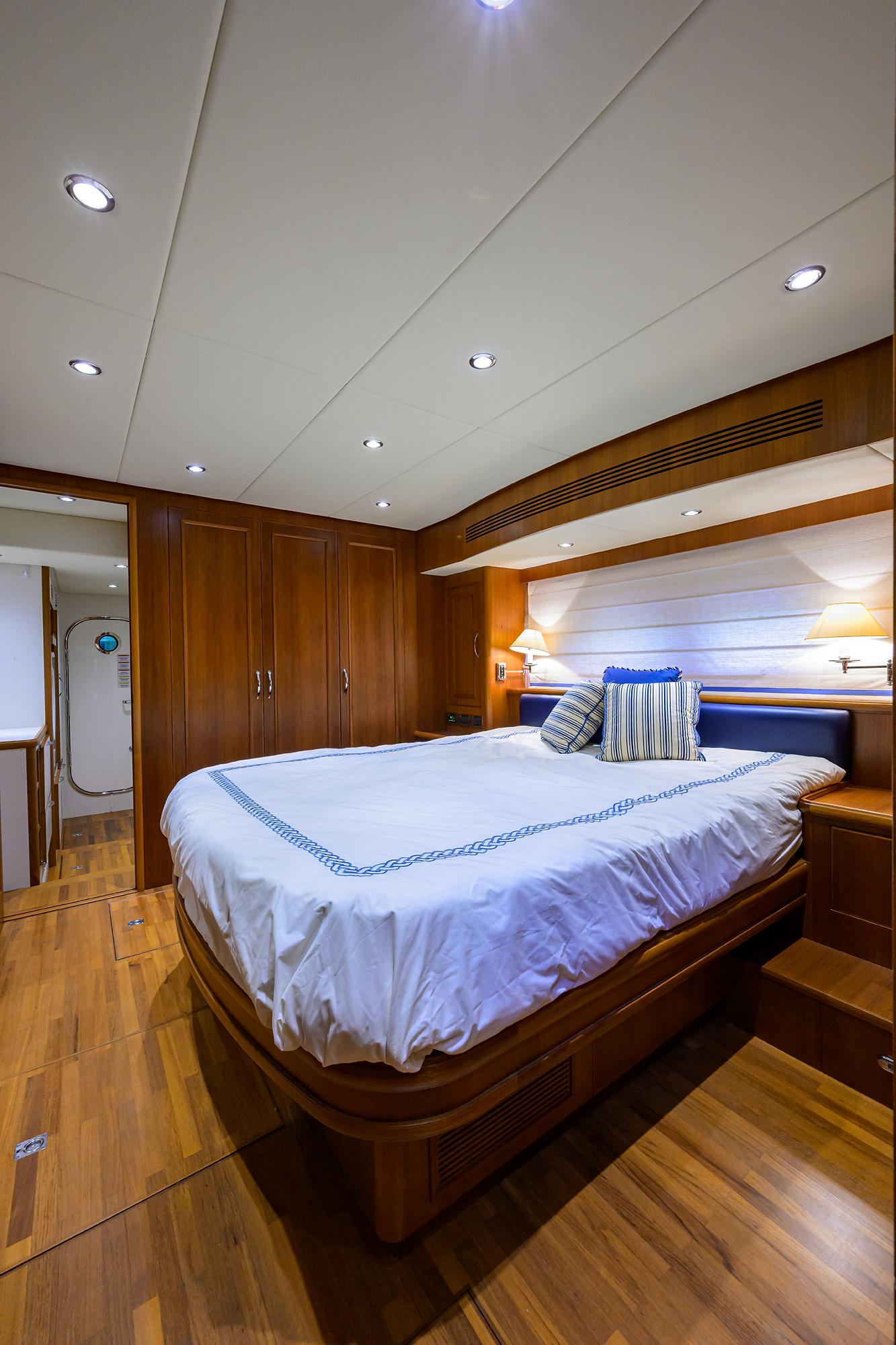

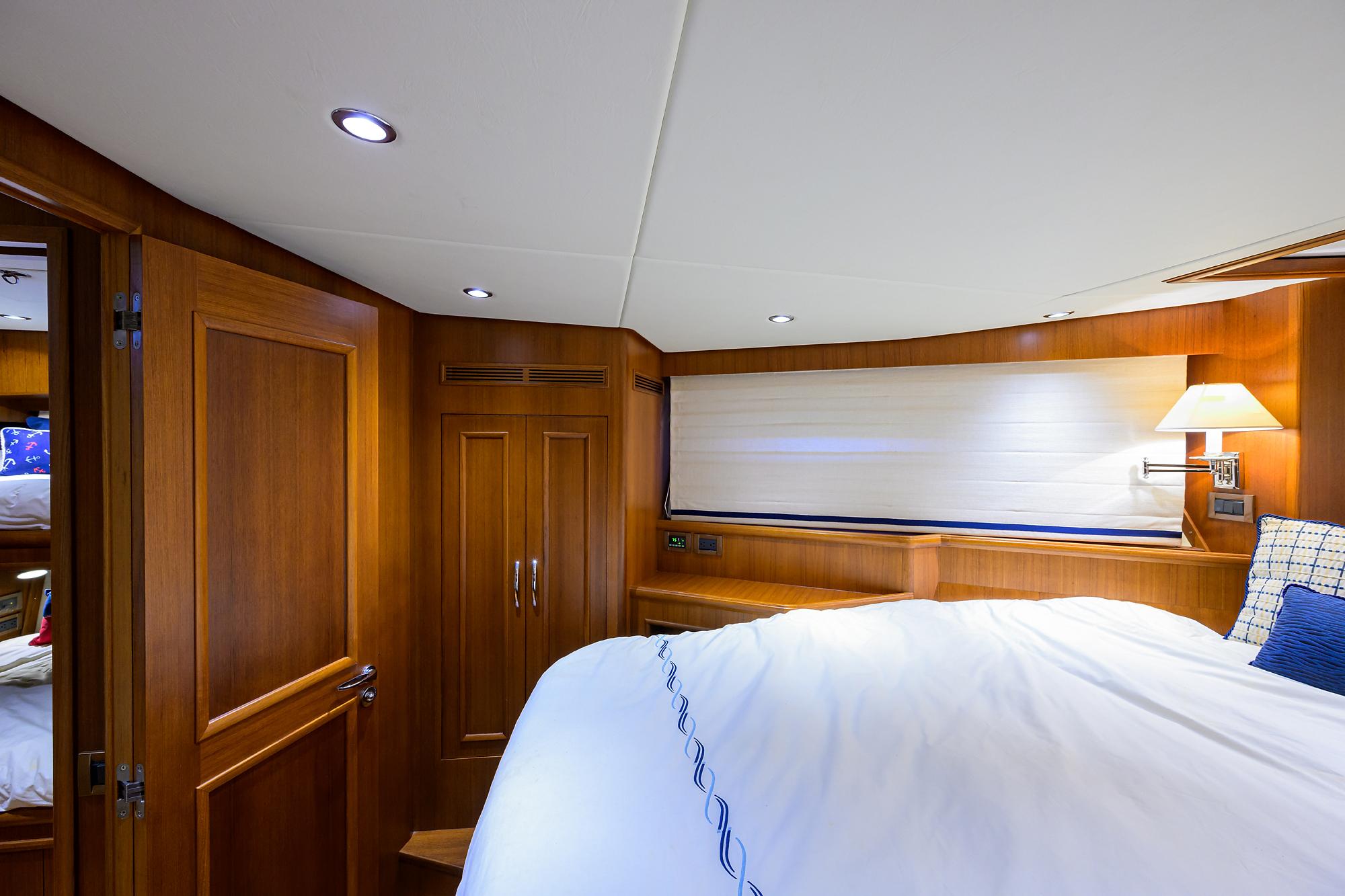

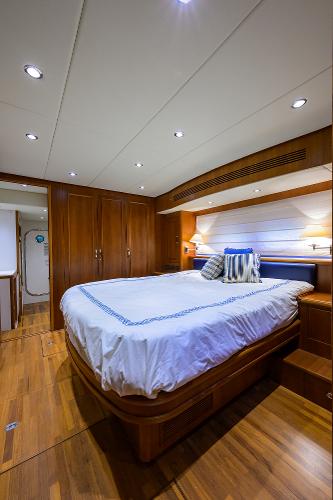

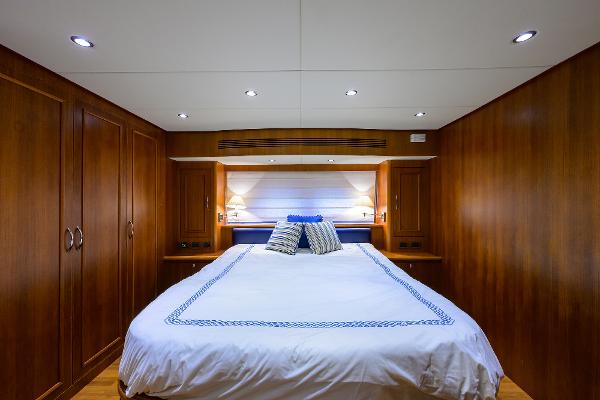

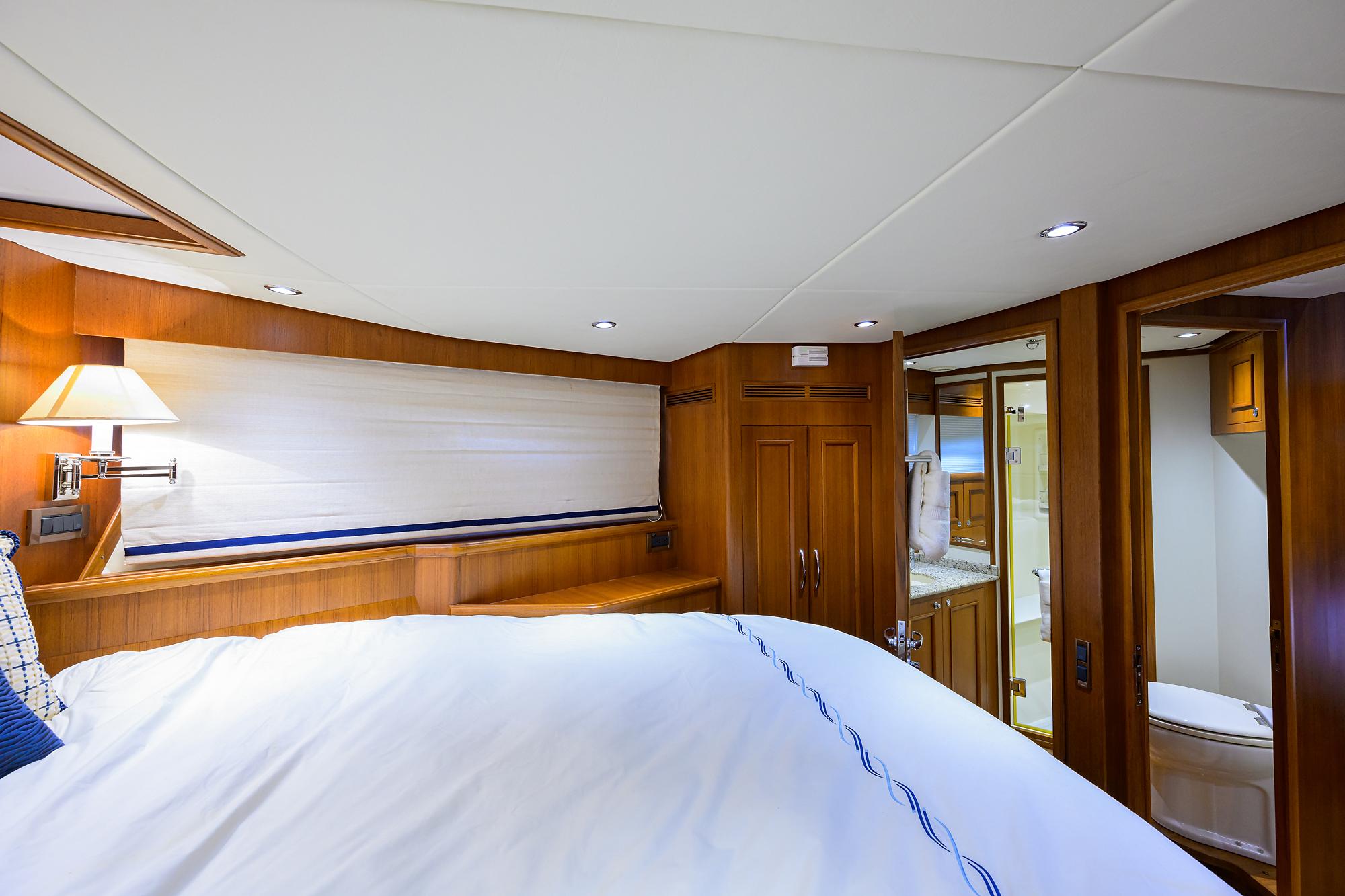

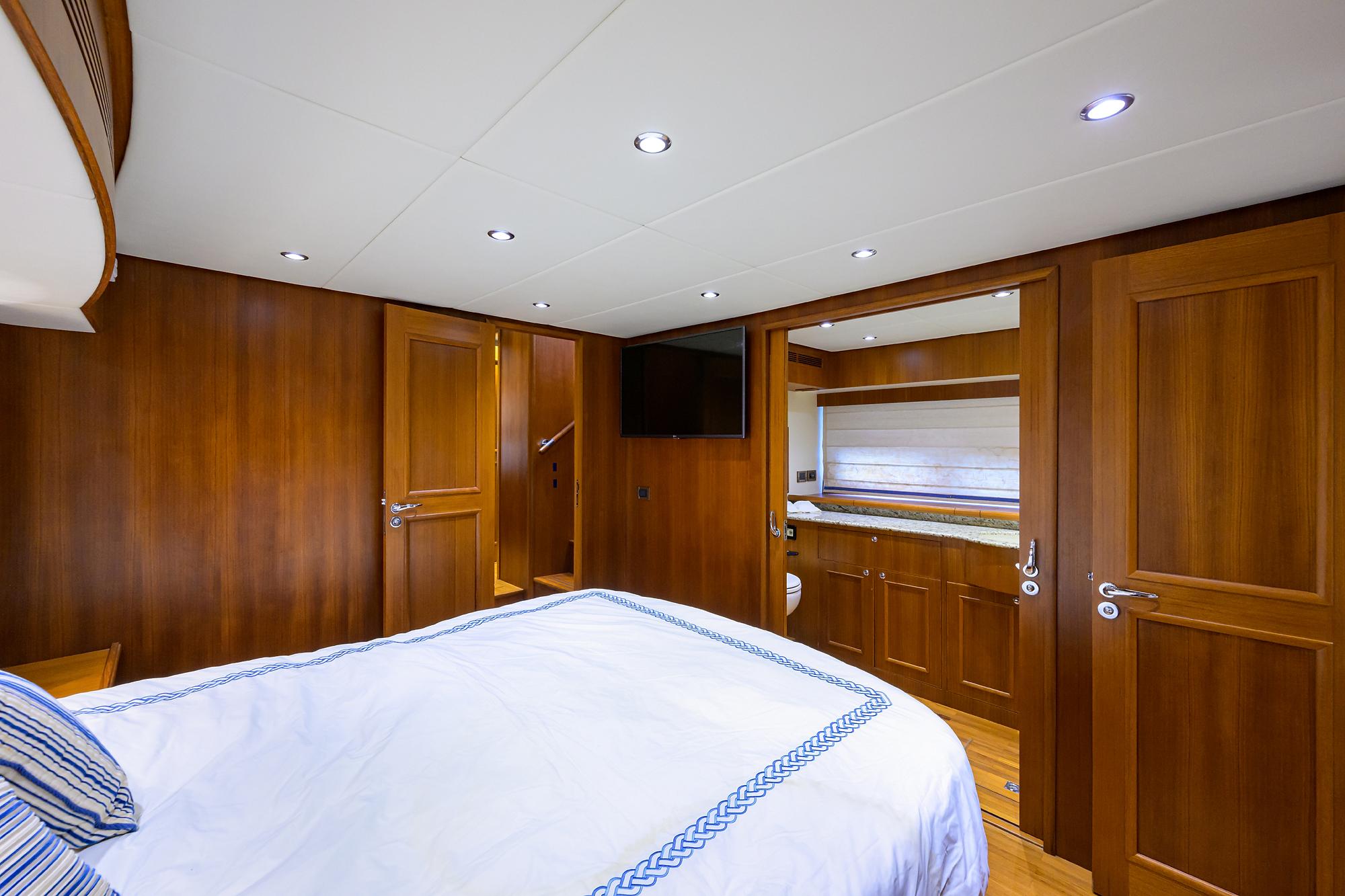

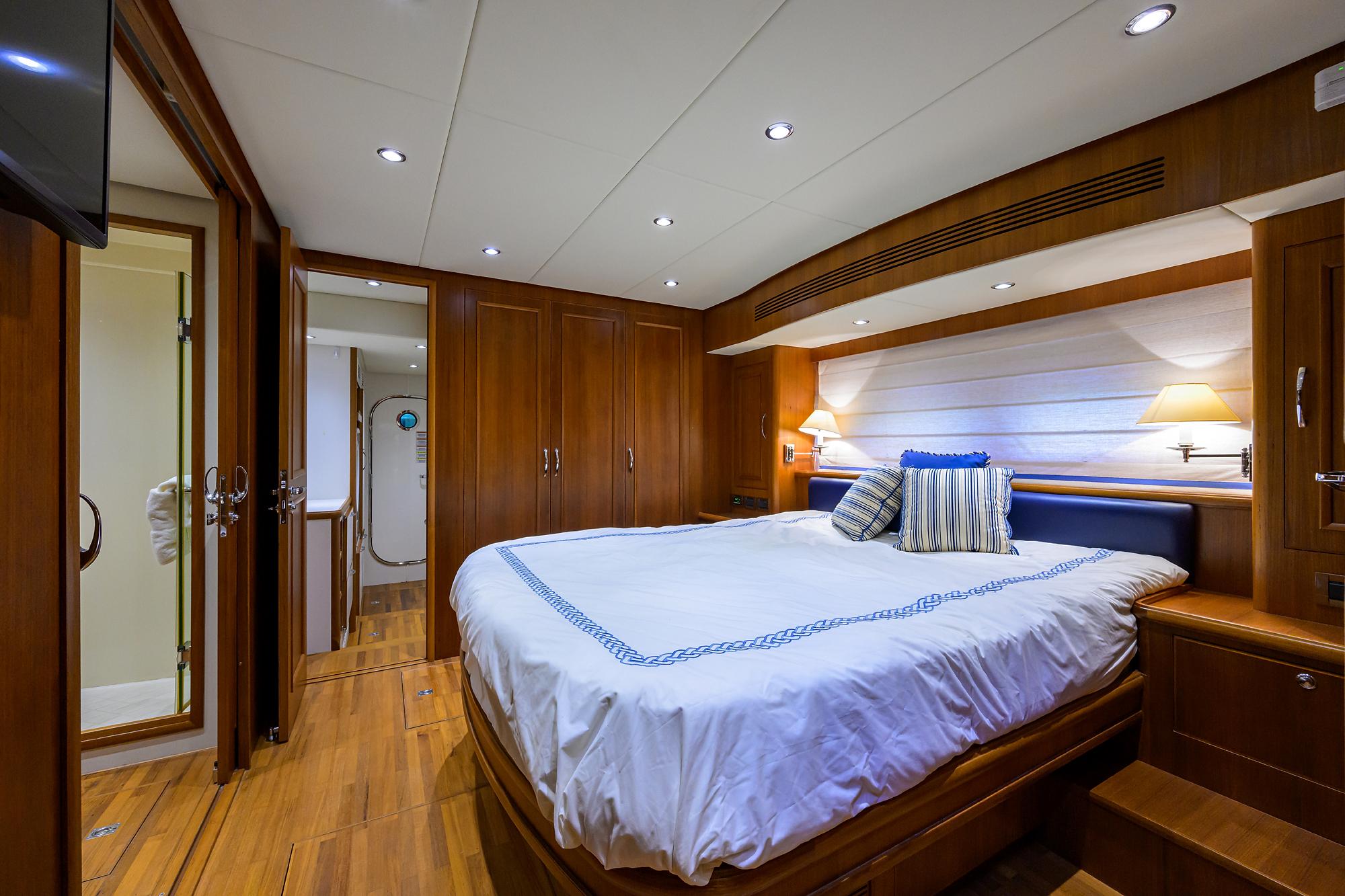

The master stateroom is mid-ship and is full beam. It is warm and inviting with large opening port windows, large ensuite head and large hanging storage lockers.
Berth: Island oversized queen, with storage drawers underneath Cabinets: storage throughout Hanging lockers: teak, two (2) units, cedar-lined, w/Aqua Signal interior lights Head and shower access: private en-suite Mattress: inner spring, pillow top with memory foam Night tables: teak, each side of berth Port-holes: stainless steel, opening, smoked glass, with screens Drop down custom window cover for stateroom and ensuite head Reading lights: two (2), DC, chrome finish Utility room and engine room access: direct Teak planking soleMASTER HEAD / SHOWER, En Suite

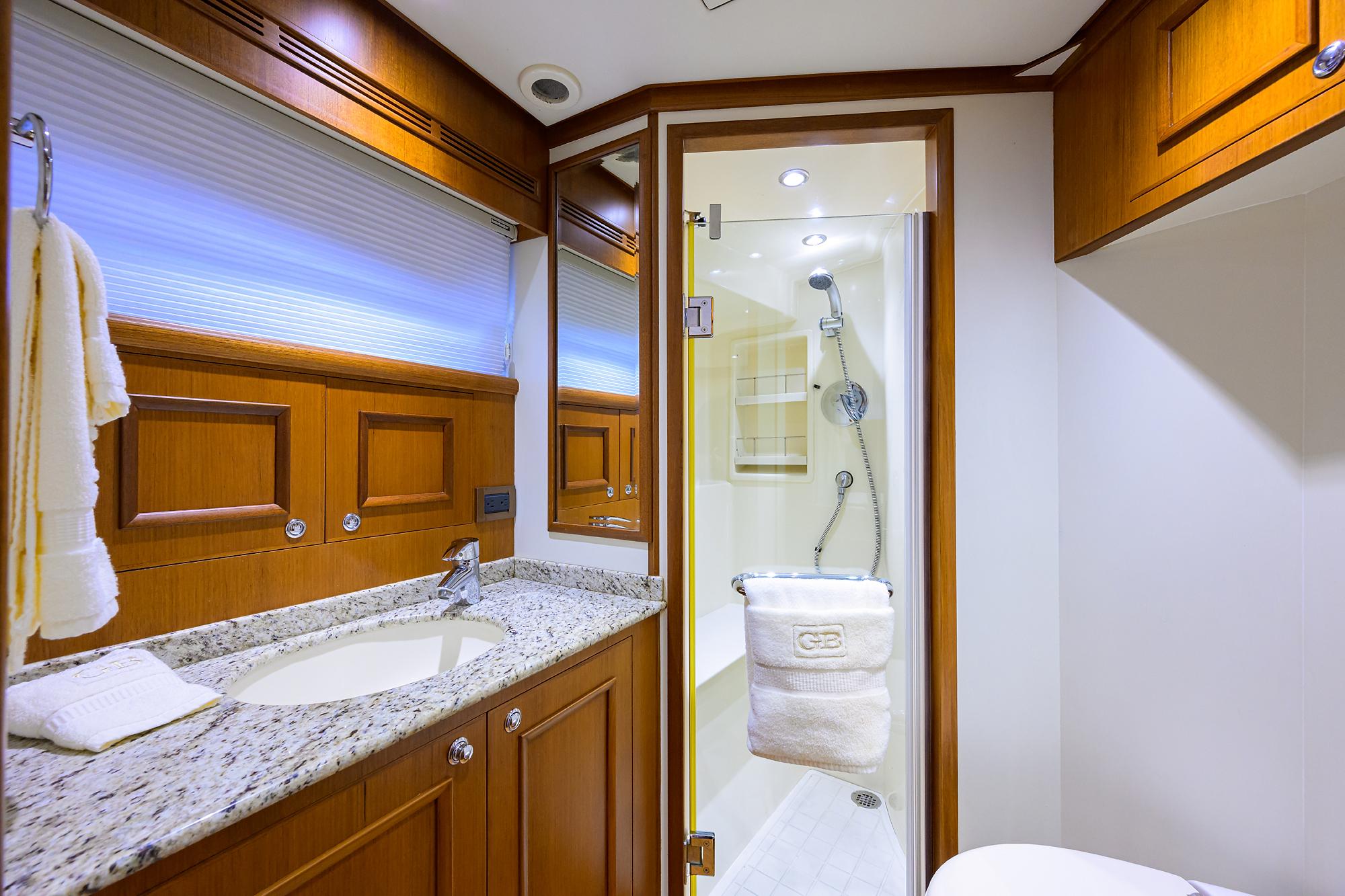

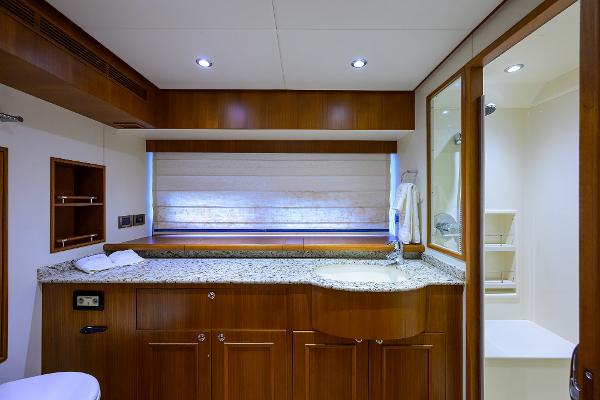

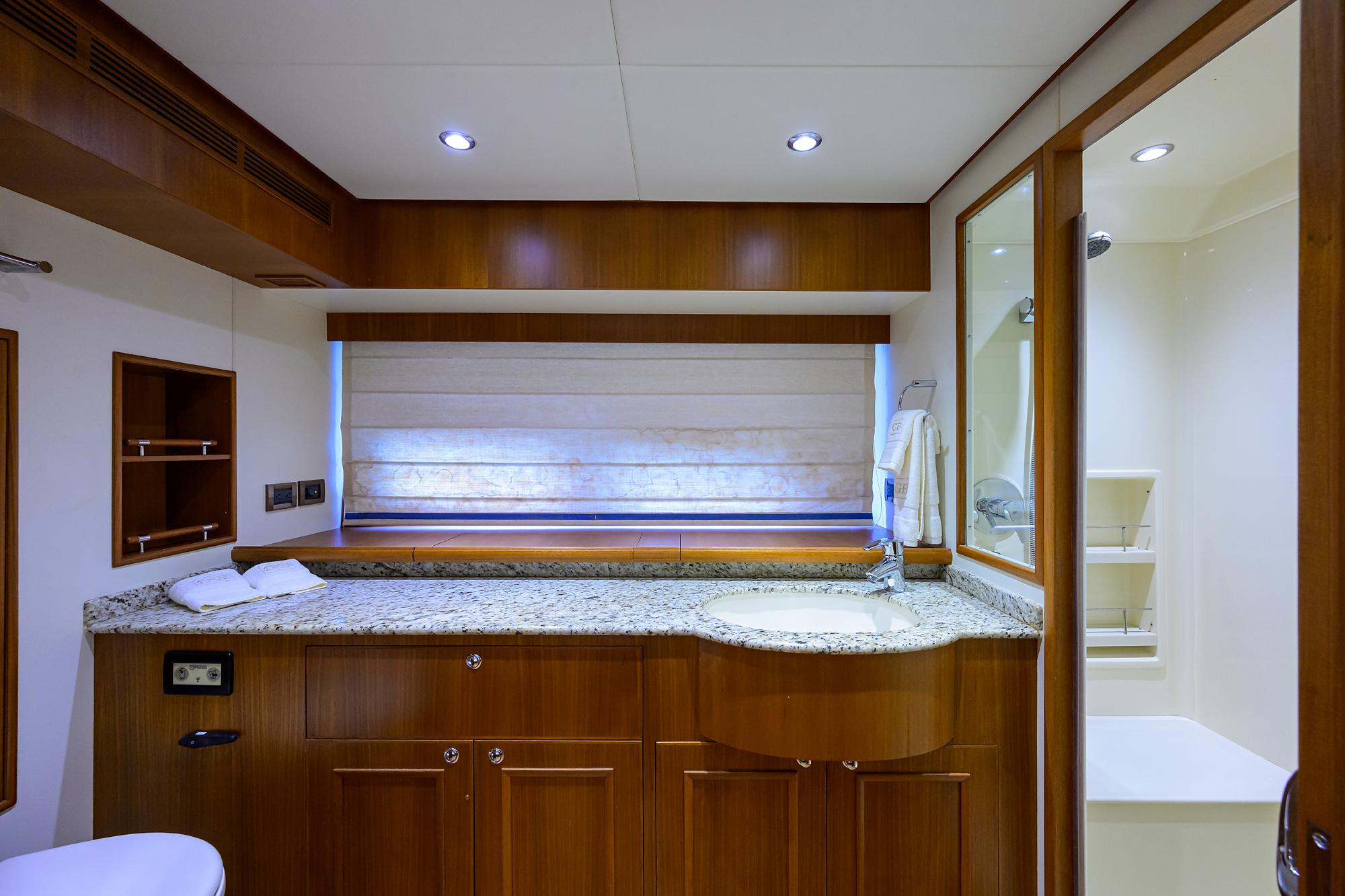

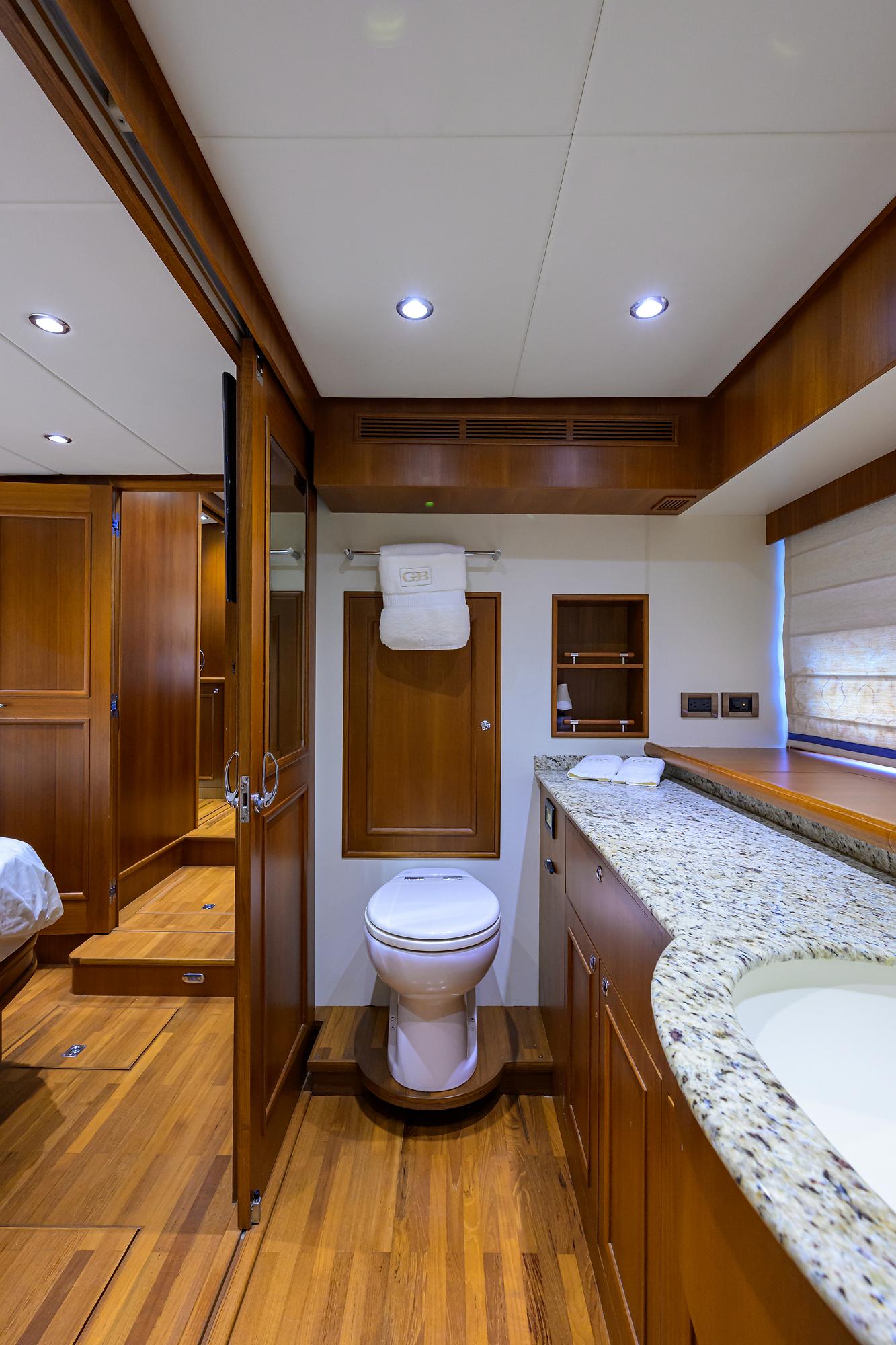

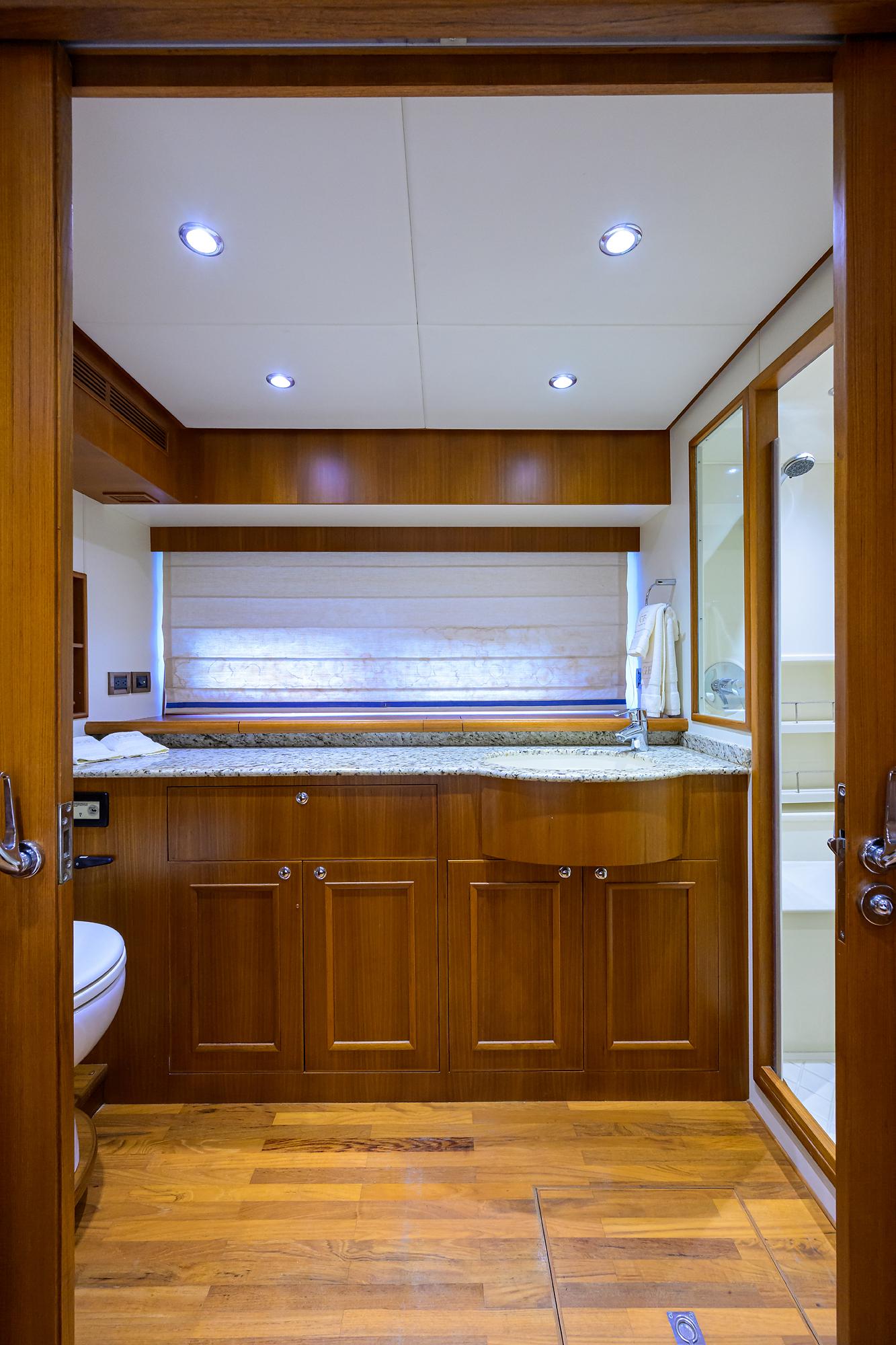

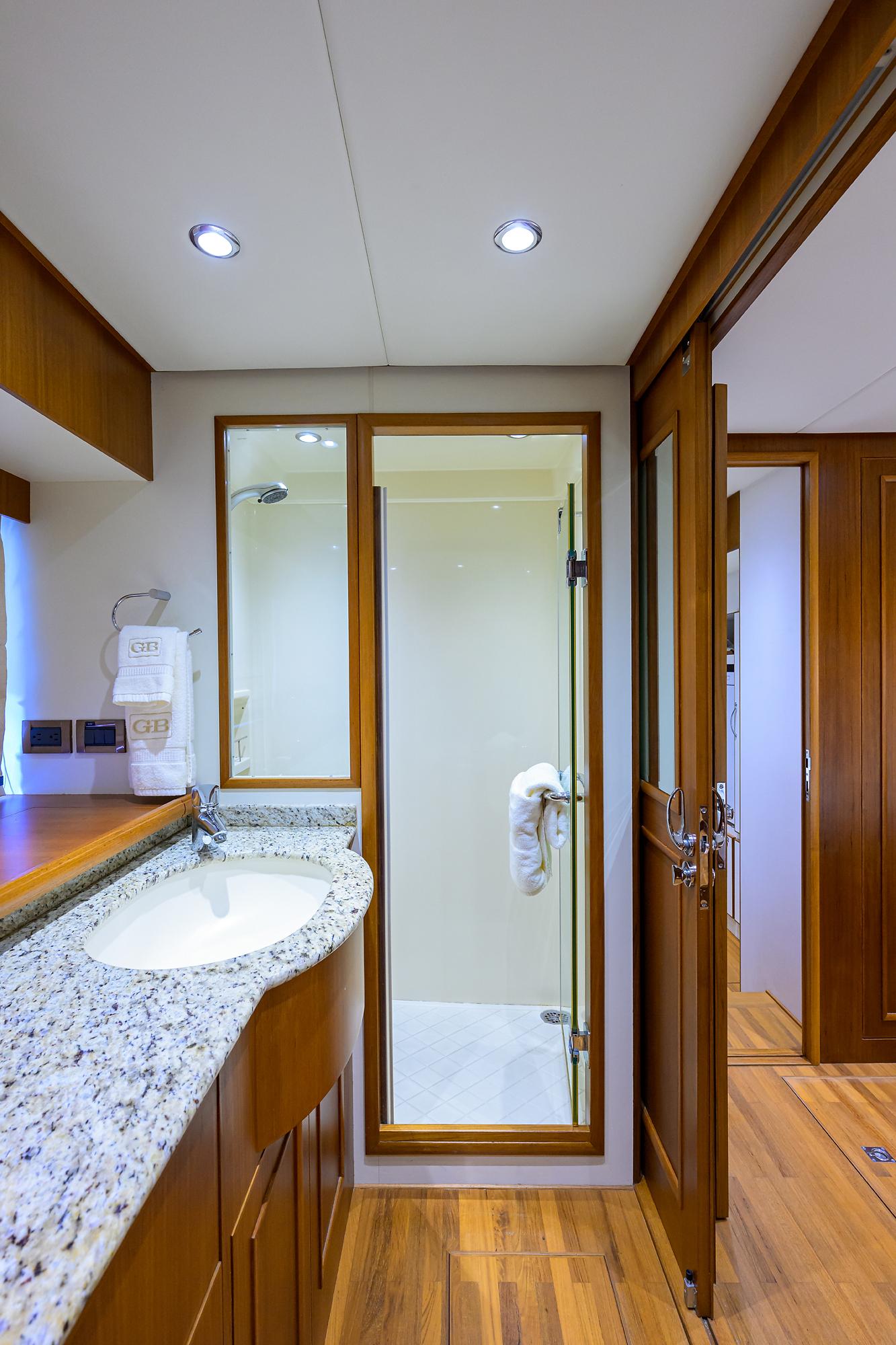

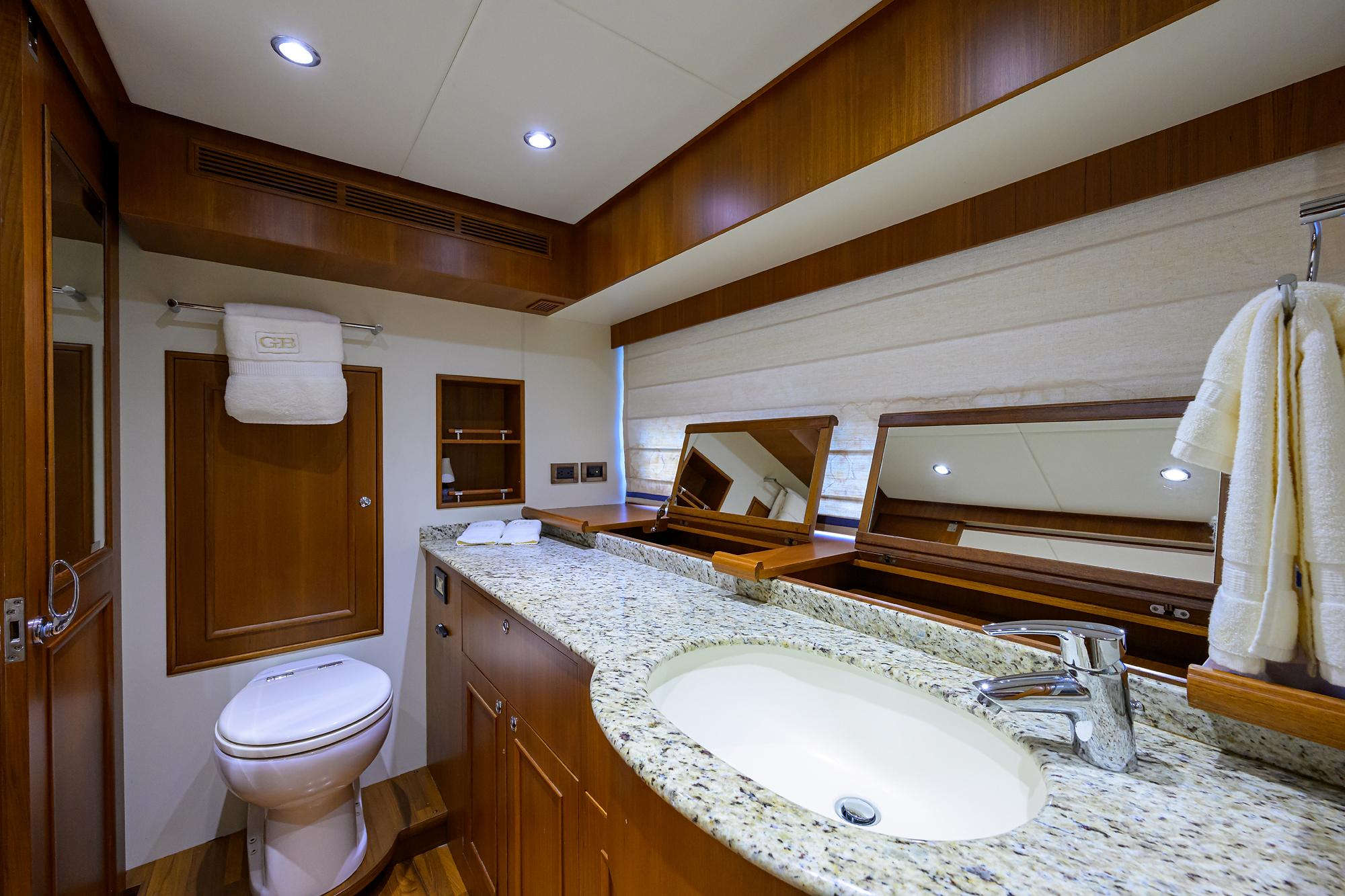

The ensuite master head has a large separate stall shower with tight fitting glass door. A sliding teak door closes it off from the master stateroom.
Cabinets: under-counter storage Countertop: Granite, “Giallo Ornamental” Exhaust blower: DC, 3” diameter, Jabsco Port-hole: stainless steel, opening, smoked glass, with screen and custom window cover Shower drain: automatic drain pump, DC, Whale Shower faucet: Grohe, mixer, hand-held Shower stall: separate fiberglass cell, frameless glass door, Corian pan Sink faucet: Grohe, single lever Sink: under-mount, Corian Skylight hatch: Manship, smoked, with Oceanair screen and shade Toilet: Tecma Silence Plus, freshwater flush through macerator Vanity: above-counter storage, cosmetic mirror Teak planking soleVIP GUEST STATEROOM

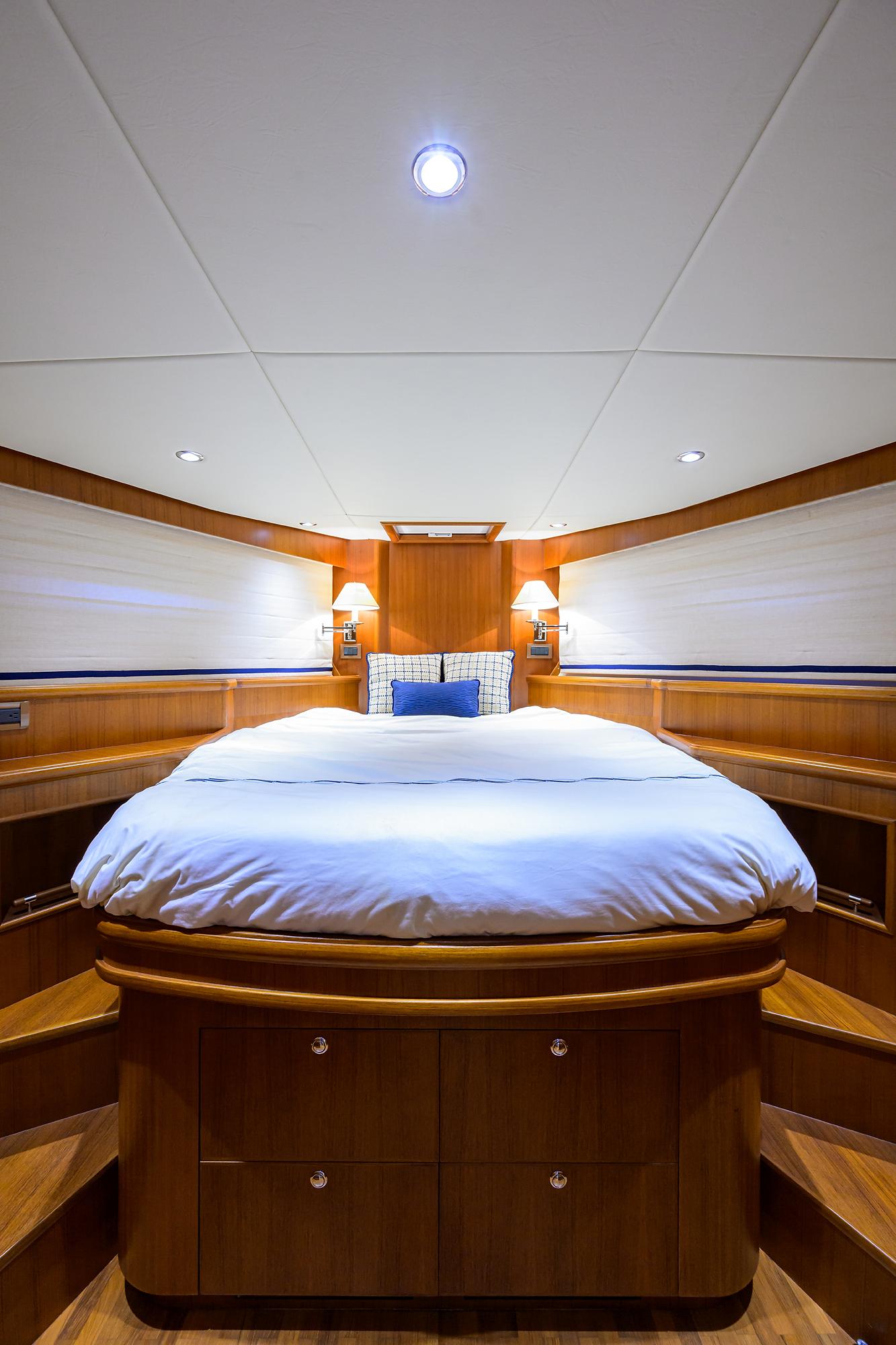

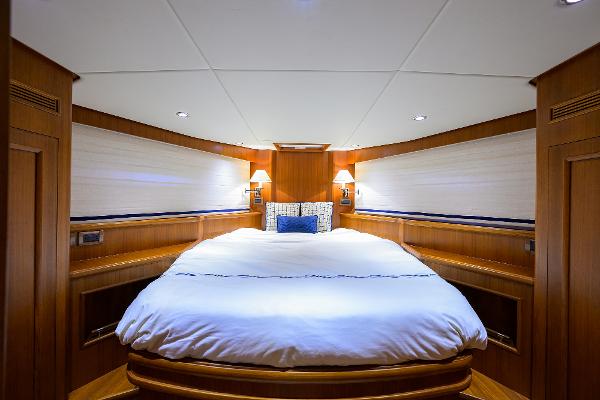

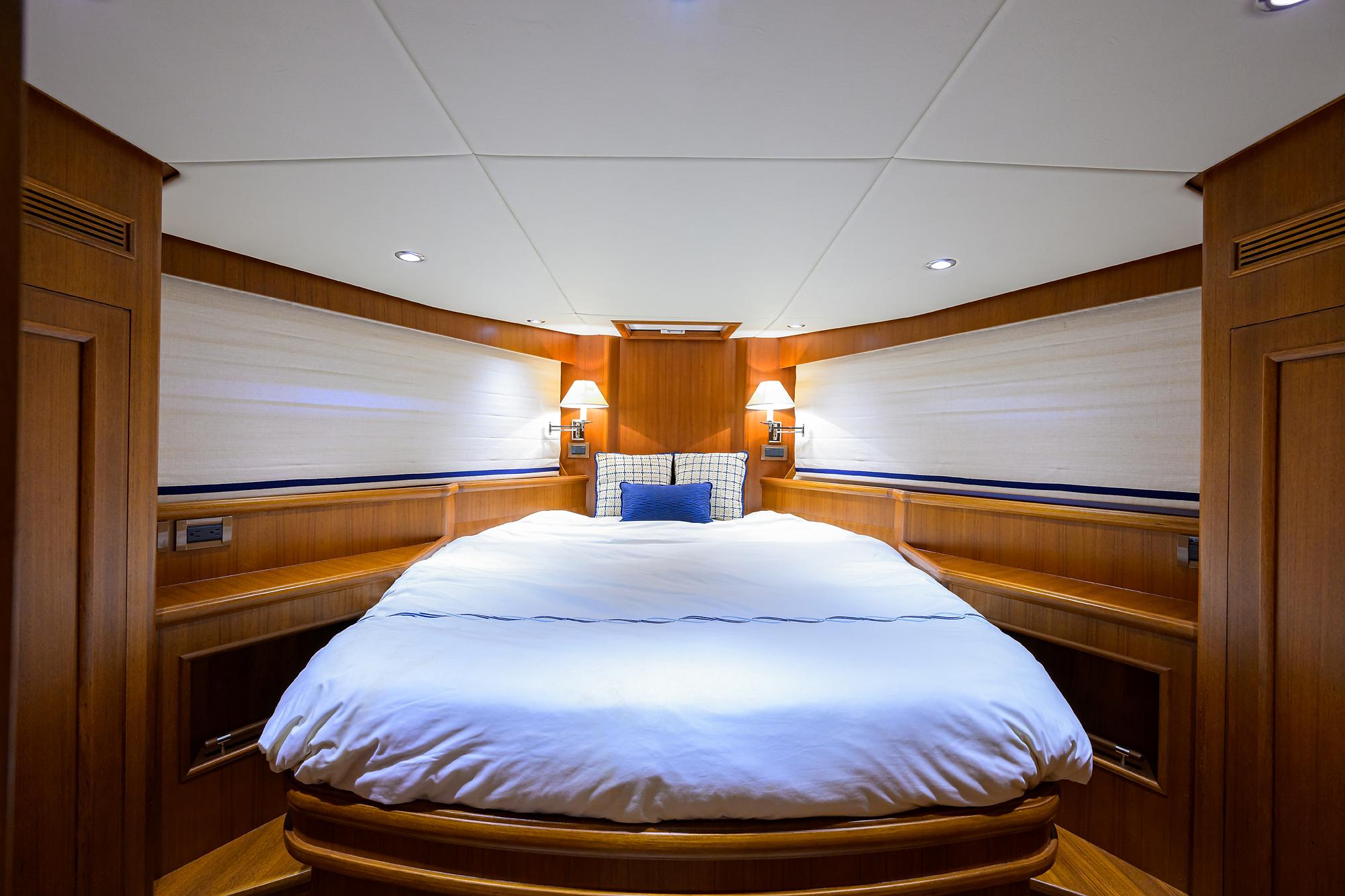

The forward VIP stateroom is very comfortable with an island queen and private access to guest head.

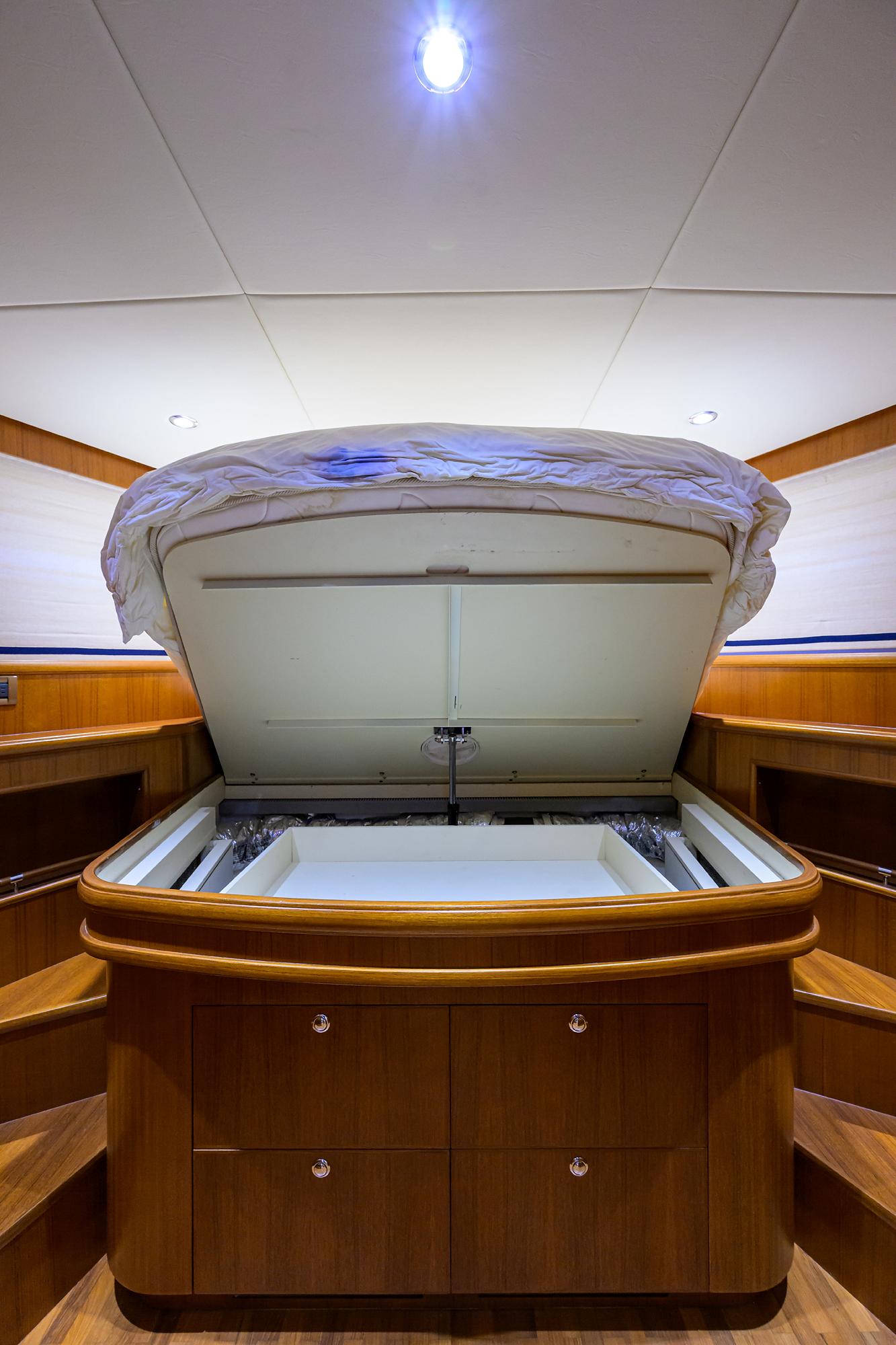

Berth: Island queen, with underberth storage drawers, 6" wider at head than STD Berth foot raises up electrically for storage access Hanging lockers: teak, two (2) units, cedar-lined, w/Aqua Signal interior lights Head access: en-suite Mattress: inner spring, pillow top with memory foam Reading lights: two (2), DC, LED, chrome finish Skylight hatch: Manship, smoked, with Oceanair screen and shade Teak planking soleGUEST HEAD / SHOWER

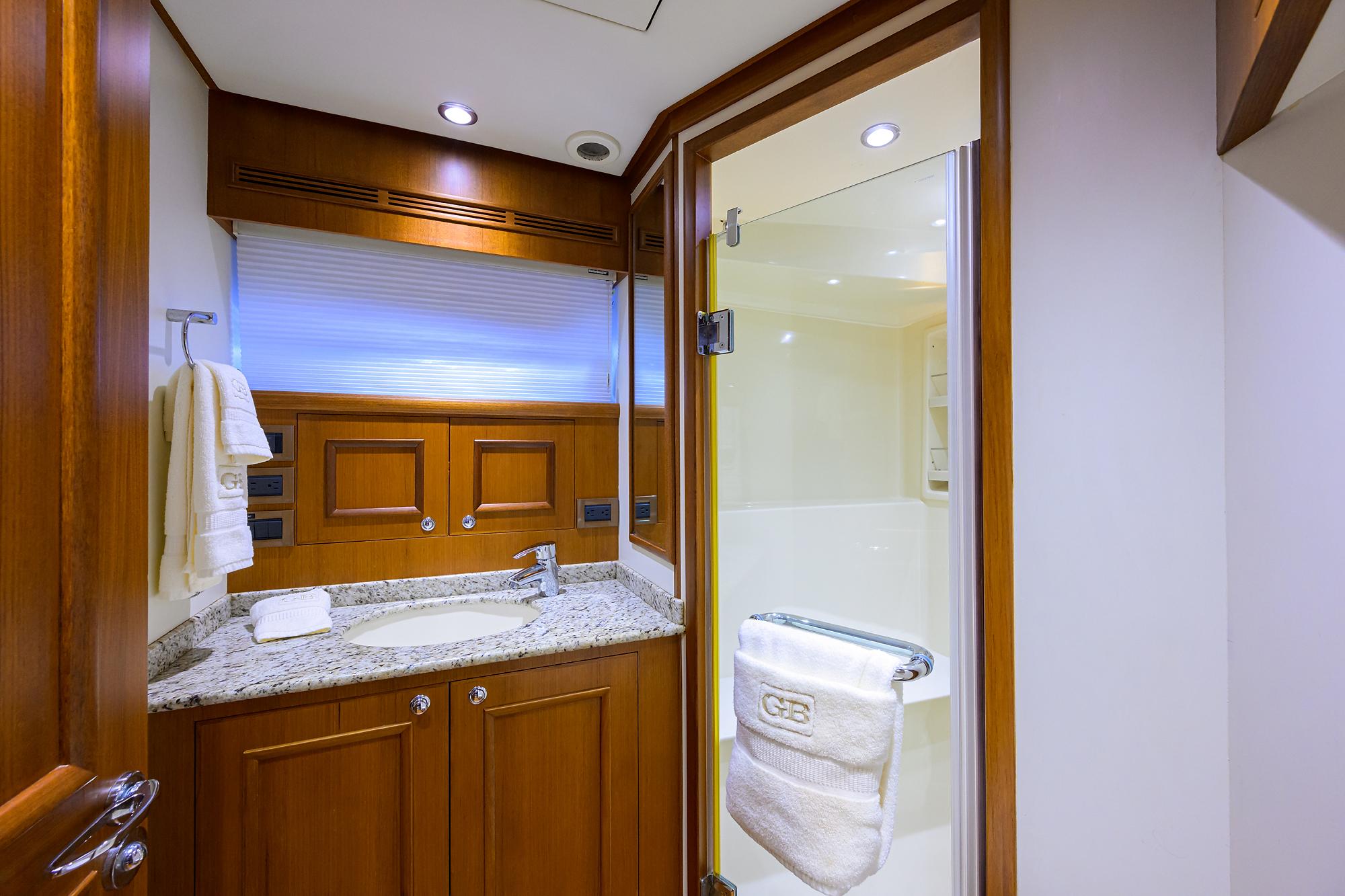

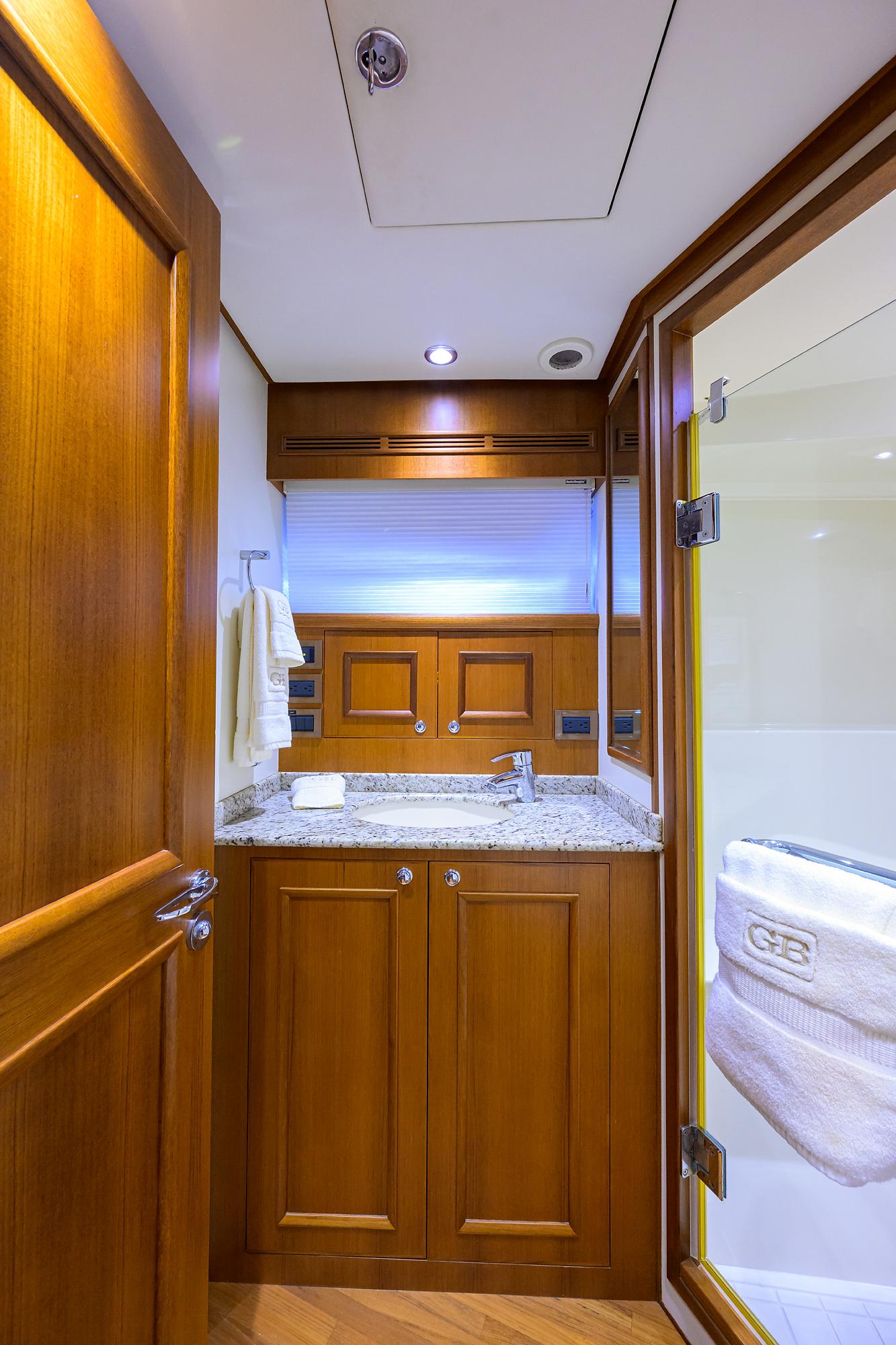

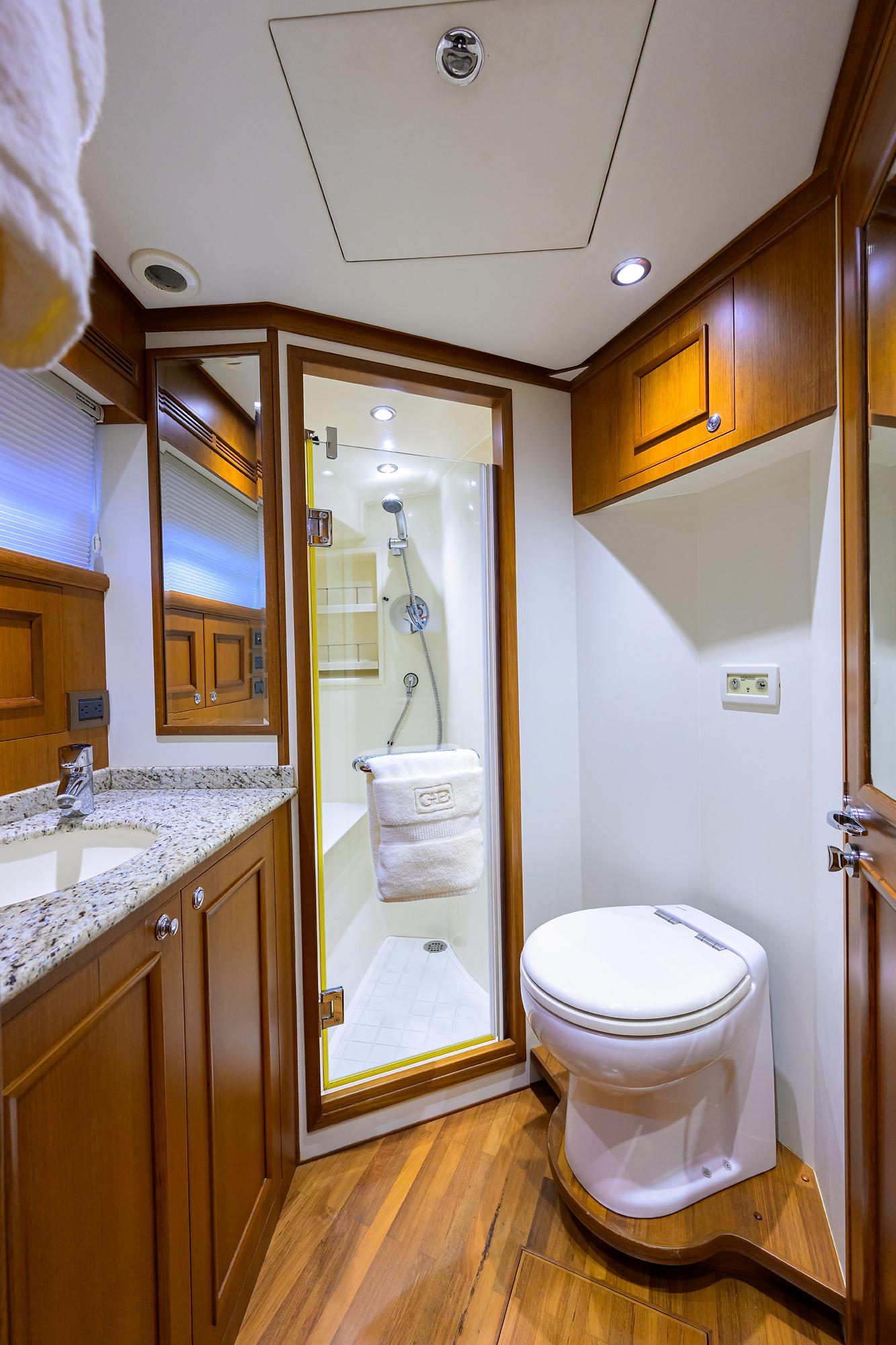

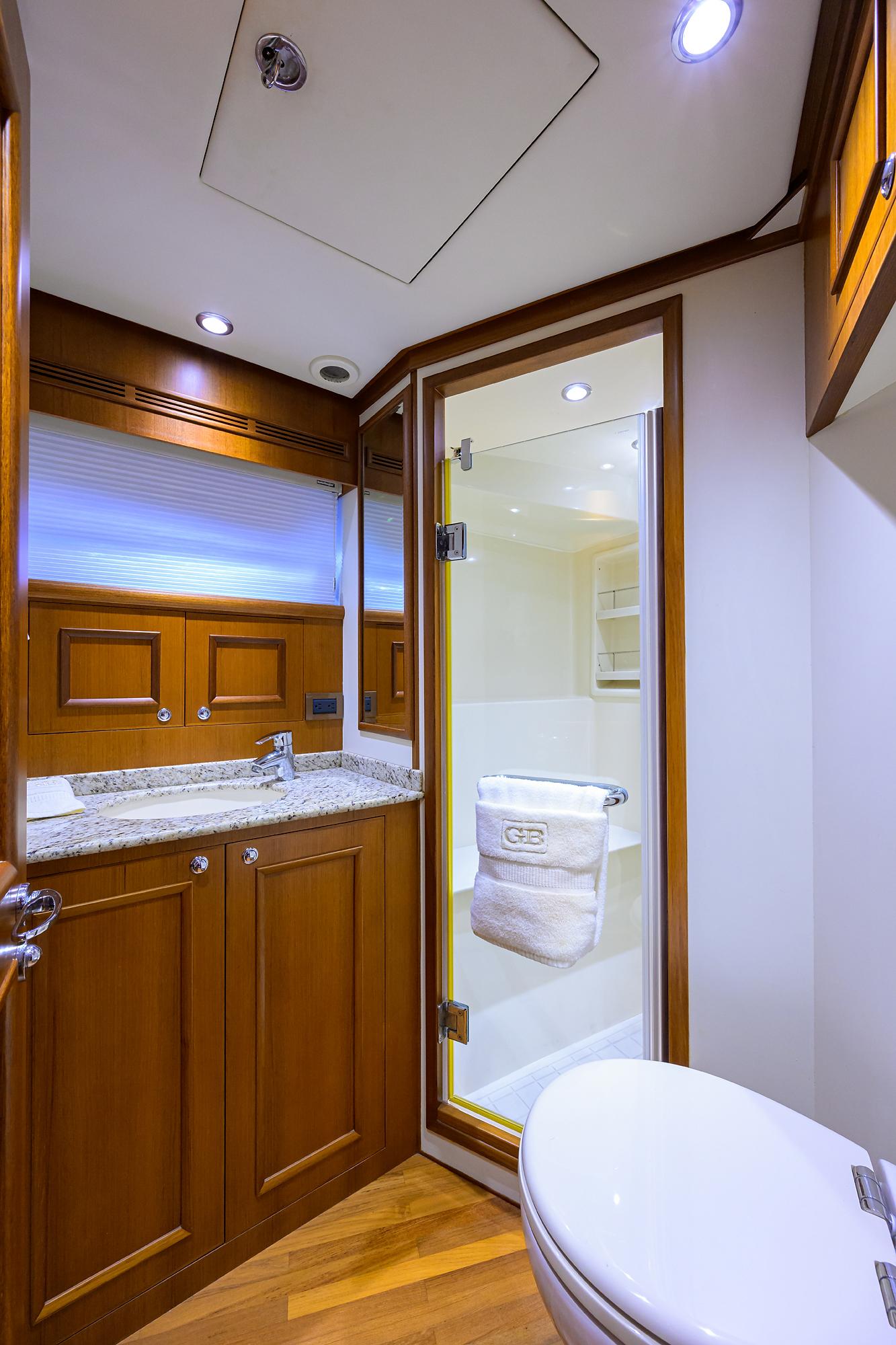

The guest head has two entrance doors, one from the companionway, the other a private entrance for the VIP guest stateroom.
Cabinets: under-counter storage Countertop: upgraded to Granite, “Giallo Ornamental” Exhaust blower: DC, 3” diameter, Jabsco Shower drain: automatic drain pump, DC, Whale Shower faucet: Grohe, mixer, hand-held Shower stall: separate fiberglass cell, frameless glass door, Corian pan Sink faucet: Grohe, single lever Sink: under-mount, Corian Skylight hatch: Manship, smoked, with Oceanair screen and shade Opening port window Toilet: Tecma Silence Plus, freshwater flush through macerator Vanity: above-counter storage Teak planking soleGUEST STATEROOM

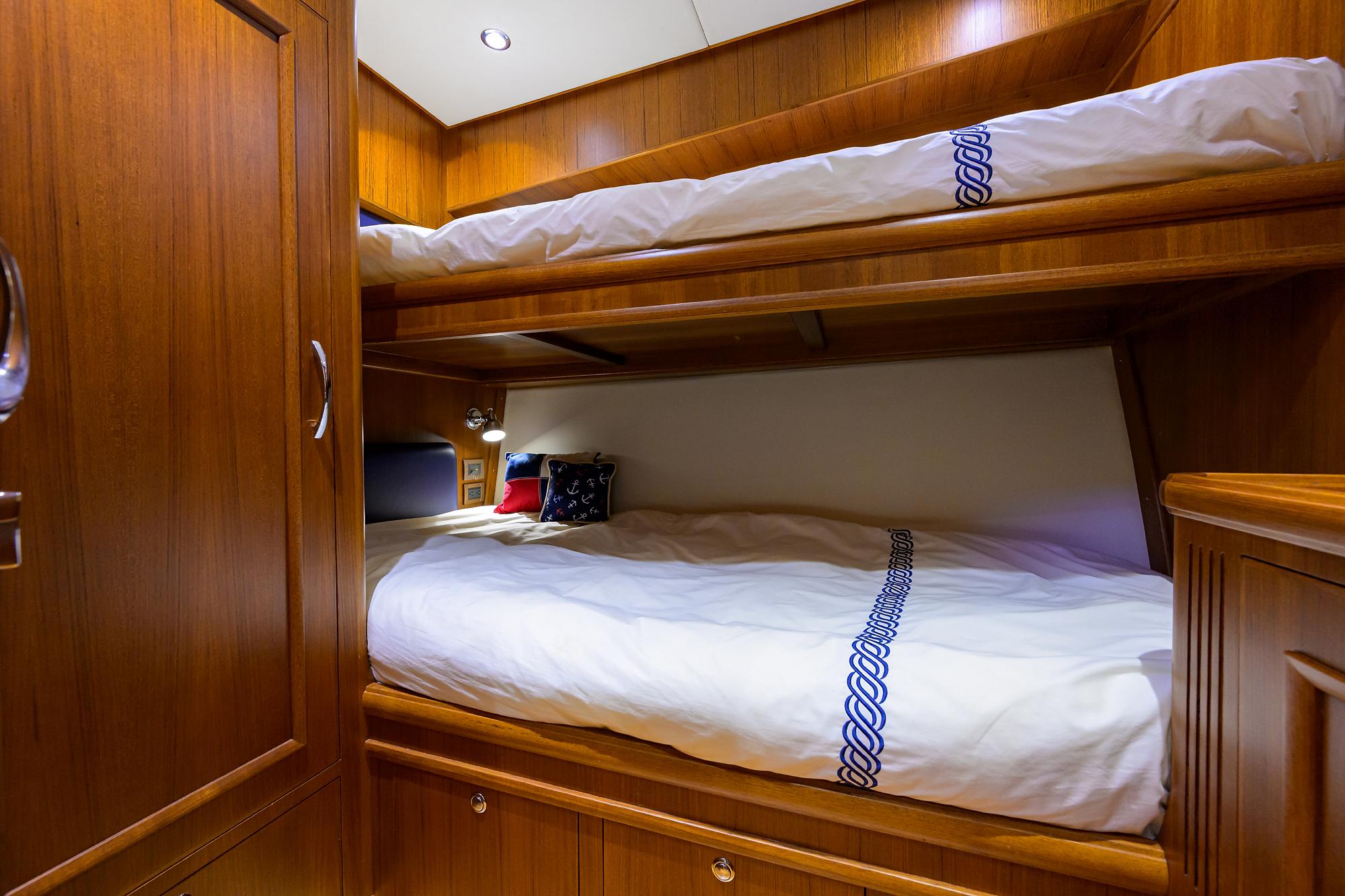

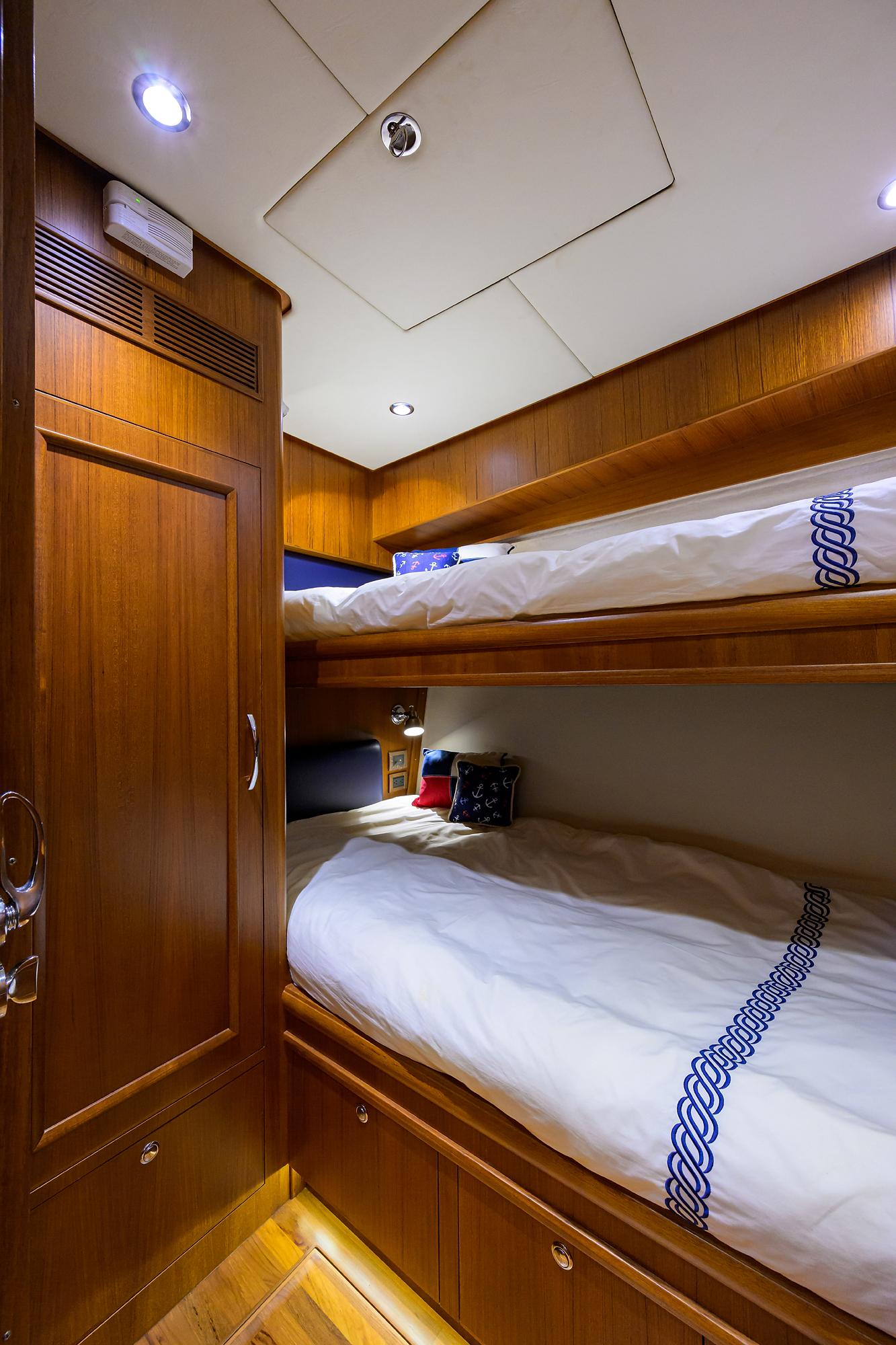

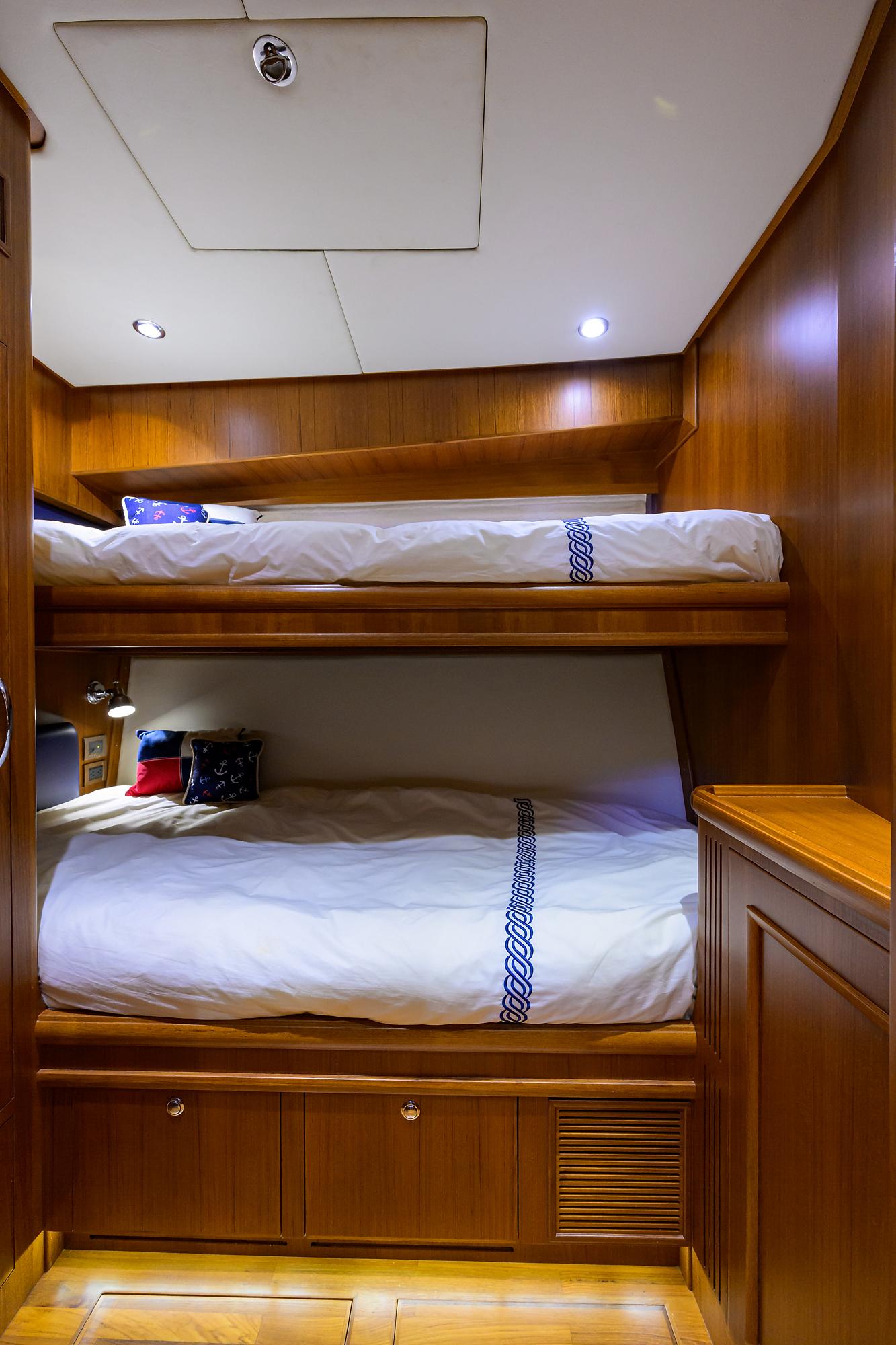

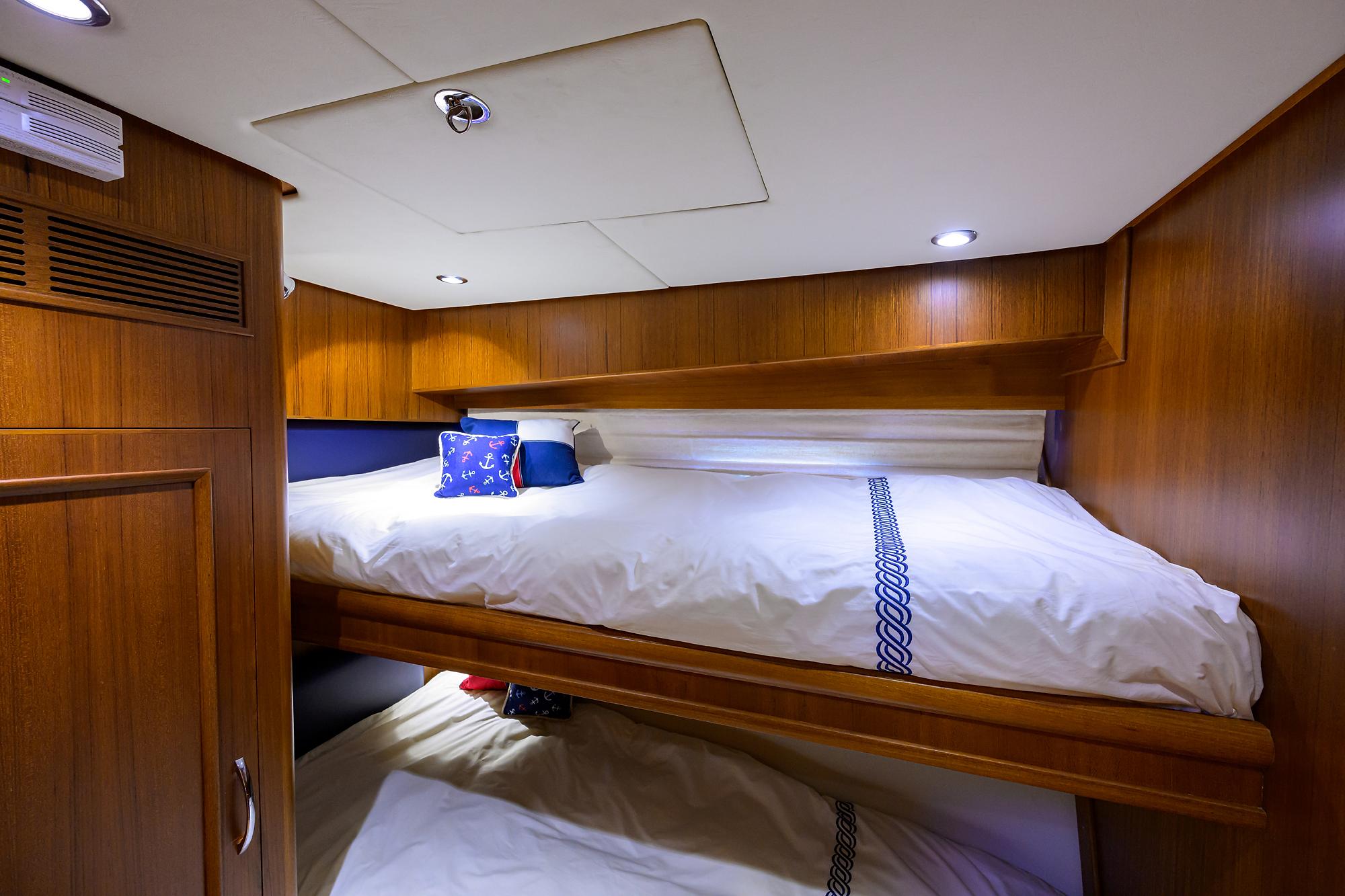

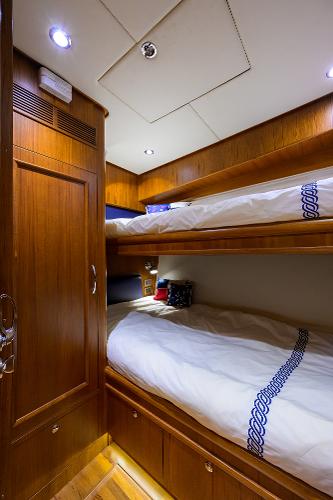

The smaller guest stateroom is on STBD and has over/under bunks.
Berths: upper and lower Hanging locker: teak, cedar-lined, Aqua Signal interior light Shelved teak corner cabinet, upgrade Mattresses: inner spring, pillow top with memory foam Storage: under lower berth Teak planking soleINTERIOR THROUGHOUT
Bulkheads: (i) teak veneer, (ii) Formica Cabin doors: teak, with raised panels, polished chrome lock sets Cabinet furniture: teak faced Cabinet storage system - all cabinets with shelf (except hanging lockers) to have slide-out shelves and Blum Motion soft close for all drawers Cabinet furniture: teak, raised panels Countertops – galley Granite, “Giallo Topazio” Countertops – heads: Granite, “Giallo Ornamental” Dimmer switches: in salon and cabins, Vimar, bronze covers Drawer slides: Blum Motion, soft-closing Drawers: teak faced with positive locks Grab rails: teak bars, stainless steel fittings Hardware: stainless steel and chrome Headlining: vinyl panels, removable with Fast Mount System Hull ceiling sides: vinyl Indirect overhead lighting: Cantalupi Lighting: Xenon, DC, Cantalupi Lights: reading lights at berths Portlights: lower deck, opening, with screens, Aritex Sole – lower deck: custom teak planking in cabins, heads and companionway Sole – upper deck: custom teak planking Steps anti-slip: custom rubber traction strips Window treatments – lower deck: roman shades Window treatments – upper deck: (i) side windows and side door(s) – Hunter Douglas Duette Shades Window treatments – upper deck: fabric curtainsNOTE
All upgrades, maintenance, installations and work done by brand specified certified mechanics; Cummins, Dometic, certified electricians from either Wards or LEAN Marine, etc.
