Grand Banks 54 Specifications

This beautifully designed luxury cruising yacht has two staterooms both with en suite heads, spacious salon, down galley, flybridge and cockpit both with wet bars, and all the appointments and expert craftsmanship you would expect to find on a Grand Banks.

The GB 54’s design and engineering represents more than 60 years of building long-distance cruising boats. Like the highly acclaimed GB60, the 54 uses the latest methods of fully infused carbon fiber in the deck and superstructure for added strength and reduced weight, and 100-percent vinylester resin throughout the build. The GB54 is expected to be able to cruise for 1,000 miles at 10 knots, while a fast cruise is estimated at 27 knots at 70-percent load. Top speed is projected at 32 knots. The lower left-of-gravity construction methods and efficient hull design ensure comfort in all seas.

Tradition and contemporary styling are married to stunning effect. We bring our decades of experience to the layout of the 54 to offer distinct spaces to socialize, live, and cruise. Opposing settees create a unique "living room" feel, while the large L-shaped settee is ideal for large family meals. The double helm seat has superb lines of sight and easy access to the decks with a side opening door. Extra attention is paid to create an abundance of stowage to accommodate long-range cruising.

The Grand Banks 54 warms the heart with gorgeous teak joinery bathed in glorious natural light. Side and rear power-opening windows flood the interior with fresh breezes and sunlight, highlighting the sustainably grown tight-grain teak and tasteful natural materials. Classical furnishings and materials blend with modern upgrades to the galley and heads in a space that is ergonomic, highly usable, and truly spacious.

CONSTRUCTION

All bulkheads and fixed furniture are structurally bonded to the hull and deck for superior strength and rigidity All exterior strength steel fittings are 316 marine grade stainless Hull Sides: painted "Stars and Stripes Blue" L5010 Boot Top: Crystal Silver Metallic E1009 Cove Stripe: Crystal Silver Metallic E1009 Antifoul: Micron Extra 2 #YBC 704 Black Deckhouse: GB White (gelcoat) Enclosed hardtop - GRP double moulded with electric sliding windows (port, starboard & aft) using toughened glass Hull is vacuum-infused E-Glass with carbon fiber in structural areas, cored with Corcell and Airex foam, stitched multi-axial fabric, and vinylester and epoxy resins. The deck and superstructure are fully-infused carbon fiber Watertight collision bulkhead located in the bow Water tanks: Polyethelene Fuel tank: Full beam FRP tank Holding tank: polyethylene, black water

COCKPIT / EXTERNAL

Underwater Lights: (2) "White" Aqualuma 12 Series Gen 4, Optional Upgrade (4) Smeralda Italian Deck Chairs, Optional Upgrade Anchor windlass, DC vertical Anchor chain locker, self-draining Anchor platform: Stainless steel, single stainless steel roller Anchor: (1) unit 35kg stainless steel Anchor with stainless steel swivel, 50m of Cromox stainless steel chain and 60m of rope Anodes: Zinc Bow Chocks, port & stbd, custom with additional captive pipe/rod welded to forward end of chocks to secure dock lines, Custom Upgrade Cabin top: Painted non-skid, Awlgrip, “Moondust” color Cleats: 6, for mooring, stainless steel, fixed Courtesy & overhead lights: LED Deck fills: Fuel, water and waste pumpout, at side decks Decking: Solid teak side decks, epoxy bonded Flag pole: Varnished teak, with stainless steel holder, at stern and stainless steel at bow Freshwater washdown: Quick disconnect outlet, at bow, including one hose and spray nozzle (2) Freshwater washdowns: Quick disconnect outlets, including one hose and spray nozzle; (1) at cockpit and (1) at flybridge, Optional Upgrade Grab rails: Stainless steel Rail gates: Stainless steel, port and starboard Rubrail: Heavy-duty, stainless steel profile Safety rails: Main deck and flybridge Skylight hatches: opening Swim ladder: Stainless steel, collapsible sectional Swim platform: Integral Toe rail: faux teak, Optional Upgrade Transom: Teak-faced carbon fiber backed transom Windows: Grey tempered glass at salon sides, clear tempered glass at windscreen, fritted, bonded in place Canvas Package: Sunbrella covers for flybridge, and cockpit table  Decking: Solid teak, epoxy bonded Flybridge access: Custom ladder, with teak treads and stainless steel dual hand rails Lazarette hatches: 1 unit, teak, pneumatic (2) Gemlux Rod Holders, (1) each port/stbd aft Self-draining cockpit: Stainless steel drains, one each port and starboard Shower: Hand-held, in cockpit, with retractable hose, hot & cold Transom door: 1 unit, solid fiberglass, with latch Fixed triple staple rails with (2) curved/corner rails on swim platform, Optional Upgrade Aft wet bar: at aft locker with BBQ, fold up seats and custom sink Countertops: High Gloss Teak, Custom Upgrade Custom Sonetto Skinny Bowl undermount stainless steel Sink with Blanco Eloscope-F II retractable mixer and Silestone lift-out cover, Custom Upgrade Isotherm DR160 fridge/freezer, at stbd locker U-Line B195 Icemaker, at port locker

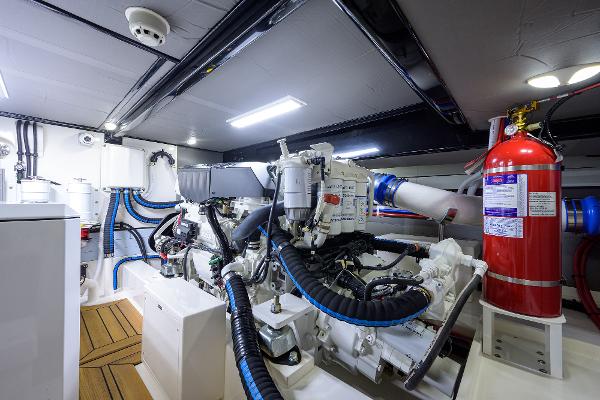

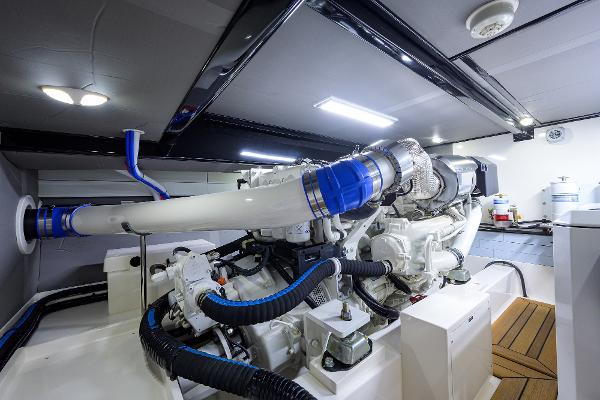

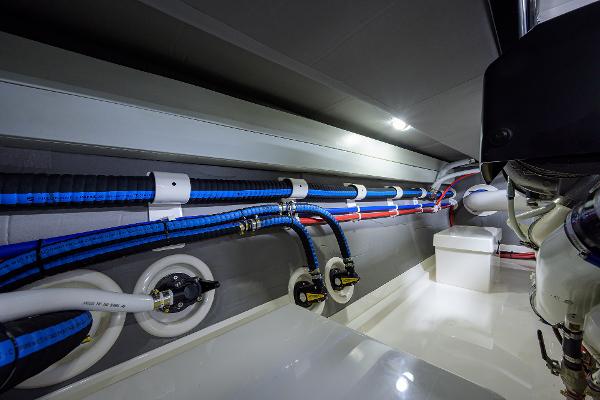

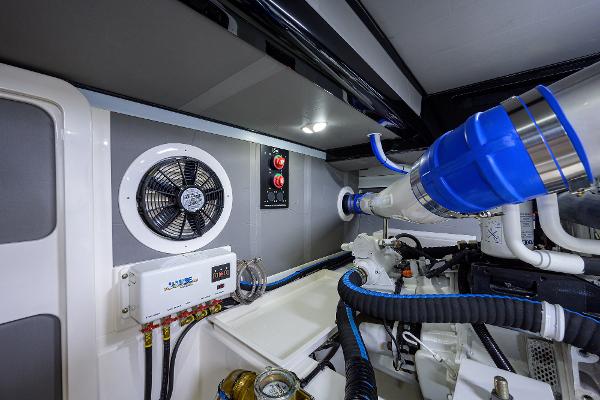

ENGINE & MECHANICAL EQUIPMENT

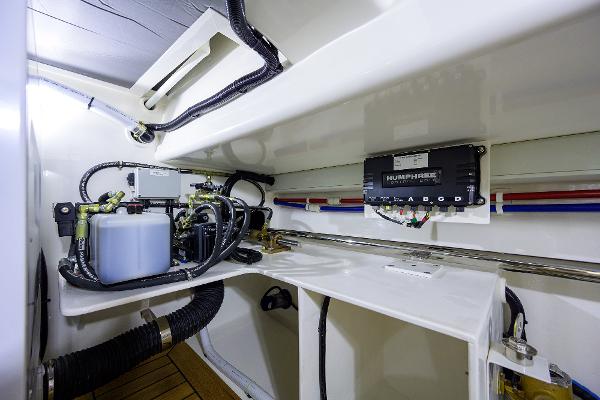

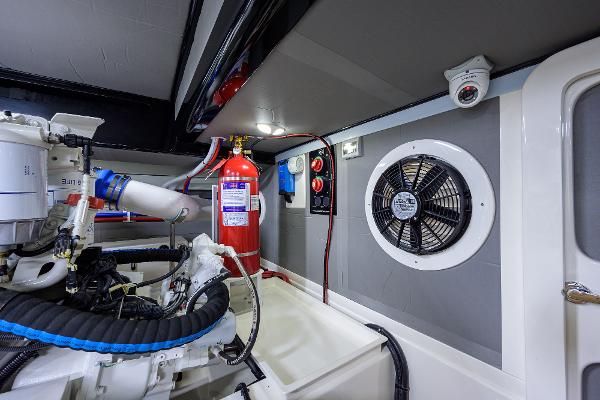

Twin Volvo D11, rated at 725hp, with Twin Disc MGX 5065A marine transmissions and Twin Disc EC300 Controls Humphree Stabilizing Fin System Sleipner Bow Thruster, SEP 170/250TC, 24V  Acoustic engine sound shield Engine raw water intake strainers Engine room faucet: Freshwater, cold only Engine room insulation: custom sound insulation for engine room and mechanical room Main Engine Exhaust System: custom marine exhaust with custom gas / water separator Generator exhaust system: Custom with gas / water separator Fire extinguisher: Engine room Fire System: Seafire w/ 1x heat detector and 1x smoke detector in engine room; and 1 Fireboy Xintex SS-775 smoke and fire alarms in each stateroom (3) Safe-T-Alert Carbon Monoxide Detectors, (1) each salon and staterooms, Optional Upgrade Fuel filters: Dual Racor 75/1000 water separators on each engine, Optional Upgrade; and single Racor filter/water separator on generator Oil Change System: Groco G-5 (5 ports/valves system), Optional Upgrade Kelp Cutter/Deflector, forward of stabilizer fin port/stbd, Custom Upgrade Propellers: Nickel-aluminum-bronze, dynamically balanced, 5 blades Shaft and Shaft Log: Temet 25 Steering: Hypro fly by wire / hydraulic Struts: Teignbridge Watermaker: Sea Recovery Aqua Whisper Pro Compact 900-2 GPD, Optional Upgrade Water purification system: 3M microbiological purifier with faucet, in galley Freshwater shore connection

ELECTRICAL

Power Distribution/Breaker Panels access in companionway bulkhead Dometic Air-conditioning: 1x 27K BTU at Salon; 1x 8K BTU, 1x 12K BTU, 1x 6K BTU at Lower Deck Batteries: (Engine Bank) 2 x 24V banks Batteries: (Generator Bank) 1x 12V bank Batteries: House bank: 440 Amp/h House Battery: Additional 1x 100Amp/h Lithium LFP24-100P House Battery (for total of 500AH), Optional Upgrade Battery charger: Engines - Pro Mariner - Pro Nautic 24.30P Battery charger: Generator Battery disconnect switches: BEP, remote motorized Battery paralleling: BEP Bilge Pumps: Four (4) units, DC, automatic, with high water alarm at helm(s), 2000 gallon/hour, 24V Bow rail, forward with stainless steel Burgee Holder DC outlets: 12V, two units, one at each helm Distribution panels: AC/DC Engine room lights: DC, LED; with Additional Engine Room Lights as Optional Upgrade Engine start/stop: Lower and upper helms Fresh water system: Pressurized, DC Generator: 20kW Northern Lights M844LW3, Custom Upgrade Holding tank: deck fitting for dockside pumpout; equipped with direct discharge pump, DC Holding tank: Level indicator at lower helm station Horn: Kahlenberg D-OA Dual Horn 24V, chrome finish Icemaker: AC Inverter/charger: 4000W / 24V / 100Amp Isolation/Isoboost Transformer: ASEA DBT12 (12KVA) Navigation lights: DC, LED Outlets: AC, with GFCI or ELCB protection, Vimar Searchlight: 24V, DC, LED (standard) Spot/Searchlight, GoLight GT #2020GT with optional wired remote, Custom Upgrade Shore power inlet aft (North America & Japan): 1 x 50A, Glendinning Cablemaster with 80 feet cable, Optional Upgrade Shore power inlet forward: 1 x 50A Trim tabs: DC, Humphree interceptor X900 Washer & Dryer, Asko Logic Series, separate units in Lazarette, Optional Upgrade Water heater: AC, 23 gallon capacity, rapid recovery with heat exchanger Windshield wipers: intermittent/low/medium/high speeds, electronic touch control panel, Hepworth, with washers Chain counter - both helms Wiring: Marine-grade tin-plated copper

ENTERTAINMENT

KVH TracVision TV-5 Prewired for KVH V30 TracPhone (in Dummy Dome) 43” Samsung HDTV, retractable in Salon 32” Samsung HDTV in VIP Guest Stateroom Sonos Stereo System: Sonos Amp with Sonos Sub and Bowers & Wilkins 6 speakers in Salon; Sonos Amp with Bower & Wilkins 8 speakers in Cockpit; Sonos Amp with Bowers & Wilkins 6 speakers in Flybridge

FLYBRIDGE

Custom Wet Bar, to starboard Custom Sonetto Skinny Bowl undermount stainless steel Sink with Blanco Eloscope-F II retractable mixer and Silestone lift-out cover, Custom Upgrade Countertop: Silestone “Tigris Sand” Isotherm CR130 Refrigerator (2) Kenyon Electric BBQ Grill: (1) grill and (1) hotplate/griddle, with remote control at aft locker  Courtesy lights: LED Deck hatch: Hinged, for access from cockpit to flybridge Decking: Painted non-skid, Awlgrip “Moondust” color (2) STIDD 500N Low Back Slimline Helmseats (powder-coated) with additional space between two seats for passing, Custom Upgrade Locker: Fiberglass molded, to port Locker: Storage under steering console Settee: Forward facing L-shaped molded fiberglass, underseat storage, cushions, to port Steering wheel: Stainless steel, teak rimmed Table: Stainless steel pedestal, varnished fixed teak flat top, to port Windshield: Tinted Perspex with solid stainless steel frame Hardtop: Flybridge hardtop with carbon fiber structure and lighting Tender: AB Alumina 10 ALX, Yamaha 25hp Crane: Steelhead ES1000 Davit

MAIN HELM

Door: starboard, hinged, interior teak inlay Electronics console: Fabric body and teak instrument panel Ritchie Compass: Flush mounted on top of full electronics console (2) STIDD 500N Low Back Slimline Helmseats with footrests & cup holders, Custom Upgrade Steering wheel: Stainless steel, teak rimmed Custom storage locker at inboard and rear of stbd helmseat designed for retractable (pop-up/hidden) TV

GARMIN ELECTRONICS PACKAGE with:

(4) x 8617 Radar / Plotter; (2) at each helm GSD 25 Fishfinder / Sounder Garmin Autopilot GMR Fantom 4' Open Array Custom ICOM M605 VHF w/Speaker, and built-in fog horn, CommandMic on FB, and additional NEWPA-30/20 Hailer Horn/Speaker for Fog Horn, Optional Upgrade AIS 800 Garmin WiFi Engine room cameras Aft-facing camera, on Flybridge

SALON

L-shaped settee: Built-in, to port L-shaped settee: Built-in, to stbd Table: Teak, flat top, flip-up leaf, fixed stainless steel pedestal, to stbd Bar cabinet: Bottle and accessory storage Doors: Sliding door Engine removal: Soft patch Refrigerator/freezer: Front opening, Isotherm, DC, at bar cabinet Divino 23-bottle Wine Cellar, Optional Upgrade Window Covers Large electric windows port, starboard and aft Grab rails: Teak bars, stainless steel fittings to ceiling

GALLEY

Miele 4-burner electric cooktop Miele DA1260 Exhaust (Range hood) Countertop: Silestone “Tigris Sand”, with disposal bin Lockers: Teak, storage Microwave/Convection Oven, Miele H6200BM Speed Oven Fridge Freezer: (1) unit Isotherm DR160 inox refrigerator, (1) unit Isotherm cruise 130 refrigerator and (1) unit Isotherm CR90 freezer (Stainless Steel) Fisher Paykel Dishwasher Sink: Single bowl, stainless steel, Franke, with designer faucet Trash Bin Flooring: Solid teak LED overhead lighting

MASTER STATEROOM, Forward

Berth: Island king, top load storage, drawers underneath Bookshelves: port & stbd shelves locker/cabinet, Custom Upgrade Cabinets: Storage throughout Hanging locker Head and shower access: Private en-suite Mattress: Foam, pillow top with 2” memory foam Reading lights: LED, two units, DC Skylight hatch: opening

MASTER HEAD

Countertop: Silestone "Eternal Marfil Polished", with under-counter storage Vanity: Above-counter storage, teak raised panel with mirrors Shower drain: Whale sump pump, DC Shower faucet: Mixer, hand-held with wall mount Shower stall: Separate cell, glass doors, with solid teak floor Sink faucet, Single lever Sink: Above-mount, porcelain Skylight hatch: opening Toilet: Tecma Silence Plus, fresh water flush through macerator

VIP GUEST STATEROOM

Berth: V-berth with teak lockers, storage underneath and sides Hanging locker Vanity, teak framed mirror, with storage locker Skylight hatch: Lewmar, opening Mattress: Queen pillow-top with foam mattress Reading lights: LED, two units, DC Smart TV

VIP GUEST HEAD

Cabinets: Under-counter storage Countertop: Silestone "Eternal Marfil Polished", with mirror vanity Sink: Above-mount, porcelain Sink faucet, single lever Shower drain: Sump box, DC Shower faucet: Mixer, hand-held, with wall mount Shower stall: Separate cell, glass doors, with solid teak floor Skylight hatch: Lewmar, opening Toilet: Tecma Silence Plus, fresh water flush through macerator

INTERIOR

V-Cool Window Tint for all Salon Windows, Custom Upgrade Custom Fans throughout, Custom Upgrade Bulkheads: Teak veneer, textured fabrics Cabin doors: Teak, with panels, polished chrome lock sets Cabinet furniture: Teak, raised panels Countertops: Silestone Drawers: Soft close, positive lock Fabric package: Designer package Hardware: Stainless steel and chrome Headlining: Vinyl panels, foamed back, removable with Fast Mount System Lighting: DC, LED Portlights: Lower deck Indirect lighting: Salon only, at valance, LED Interior Varnish: Satin marine finish Sole: Lower deck - Sisal carpet Sole: Upper deck - Sisal carpet in pilot house and salon; solid teak in galley & companionway Switches & outlets: Vimar modular system
