SOUTHERN BELLE Specifications

WALKTHROUGH

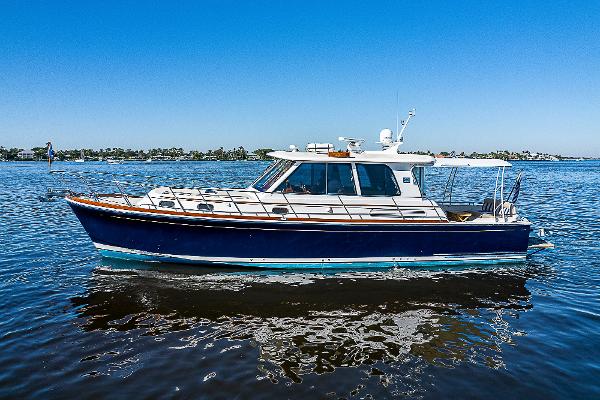

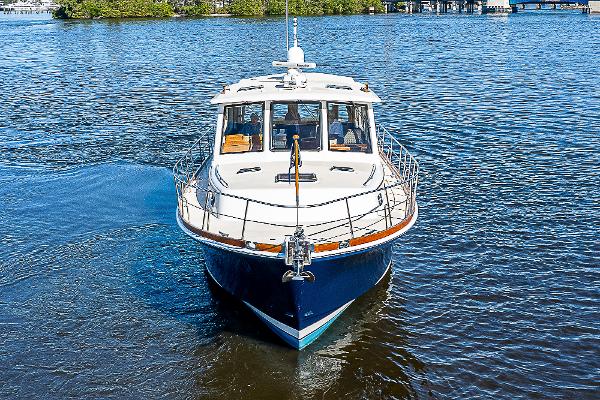

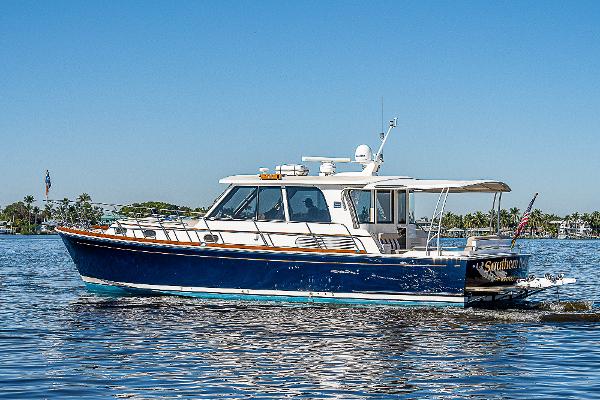

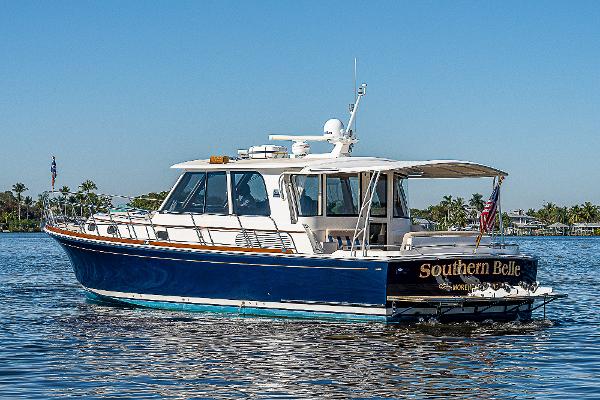

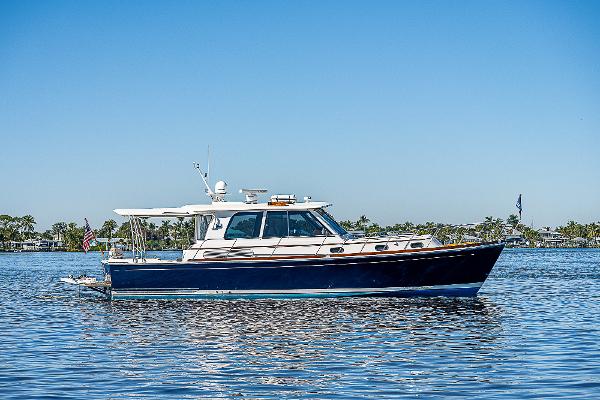

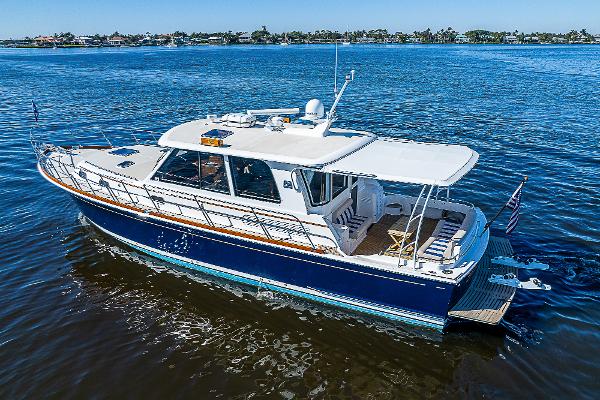

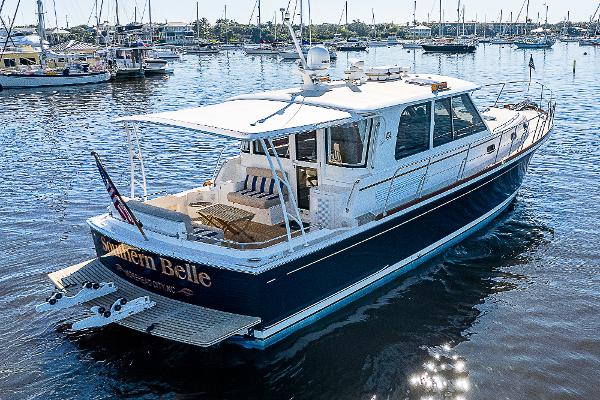

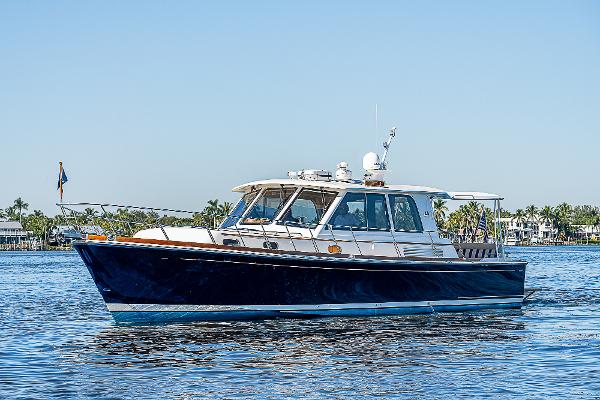

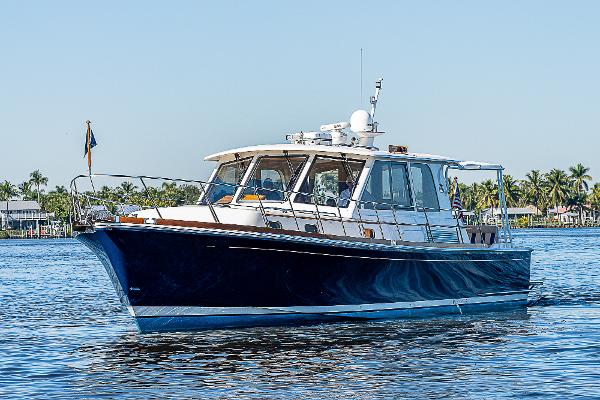

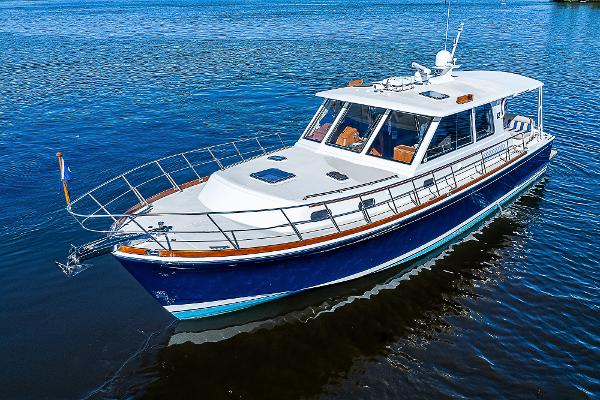

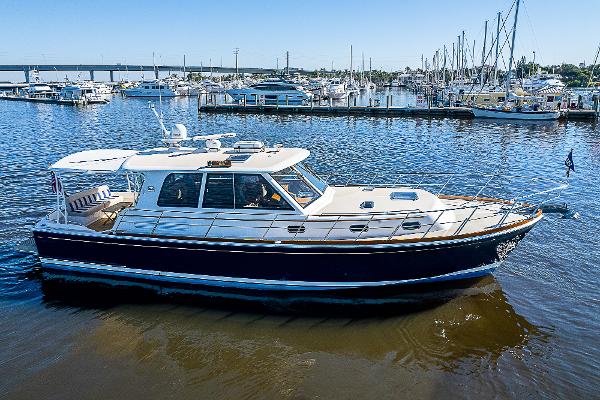

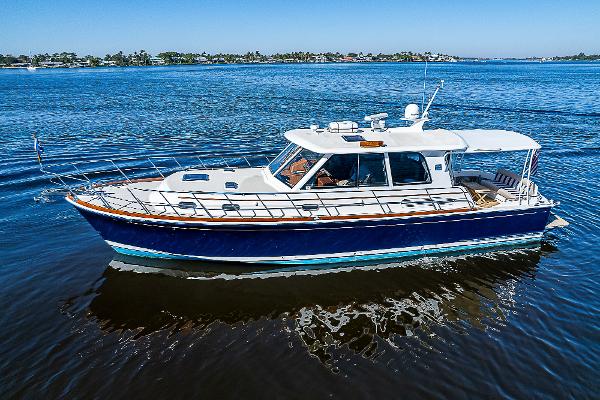

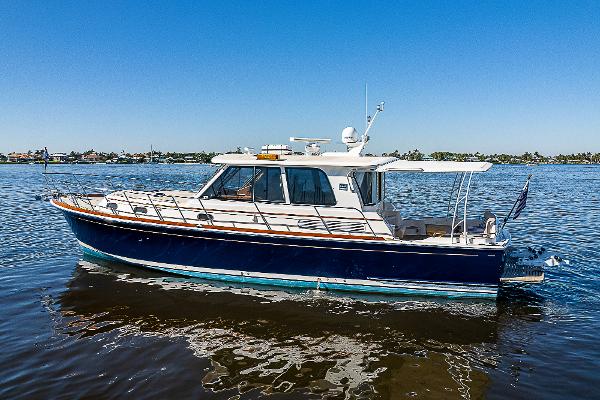

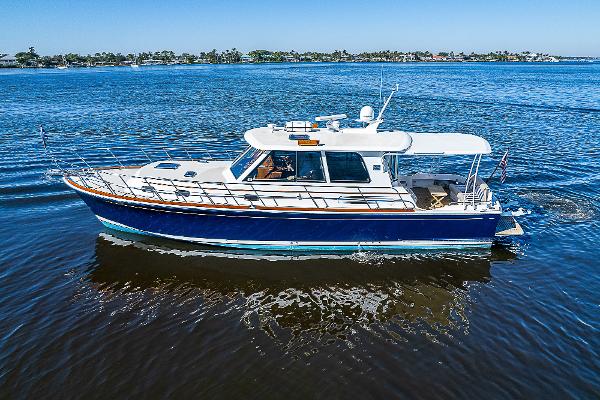

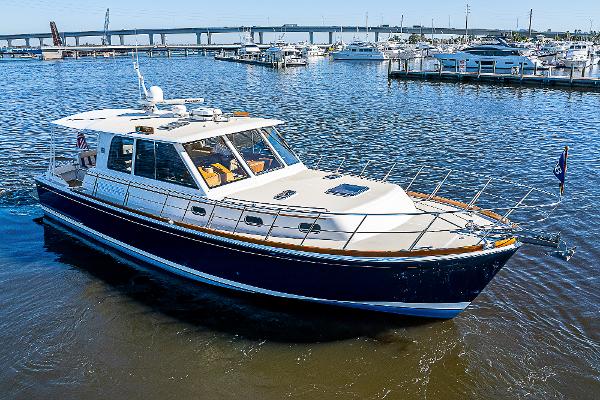

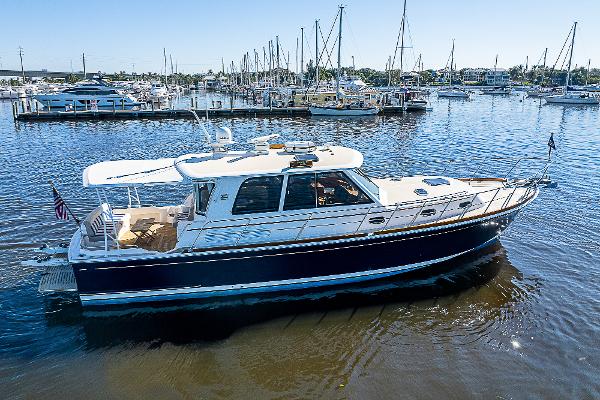

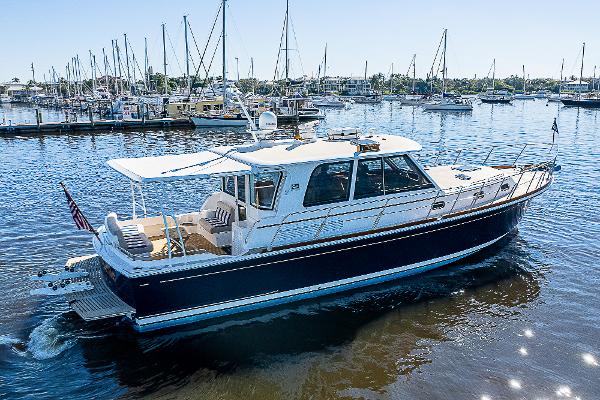

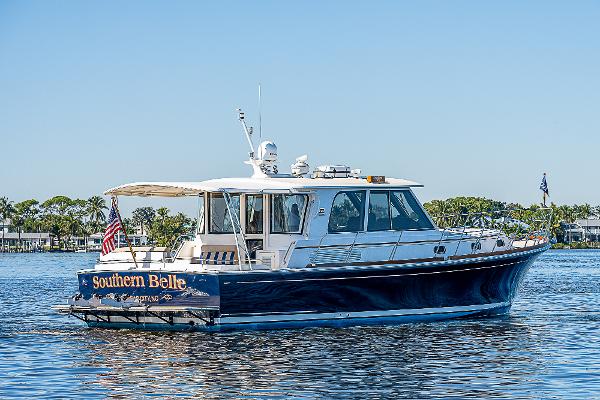

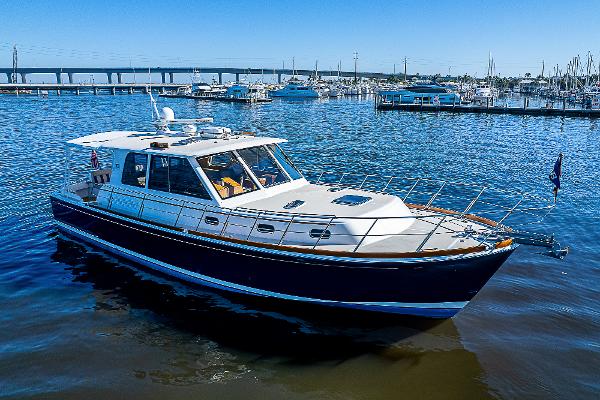

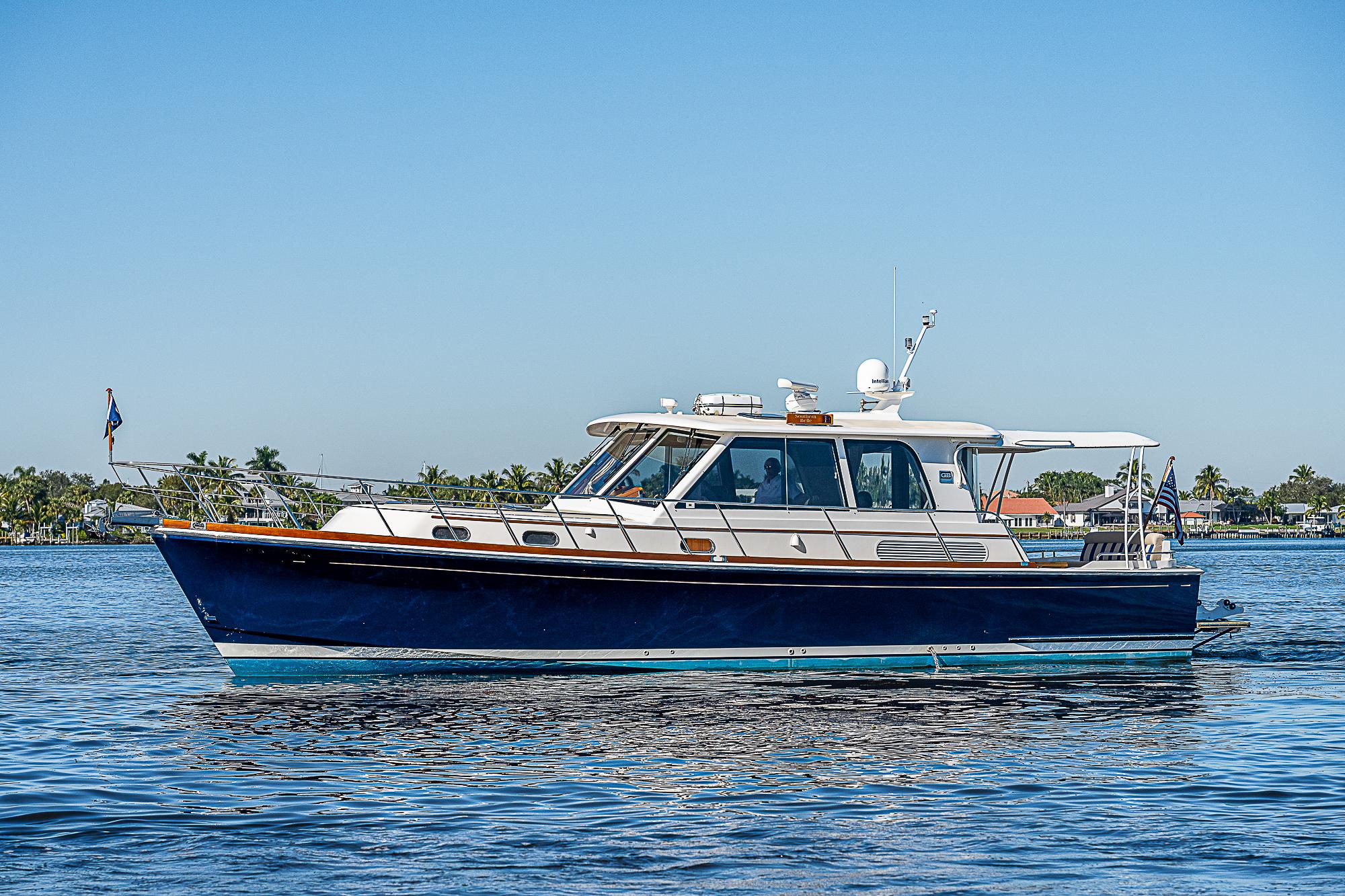

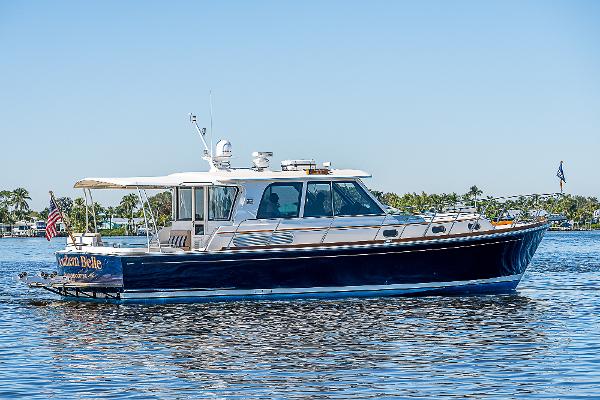

SOUTHERN BELLE is a 2011 model Grand Banks 46 Eastbay SX featuring two staterooms, each featuring private en suite heads with stall showers, and a galley down layout. She offers a large utility room with combo washer/dryer, Raymarine electronics, custom fixed cockpit awning, NEW 2022 model 8' 5" West Marine RIB 260 Hardbottom Tender with custom cradle, teak & holly varnished sole throughout, along with additional features and benefits.

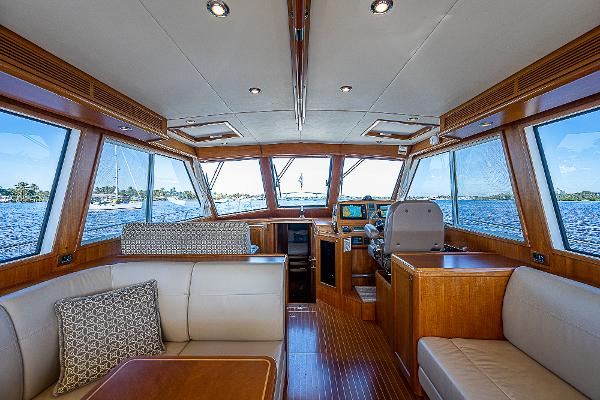

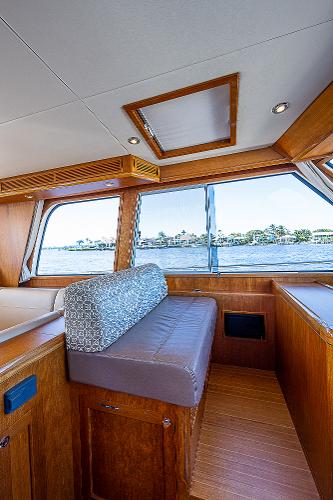

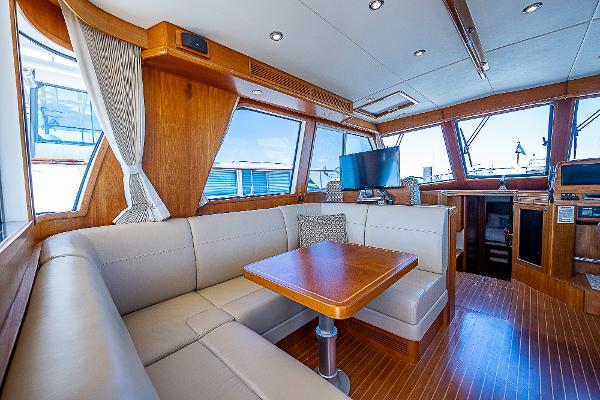

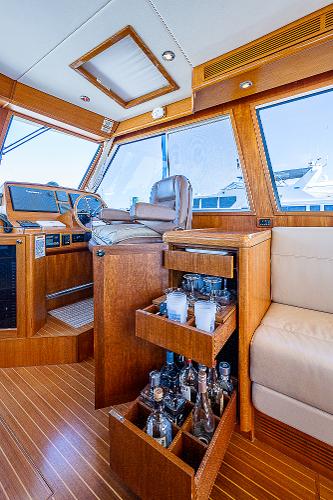

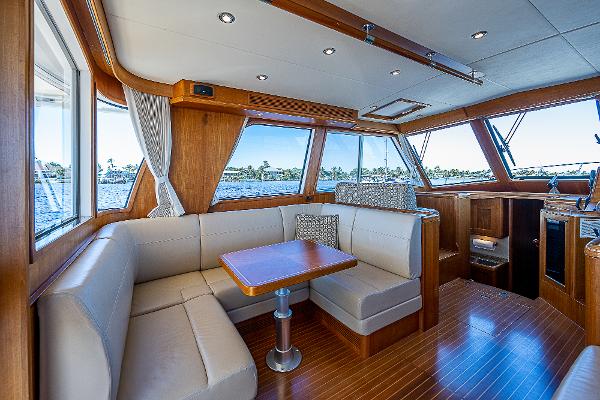

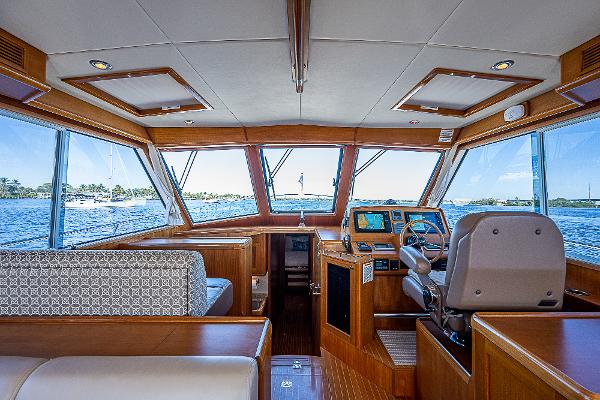

The salon has an electric opening window aft with pass-through access to the cockpit. Both port and starboard boast curved aft windows. There is a large U-settee with custom hi-lo table to port for entertaining and dinette area. There is a straight settee to starboard. An abundance of storage is inside all settees and all seating is finished in Ultraleather. There is a teak entertainment cabinet hiding the flatscreen TV which pops up electrically on a stainless steel lift. Her helm station with STIDD helmseat is to starboard with a double companion helmseat and chart locker across to port.

The U-shaped galley is down a few steps to port with Corian countertops with surrounding splashguard, electric cooktop, microwave/convection oven, front loading refrigerator drawers, top loading freezer, large stainless steel sink basin with single lever faucet and pull-out spray head, and plentiful storage in drawers and overhead lockers.

One exceptional feature is her large utility room accessed from the companionway (the stairs lift adjacent to the galley) with additional freezer, Splendide washer/dryer combo large storage locker and is a very spacious area to store bikes, luggage and long term stores.

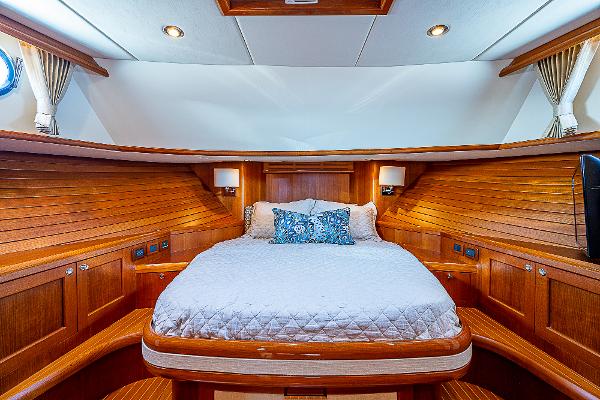

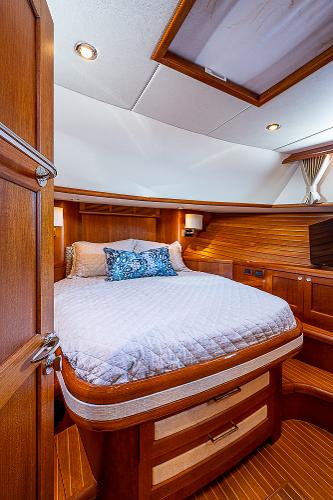

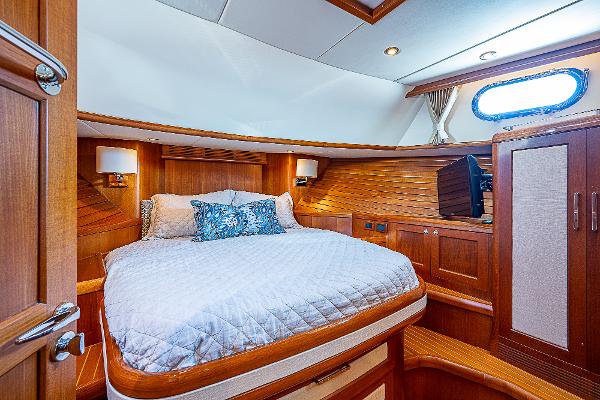

The master stateroom is forward and offers an Island Queen Centerline berth, Samsung flatscreen TV, plentiful storage including cedar-lined hanging lockers, and a private en suite head with separate stall shower. The guest stateroom is to starboard with twin single side-by-side berths with reading lights above each, a large cedar-lined hanging locker, storage with drawers under both berths and private guest head with shower stall. This guest head doubles as a day head with access from the companionway.

CONSTRUCTION

Fiberglass outer skin: gel-coated, Cook Composites & Polymers Fiberglass: hand-laid Hull barrier: epoxy undercoat Hull color: painted Imron, "Flag Blue" with "Gold" cove stripe, Optional Upgrade Hull bootstripe: painted Awl-Grip "GB White" Hull lamination: Hydrex resin skin coat, Reichold  Hull structural grid: fiberglass and foam Hull: composite, fully cored, w/cross-linked high density PVC foam core Quarter guard: FRP molded, with stainless steel rub rail (2) Structural bulkheads: composite, partially watertight

EXTERIOR EQUIPMENT

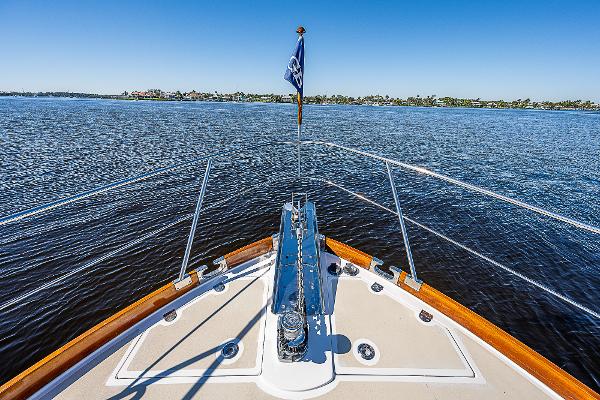

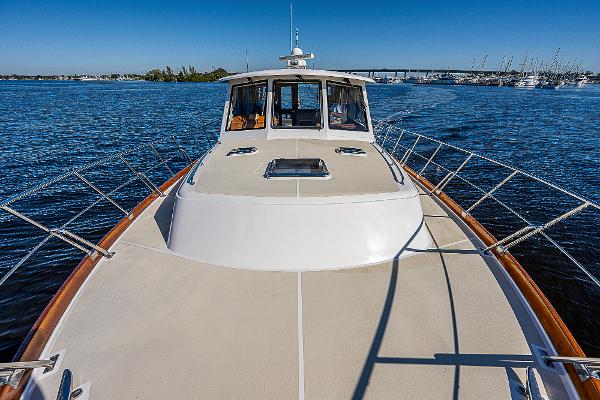

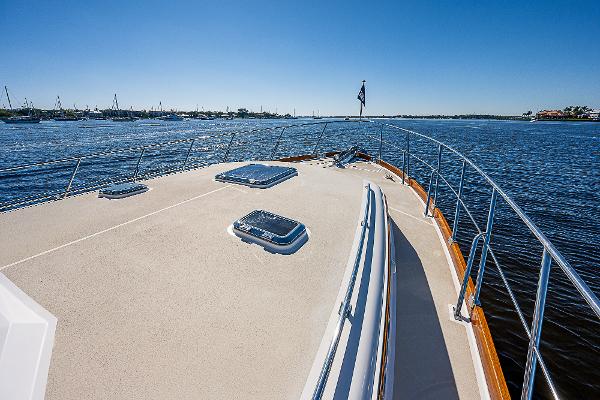

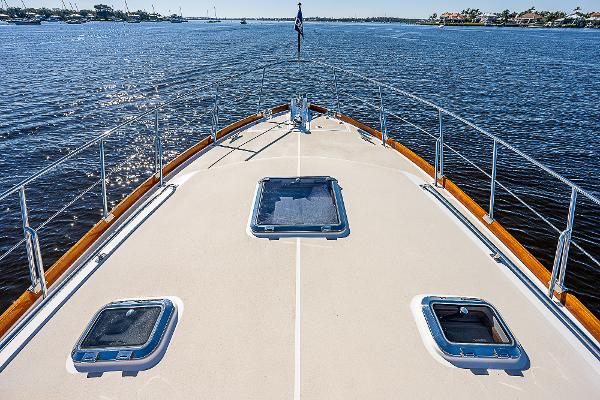

NEW 2022 model 8' 5" West Marine RIB 260 Hardbottom Tender with Mercury 6.5hp outboard and custom platform cradle Anchor & chain: (1) Ultra Marine stainless steel Anchor (77lb) mirror polished finishing with 80-meter hot-dipped galvanized chain and stainless steel swivel shackle, Optional Upgrade Anchor chain locker: with partition for rope and chain, self-draining Anchor platform: stainless steel, single stainless steel roller Anodes: aluminum, hull and Zeus pods Cabin top: painted non-skid, Awlgrip, "Moondust" color Cleats: for fenders, stainless steel, pop-up, (2) units, at cockpit coaming Cleats: for mooring, stainless steel, fixed, (6) units Courtesy & overhead lights: LED, Hella Marine Deck fills: fuel, water and waste pumpout; at side decks Decking: side and forward decks, painted non-skid, Awlgrip, "Moondust" color Flag poles: varnished teak, with stainless steel holders at bow and stern Foredeck lockers: port and starboard Freshwater washdown: with quick disconnect outlet, at bow, including one hose and spray nozzle Grab rails: stainless steel Hardtop: painted non-skid, Awlgrip, "GB White" color Liferaft, Zodiac, Optional Upgrade Mast: aluminum, painted, fixed, low profile on fiberglass base, with radar bracket (for radome antenna), spreaders Navigation light boards: varnished teak, port and starboard Rubrail: heavy-duty vinyl, stainless steel insert profile Safety rails: at main deck, 1 1/8" diameter round profile stainless steel, with intermediate rail Saltwater washdown: with outlet at bow complete with fittings, hose and spray nozzle (optional upgrade) Skylight hatches: Manship, stainless steel Storage in multiple exterior lockers & inside settees Swim ladder: stainless steel, collapsible/sectional, mounted under swim platform Swim platform: teak, 15 slats (35") Teak trims: varnished teak trims around housetop eyebrow, Optional Upgrade Toe rail: varnished teak Windlass: DC, vertical gypsy and capstan, chain/rode, low profile, Maxwell VWC1500; controls at helm and on deck Windows - Salon: opening port and starboard Windows: grey tempered glass at salon sides, clear tempered glass at salon front, fritted, bonded in place Window Covers, Custom for front and side windows, Optional Upgrade Windshield: left opening, tempered glass, with electric actuator

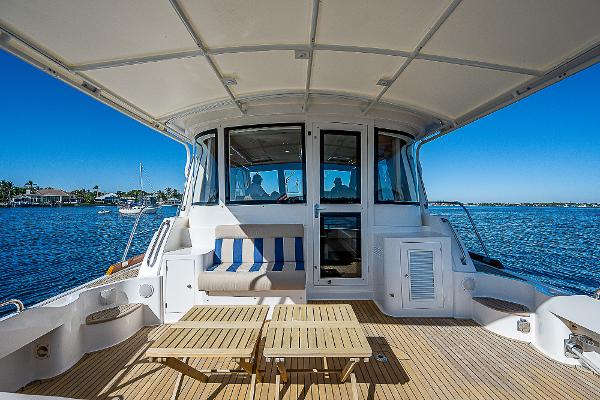

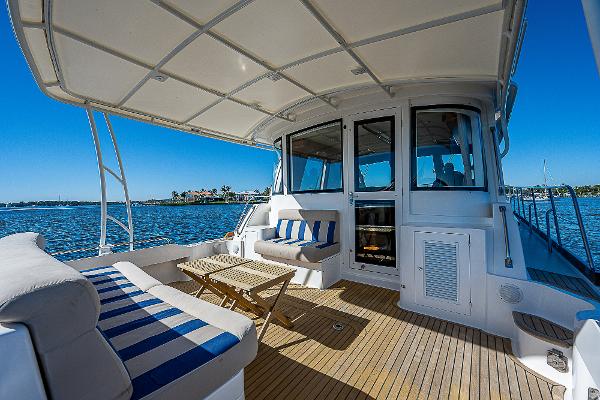

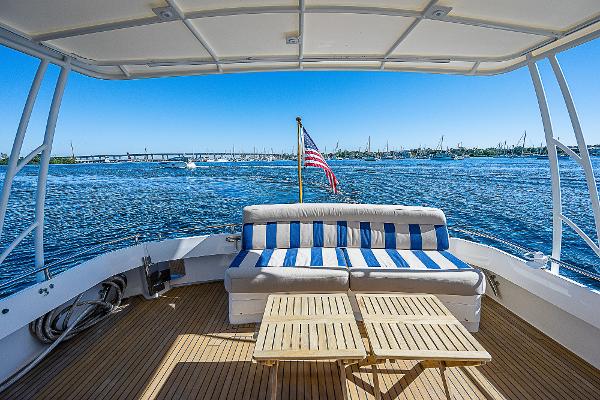

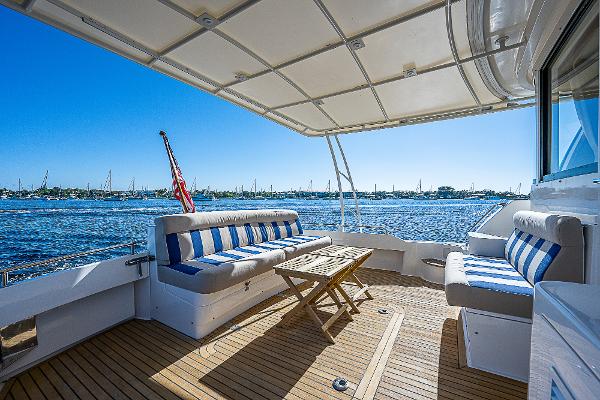

COCKPIT/AFT DECK

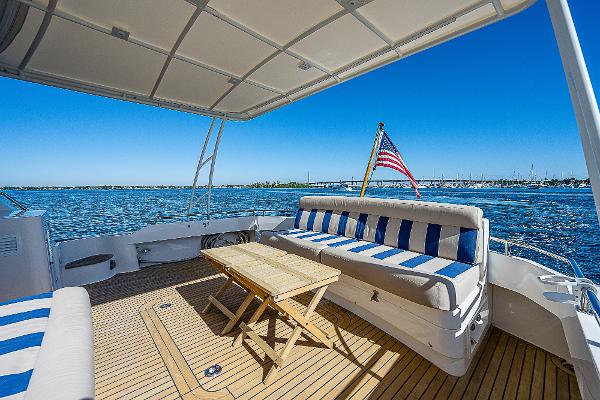

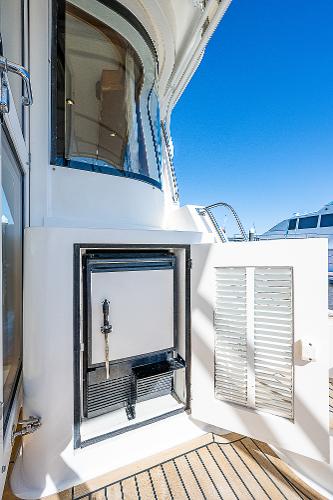

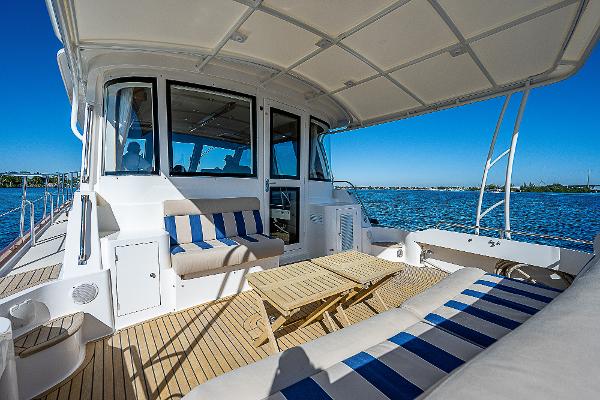

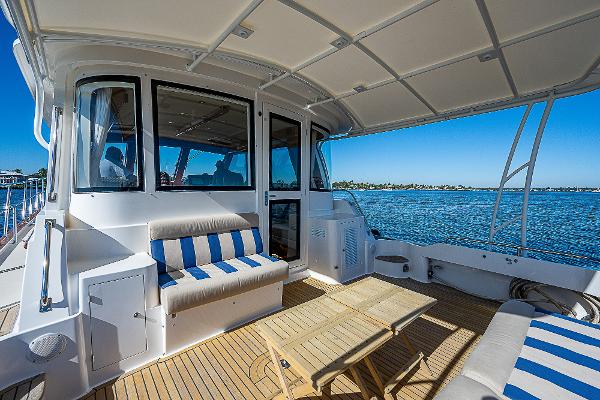

Awning, Custom Fixed w/powder-coated aluminum frame, Optional Upgrade Sun Screen, Custom for aft cockpit perimeter, Optional Upgrade U-Line Icemaker, Optional Upgrade Cleats: pop-up dinghy cleats, (1) unit at each corner of swim platform, Optional Upgrade Cockpit seating: straight settee with underseat storage at transom; small aft-facing seat Decking: solid teak, epoxy bonded, TDS System Engine room access: pneumatic deck hatch, stainless steel ladder Self-draining cockpit: stainless steel drains, one each port and starboard Shower: hand-held, port aft cockpit, with retractable hose, hot & cold Teak flooring Transom door: hinged, opening inwards, solid fiberglass, with latch

ELECTRICAL EQUIPMENT

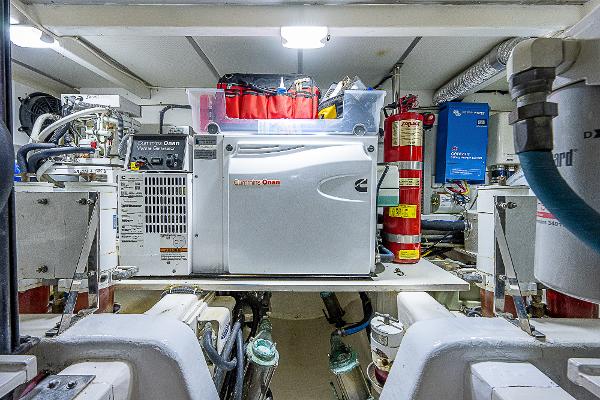

Air-conditioning, reverse cycle, (3) units with generator upgrade Generator: Onan with sound shield, 11.5kW Generator Starting Battery Charger: automatic 12V, 60-amp w/condition indicator Dynamic Positioning System: "Skyhook" Zeus System with GPS Interface, Optional Upgrade Air horn: electric, DC, AFI Marine Alarm and indicator panel: mimicked boat profile LED panel, at helm Batteries: AGM Lifeline, with fiberglass boxes, lids and straps, 2x4D engine starting, 2x8D house and 1x2D (2) Battery chargers: Centaur 12V 100-amp and ProSafe FS60 60-amp Battery condition indicator: BEP, at electrical panel Battery disconnect switches: BEP, remote motorized Battery paralleling: BEP, dual sensing Voltage Sensitive Relay (VSR), 300A Bonding system: zinc anodes, on raw water cooling systems and heat exchangers Carbon monoxide detectors: (1) Safe-T-Alert in galley and (1) each cabin; not installed DC outlet: 12V, one unit at helm Distribution panels: AC/DC, BEP, with dedicated circuit breakers for all equipment; additional (8) circuit breakers for future usage, Optional Upgrade Engine gauges and instrumentation: Cummins, one Vessesl View display at helm Engine room lights: DC, LED, Hella Marine Engine room ventilation: two blowers, DC, Delta "T" Engine start/stop: at helm Entertainment system: Bose 321 Series III DVD Home Entertainment System, iPod dock, Speakers with Remotes in salon & cockpit; includes dedicated power inverter Freshwater system: pressurized, DC Galvanic isolator Holding tank - black water: polyethylene, 60 US gallons capacity, deck fitting for dockside pump out, equipped with direct discharge pump, DC, SeaLand Sani Pump T12 Holding tank - level indicator: Dometic Sealand, model DTM, at helm station Purasan Marine Sanitation System – allows for sanitary & legal overboard discharge into any area not considered a Federal no discharge zone. Navigation lights: DC, LED, Hella Marine Outlets: 110V throughout yacht, with GFCI protection Shorepower inlet aft: Glendinning Cablemaster, 1 x 50A, 75-ft. cable, Optional Upgrade Tank monitoring: gauges for fuel and water tanks, display at helm, SmartSwitch TD4000 Water heater: AC, 20 US gallons capacity, Seaward H-2050W Windshield wipers: washers, intermittent-low-medium-high speeds, electronic touch control panel, Exalto Wiring: marine-grade tin-plated copper

ENGINE & MECHANICAL EQUIPMENT

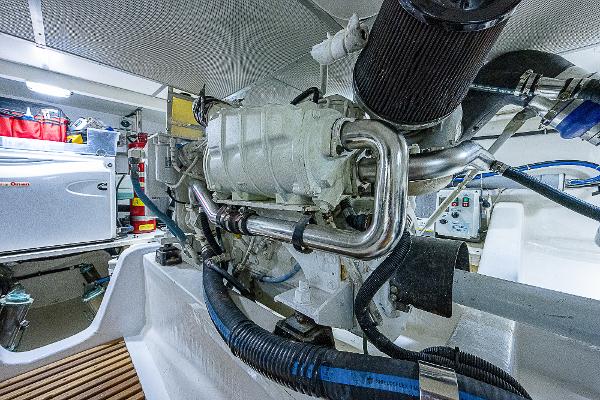

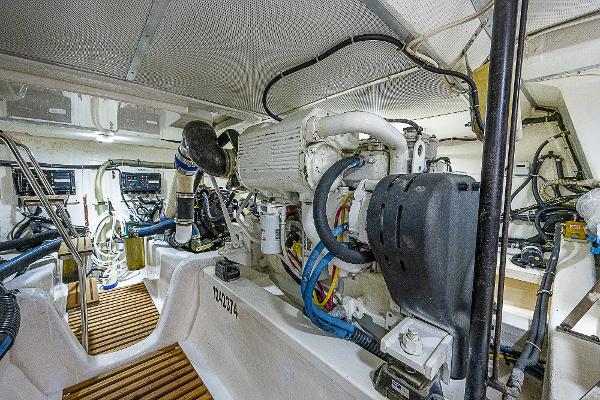

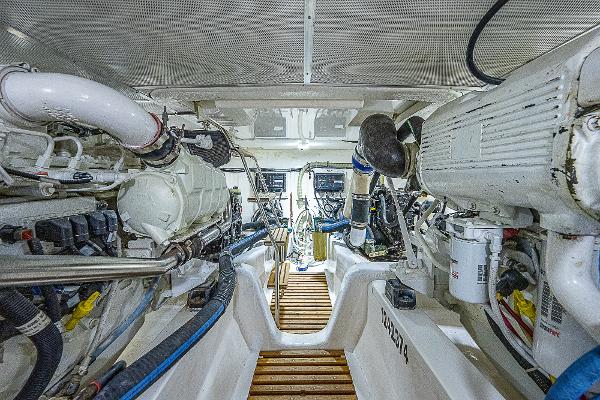

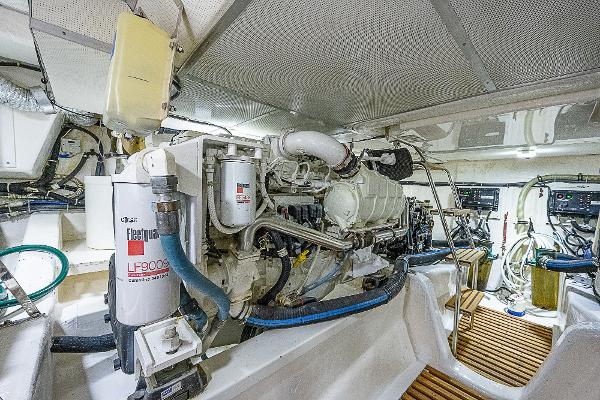

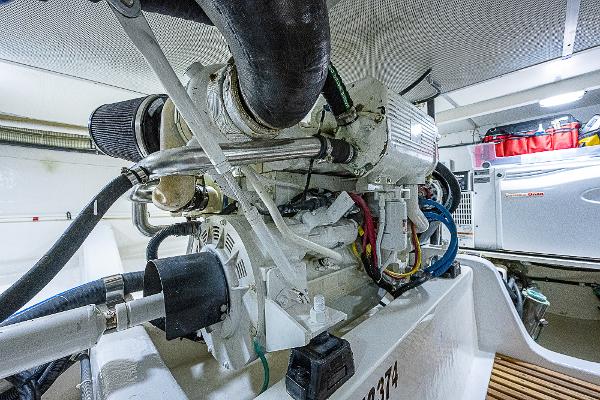

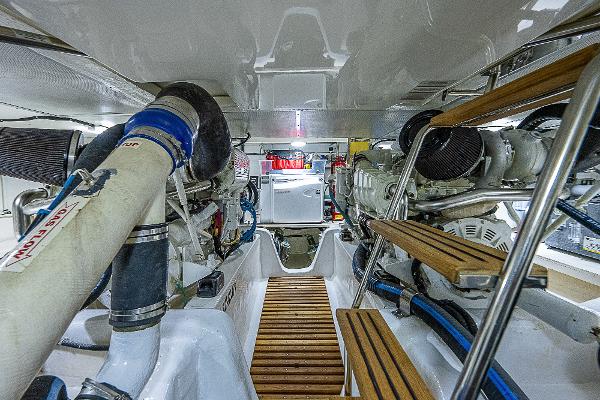

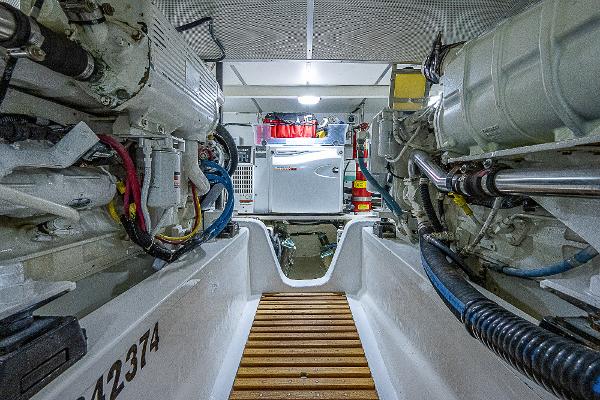

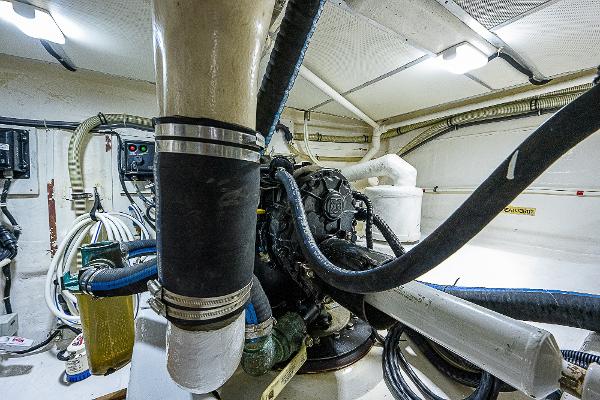

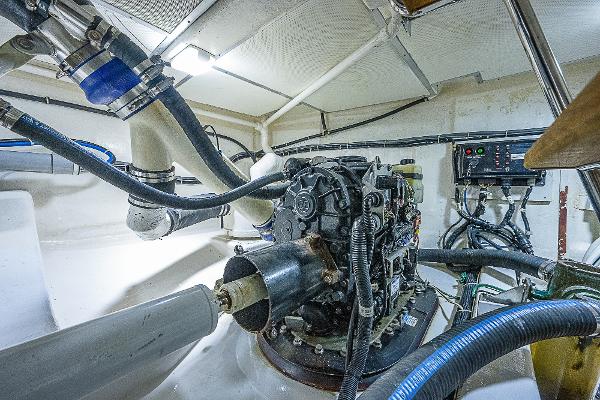

Twin Cummins QSC 8.3 @ 600hp each with Zeus Pod Drive System, with approximately 990 hours as of 01 Mar 2023, Optional Upgrade Cummins Zeus Autopilot, Optional Upgrade Ball valves and thru hull fittings above waterline: bronze housings, chrome valves, Groco (3) Bilge Pumps, Rule-Mate 2000 automatic (1) Shower Sump Pump, Rule 800 Engine controls: Cummins, electric control system and “Skyhook” joystick docking system Engine raw water intake strainers Engine room faucet: freshwater, cold only Engine room: teak slats Engine room sound insulation: fiberglass wool, composite panels Exhaust system: underwater through propeller hub, and idle bypass muffler Fire extinguisher: in engine room, with engine-generator-blower shut down and override control, Fireboy (3) Fire extinguishers, Kidde: (1) below galley sink, (1) in galley cabinet; (1) below dinette Freshwater regulator: complete with hose fittings at cockpit, Optional Upgrade Fuel filters: Racor water separators on each engine (duplex) and generator (single) Fuel tanks: two crosslink plyethylene (XLPE) tanks, baffled, total 500 US gallons capacity Generator exhaust system: with gas/water separator, Centek Reverso Oil change system: DC, with quick disconnect fittings Propellers: counter rotating, stainless steel (included in Zeus) Steering: electric/hydraulic, Sea Star (integral with Zeus) Water purification system: Seagull IV X-1F microbiological purifier with faucet, in galley Water tank: aluminum tank, baffled, 145 US gallons capacity Watermaker, Offshore Marine (Parker) LT 500gpd, Optional Upgrade

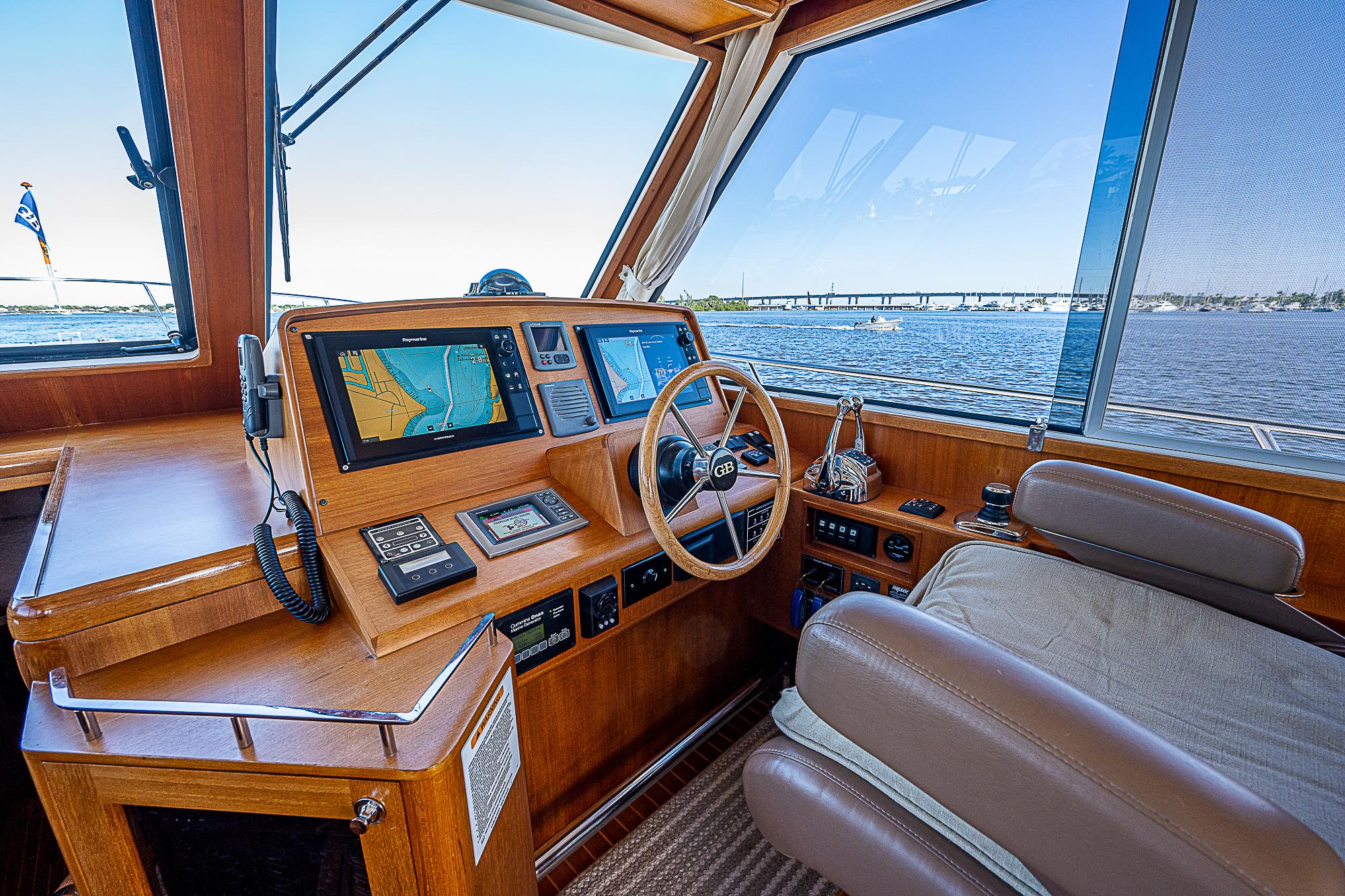

HELM AREA

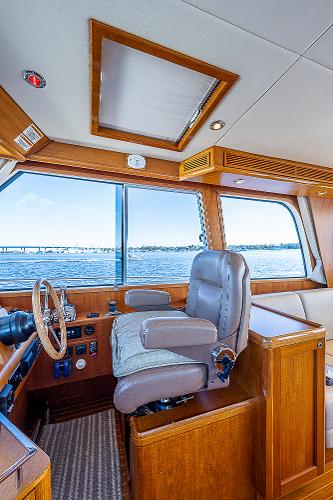

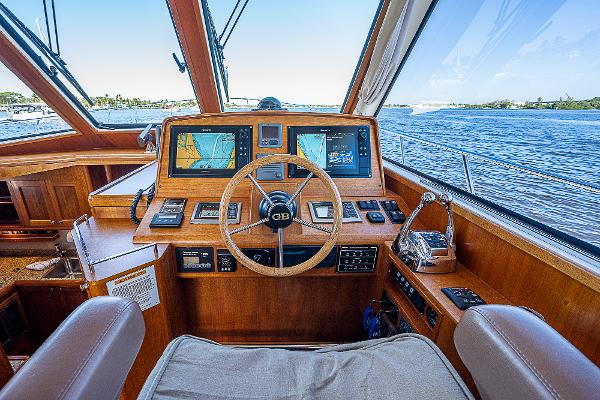

Chart locker: teak, on port side of helm station Companion seat: built-in, straight, to port Compass: flush mounted on top of electronics console, Ritchie Electronics console: teak body and instrument panel Electronics overhead console: teak, with removable panels Helmseat: STIDD Admiral Low Back, with deluxe chrome package and cupholder, on sliders Steering wheel: stainless steel, teak rimmed

ELECTRONICS

(2) Raymarine Hybrid Touch Screen - Depth, GPS, Chartplotter, Radar (72-mi) Raymarine 240 VHF Raymarine Autopilot Cummins Zeus Autopilot SKY HOOK Precision Pilot SmartCraft VesselView w/(2) monitor panels ACR Spotlight Raymarine Open Array Radar Compass SAT TV
(3) Samsung Flatscreen TV's; in Salon and each Stateroom Fusion Stereo - AM/FM/CD at helm w/ iPOD dock; remote in cockpit Bose Surround Sound Speakers

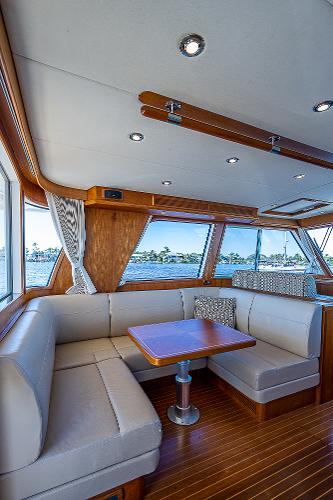

SALON

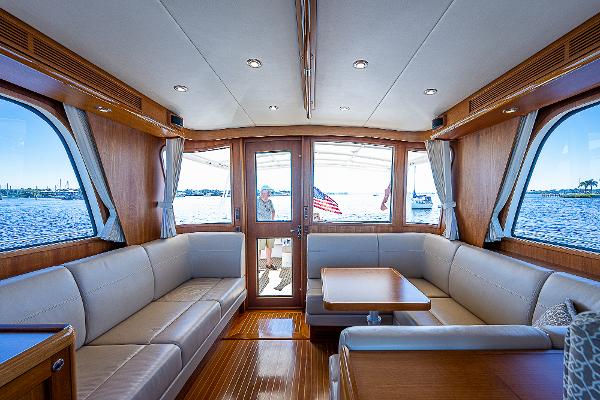

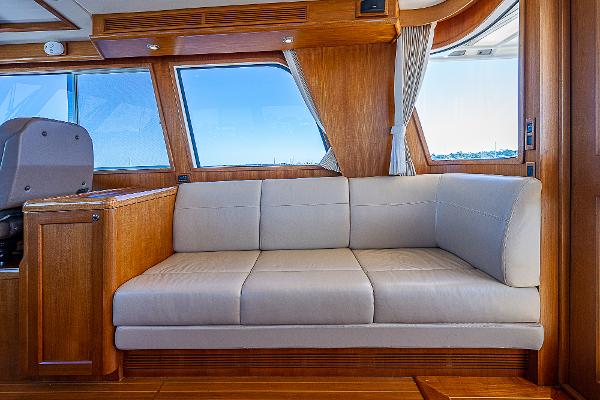

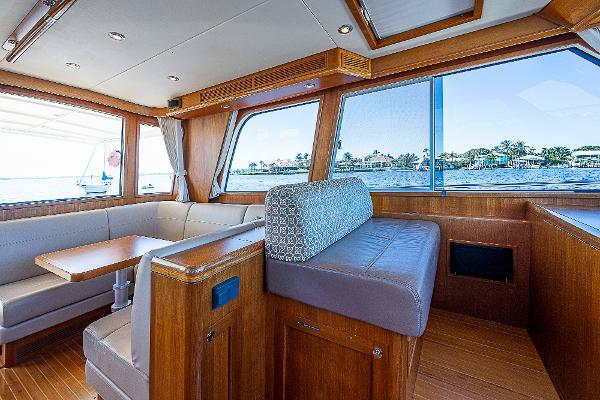

Entry door from Cockpit w/(2) Glass Panels Settee to port: U-shaped, under-seat storage drawers Settee to starboard: straight, under-seat storage drawers Skylight hatches: two, at hardtop, with Oceanair screens and shades Table: teak, flat top with pattern and maple inlay, fixed stainless steel pedestal TV cabinet: electric stainless steel pop-up TV lift Samsung Flatscreen TV Windows: opening, with screens, port and starboard

GALLEY

Galley Down Layout, to port Cooktop: AC, 3-burner electric glass cooktop stove Countertops: Corian Countertops with backsplash guard, varnished teak fiddles Exhaust blower: DC, 3" diameter, Jabsco 35115-0020 Faucet: Grohe, single lever, pull-out head with hose Freezer: top load access, 12V, Waeco CB36 Lockers: teak, storage Overhead Lockers: storage Sharp Carousel microwave/convection oven, 110/120V, 60Hz Refrigeration: Coolmatic refrigerator/freezer, in counter; Waeco refrigerator, below steps Sink: single bowl, stainless steel, Franke

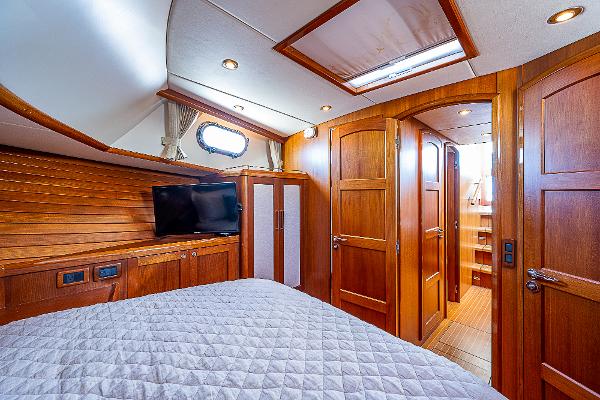

MASTER STATEROOM

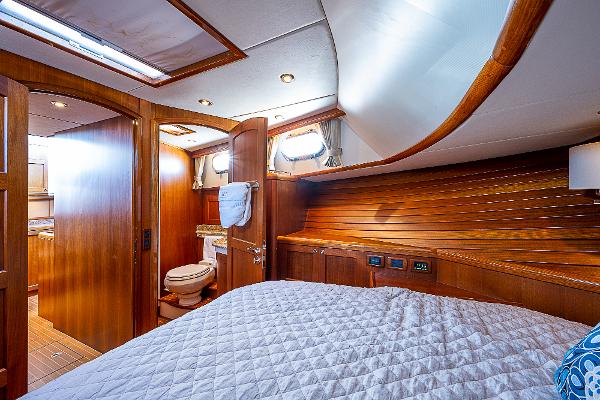

Master Stateroom Forward Berth: Island, Centerline with storage drawers under berth Reading lights: two units, DC Samsung Flatscreen TV, Optional Upgrade Cabinets: storage throughout Hanging lockers: cedar-lined, with interior lights En Suite Private Head and Stall Shower Portholes: stainless steel, opening Skylight hatch with Oceanair screen and shade

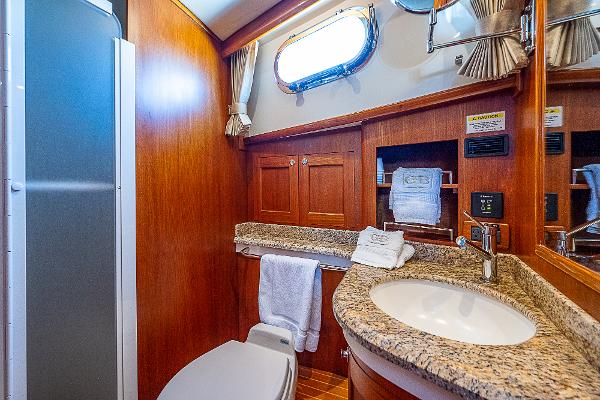

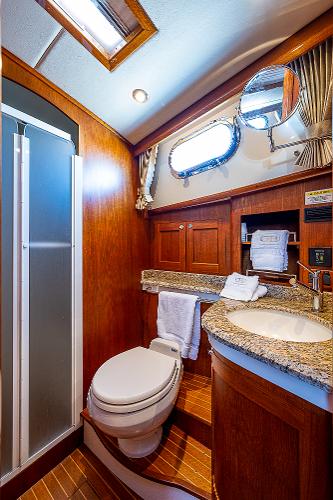

MASTER HEAD

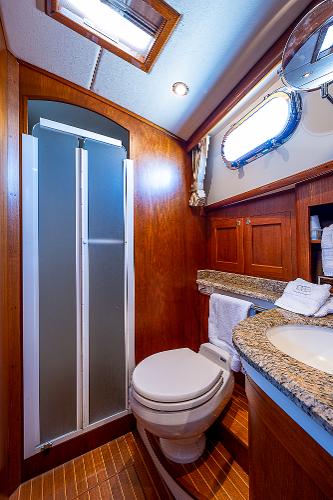

Cabinets: under-counter storage Countertops: Corian Exhaust blower: DC, Pelonis Mirror: above sink Porthole: stainless steel, opening Shower drain: Whale Gulper with 320 Gulper pump, DC Shower faucet: Grohe, mixer, hand-held Shower stall: separate cell, bi-fold plexiglass door, with teak slats shower pan Sink: under-mount, porcelain Sink faucet: Grohe, single lever Skylight hatch with Oceanair screen and shade Toilet: Dometic Vacuflush Vanity: above-counter storage

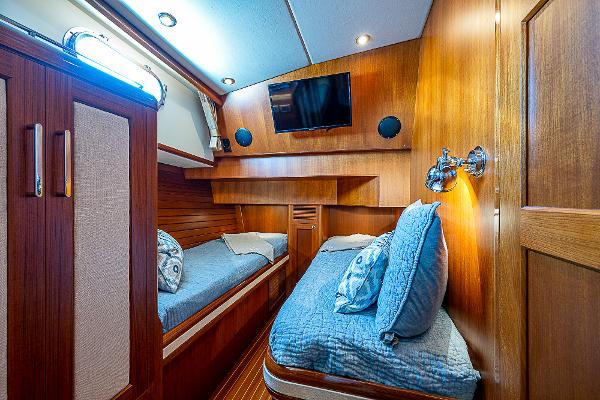

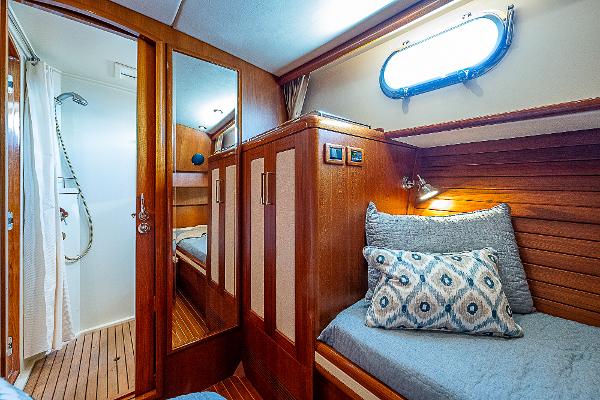

GUEST STATEROOM

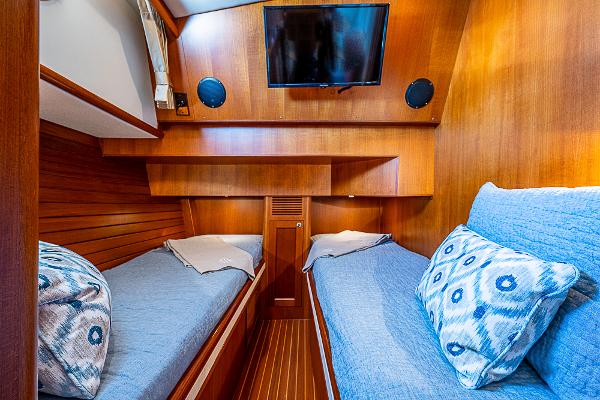

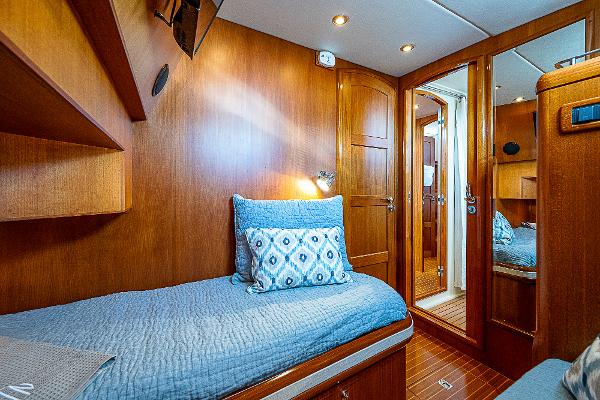

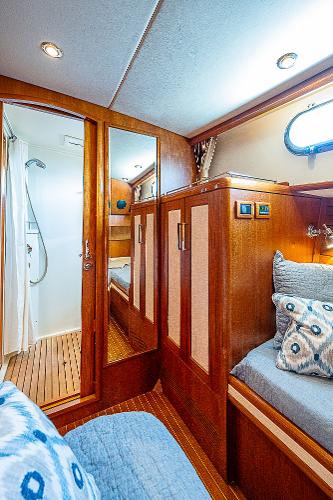

Guest Stateroom, Starboard Berths: Twin side-by-side singles, storage below each Night table: teak, with drawer, between berths Reading lights, two units, DC, LED Samsung Flatscreen TV, Optional Upgrade Hanging locker: teak, cedar-lined, large with interior light Porthole: stainless steel, opening Head with Stall Shower: En Suite access

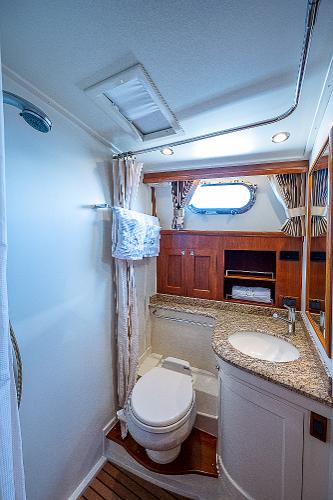

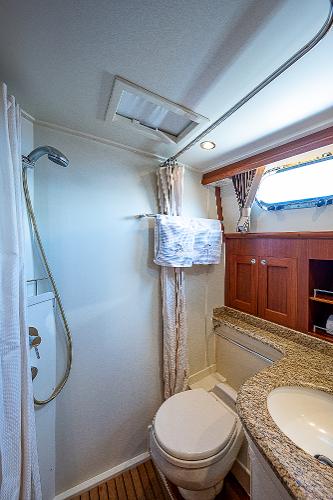

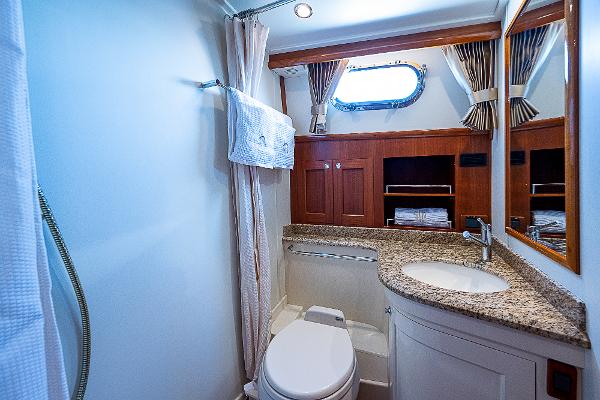

GUEST/DAY HEAD

Access: from Guest Stateroom or Companionway for use as Day Head Cabinets: under-counter storage Countertops: Corian Exhaust blower: DC, Pelonis Mirror: above sink Portlight: stainless steel, opening, smoked glass, with screen Shower drain: Whale Gulper with 320 Gulper manual pump, DC Shower faucet: Grohe, mixer, hand-held Shower stall: combined with head, teak slats shower pan Sink faucet: Grohe, single lever Sink: under-mount, porcelain Skylight hatch: Manship, smoked, with Oceanair screen and shade Toilet: Dometic Vacuflush

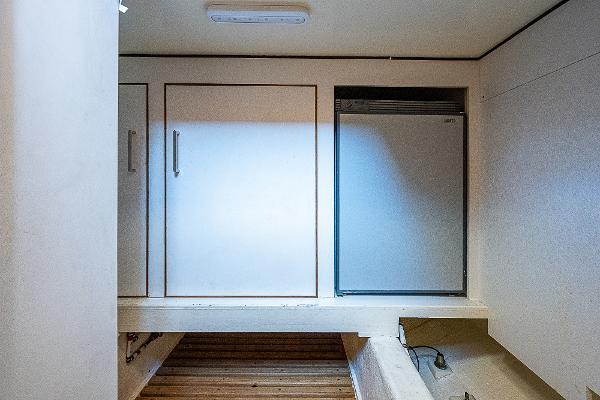

UTILITY ROOM

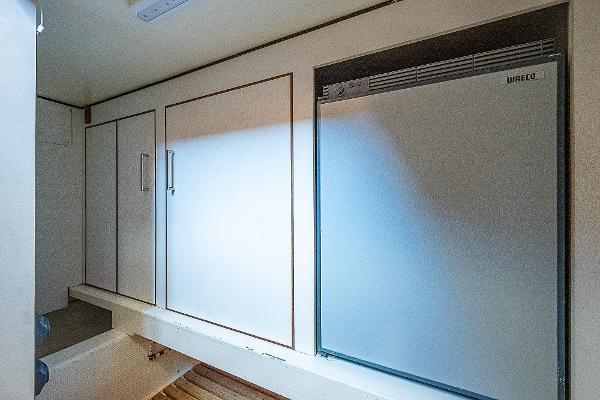

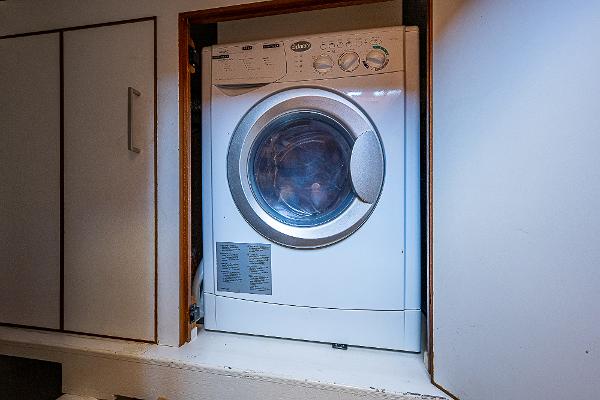

Access: from galley hatch under stairs  Exhaust blower: DC, 3" diameter, Jabsco 35115-0020 Freezer: front-loading Freezer at utility room port locker, Optional Upgrade Locker: storage Sole: teak slats, natural Washer/Dryer: Splendide WD 2100 combo unit below steps, Optional Upgrade

INTERIOR THROUGHOUT

46SX Standard Layout: (i) salon with U-settee to port, straight settee to starboard; (ii) helmseat and companion seat; (iii) down galley; (iv) two staterooms, forward Master with en-suite head & shower, guest stateroom, day head; (v) utility room Bulkheads: (i) teak veneer; (ii) Formica Cabin doors: teak, with raised panels, polished chrome lock sets Cabinet furniture: teak, raised panels Countertops - Galley & Heads: Corian Drawers: Blum, positive locks Drawers: teak faced with positive locks Grab rails: teak bars, stainless steel fittings Hardware: stainless steel and chrome Headlining: vinyl panels, foamed back, removable with Fast Mount System Hull ceiling sides: teak Interior varnish: satin marine finish, International Goldspar Satin Varnish Lighting: DC, LED, Cantalupi Lights: reading lights at berths Portlights: lower deck, opening, with screens, Manship Skylight hatch screen: Oceanair, with teak trim Sole - lower deck: teak & holly in staterooms, heads and companionway Sole - upper deck: teak & holly Steps: teak Steps anti-slip: custom rubber traction strips Switches & outlets: Vimar modular system, bronze covers Window treatments: fabric curtains

UPDATES & UPGRADES

Twin Cummins QSC 8.3 @ 600hp each with Zeus Pod Drive System with approximately 990 hours as of 01 Mar 2023 Cummins Zeus Autopilot Custom Cockpit Fixed Awning Icemaker in Cockpit Watermaker, Offshore Marine (Parker) LT 500gpd 2021 engine service/pod services including new aftercooler cores

EXCLUSIONS

Owner's personal belongings. A complete list will be provided upon request.

DISCLAIMER

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

MECHANICAL DISCLAIMER

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing.
